- Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5

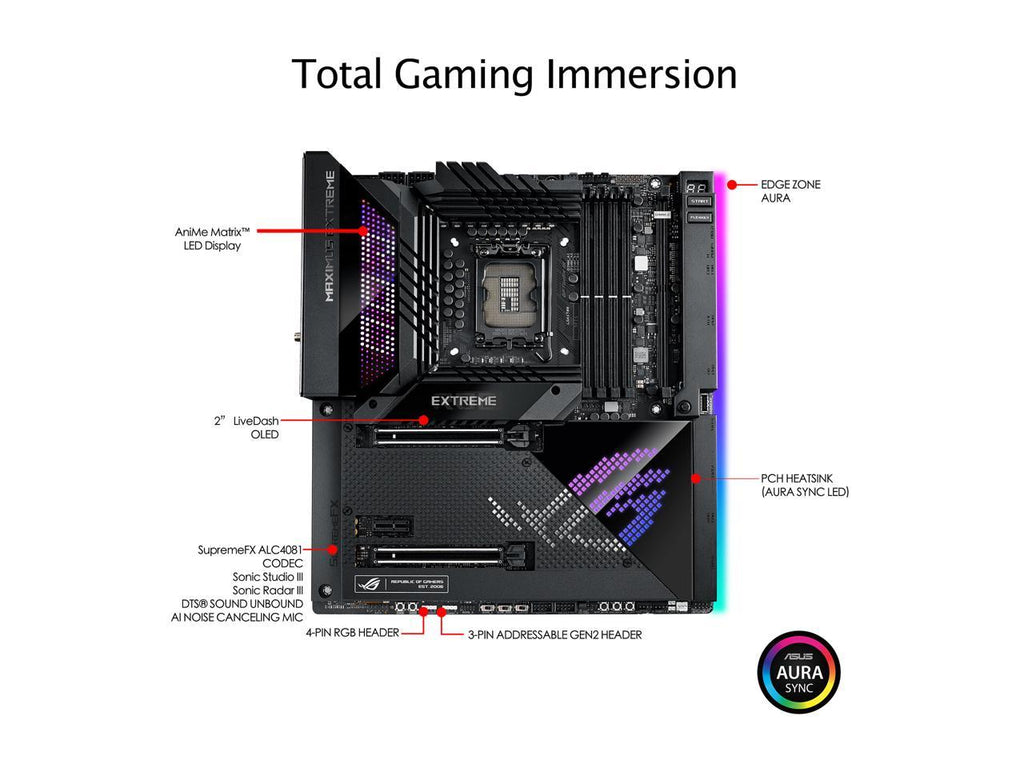

- Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration

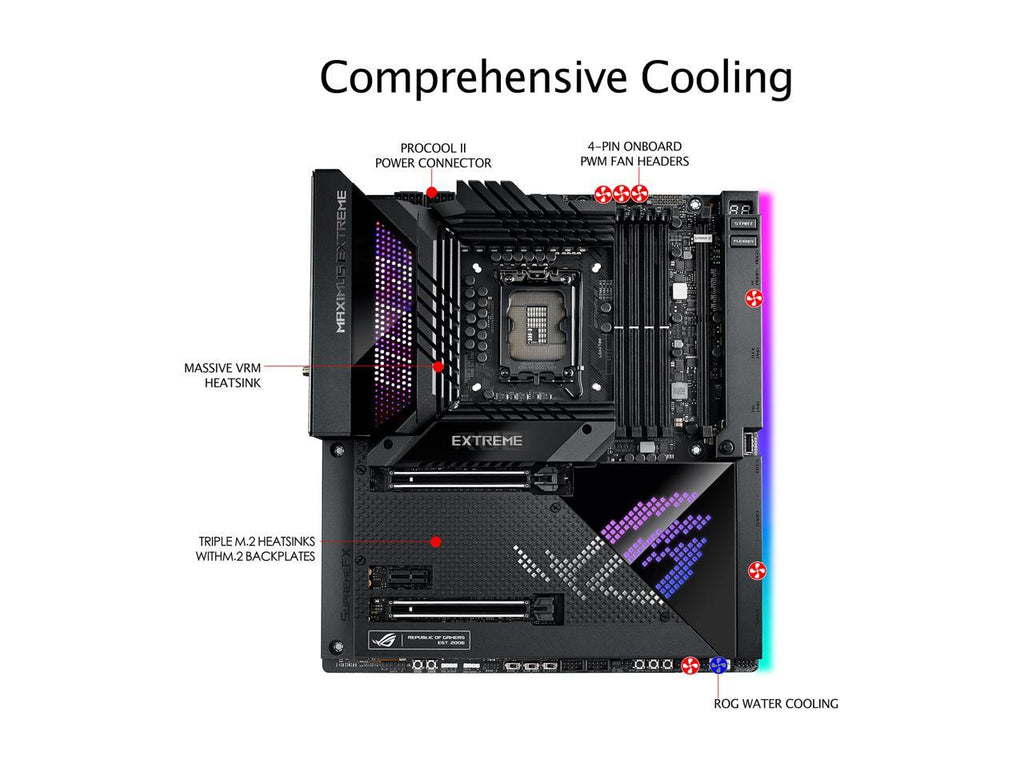

- Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

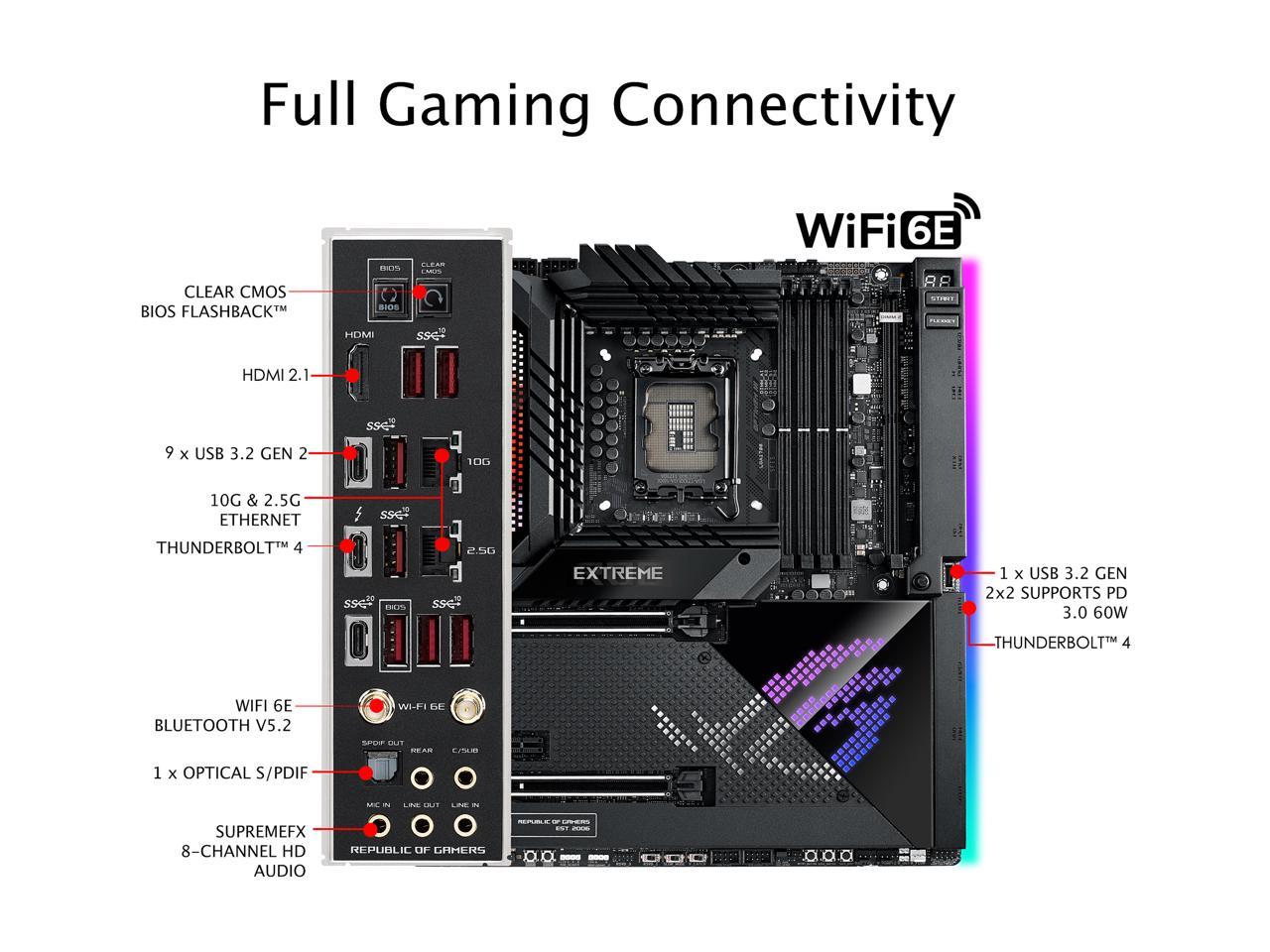

- High Performance Networking: Onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard

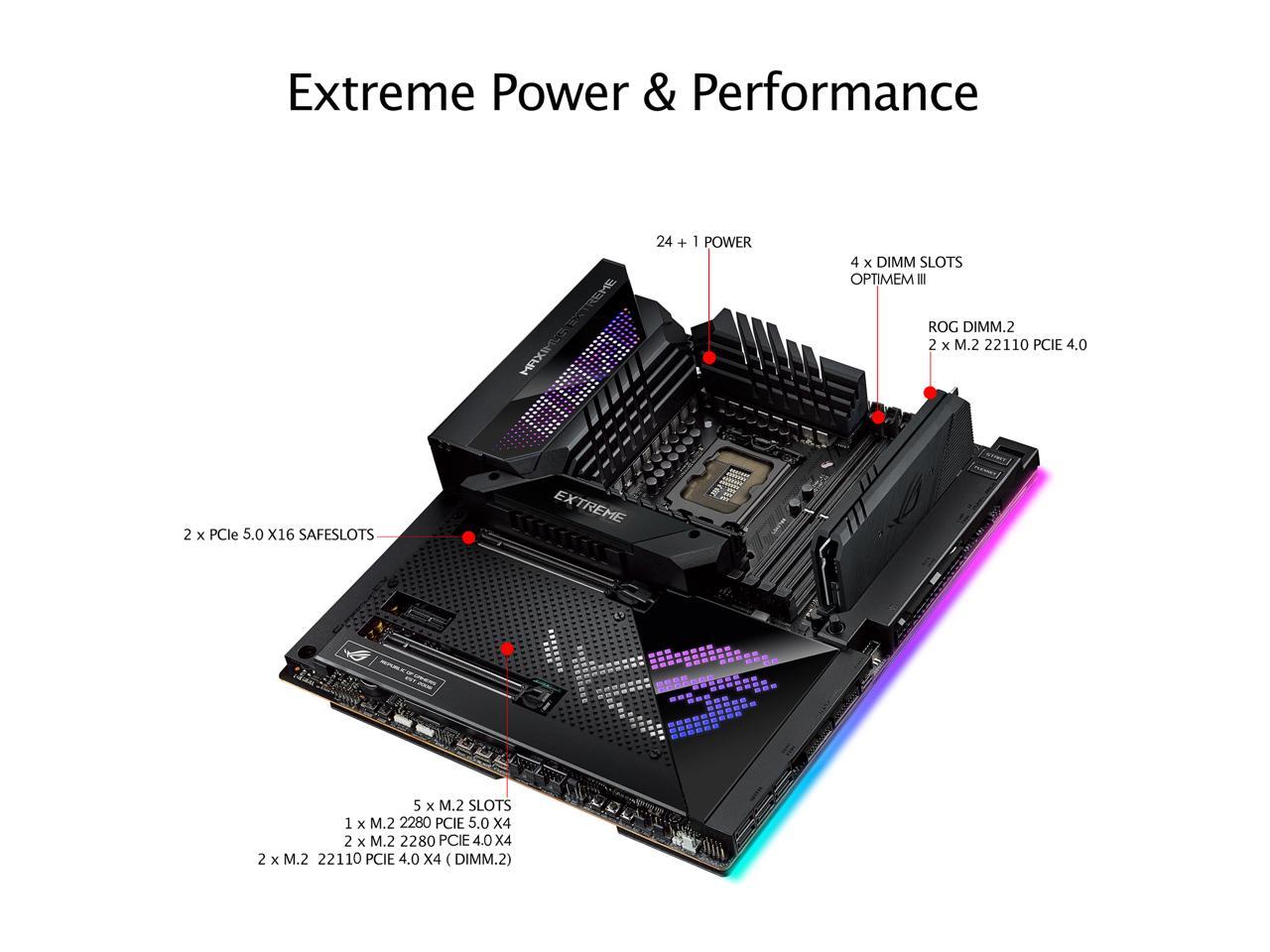

- Fastest Gaming Connectivity: PCIe 5.0, 5x M.2 slots, 1x PCIe 5.0 M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, 2x Thunderbolt 4 ports , rear triple USB Type-C ports
- All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

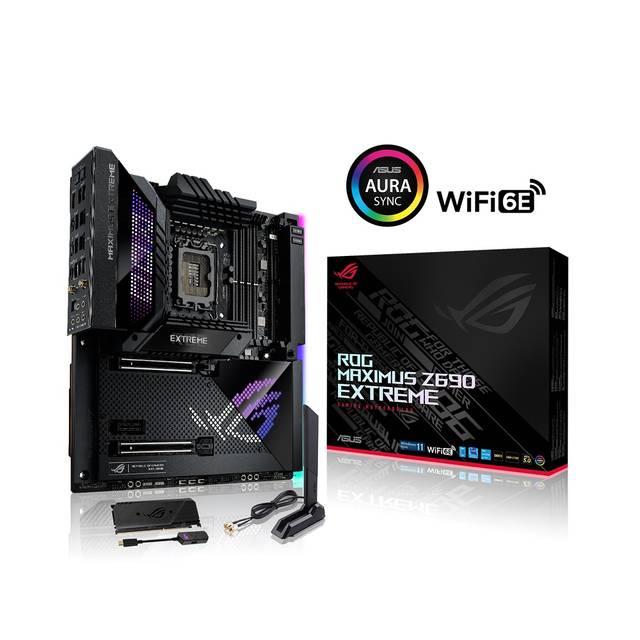

LEARN MORE ABOUT THE ASUS MAXIMUS Z690 EXTREME
| Best Seller Ranking |
#59 in
|
Model
| Brand |
ASUS |
| Series |
ROG |
| Model |
MAXIMUS Z690 EXTREME |
| Part Number |
90MB18H0-M0AAY0 |
Supported CPU
| CPU Socket Type
|
LGA 1700
* Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets. |
| CPU Type |
Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors |
Chipsets
| Chipset
|
Intel Z690 |
Onboard Video
| Onboard Video Chipset
|
Supported only by CPU with integrated graphic |
Memory
| Memory Standard |
DDR5 |
Expansion Slots
| PCI Express 5.0 x16 |
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**
* Please check PCIe bifurcation table in support site.
** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. |
| PCI Express x1 |
1 x PCIe 3.0 x1 slot |
Storage Devices
| SATA 6Gb/s
|
6 x SATA 6Gb/s ports****
****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. |
Onboard Audio
| Audio Chipset
|
ROG SupremeFX ALC4082 |
Onboard LAN
| LAN Chipset |
Marvell AQtion 10Gb |
| Second LAN Chipset |
Intel 2.5Gb Ethernet |
| Max LAN Speed |
10Gbps + 10/100/1000/2500Mbps |
| Wireless LAN |
Wi-Fi 6E |
Physical Spec
| Form Factor |
Extended ATX |
| LED Lighting |
RGB |
Windows Compatibility
| Windows 11 |
Ready |
