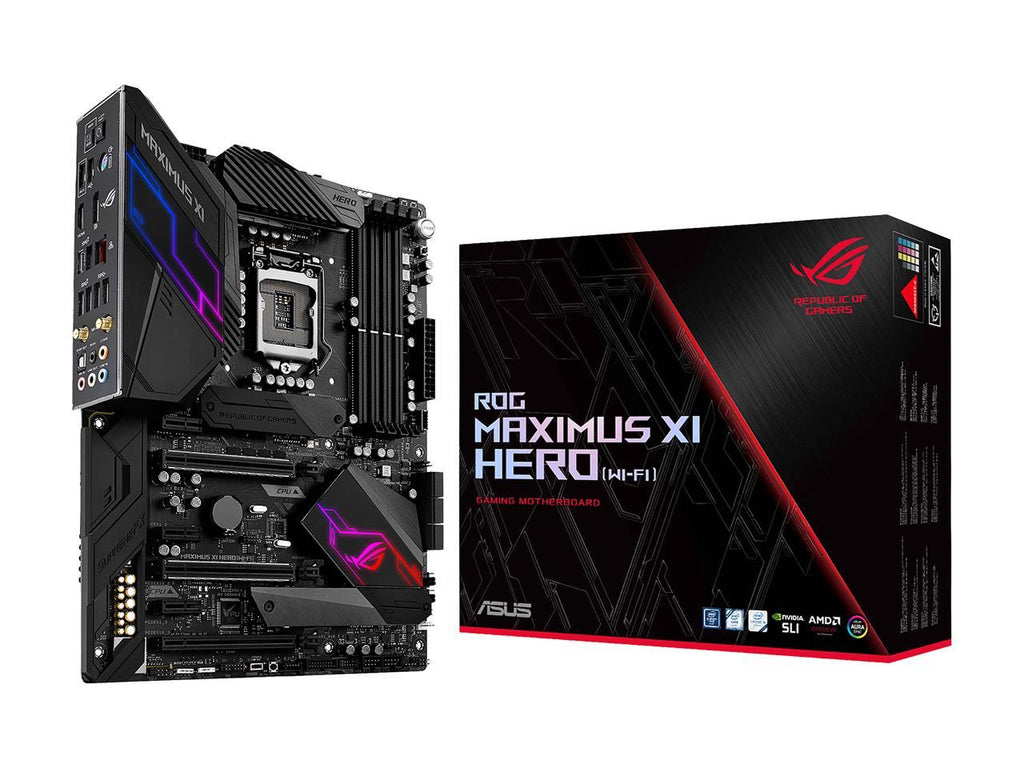

Name: Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151
Brand: ASUS
SKU: Maximus XI Hero (Wi-Fi)
Price: 686.00 CAD
Availability: OutOfStock

Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

**Model**
Brand	ASUS
Series	ROG
Model	Maximus XI Hero (Wi-Fi)

**Supported CPU**
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors * Not backward compatible with older generation of LGA 1151 CPUs * Refer to www.asus.com for CPU support list
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0* * Intel Turbo Boost Technology 2.0 support depends on the CPU types

**Chipsets**
Chipset	Intel Z390

**Onboard Video**
Onboard Video Chipset	Integrated Graphics Processor - Intel UHD Graphics support Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 * Hyper DIMM support is subject to the physical characteristics of individual CPUs. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) 1 x PCIe 3.0 x16 (x4 mode) * * The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default.
PCI Express x1	3 x PCIe 3.0 x1 slots

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 and SATA modes)* 1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIE 3.0 x4 mode) * When the M.2_1 Socket 3 is operating in SATA mode, SATA6G_2 port will be disabled.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX S1220 High Definition Audio CODEC
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel I219-V
Max LAN Speed	10/100/1000Mbps
Wireless LAN	Intel Wireless-AC 9560 Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth	Bluetooth v5.0

**Rear Panel Ports**
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.1 Gen 2 (red) (1 x Type-C + 3 x Type-A) 2 x USB 3.1 Gen 1 (blue) Type-A 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks

**Internal I/O Connectors**
Onboard USB	1 x USB 3.1 Gen 2 front panel connector 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x TPM connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! II switch(es) 1 x Reset button(s) 1 x ReTry button 1 x System panel connector 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x 4-pin ATX 12V Power connector(s)

**Features**
Features	Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology ROG Exclusive Features: ReTry Button Start Button Reset Button Extreme Engine Digi+: - MicroFine Alloy Chokes - 10K Black Metallic Capacitors - OptiMOS MOSFET Mem TweakIt Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III Special Features: ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App AURA: - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features: - USB BIOS Flashback - MemOK! II - AI Suite 3 - Ai Charger - ASUS CrashFree BIOS 3 - Armoury Crate - Pre-mounted I/O Shield - ASUS NODE: hardware control interface - OptiMem II - ASUS EZ Flash 3 - ASUS C.P.R. (CPU Parameter Recall) - BUPDATER - BIOS Flashback Button - Clear CMOS Button - Reset Button ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 ASUS Q-Design: - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Overclocking Protection: - ASUS C.P.R. (CPU Parameter Recall) BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Operating System: Windows 10 64-bit

**Packaging**
Package Contents	Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant) 1 x SLI HB BRIDGE (2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x ROG coaster(s)

General Information

UPC	192876124130

Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151

Description

Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151
