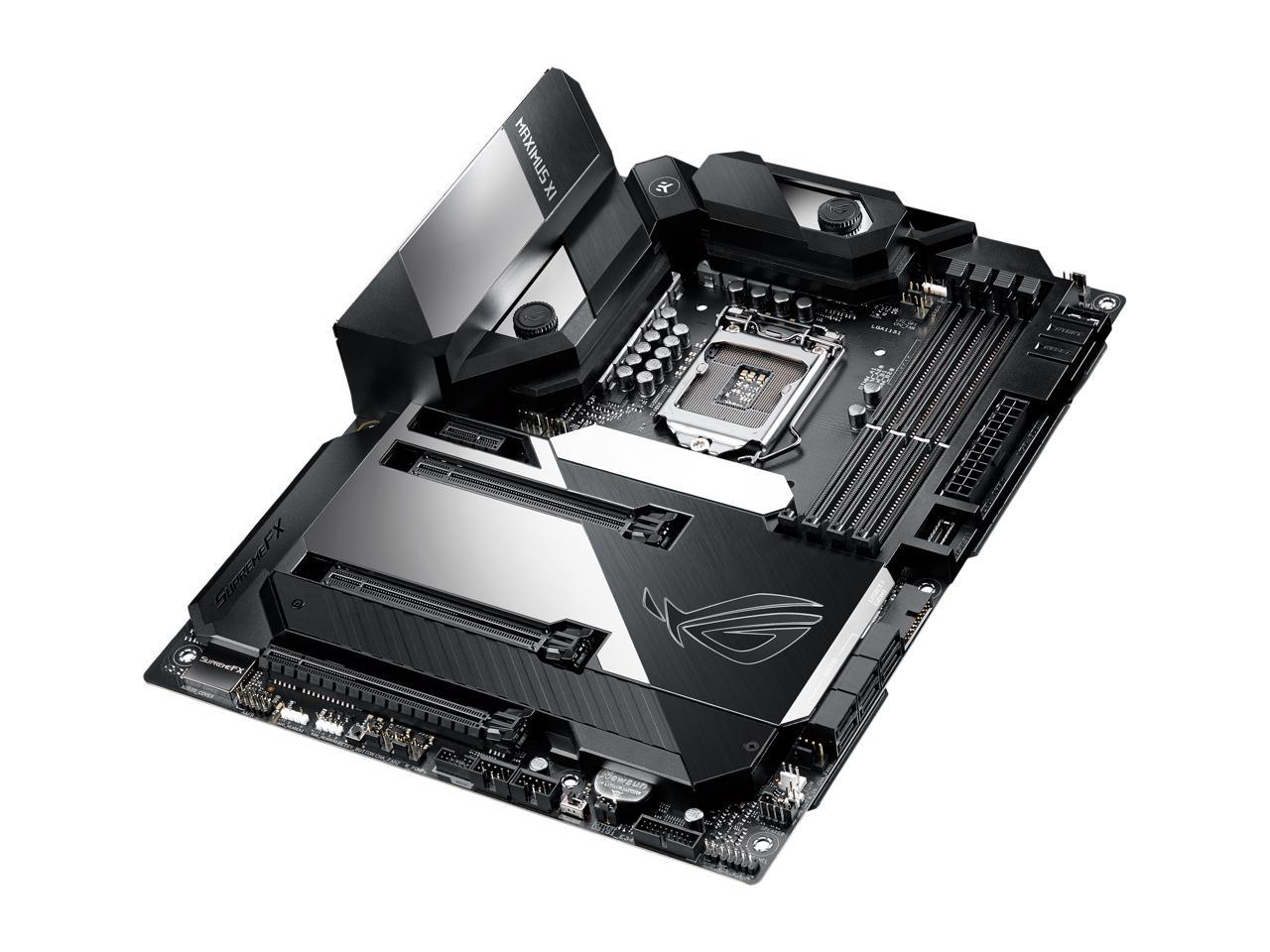

Name: Asus Rog Maximus Xi Formula Z390 Gaming Motherboard Lga1151
Brand: ASUS
SKU: Maximus XI Formula
Price: 2105.00 CAD
Availability: InStock

Asus Rog Maximus Xi Formula Z390 Gaming Motherboard Lga1151

Roll over image to zoom in Click on image to zoom

Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability
Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
Dedicated water cooling headers and built-in CrossChill EK III water block allow monitoring of water temperature and flow without a standalone controller

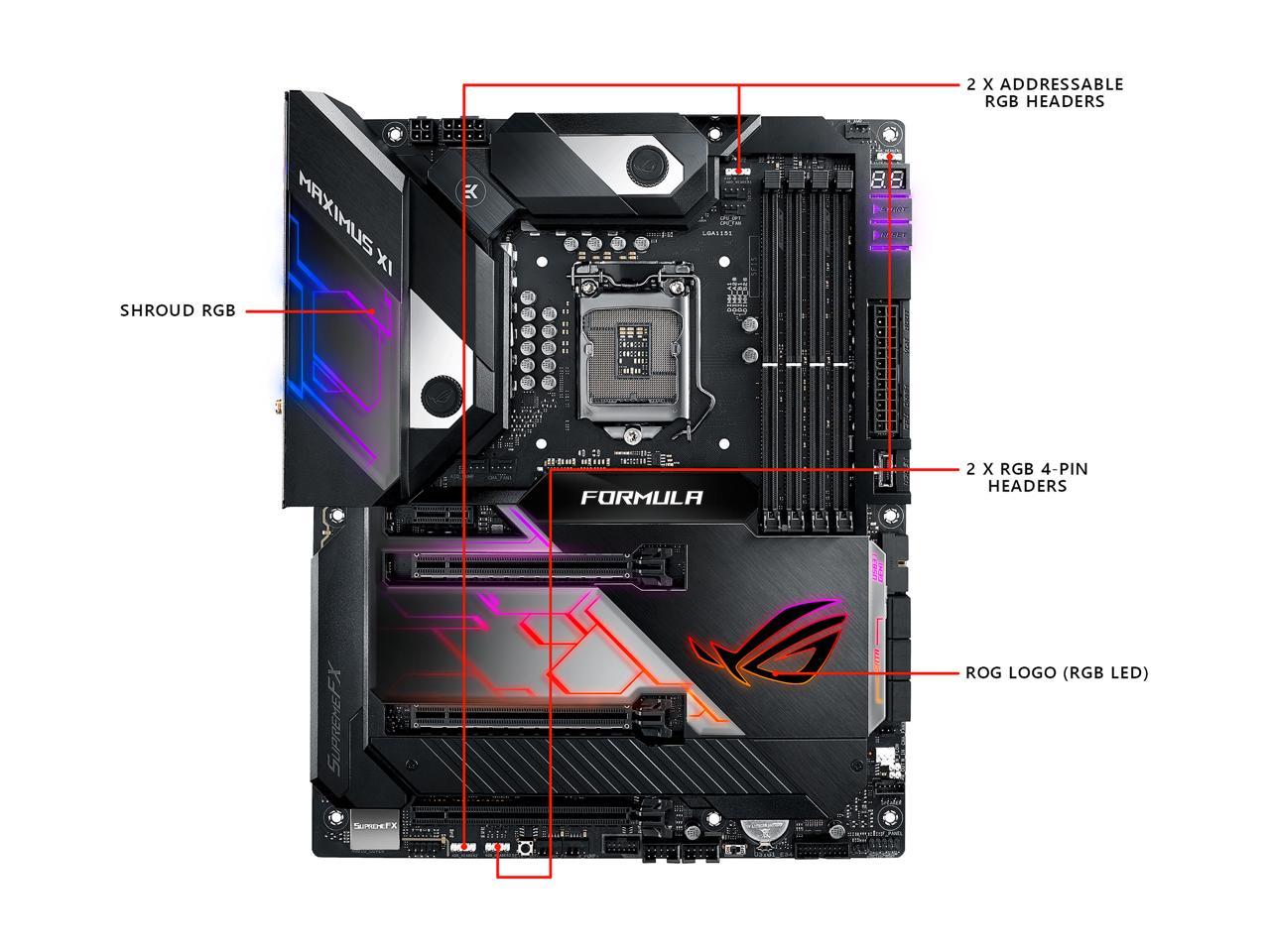

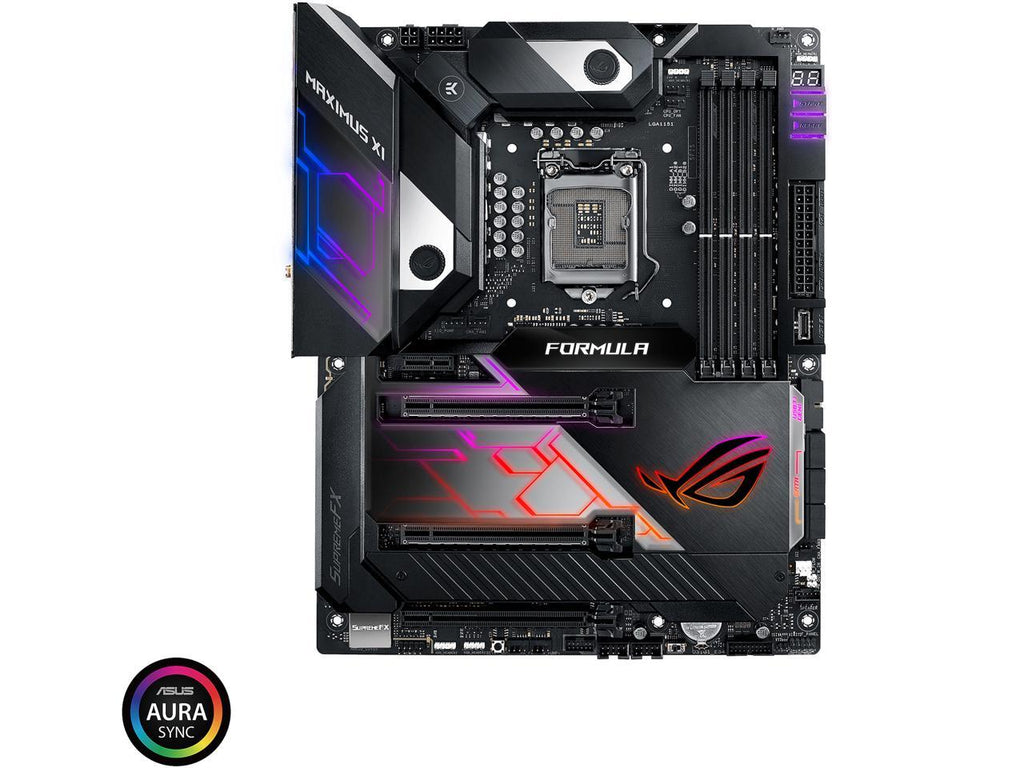

Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality

**Model**
Brand	ASUS
Series	ROG
Model	Maximus XI Formula

**Supported CPU**
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors * Not backward compatible with older generation of LGA 1151 CPUs
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 * Intel Turbo Boost Technology 2.0 depends on the CPU type

**Chipsets**
Chipset	Intel Z390

**Onboard Video**
Onboard Video Chipset	Integrated Graphics Processor - Intel UHD Graphics support VGA output support: HDMI - Supports HDMI 1.4b with max. resolution 4096x2160@30Hz

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4400+(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 3.0 x16	Intel Socket 1151 for Intel Core 9000 series, 8th Generation Core i7/i5/i3, Pentium and Celeron processors 2 x PCIe 3.0 x16 slots (supports x16, x8/x8, x8/x4+x4) Intel Z390 Chipset 1 x PCIe 3.0 x16 slot (max. at x4 mode)* * The PCIe x16_3 slot shares bandwidth with SATA6G_56 ports. PCIe x16_3 slot is set at x2 mode by default.
PCI Express x1	1 x PCIe 3.0 x1 slot

**Storage Devices**

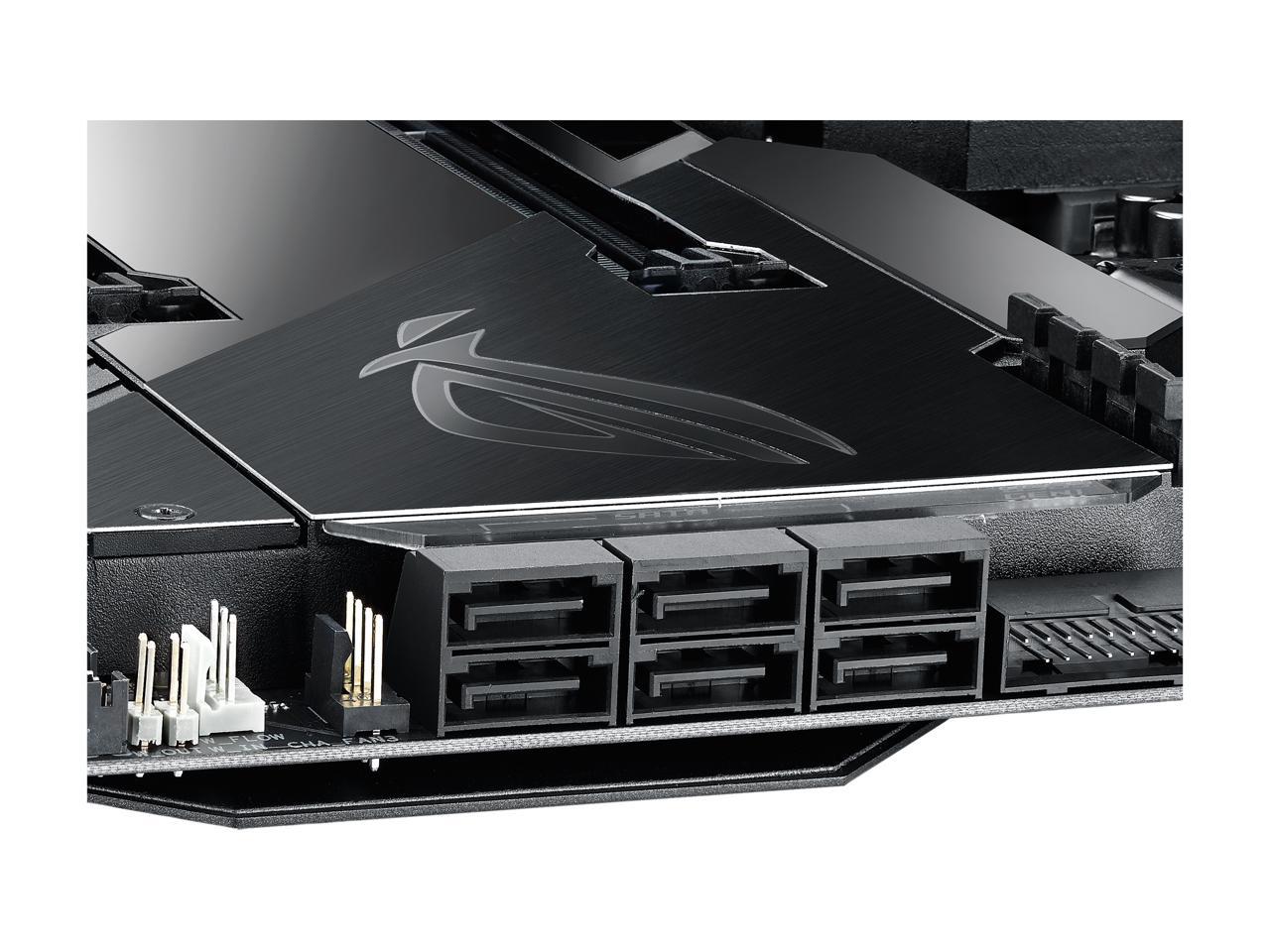

SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (PCIe 3.0 x4 and SATA modes)* 1 x M.2 Socket 3 with M key, type 2242/2260/2280 (PCIe 3.0 x4 mode) * When M.2_1 Socket 3 is operating in SATA mode, SATA port 1 will be disabled. ** When an 22110 M.2 SSD is installed in M.2_1, M.2_2 will be limited to an 2242 M.2 SSD.
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	ROG SupremeFX High Definition Audio S1220 CODEC
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit /192 kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	1 x Aquantia AQC111C 5G LAN
Second LAN Chipset	Intel I219V
Max LAN Speed	100/1000/2500/5000Mbps + 10/100/1000Mbps
Wireless LAN	Intel Wireless-AC 9560 2x2 Wi-Fi with MU-MIMO 802.11 a/b/g/n/ac supports dual frequency band 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73 Gbps transfer speed
Bluetooth	Bluetooth v5.0

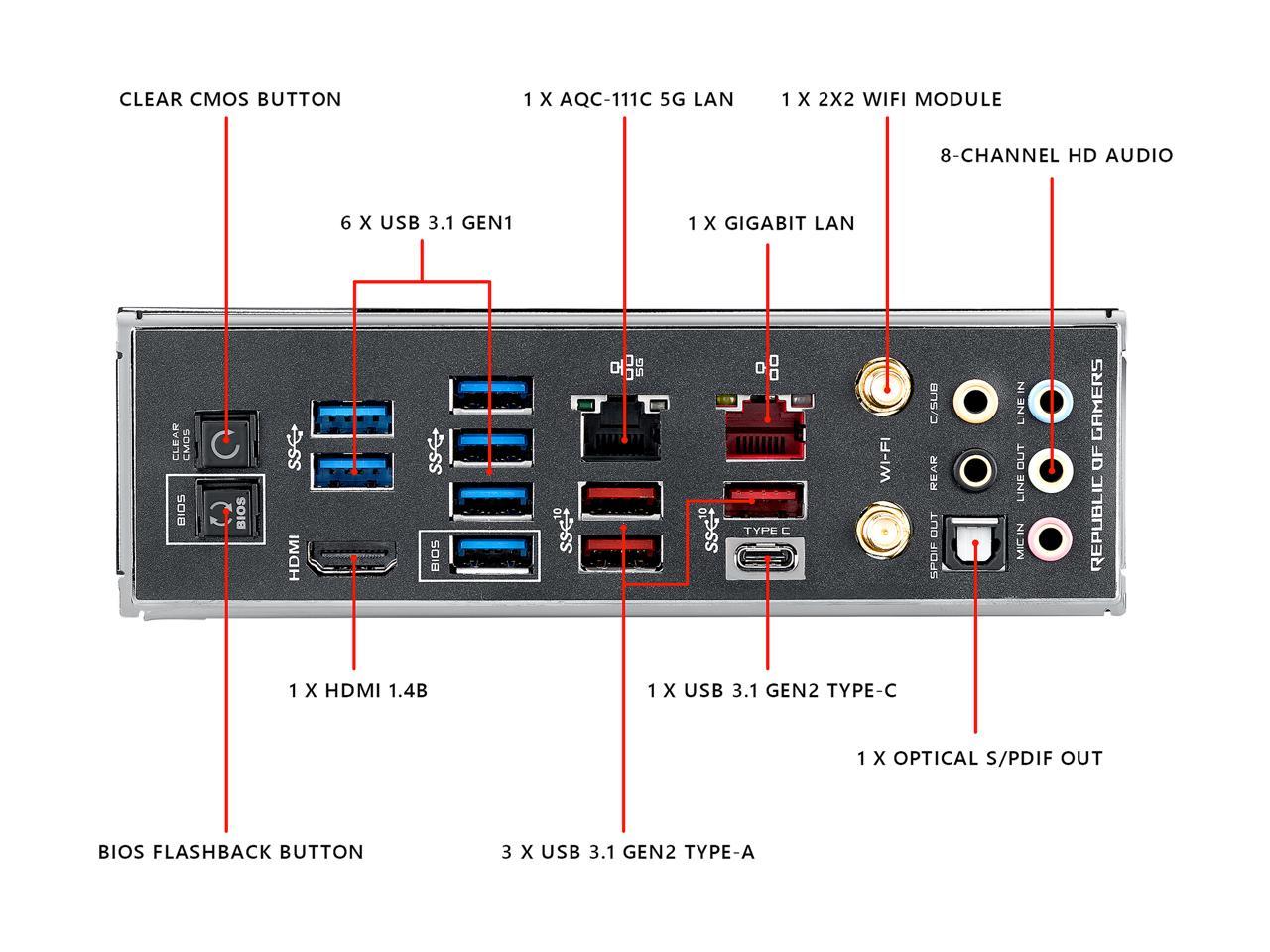

**Rear Panel Ports**
HDMI	1 x HDMI 1.4b
RJ45	1 x AQC-111C 5G LAN port 1 x Anti-surge LAN (RJ45) port
USB 3.1	6 x USB 3.1 Gen 1 ports [blue] 3 x USB 3.1 Gen 2 ports Type-A [red]
USB Type-C	1 x USB 3.1 Gen 2 port Type-C [black]
S/PDIF Out	1 x Optical
Audio Ports	5 x Gold-plated audio jacks
Antenna Connectors	1 x 2x2 Wi-Fi module

**Internal I/O Connectors**
Onboard USB	1 x USB 3.1 Gen2 front panel connector 2 x USB 3.1 Gen1 connectors support 4 USB 3.1 Gen1 ports 2 x USB 2.0 connectors support 4 USB 2.0 ports
Other Connectors	1 x NODE connector 1 x 4-Pin CPU_FAN connector 1 x 4-Pin CPU_OPT fan connector 3 x 4-Pin Chassis fan connectors 1 x 5-pin EXT_FAN connector 1 x 4-Pin H_AMP fan connector 1 x 4-pin W_PUMP+ connector 1 x 2-pin W_IN connector 1 x 2-pin W_OUT connector 1 x 3-pin W_FLOW connector 1 x 4-pin AIO_PUMP connector 1 x T_ SENSOR connector 2 x AURA addressable headers 2 x AURA RGB strip headers 1 x Start button 1 x Reset button 1 x ReTry button 1 x MemOK!_II switch 1 x Front panel audio connector (AAFP) 1 x System panel connector

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin EATX power connector 1 x 8-pin EATX 12V power connector 1 x 4-pin EATX 12V power connector

**Features**
Features	Multi-GPU Support: Supports NVIDIA 2-Way / Quad-GPU SLI Technology Supports AMD 3-Way / Quad-GPU CrossFireX Technology ROG Exclusive Features: Extreme Engine Digi+ - MicroFine Alloy Choke - NexFET MOSFETs - 10K Black Metallic Capacitors Crosschill EK III ROG RGB Armor Start Button Retry Button Extreme Tweaker ROG Exclusive Software - Mem Tweakit - RAMCache III - RAMDisk - CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Link - Sonic Radar III Special Features: AURA - Aura Lighting Control - Aura RGB Strip Headers - Aura Addressable Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices ASUS Dual Intelligent Processors 5 - 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, and Turbo app ASUS Exclusive Features - MemOK! II - OptiMem II - Pre-mounted I/O shield - AI Suite 3 - USB BIOS Flashback - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS C.P.R. (CPU Parameter Recall) - LiveDash - Ai Charger - BUPDATER - Armoury Crate - ASUS NODE: hardware control interface - BIOS Flashback Button - Clear CMOS Button - Reset Button ASUS Q-Design - Q-Connector - Q-DIMM - Q-Code - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) BIOS: 1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1 Manageability: WOL, PXE Software: Overwolf Kaspersky Anti-Virus Daemon Tools Software WinRAR Operating System Support: Windows 10 64-bit

**Packaging**

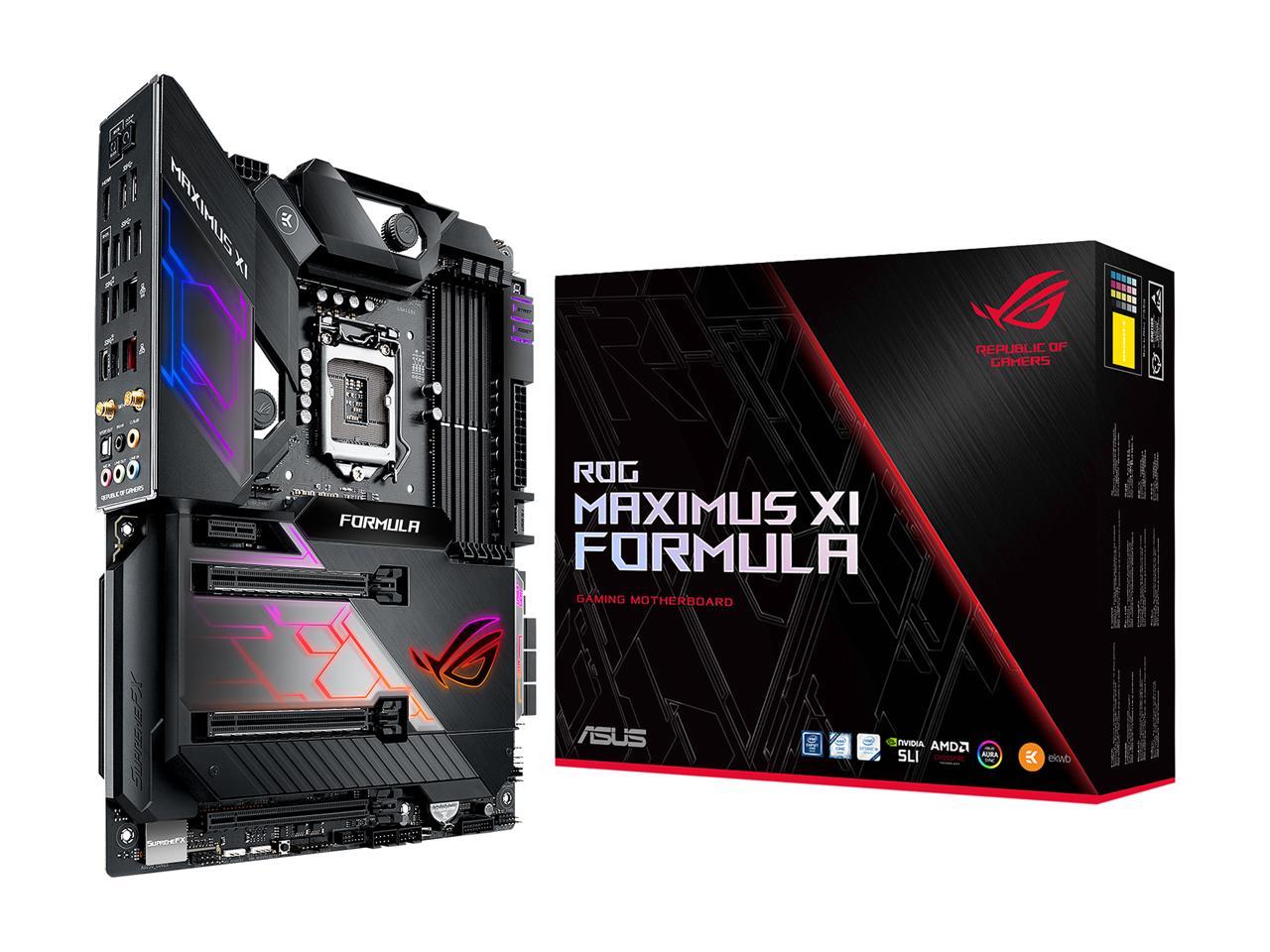

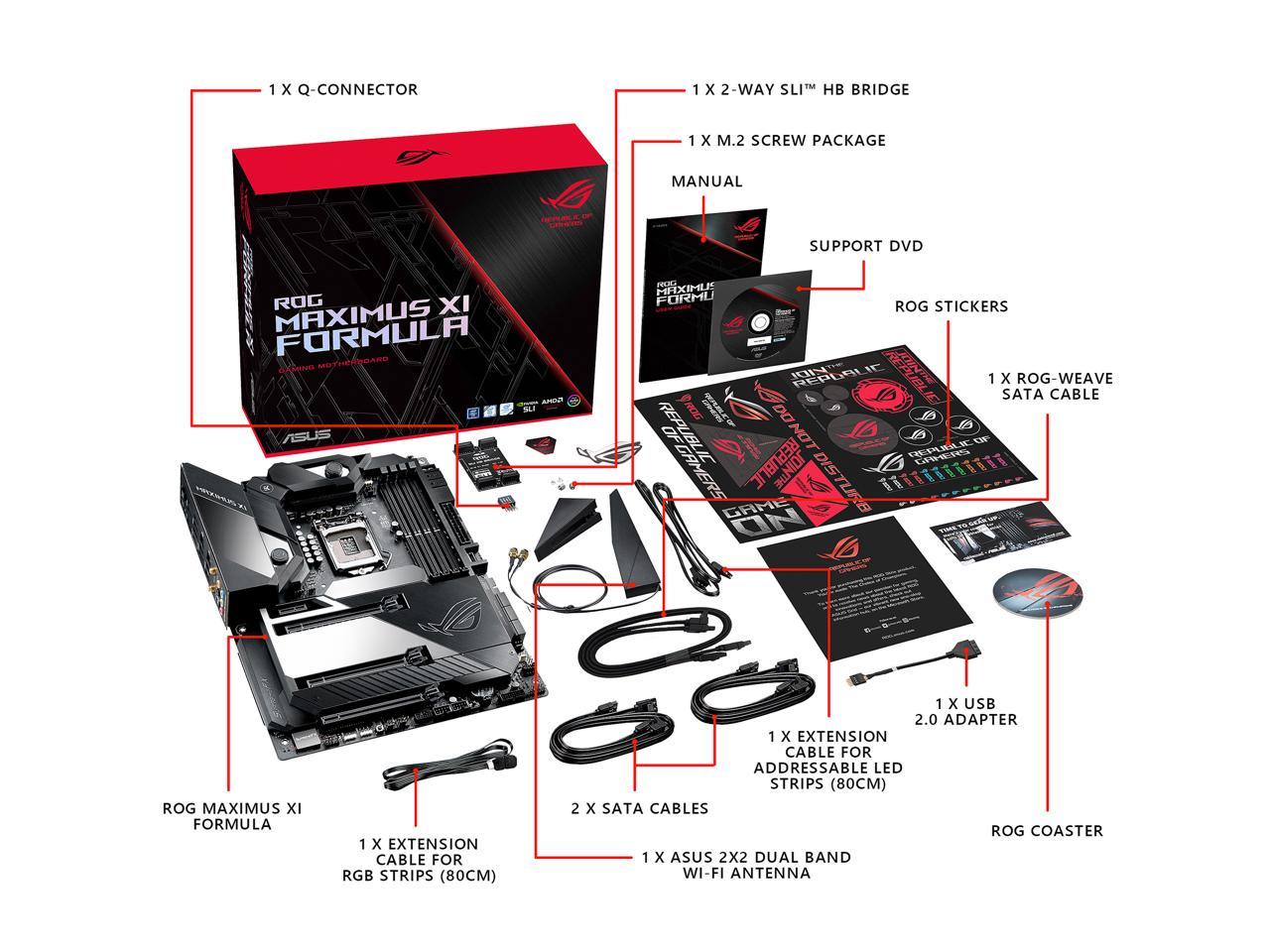

Package Contents	Accessories: 1 x User guide 1 x ROG motherboard support DVD 1 x ASUS 2x2 dual band Wi-Fi antenna (Wi-Fi 802.11 a/b/g/n/ac compliant) 2 x 2-in-1 SATA 6Gb/s cables 1 x ROG weave SATA 6G cable 1 x 2-Way SLI HB bridge 1 x Q-Connector 1 x USB 2.0 adapter 1 x extension cable for RGB strips (80cm) 1 x extension cable for Addressable LED strips (80cm) 1 x M.2 screws package 1 x ROG logo plate sticker 1 x ROG coaster 1 x ROG sticker 1 x ROG Thank you card

General Information

UPC	192876131282
