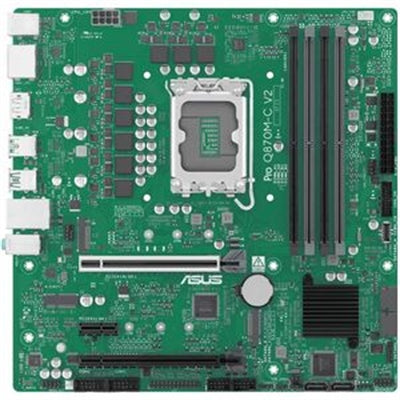

ASUS Pro Q870M-C V2-CSM Micro-ATX Motherboard
The ASUS Pro Q870M-C V2-CSM is a business-class Micro-ATX motherboard engineered for enterprise IT environments requiring stability, performance, and long-term support. Built on the Intel Q870 chipset and featuring the LGA1851 socket, this motherboard delivers exceptional compatibility with Intel Core Ultra processors while maintaining the compact form factor ideal for space-constrained server and workstation deployments. With DDR5 memory support up to 256 GB, PCIe 5.0 connectivity, and ASUS Corporate Stable Model (CSM) certification, it provides the reliability and management capabilities that IT professionals demand for mission-critical infrastructure.
Key Features
- Intel Q870 chipset with LGA1851 socket for Core Ultra processor compatibility
- Supports up to 256 GB DDR5 memory across four DIMM slots
- PCIe 5.0 x16 SafeSlot with additional PCIe 4.0 expansion slots
- Dual DisplayPort and HDMI video outputs for multi-display configurations
- Multiple M.2 slots for high-speed NVMe storage expansion
- 10 Gbps USB Type-A and Type-C ports for fast peripheral connectivity
- ASUS Control Center Express for server-grade IT management and monitoring
- Corporate Stable Model (CSM) program with extended lifecycle support
- Compact Micro-ATX form factor for flexible deployment options
Technical Specifications
| Specification |
Details |
| Manufacturer |
ASUS |
| Part Number |
Pro Q870M-C V2-CSM |
| Chipset |
Intel Q870 |
| Socket |
LGA1851 |
| Form Factor |
Micro-ATX |
| Memory Support |
DDR5, up to 256 GB (4 DIMM slots) |
| PCIe Slots |
PCIe 5.0 x16 SafeSlot + PCIe 4.0 expansion |
| Storage |
Multiple M.2 slots for NVMe SSDs |
| Video Outputs |
Dual DisplayPort, HDMI |
| USB Connectivity |
10 Gbps Type-A and Type-C ports |
| Management |
ASUS Control Center Express, CSM program |
Frequently Asked Questions
What processors are compatible with the ASUS Pro Q870M-C V2-CSM?
This motherboard supports Intel Core Ultra processors with the LGA1851 socket, designed specifically for the Intel Q870 chipset platform.
How much DDR5 memory can this Micro-ATX motherboard support?
The ASUS Pro Q870M-C V2-CSM supports up to 256 GB of DDR5 memory through its four DIMM slots, providing exceptional capacity for memory-intensive workloads.
What management tools are included with this business-class motherboard?
The board includes ASUS Control Center Express, delivering server-grade IT management, monitoring, and remote administration capabilities. As part of the Corporate Stable Model program, it also includes extended lifecycle support for enterprise deployments.
Is this Micro-ATX motherboard suitable for compact server environments?
Yes, the compact Micro-ATX form factor combined with PCIe 5.0 performance and DDR5 support makes it ideal for space-constrained server rooms and workstation builds requiring enterprise-grade reliability.
