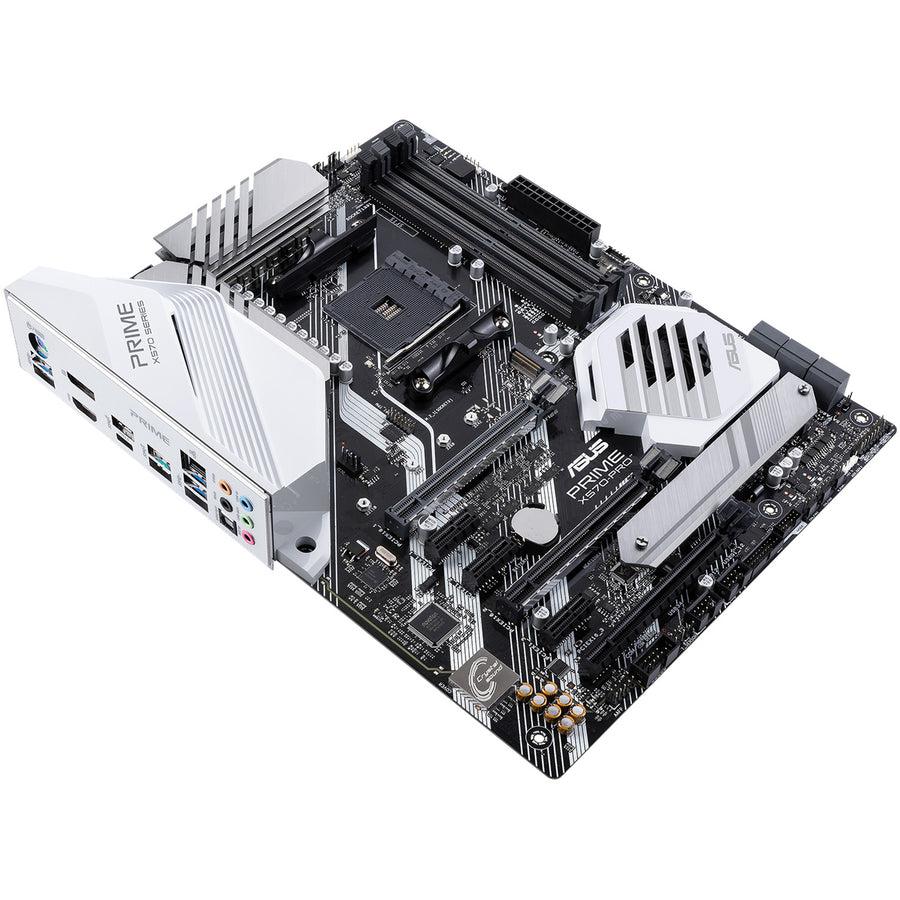

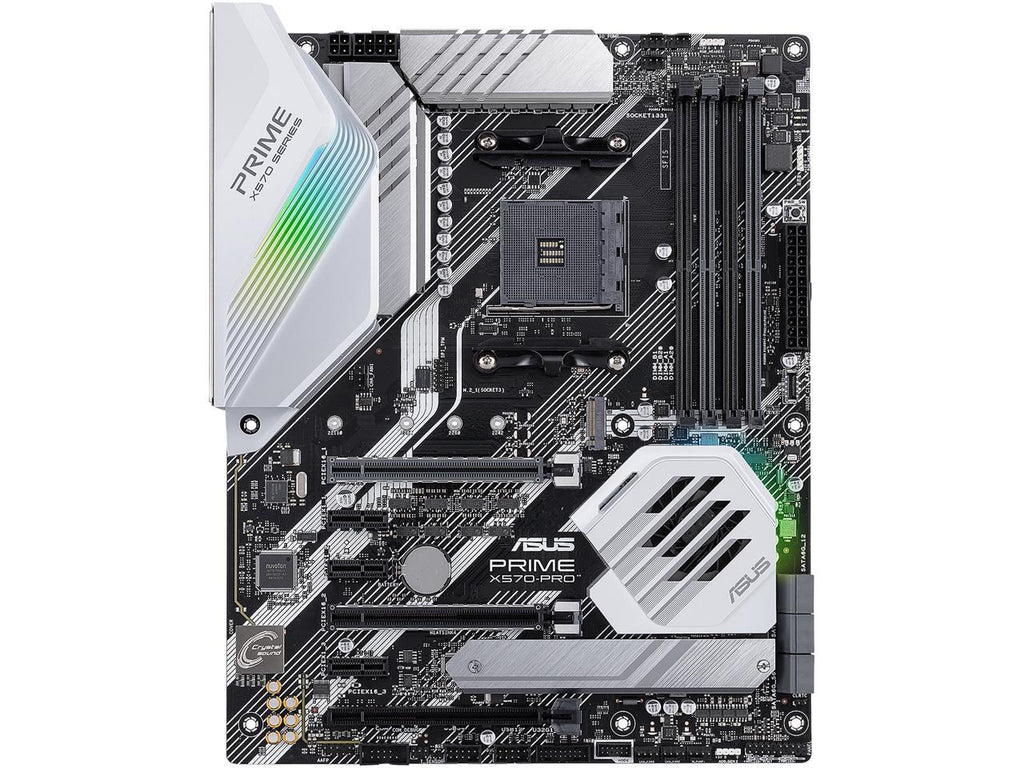

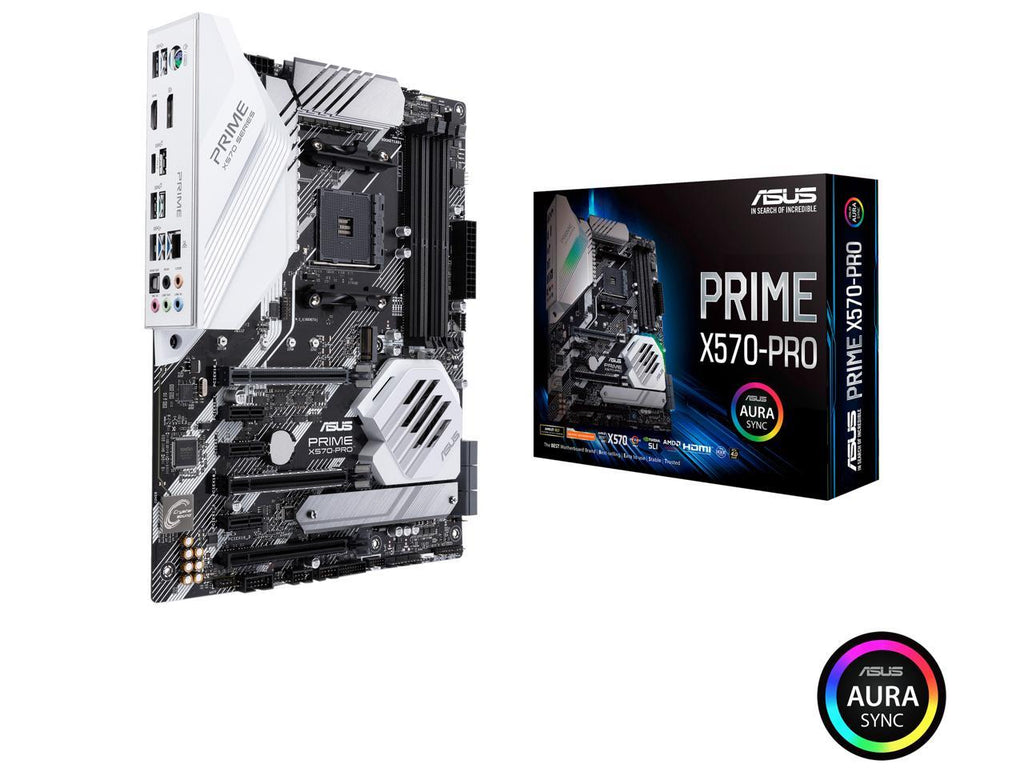

Name: Asus Prime X570-Pro Ryzen 3 Am4 With Pcie Gen4, Dual M.2, Hdmi, Sata 6Gb/S Usb 3.2 Gen 2 Atx Motherboard
Brand: ASUS
SKU: PRIME X570-PRO
Price: 302.92 USD
Availability: OutOfStock

Asus Prime X570-Pro Ryzen 3 Am4 With Pcie Gen4, Dual M.2, Hdmi, Sata 6Gb/S Usb 3.2 Gen 2 Atx Motherboard

Roll over image to zoom in Click on image to zoom

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
Enhanced power solution: Premium components provide better power efficiency
5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB 3.2 Gen 2 ports and front-panel header
M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

Asus Prime X570-Pro AM4 Zen 3 Ryzen 5000 & 3rd Gen Ryzen ATX Motherboard with PCIe Gen4, Dual M.2 HDMI, SATA 6 GB/s USB 3.2 Gen 2 ATX Motherboard

AMD AM4 Socket and PCIe 4.0: The perfect pairing for Zen 3 Ryzen 5000 & 3rd Gen AMD Ryzen CPUs
Enhanced power solution: 12+2 DrMOS power stages, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
M.2 heatsink: Ultra-efficient heatsink reduces M.2 SSD temperature for unthrottled transfer speeds and enhanced reliability
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
Next-gen connectivity: Supreme flexibility with PCIe 4.0, dual M.2, USB 3.2 Gen 2 ports and front-panel header
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including next-gen addressable RGB strips

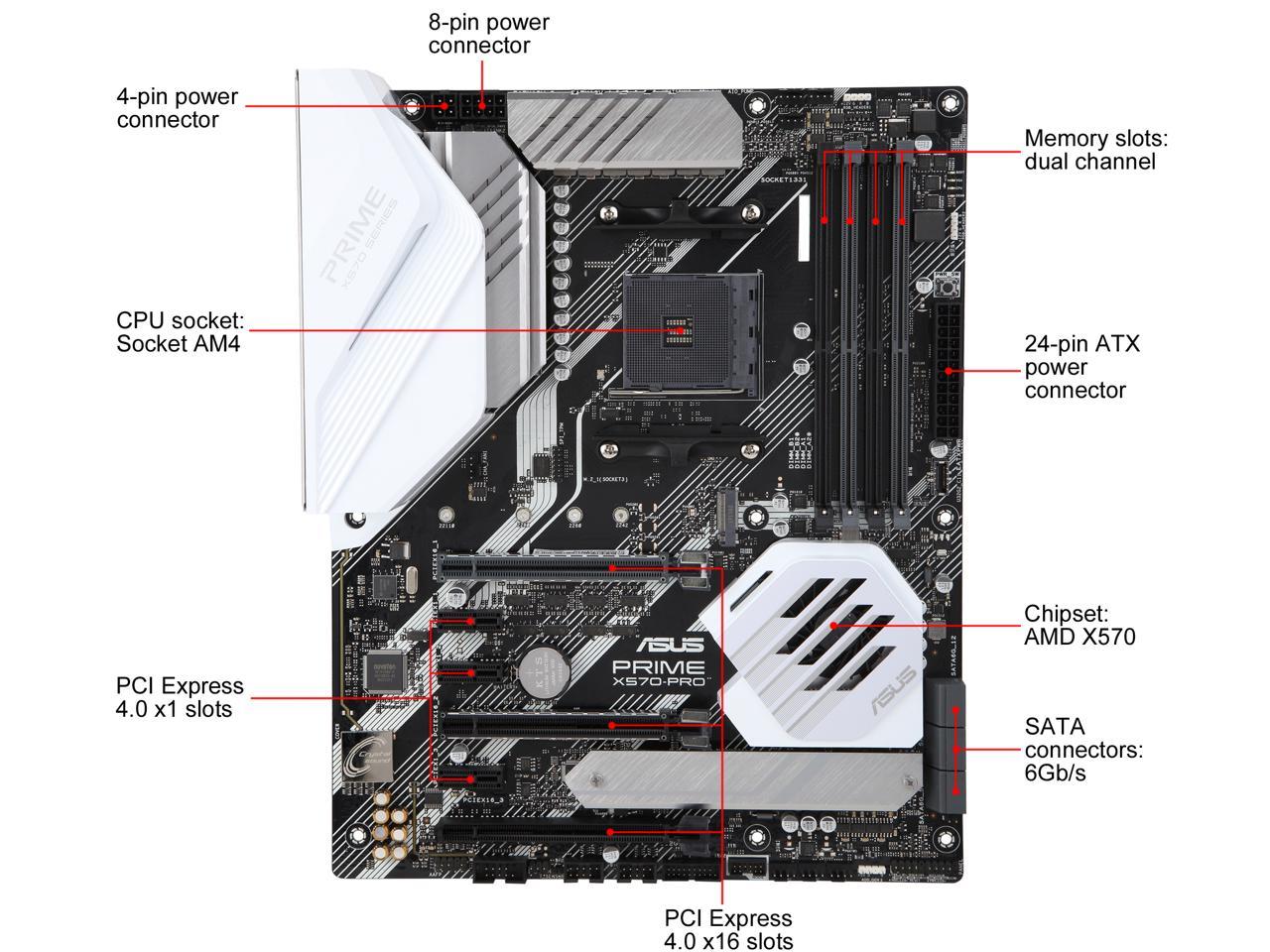

**Model**
Brand	ASUS
Model	PRIME X570-PRO

**Supported CPU**
CPU Socket Type	AM4
CPU Type	AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series desktop processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

**Chipsets**
Chipset	AMD X570

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd Gen AMD Ryzen Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) 2nd Gen AMD Ryzen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode)
PCI Express x1	3 x PCIe 4.0 x1

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

**Onboard Audio**
Audio Chipset	Realtek S1220A High Definition Audio CODEC featuring Crystal Sound 3
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.

**Onboard LAN**
LAN Chipset	Intel i211AT
Max LAN Speed	10/100/1000Mbps

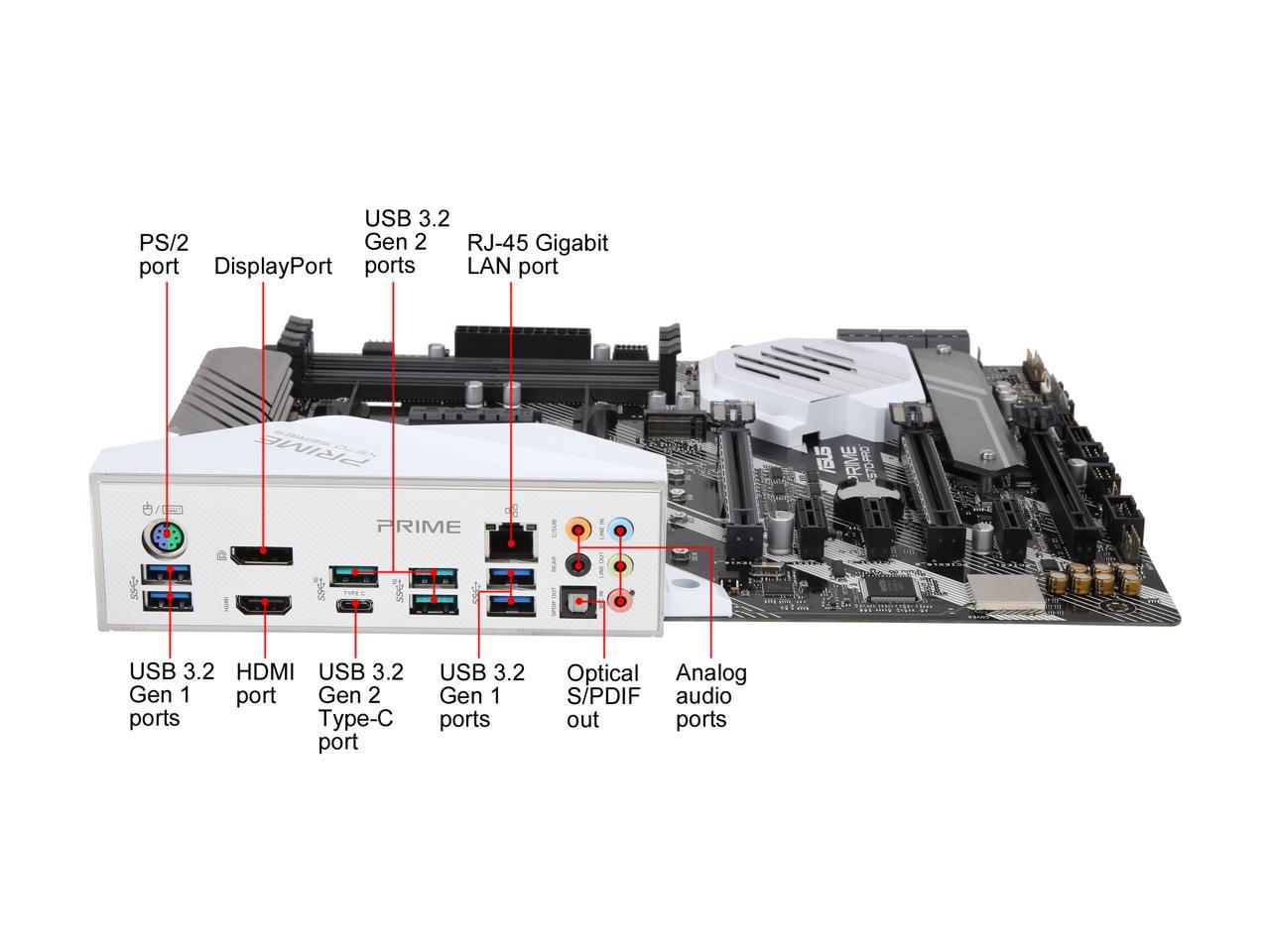

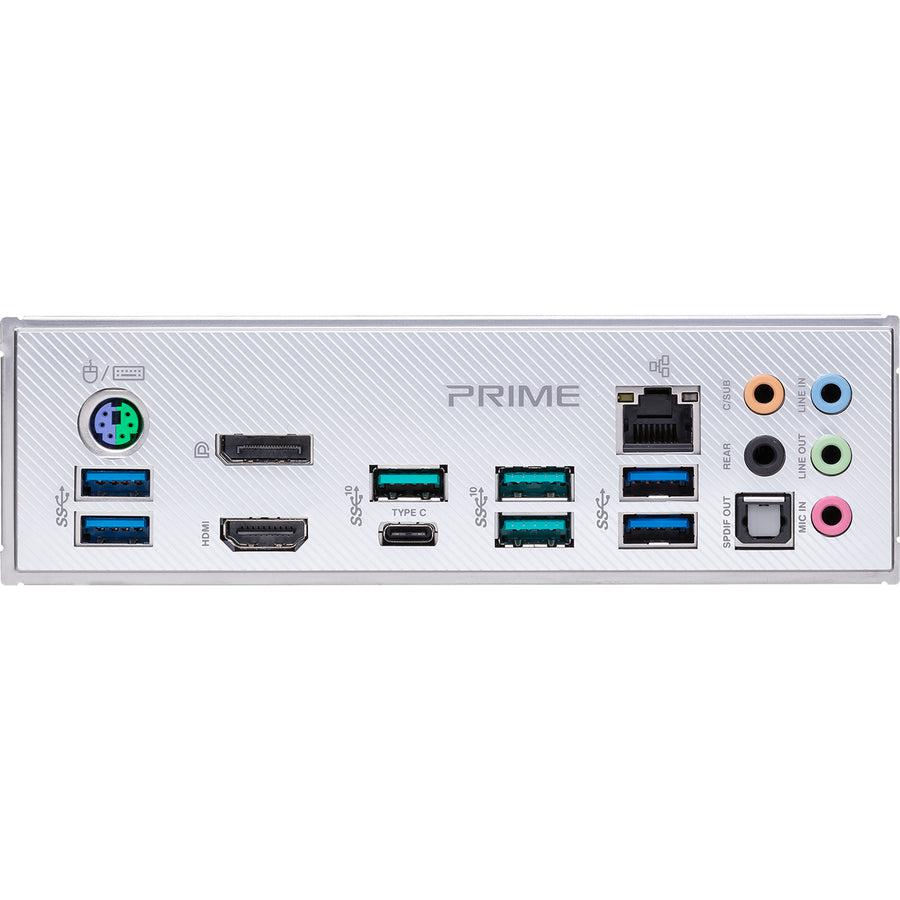

**Rear Panel Ports**
Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C)

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x PCH_FAN (1 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Power-on button(s) 1 x Clear CMOS jumper(s) 1 x Node Connector(s) 1 x Water Pump header (4-pin) 1 x T_Sensor Connector

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

**Windows 11 Compatibility**
Windows 11	Supported

**Features**
Features	Multi-GPU Support: 3rd and 2nd Gen AMD Ryzen Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors Supports AMD 2-Way CrossFireX Technology Special Features: 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App DIGI+ VRM: Digital power design with Dr. MOS EPU Guidance TPU Insight Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control Turbo App: system performance tuning, network priority, and audio scene configuration for selected applications. ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM - Digital power design with Dr. MOS - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem: - Improved DDR4 Stability AURA: - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features: - AI Suite 3 - Ai Charger - Turbo LAN - Armoury Crate - Pre-mounted I/O Shield ASUS Quiet Thermal Solution: - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Operating System: Windows 10 64-bit

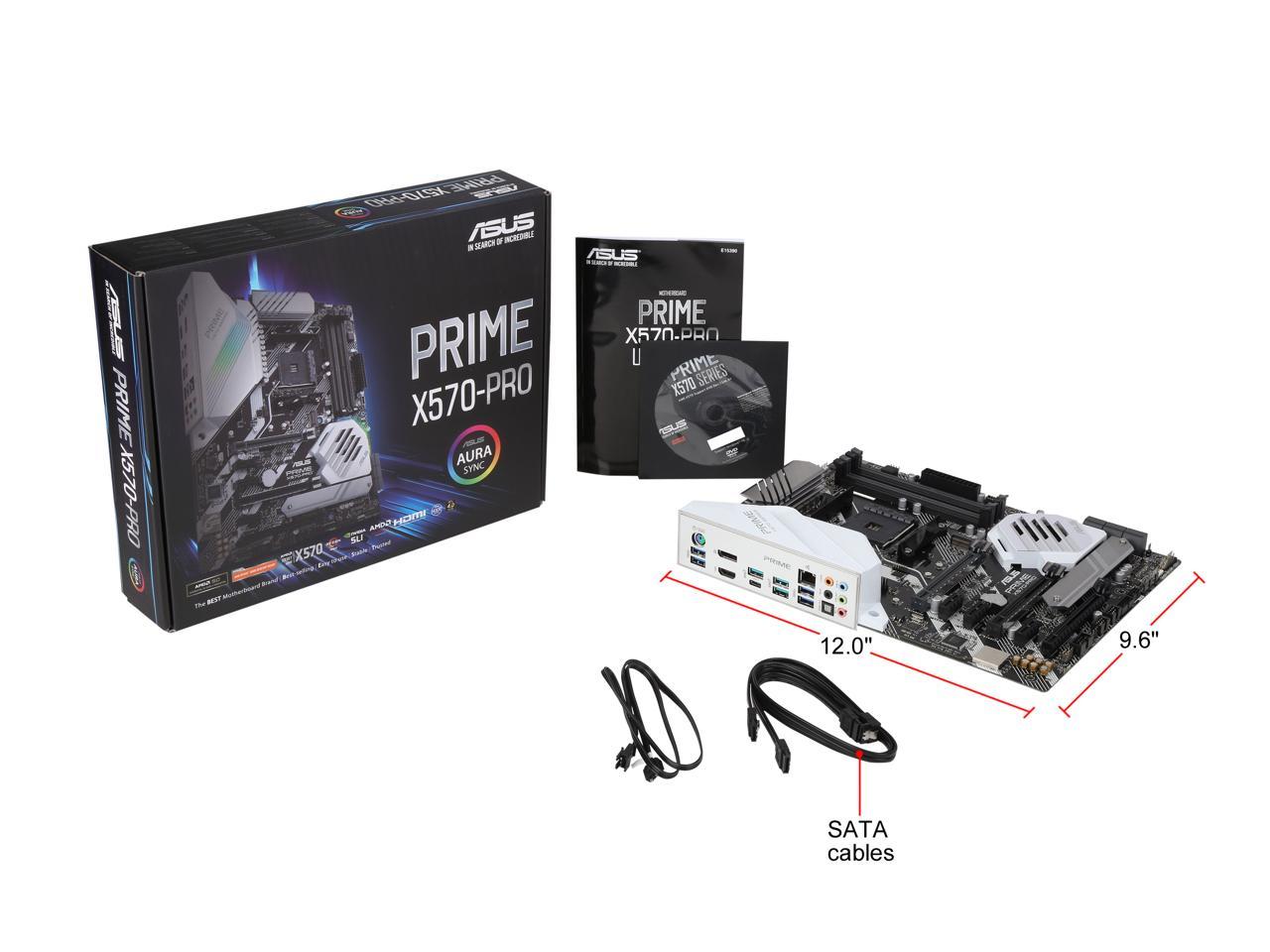

**Packaging**
Package Contents	Accessories: User's manual 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x Q-connector(s) (1 in 1) 1 x Extension cable for Addressable LED

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	PRIME X570-PRO
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Line	Prime
Product Model	X570-PRO
Product Name	Prime X570-PRO Desktop Motherboard
Product Type	Desktop Motherboard
UPC	192876254011

Chipset

Chipset Manufacturer	AMD

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	8
Number of USB 3.2 Gen 1 Ports	4

Width	12"
Depth	9.6"
Weight (Approximate)	2.13 lb

Miscellaneous

Package Contents	Prime X570-PRO Desktop Motherboard 1 x User's Manual 2 x SATA 6Gb/s Cable(s) 1 x M.2 Screw Package 1 x Q-connector(s) (1 in 1) 1 x Extension cable for Addressable LED 1 x Support DVD Drivers ASUS Utilities EZ Update
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year

Asus Prime X570-Pro Ryzen 3 Am4 With Pcie Gen4, Dual M.2, Hdmi, Sata 6Gb/S Usb 3.2 Gen 2 Atx Motherboard

Description

Asus Prime X570-Pro Ryzen 3 Am4 With Pcie Gen4, Dual M.2, Hdmi, Sata 6Gb/S Usb 3.2 Gen 2 Atx Motherboard
