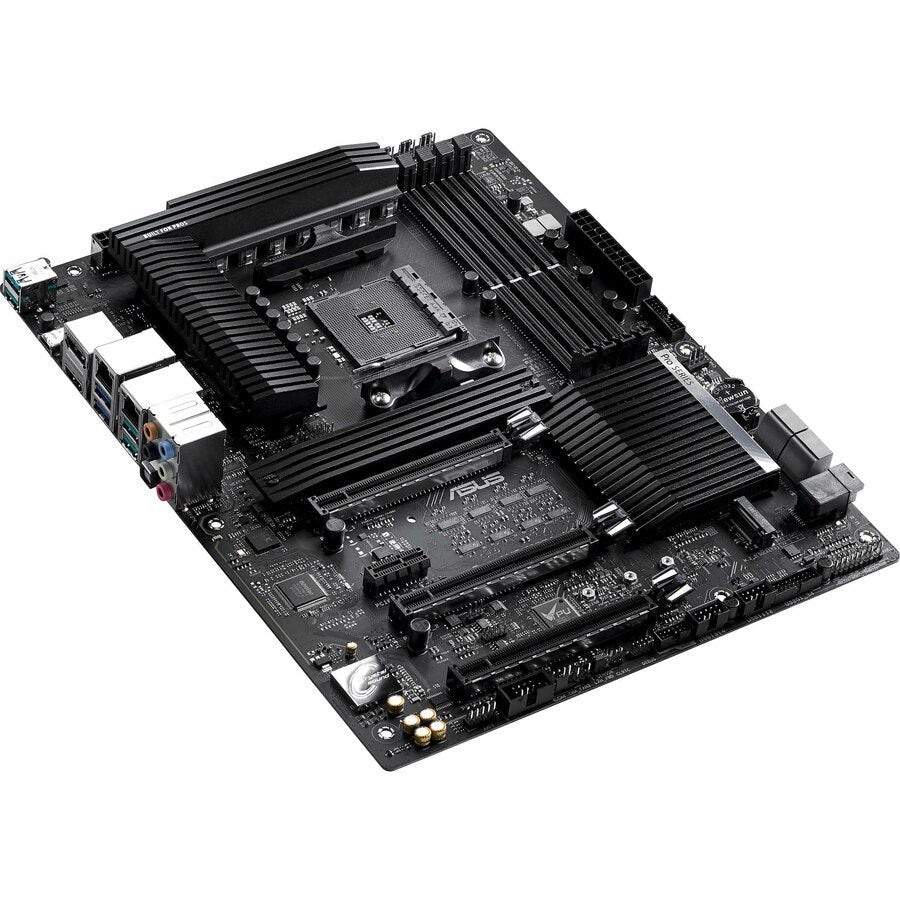

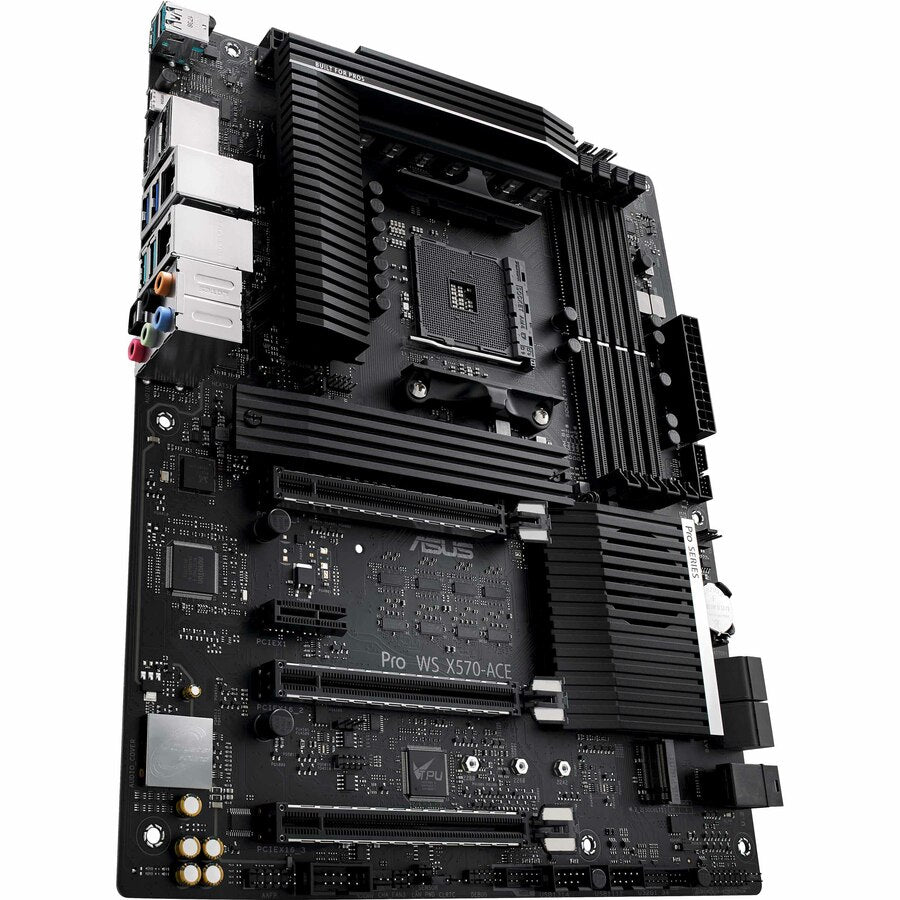

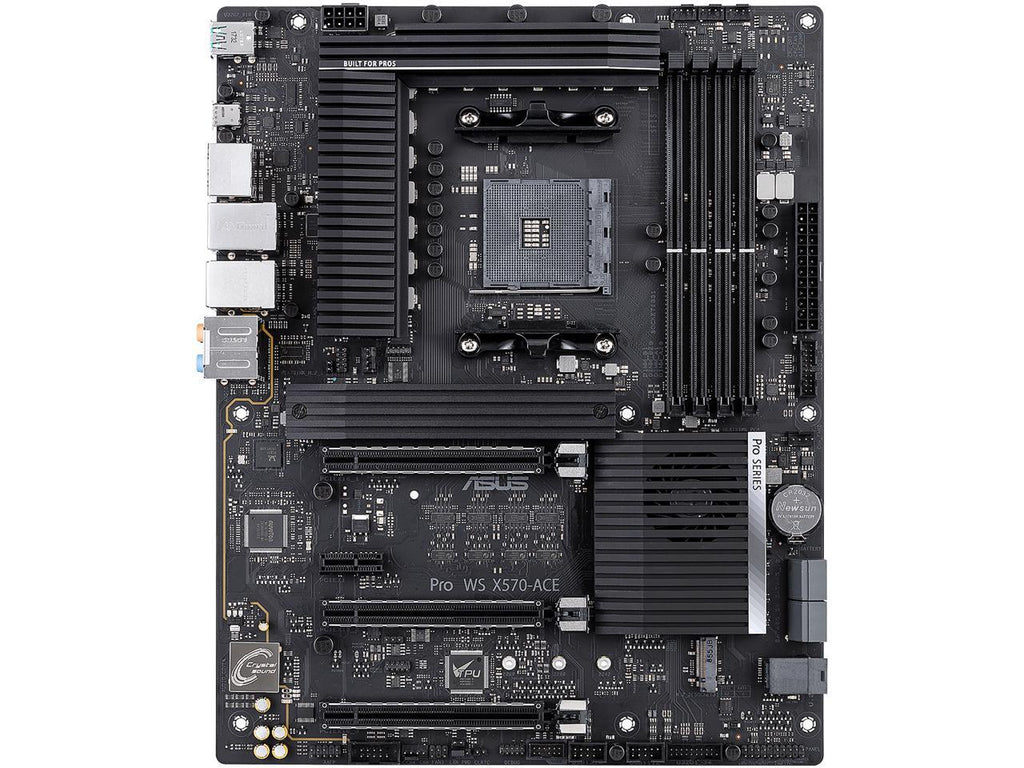

Name: Asus Amd Am4 Pro Ws X570-Ace Atx Workstation Motherboard With 3 Pcie 4.0 X16, Realtek And Intel
Brand: ASUS
SKU: Pro WS X570-ACE
Price: 968.00 USD
Availability: InStock

Asus Amd Am4 Pro Ws X570-Ace Atx Workstation Motherboard With 3 Pcie 4.0 X16, Realtek And Intel

Roll over image to zoom in Click on image to zoom

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
AMD X570

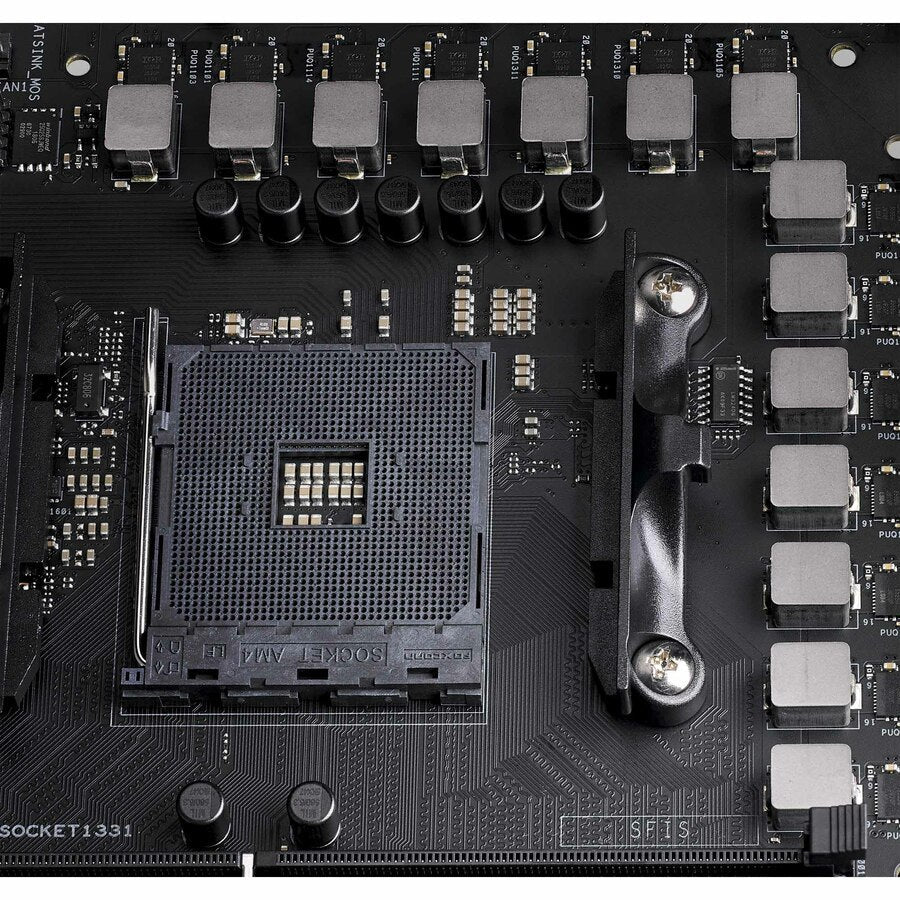

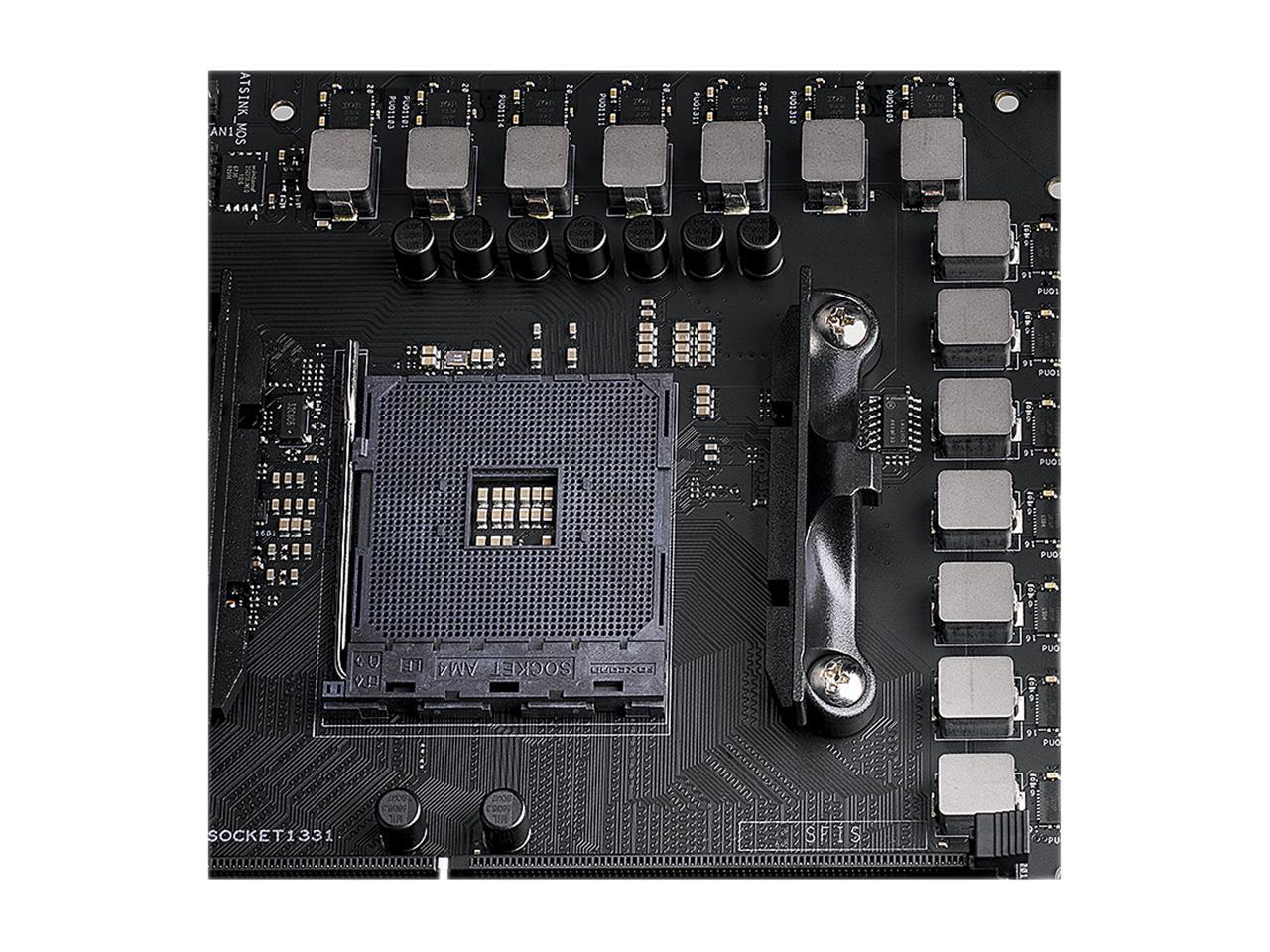

AMD AM4 socket: Ready for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series desktop processors
3 PCIe 4.0 x16 slots with optimized lane arrangement of 3-way x8/x8/x8 to accelerate an increasingly diverse array of workload
Reliable and responsive ECC memory suitable for mission critical task
ASUS Control Center Express: A software utility equipped with a GbE LAN controller for out-of-band management to enhance hardware-level control for improved IT efficiency
Ultra-fast storage: Up to 64Gbps M.2, U.2, plus up to 10Gbps back-panel USB 3.2 Gen 2 with Type-A and Type-C ports

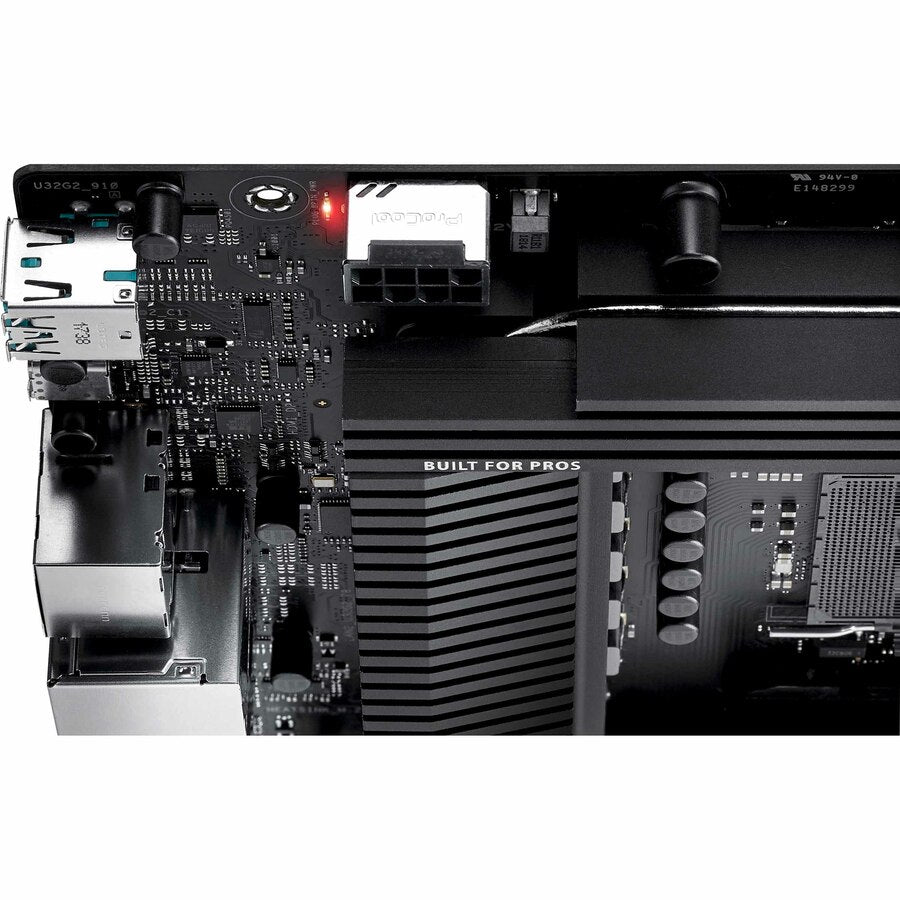

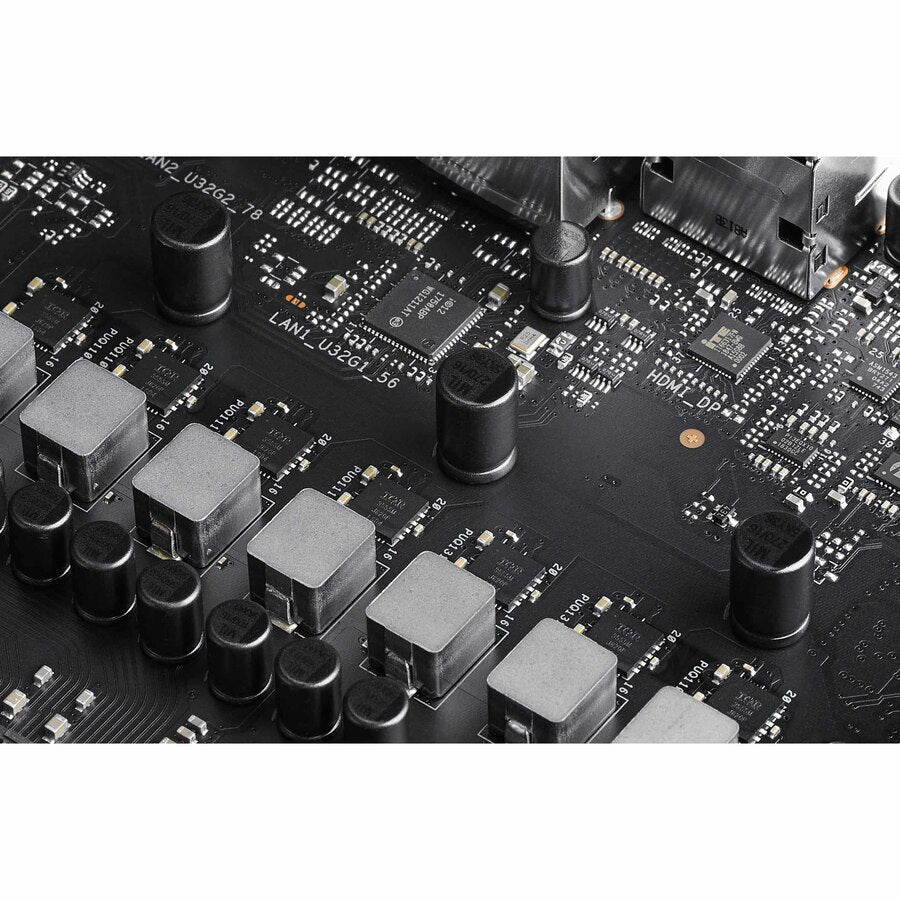

Ultra-efficient VRM heatsink: Beefy heatsinks, heatpipe, and built-in PCH fan design maximizes surface area for heat dissipation to enable unthrottled performance

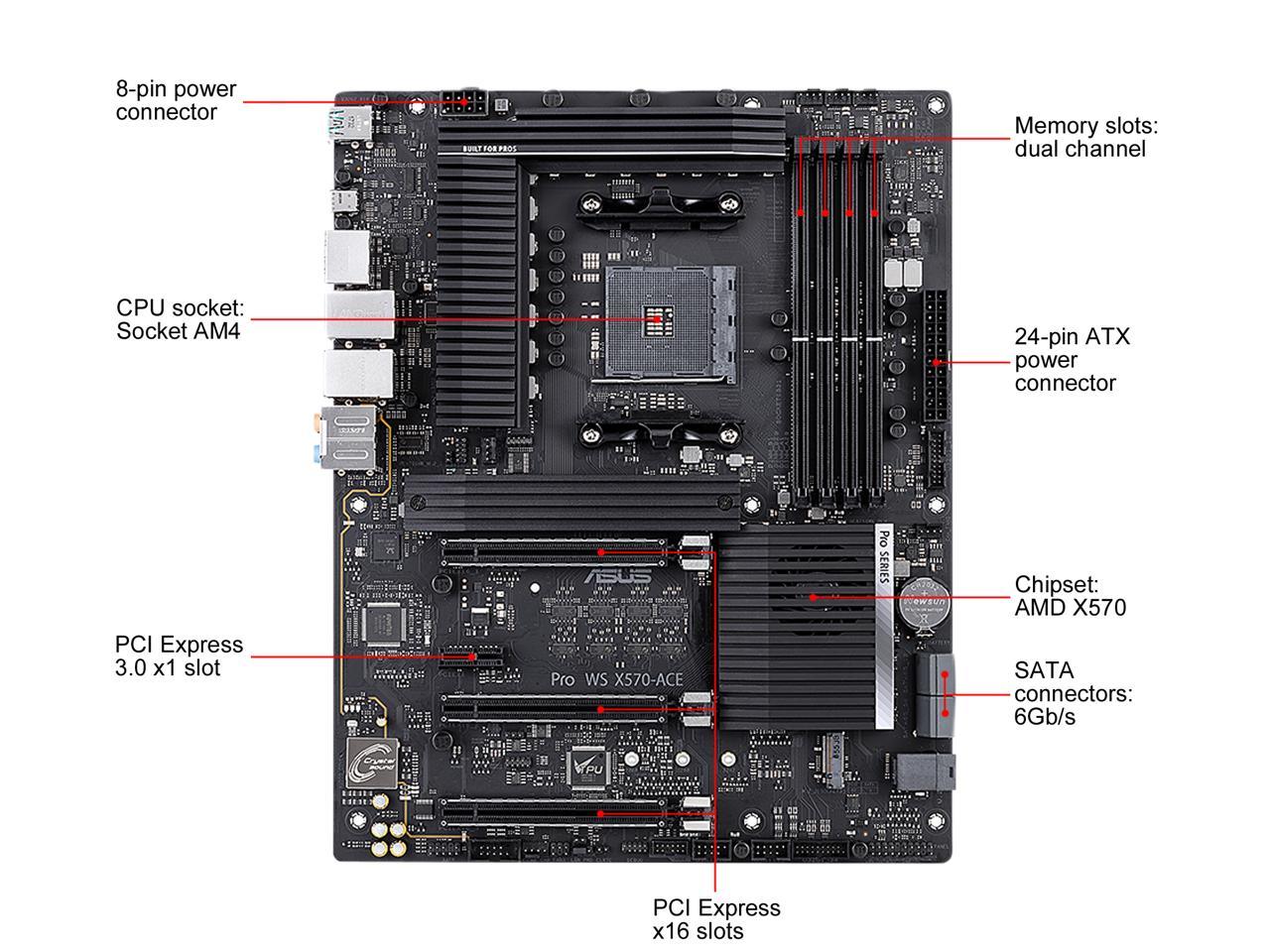

**Model**
Brand	ASUS
Model	Pro WS X570-ACE

**Supported CPU**
CPU Socket Type	AM4
CPU Type	AMD AM4 Socket for AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors Processors * Due to CPU limitation, CPU cores supported varies by processors. * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

**Chipsets**
Chipset	AMD X570

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory capacity supported vary depending on the CPU you installed.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	AMD Ryzen 5000 Series / 3000 Series Desktop Processors 2 x PCIe 4.0 x16 (x16 or dual x8) AMD Ryzen 4000 G-Series / 2000 Series Processors 2 x PCIe 3.0 x16 (x16 or dual x8) AMD Ryzen 3000 G-Series / 2000 G-Series Processors 1 x PCIe 3.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (x8 mode)
PCI Express x1	1 x PCIe 4.0 x1

**Storage Devices**
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	AMD Ryzen 5000 Series / 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x2) storage devices support 1 x U.2 connector, support PCIe 3.0 x4 NVM Express storage
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Integrated Graphics in AMD Ryzen 4000 G-Series / 3000 G-Series / 2000 G-Series Desktop Processors Multi-VGA output support : HDMI/DisplayPort ports - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz

**Onboard Audio**
Audio Chipset	Realtek S1200A High Definition Audio CODEC
Audio Channels	8 Channels * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

**Onboard LAN**
LAN Chipset	Realtek RTL8117
Second LAN Chipset	Intel I211-AT
Max LAN Speed	Dual 10/100/1000Mbps

**Rear Panel Ports**

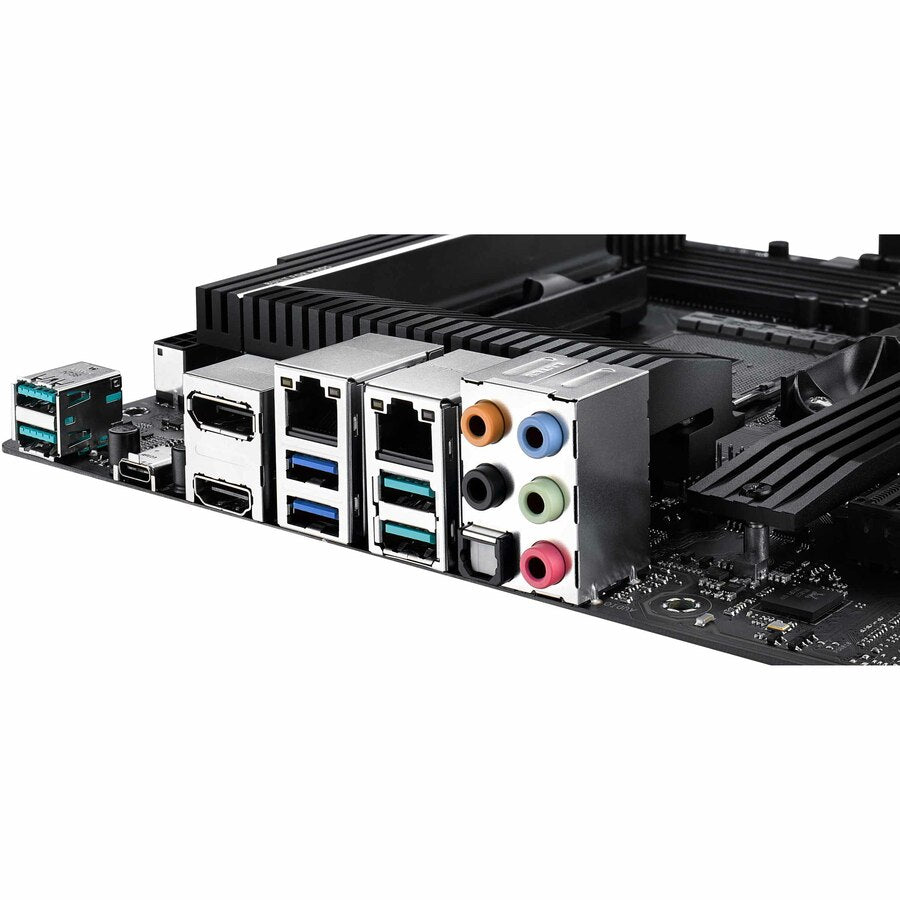

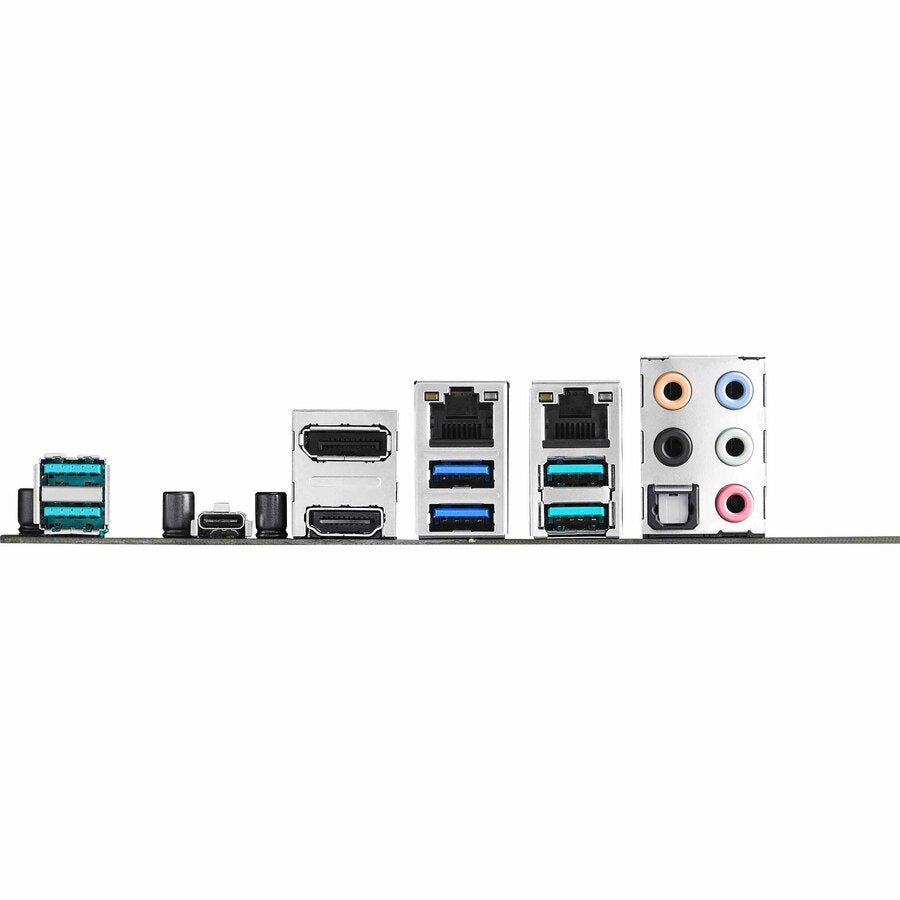

Back I/O Ports	1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 2 x USB 3.2 Gen 1 (up to 5Gbps) ports Type-A 4 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A) 1 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-C) The USB ports under the LAN port can run at USB 3.2 Gen 2 speeds with 3rd Gen AMD Ryzen Processors

**Internal I/O Connectors**
Onboard USB	2 x USB 3.2 Gen 1 connector supporting additional 4 USB ports 2 x USB 2.0 connectors support additional 4 USB ports
Other Connectors	1 x PCH_FAN 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) (1 x 4-pin) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 3 x Chassis Fan connector(s) (3 x 4-pin) 1 x AIO_PUMP connector (1 x 4-pin) 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

**Physical Spec**
Form Factor	ATX
LED Lighting	None RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

**Windows 11 Compatibility**
Windows 11	Supported

**Features**
Features	Multi-GPU Support: AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 2000 Series Desktop Processors Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Workstation Feature: ProCool Power Connector ASUS Control Center (ACC) Special Features: 5-Way Optimization by Dual Intelligent Processors 5 - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App Fan Xpert4 - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control ASUS 5X Protection III: - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention - ASUS ESD Guards - Enhanced ESD protection ASUS SafeSlot - Protect your graphics card Investment ASUS OptiMem: - Improved DDR4 Stability ASUS EPU: - EPU ASUS Exclusive Features: - OptiMem - AI Suite 3 - Ai Charger - ESD Guards - Turbo LAN - Armoury Crate - ASUS EZ Flash 3 - ASUS NODE: hardware control interface ASUS Quiet Thermal Solution: - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan and PCH Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-Shield - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM BIOS: 256MB Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

**Packaging**

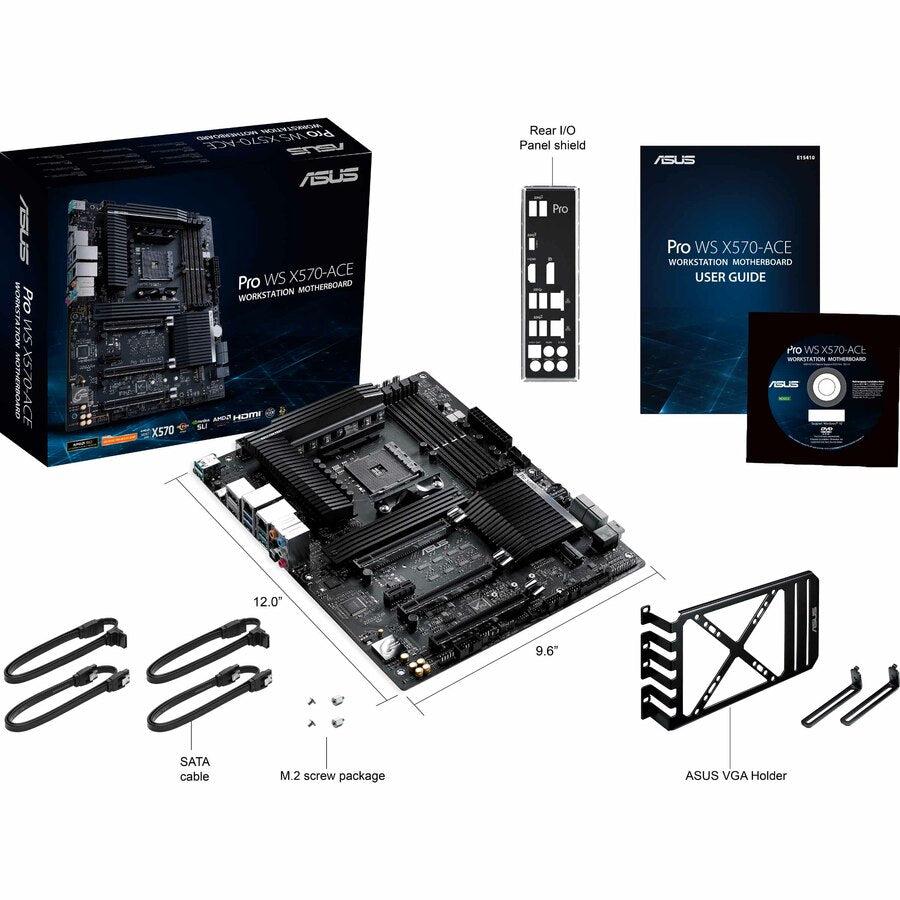

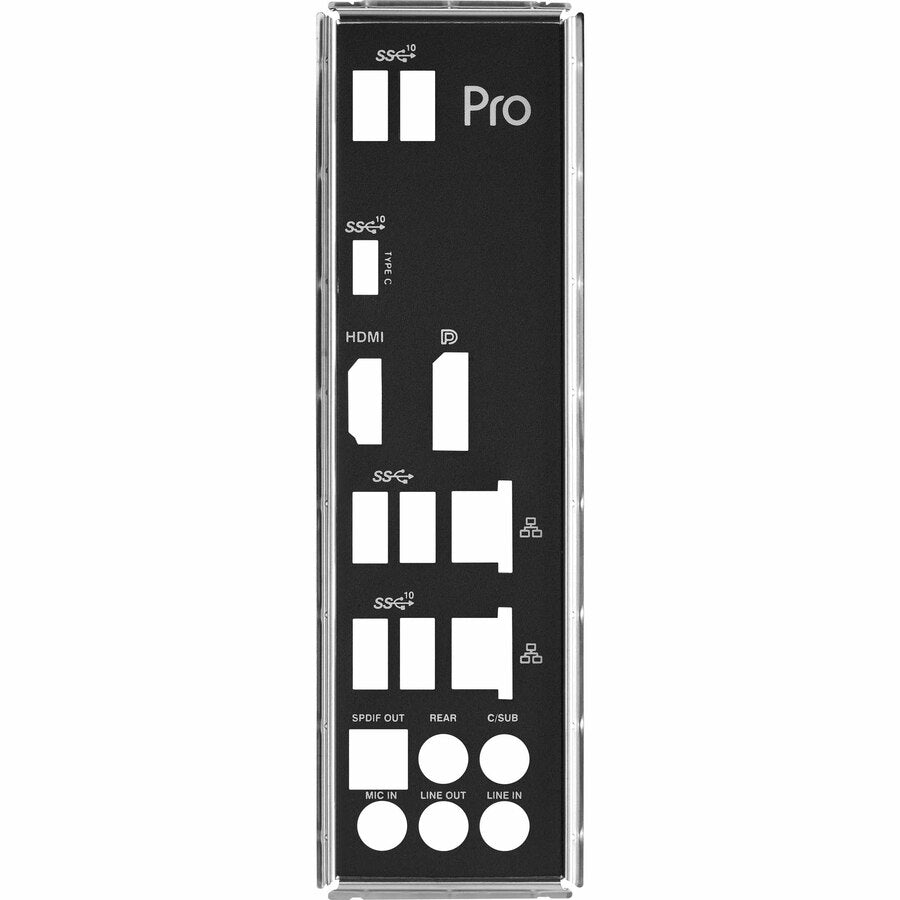

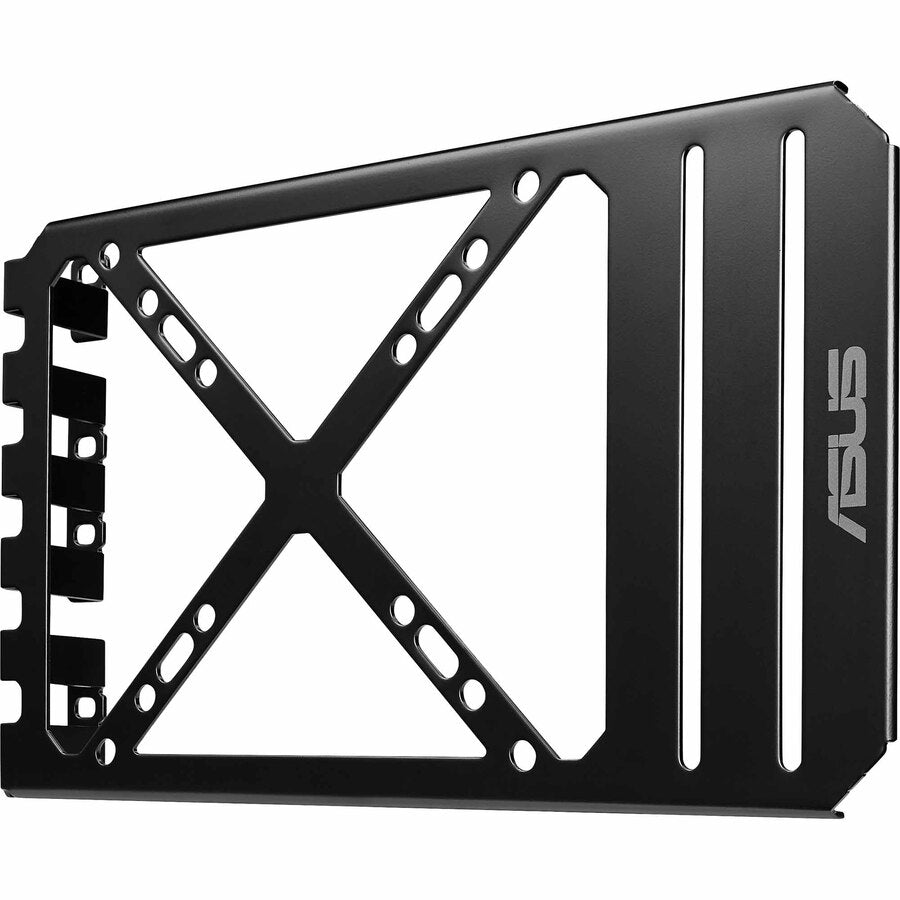

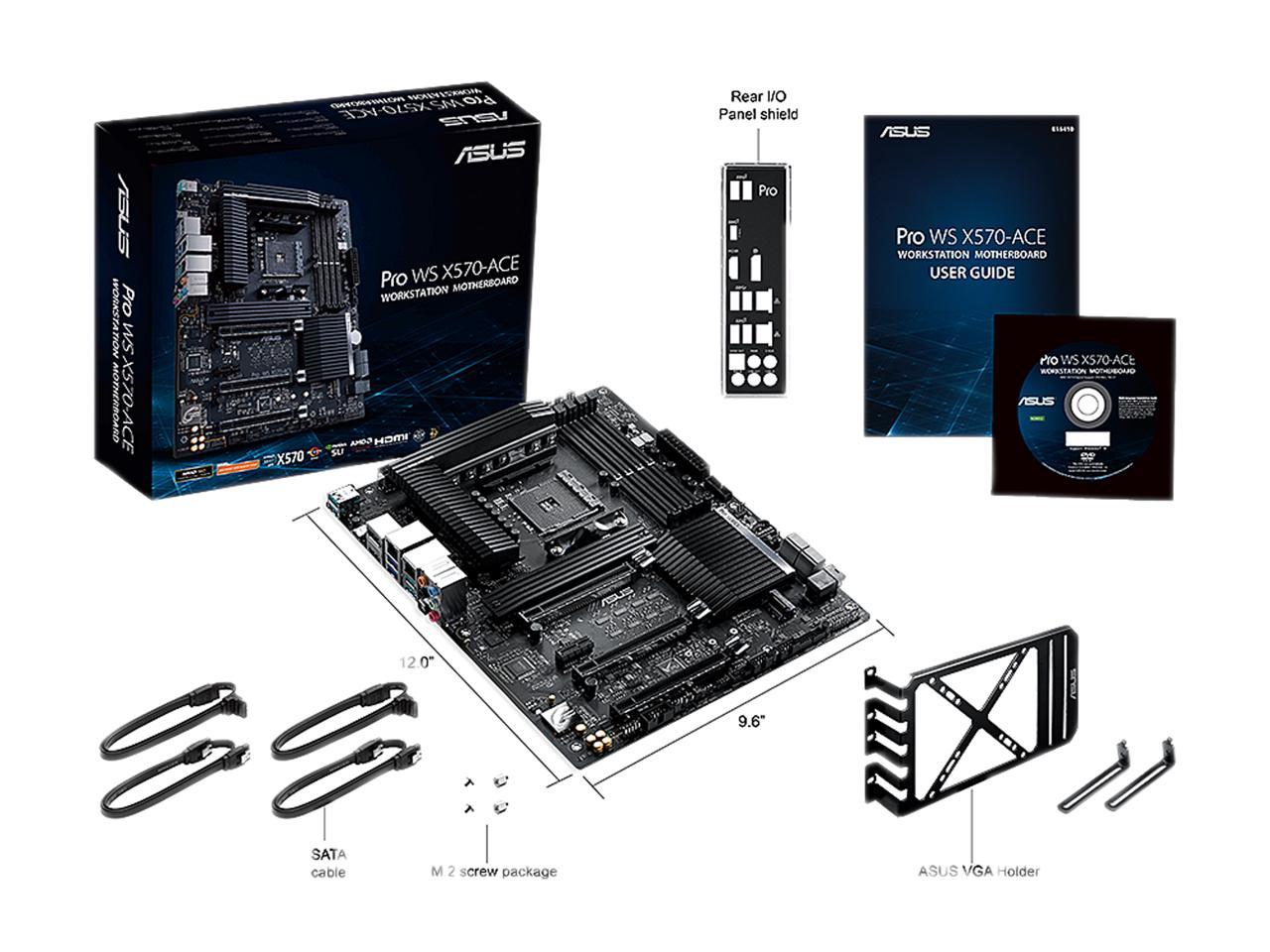

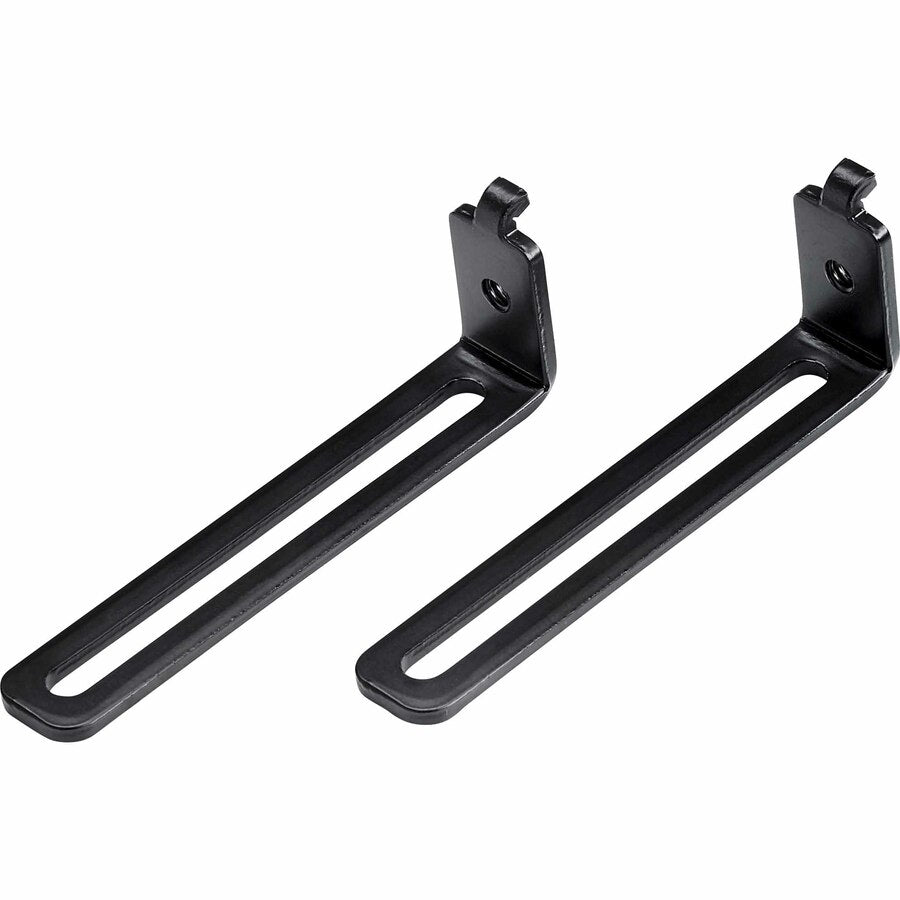

Package Contents	Accessories: User's manual I/O Shield 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS VGA Holder

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	Pro WS X570-ACE
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus
Product Model	Pro WS X570-ACE
Product Name	Pro WS X570-ACE Workstation Motherboard
Product Type	Workstation Motherboard
UPC	192876322710

Chipset

Chipset Manufacturer	AMD

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	7
Number of USB 3.2 Gen 1 Ports	2

Width	12"
Depth	9.6"

Miscellaneous

Package Contents	Pro WS X570-ACE Workstation Motherboard User's Manual I/O Shield 4 x SATA 6Gb/s Cable(s) 1 x M.2 Screw Package 1 x ASUS VGA Holder 1 x Support DVD Drivers ASUS Utilities EZ Update Anti-virus software (OEM version)
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year

Asus Amd Am4 Pro Ws X570-Ace Atx Workstation Motherboard With 3 Pcie 4.0 X16, Realtek And Intel

Description

Asus Amd Am4 Pro Ws X570-Ace Atx Workstation Motherboard With 3 Pcie 4.0 X16, Realtek And Intel
