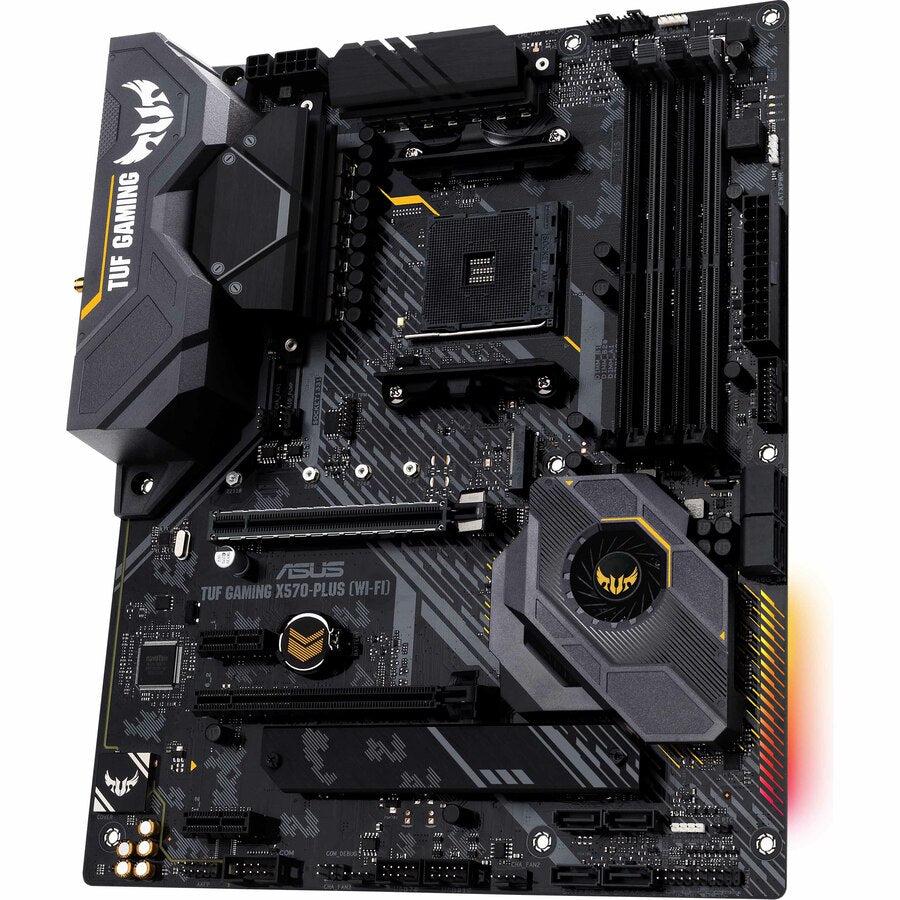

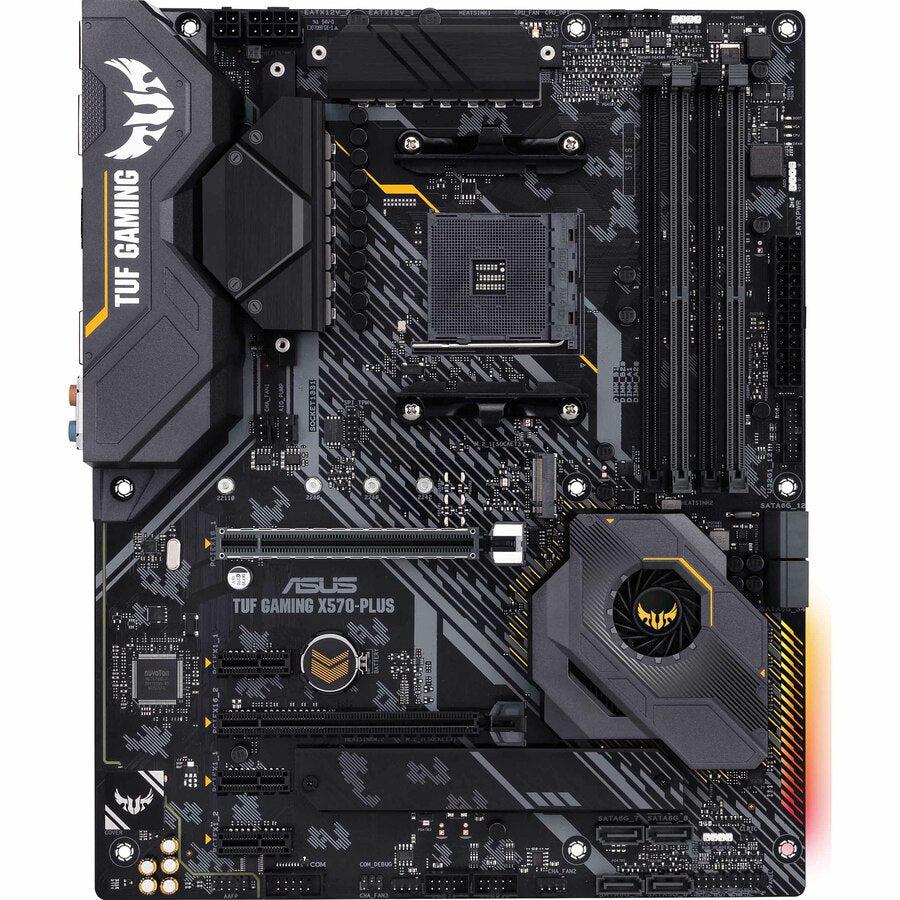

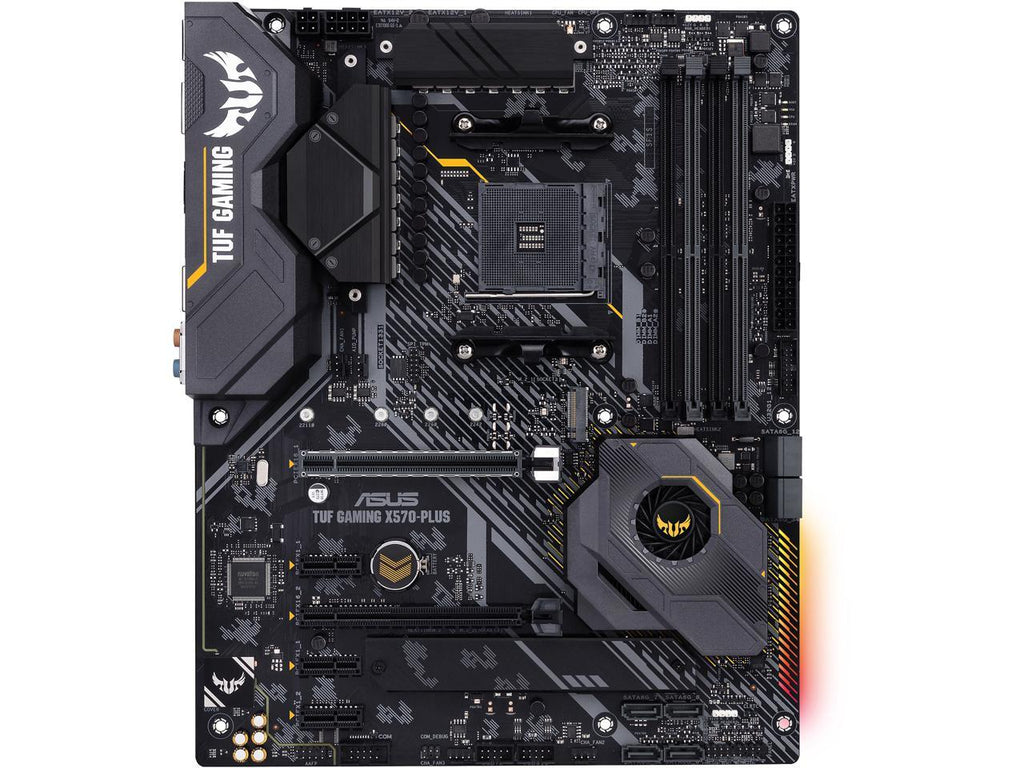

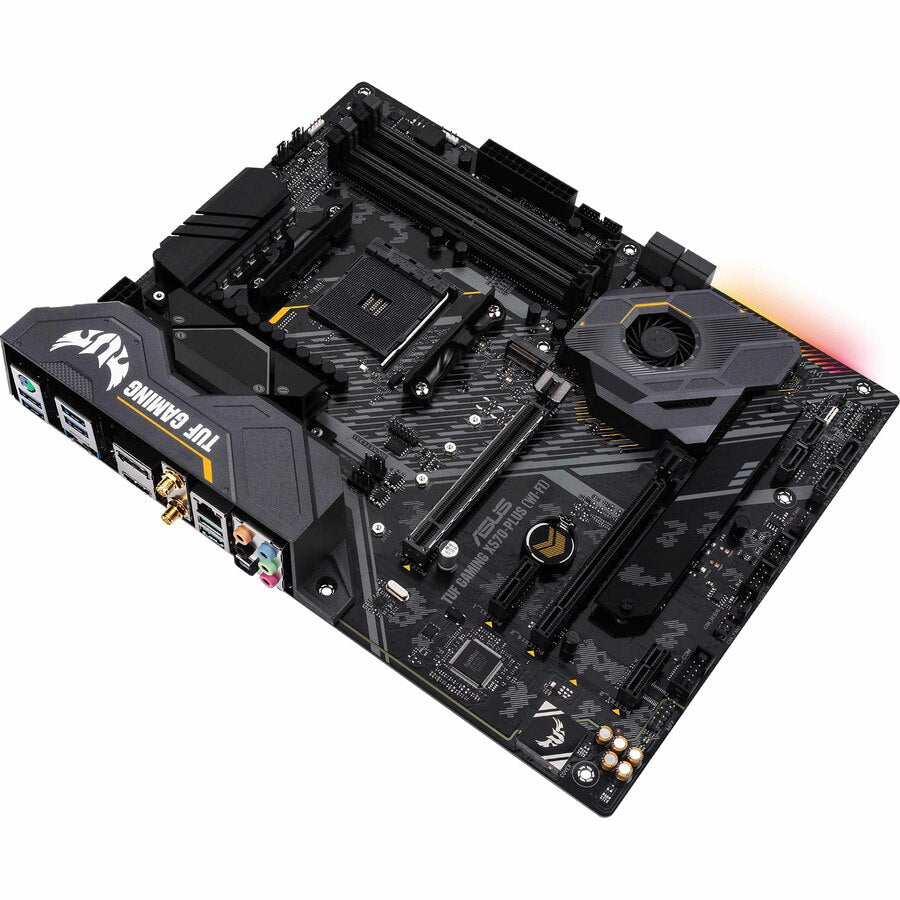

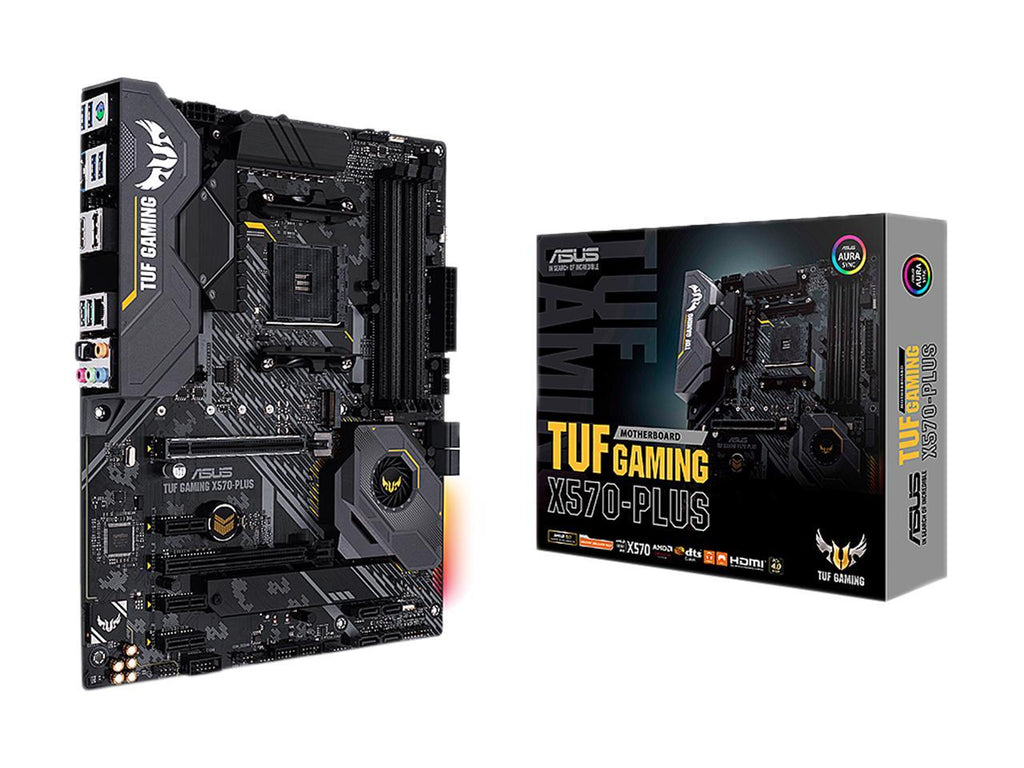

Name: Asus Am4 Tuf Gaming X570-Plus Atx Motherboard With Pcie 4.0, Dual M.2, 12+2 With Dr. Mos Power
Brand: ASUS
SKU: TUF GAMING X570-PLUS
Price: 308.00 USD
Availability: OutOfStock

Asus Am4 Tuf Gaming X570-Plus Atx Motherboard With Pcie 4.0, Dual M.2, 12+2 With Dr. Mos Power

Roll over image to zoom in Click on image to zoom

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
AMD AM4 socket: Ready for 2nd and 3rd Gen AMD Ryzen processors to maximize connectivity and speed with up to two M.2 Drives, USB 3.2 Gen2 and AMD StoreMI
Enhanced Power Solution: Military-grade TUF Gaming components, ProCool socket and Digi+ VRM for maximum durability
Comprehensive Cooling: Active PCH heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
Next-Gen Connectivity: Dual PCIe 4.0 M.2, USB 3.2 Gen 2 ports, exclusive Realtek L8200A Gigabit Ethernet, TUF LANGuard and TurboLAN technology
Realtek S1200A Codec: Features an unprecedented 108dB signal-to-noise ratio for the stereo line-out and a 103dB SNR for the line-in, providing pristine audio quality
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case

**Model**
Brand	ASUS
Model	TUF GAMING X570-PLUS

**Supported CPU**
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. * Due to CPU limitation, CPU cores supported varies by processors.

**Chipsets**
Chipset	AMD X570

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5100(OC) / 5000(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered

**Expansion Slots**
PCI Express 4.0 x16	2 x PCI Express 4.0 x16 * Actual support may vary by CPU.
PCI Express x1	3 x PCIe 4.0 x1

**Storage Devices**
SATA 6Gb/s	8 x SATA 6Gb/s
M.2	AMD Ryzen 5000 Series / 3000 Series Desktop Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support AMD Ryzen 5000 G-Series / 4000 G-Series / 3000 G-Series / 2000 Series / 2000 G-Series Desktop Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic

**Onboard Audio**
Audio Chipset	Realtek ALC S1200A High Definition Audio CODEC
Audio Channels	8 Channels

**Onboard LAN**
LAN Chipset	Realtek L8200A
Max LAN Speed	10/100/1000Mbps

**Rear Panel Ports**

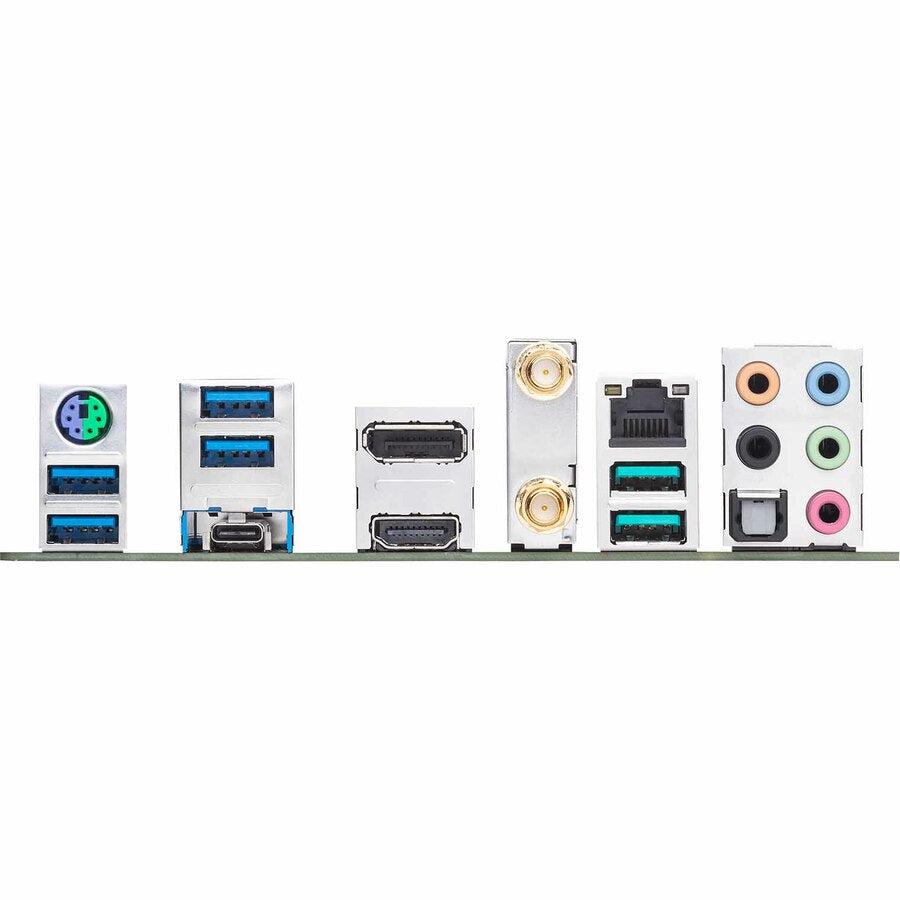

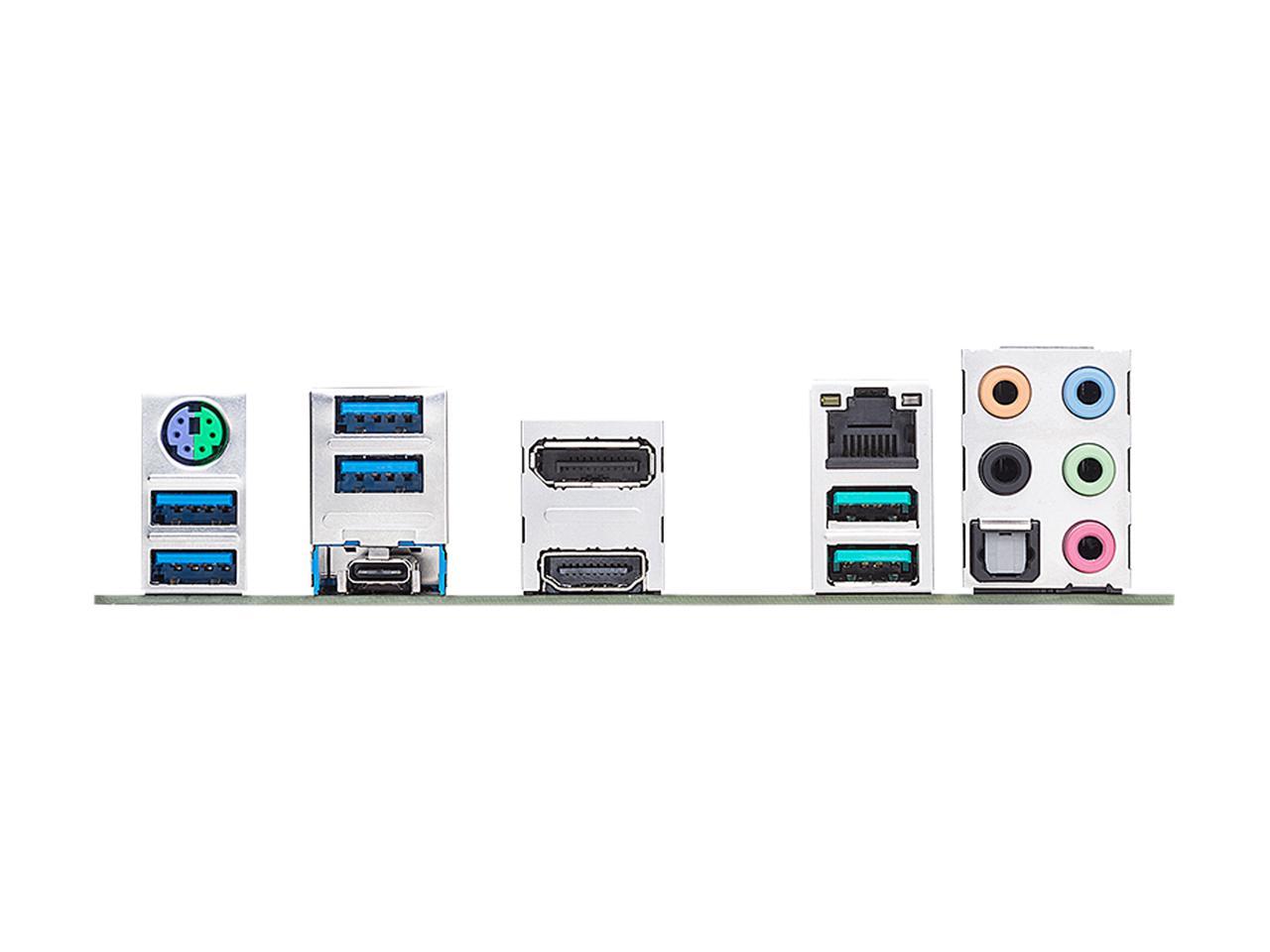

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C)

**Internal I/O Connectors**
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s)

**Windows 11 Compatibility**
Windows 11	Supported

**Features**
Features	Multi-GPU Support: 3rd and 2nd Gen AMD Ryzen Processors AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors Supports AMD CrossFireX Technology Special Features: ASUS TUF PROTECTION - ASUS SafeSlot: Protect your graphics card Investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Precision control for stable power - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! AURA: - Aura Lighting Control - Aura RGB Strip Headers - Addressable Gen 2 Header ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Design: MOS Heat-sink with dual thermal pads design, PCH Fan, PCH and M.2 Heatsink - ASUS Fan Xpert 4 ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM DIY Friendly Design - Procool - SafeSlot - Digi+ VRM - Highly Durable components - ESD Guards BIOS: 256MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit

**Packaging**

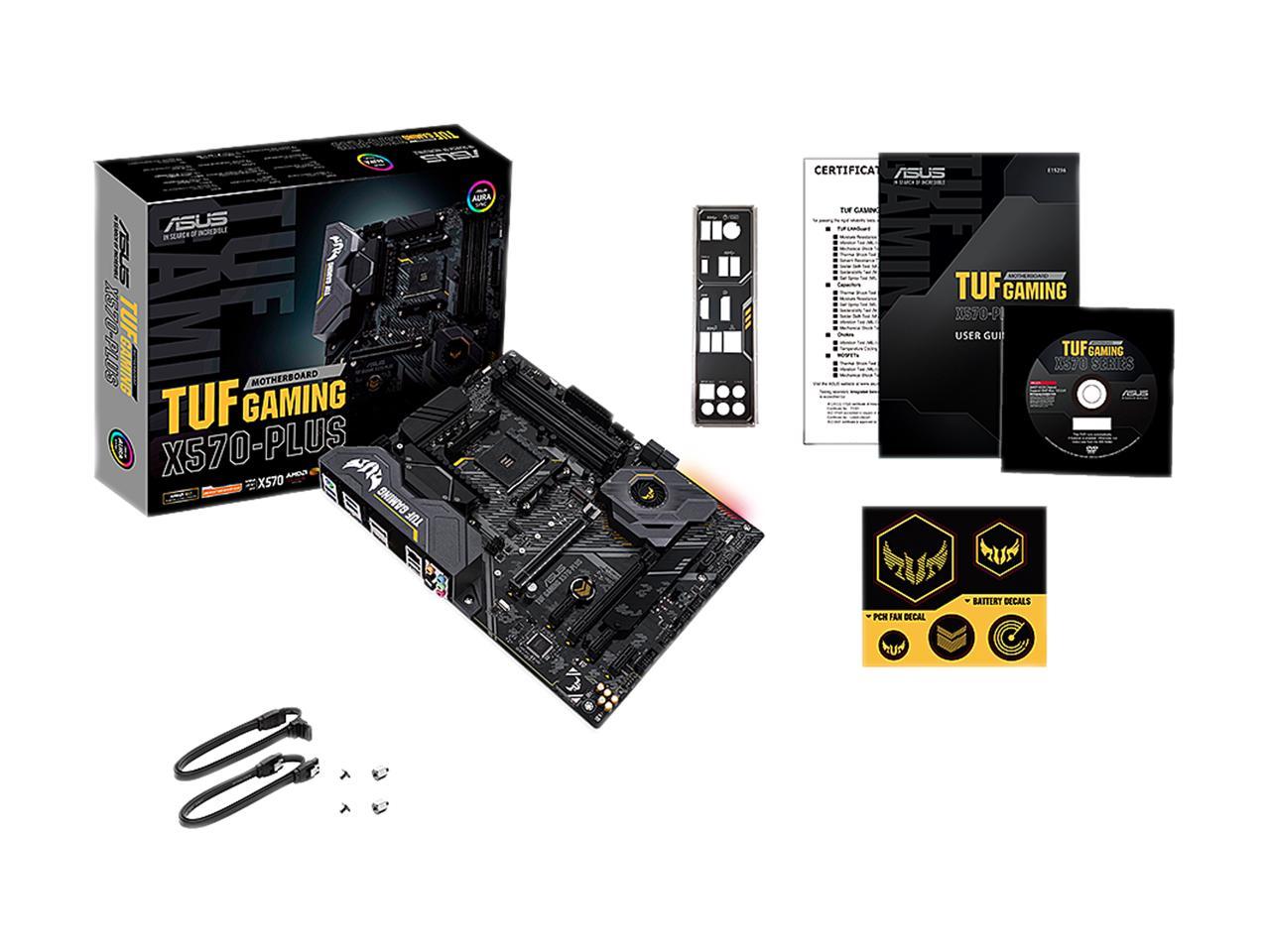

Package Contents	Accessories: User's manual I/O Shield 2 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x TUF GAMING Sticker 1 x TUF Certification card(s)

General Information

Manufacturer	ASUS Computer International
Manufacturer Part Number	TUF GAMING X570-PLUS
Manufacturer Website Address	http://usa.asus.com
Brand Name	TUF
Product Model	GAMING X570-PLUS
Product Name	GAMING X570-PLUS Desktop Motherboard
Product Type	Desktop Motherboard
UPC	192876388457

Chipset

Chipset Manufacturer	AMD

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	7
Number of USB 3.2 Gen 1 Ports	4

Width	12"
Depth	9.6"

Miscellaneous

Package Contents	GAMING X570-PLUS Desktop Motherboard 2 x SATA 6Gb/s Cables 1 x IO Shield 1 x M.2 Screw Package 1 x TUF Gaming Sticker 1 x TUF Certification card(s) 1 x User's Manual 1 x Support DVD Drivers ASUS Utilities ASUS EZ Update Anti-virus software (OEM version)
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year

Asus Am4 Tuf Gaming X570-Plus Atx Motherboard With Pcie 4.0, Dual M.2, 12+2 With Dr. Mos Power

Description

Asus Am4 Tuf Gaming X570-Plus Atx Motherboard With Pcie 4.0, Dual M.2, 12+2 With Dr. Mos Power
