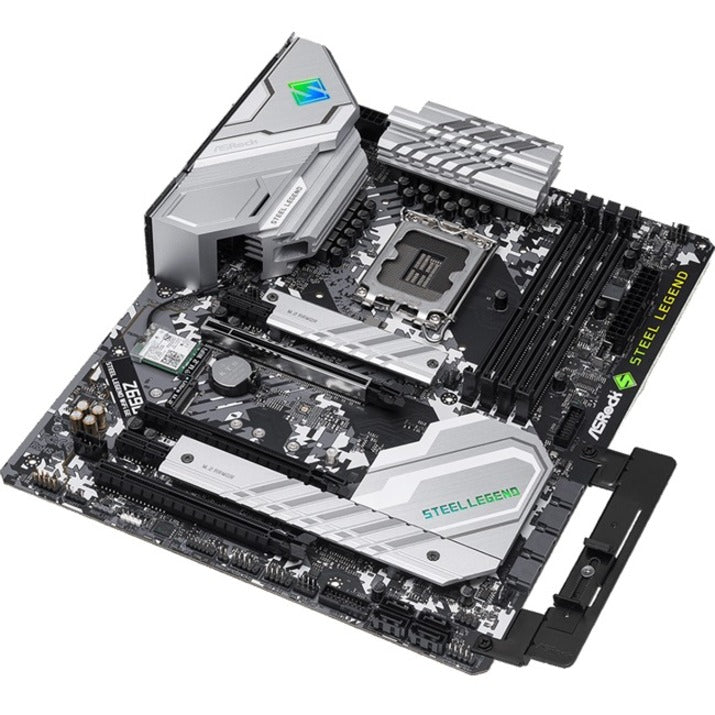

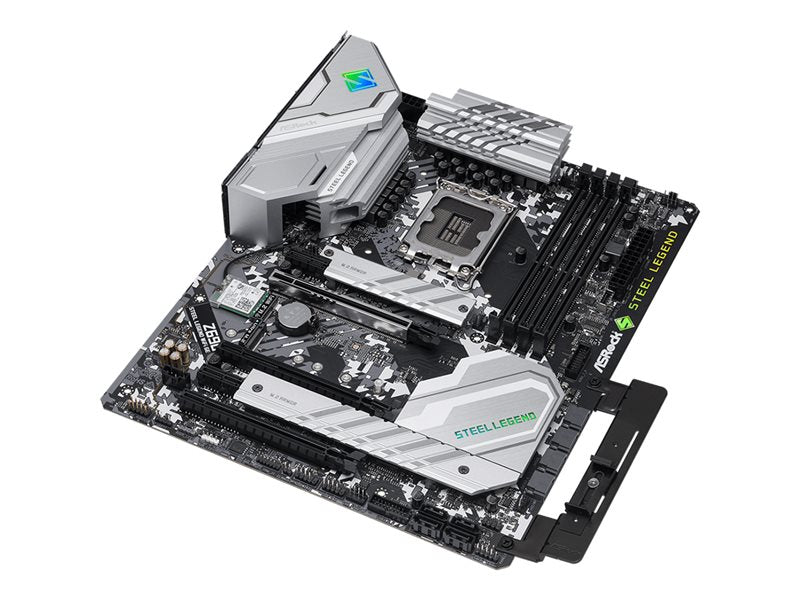

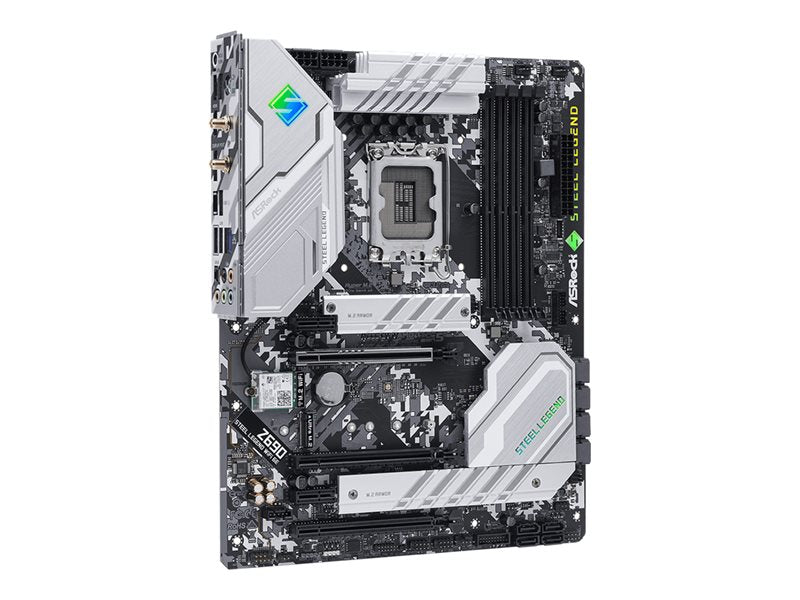

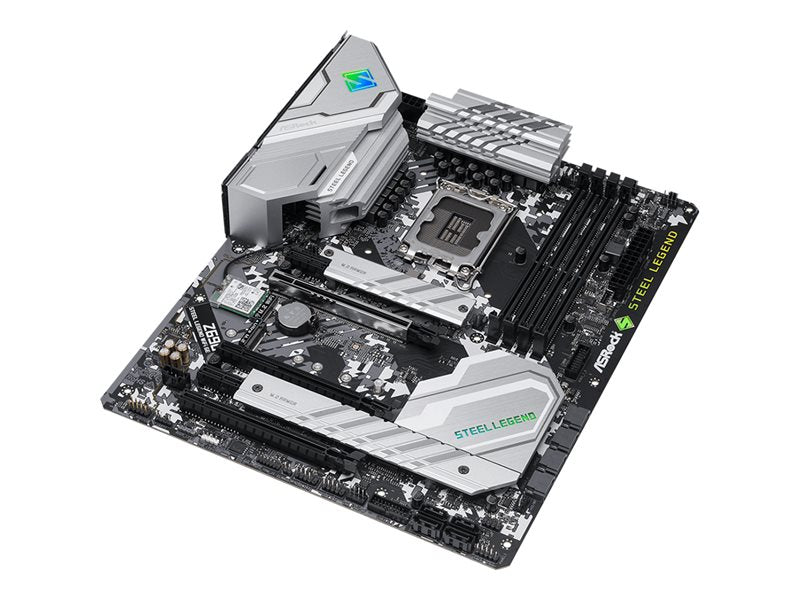

Name: Asrock Z690 Steel Legend Wifi 6E - Motherboard - Atx - Lga1700 Socket - Z690 Chipset
Brand: ASRock
SKU: Z690 STEEL LEGEND WIFI 6E
Price: 558.00 CAD
Availability: OutOfStock

Asrock Z690 Steel Legend Wifi 6E - Motherboard - Atx - Lga1700 Socket - Z690 Chipset

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Key Selling Points

Optimized VRM design
13 power phase design
6 layer PCB
2oz copper PCB
PCIe 5.0 + surface-mount tech
Nahimic audio
ASRock graphics card holder
Polychrome RGB
High speed M.2 solution
Anti-drop screw
Dragon 2.5 Gb/s LAN
Wireless networking
Front USB 3.2 Gen2x2 Type-C
Dual USB 3.2 Gen2
Auto driver installer
BIOS flashback

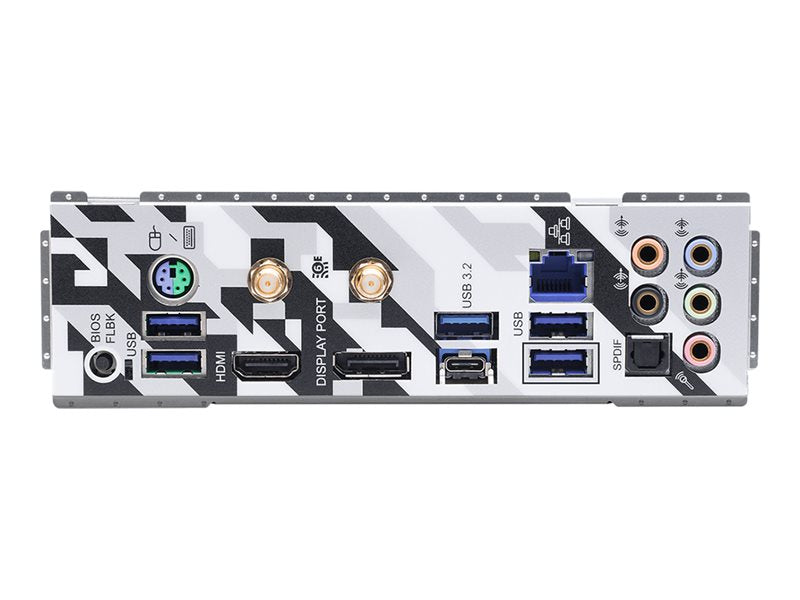

Flexible integrated IO shield

Product Features

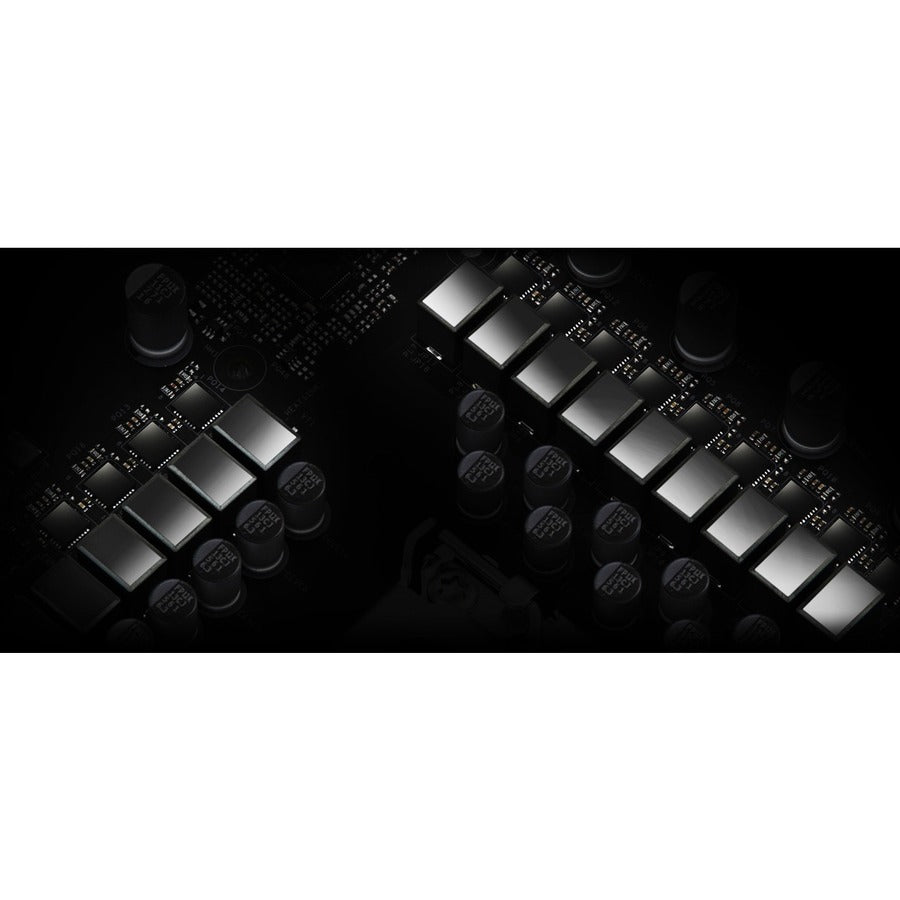

Optimized VRM design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
13 power phase design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
6 layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
2oz copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

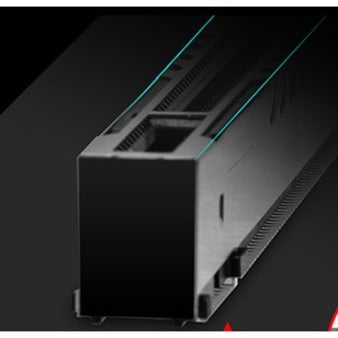

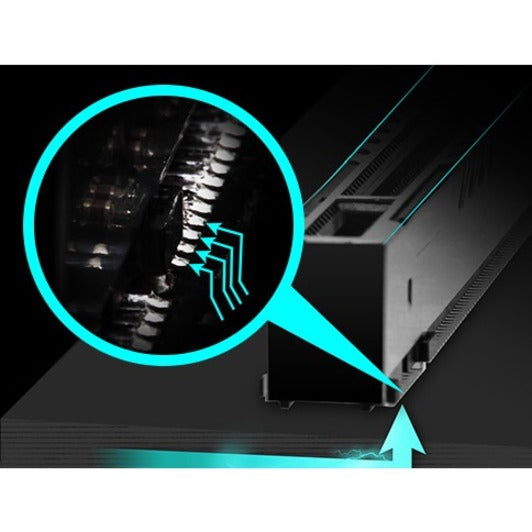

PCIe 5.0 + surface-mount tech
Compares to conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximize stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard.
Nahimic audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

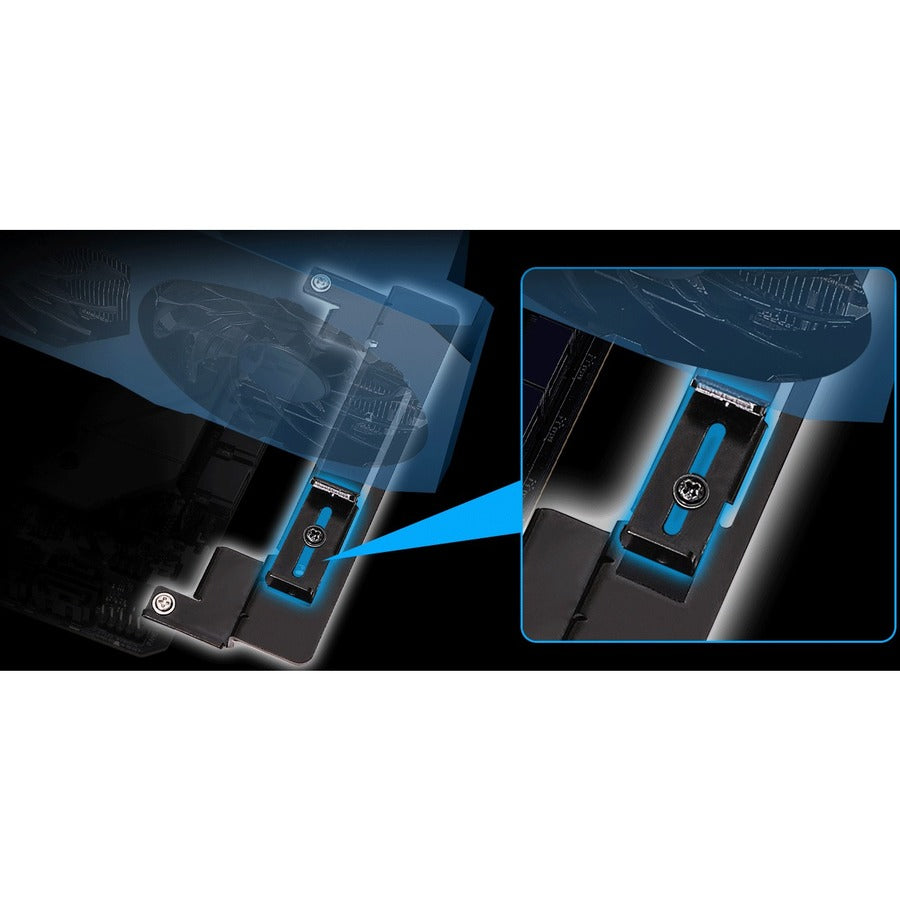

ASRock graphics card holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

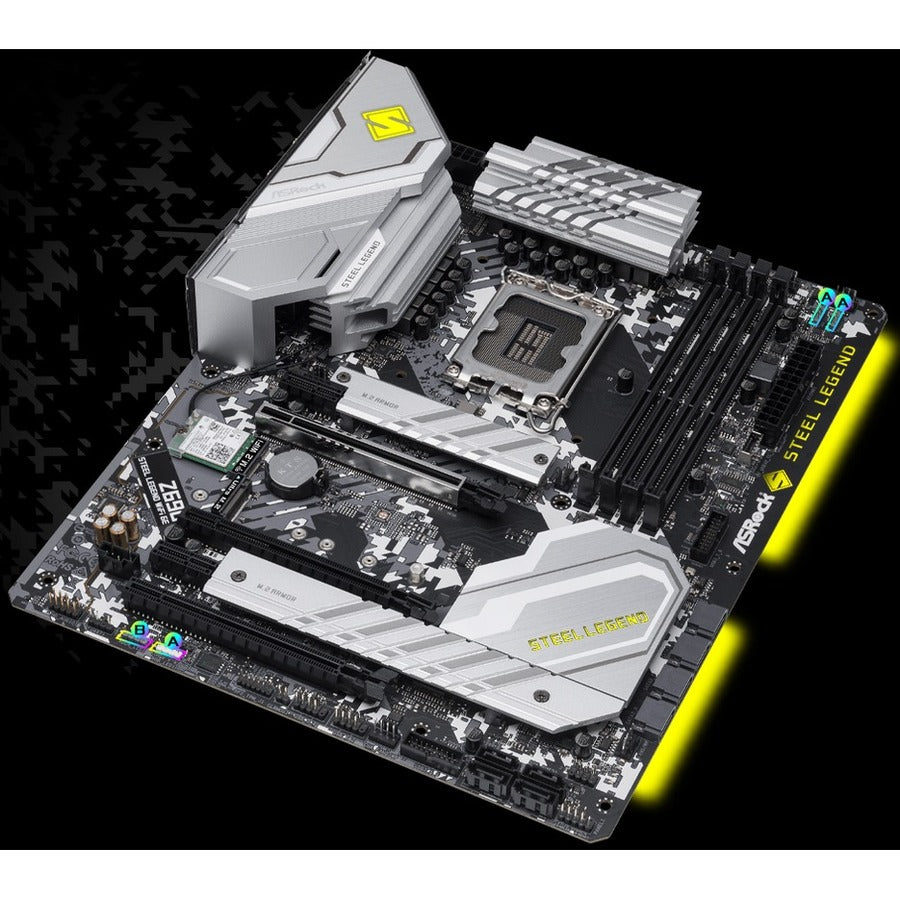

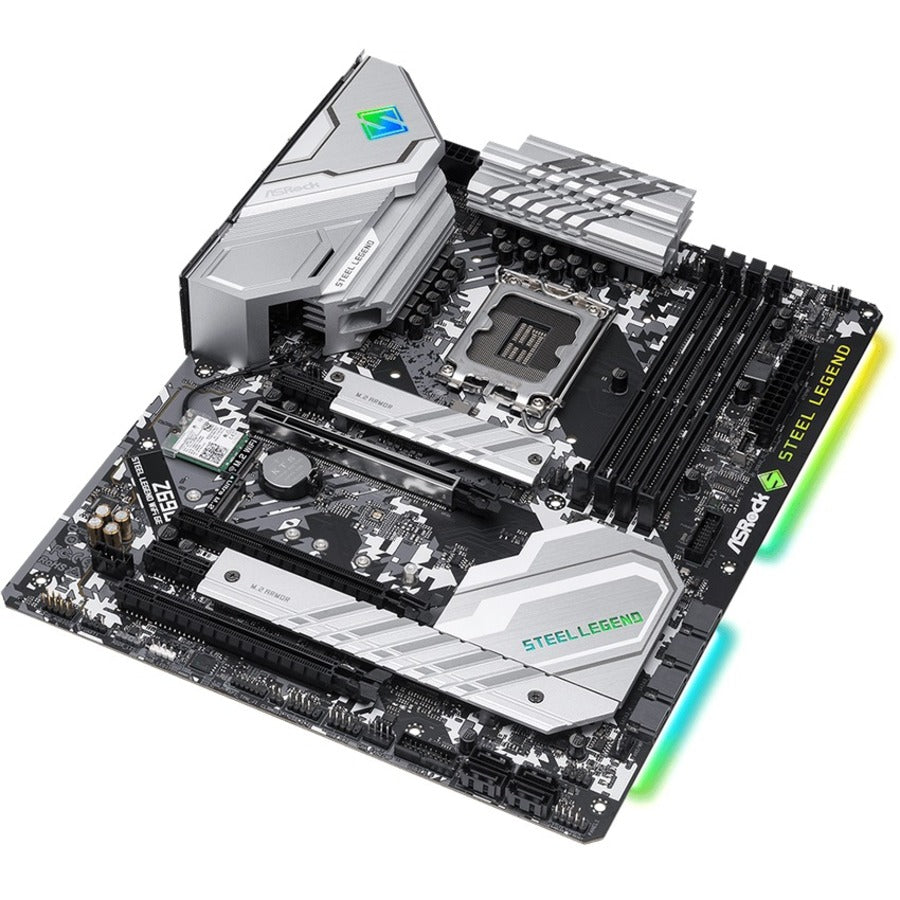

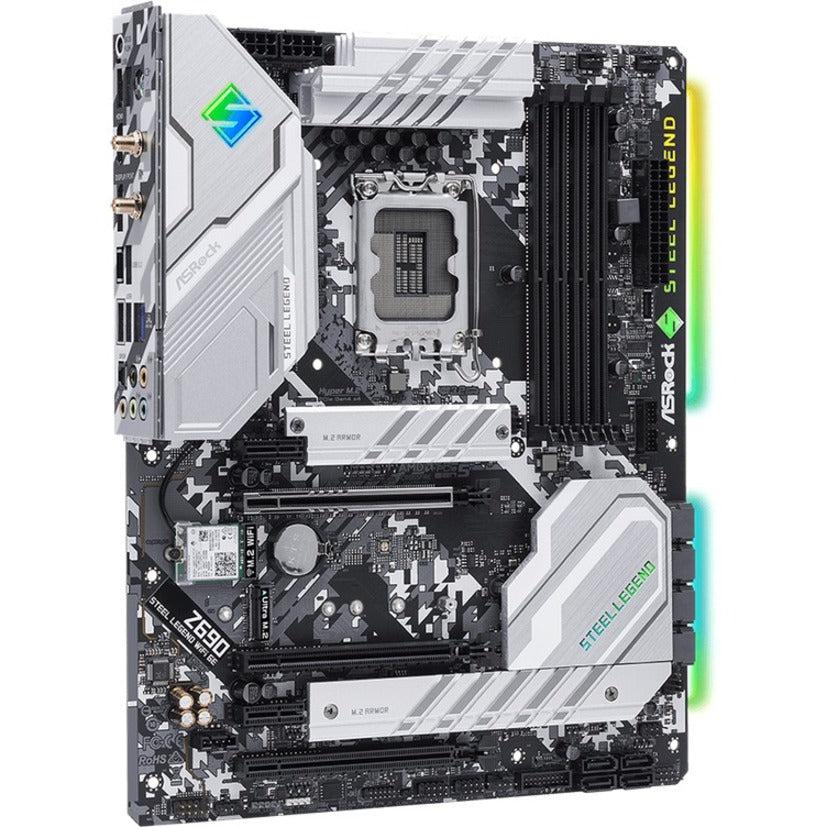

Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
High speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Anti-drop screw
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Wireless networking
WiFi 6E technology has extended to the whole different 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

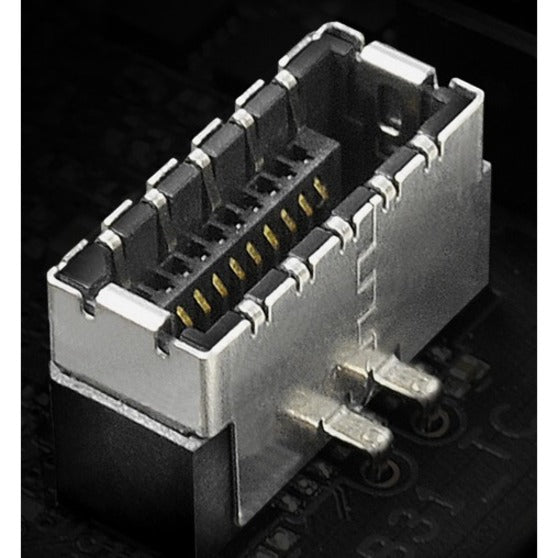

Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Dual USB 3.2 Gen2
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Auto driver installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
BIOS flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

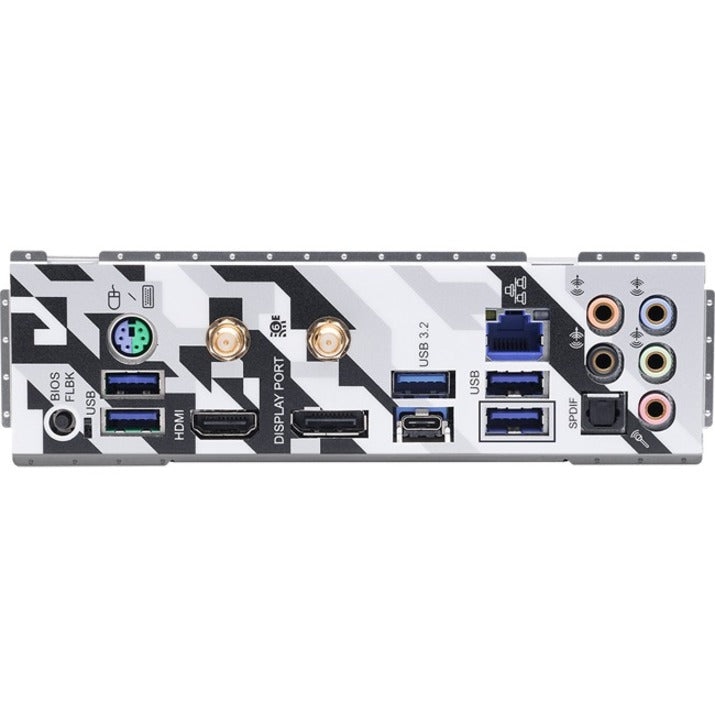

Flexible integrated IO shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. Asrock reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

Main Specifications

Product Description

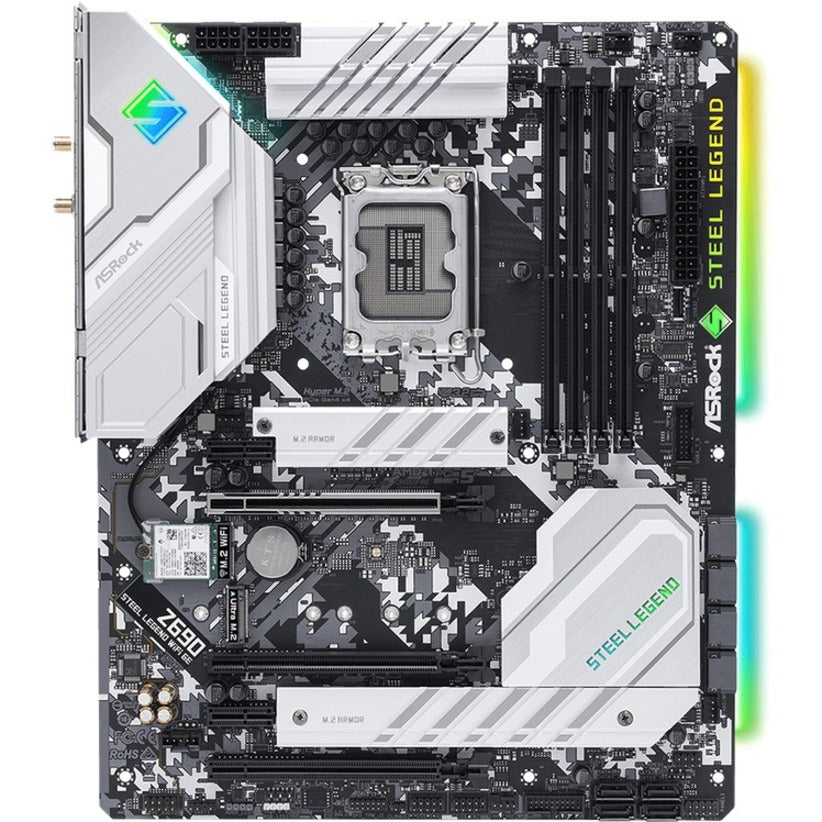

ASRock Z690 Steel Legend WiFi 6E - motherboard - ATX - LGA1700 Socket - Z690

Product Type

Motherboard - ATX

Chipset Type

Intel Z690

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th Generation Intel Core)

Max RAM Size

128 GB

RAM Supported

4 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports

8 x SATA-600 (RAID), 2 x Hyper M.2, 1 x Ultra M.2

USB / FireWire Ports

1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Bluetooth, 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	Z690 Steel Legend WiFi 6E
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	Z690 Steel Legend WiFi 6E
Product Name	Z690 Steel Legend WiFi 6E Desktop Motherboard
Product Type	Desktop Motherboard

Chipset

Chipset Manufacturer	Intel

Network & Communication

Wireless LAN Standard	IEEE 802.11 a/b/g/n/ax
Bluetooth	Yes

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6
Number of USB 3.2 Gen 1 Ports	4

Width	12"
Depth	9.6"

Miscellaneous

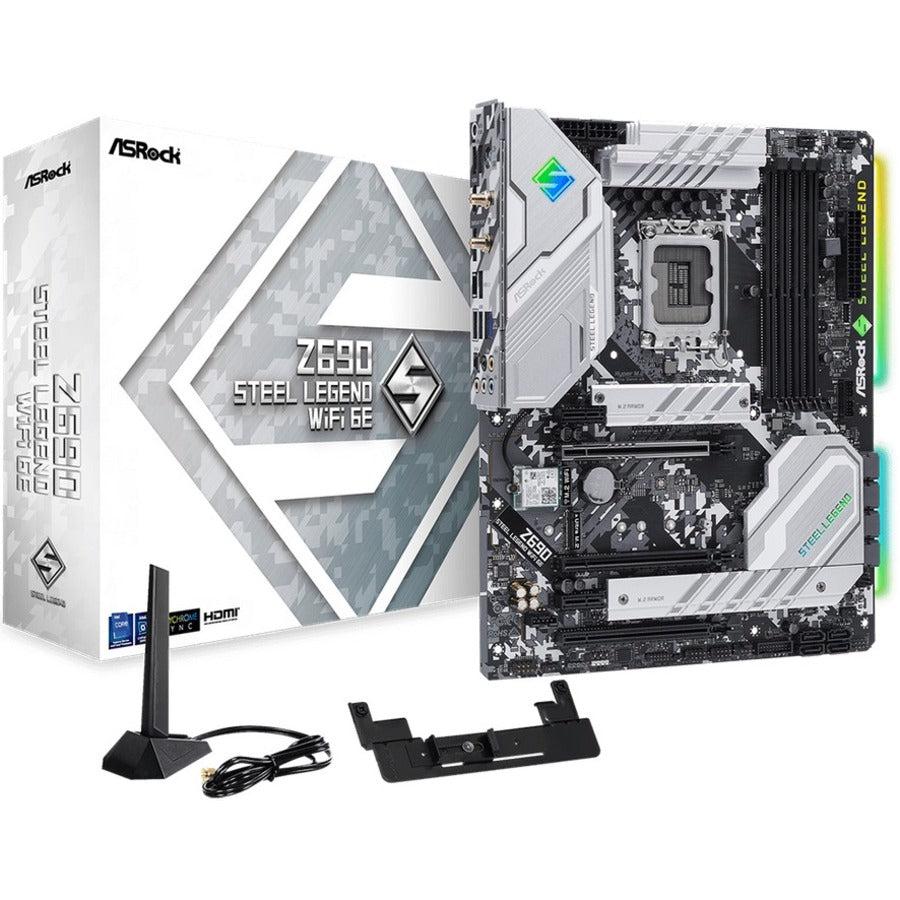

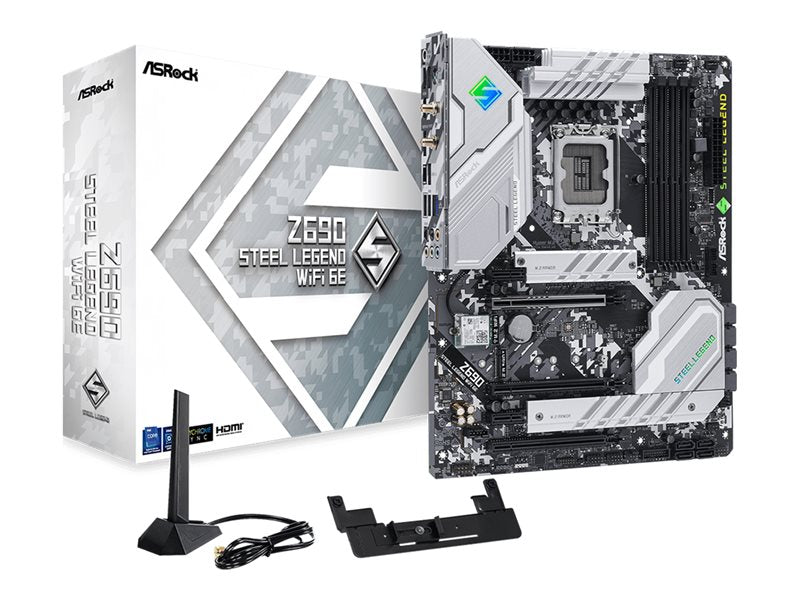

Package Contents	Z690 Steel Legend WiFi 6E Desktop Motherboard Quick Installation Guide 2 x SATA Data Cables 3 x Screws for M.2 Sockets 2 x Standoffs for M.2 Sockets 1 x Graphics Card Holder Support CD: Drivers Utilities AntiVirus Software (Trial Version) Google Chrome Browser and Toolbar
Environmentally Friendly	Yes
