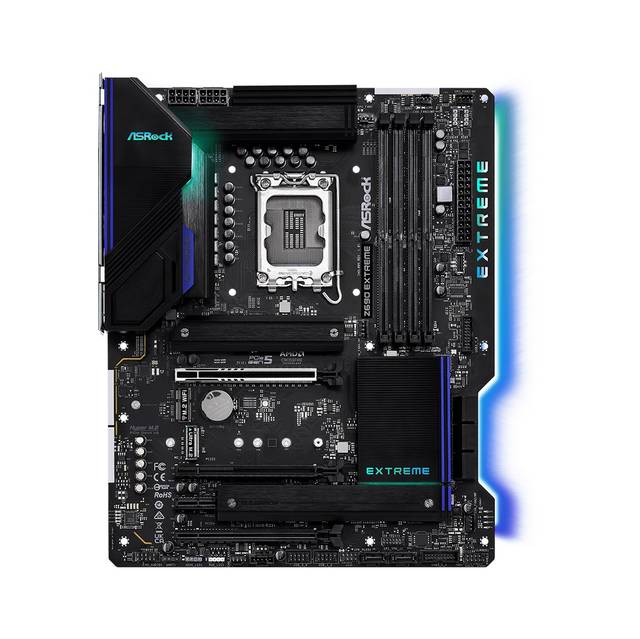

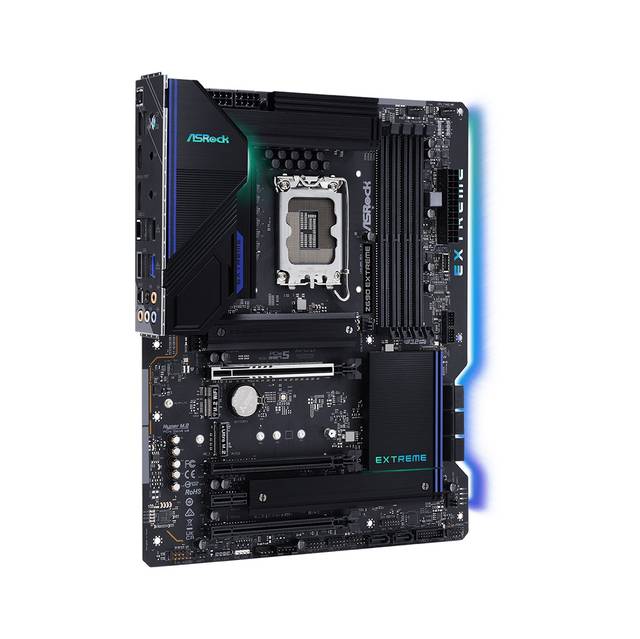

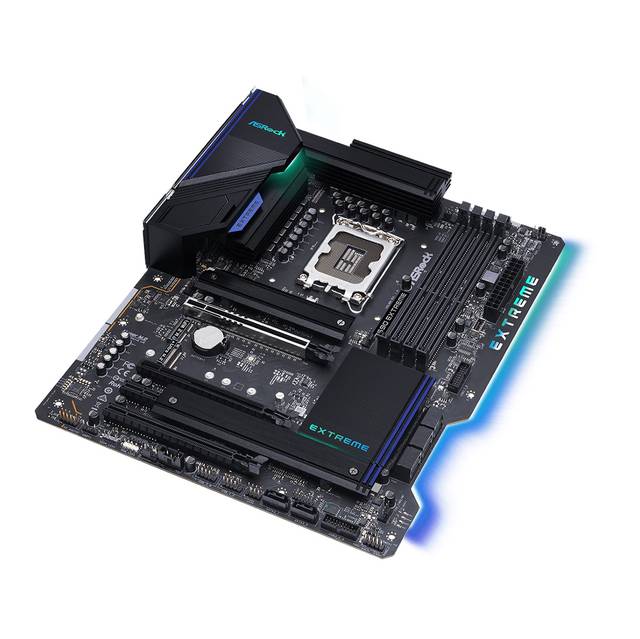

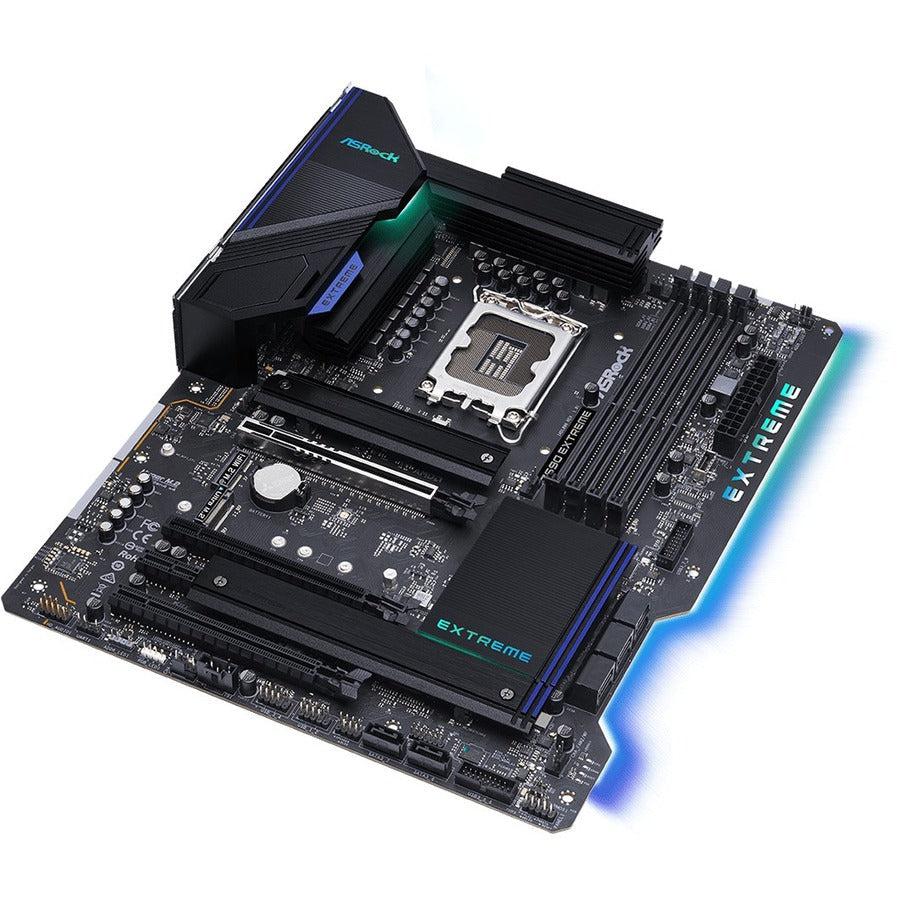

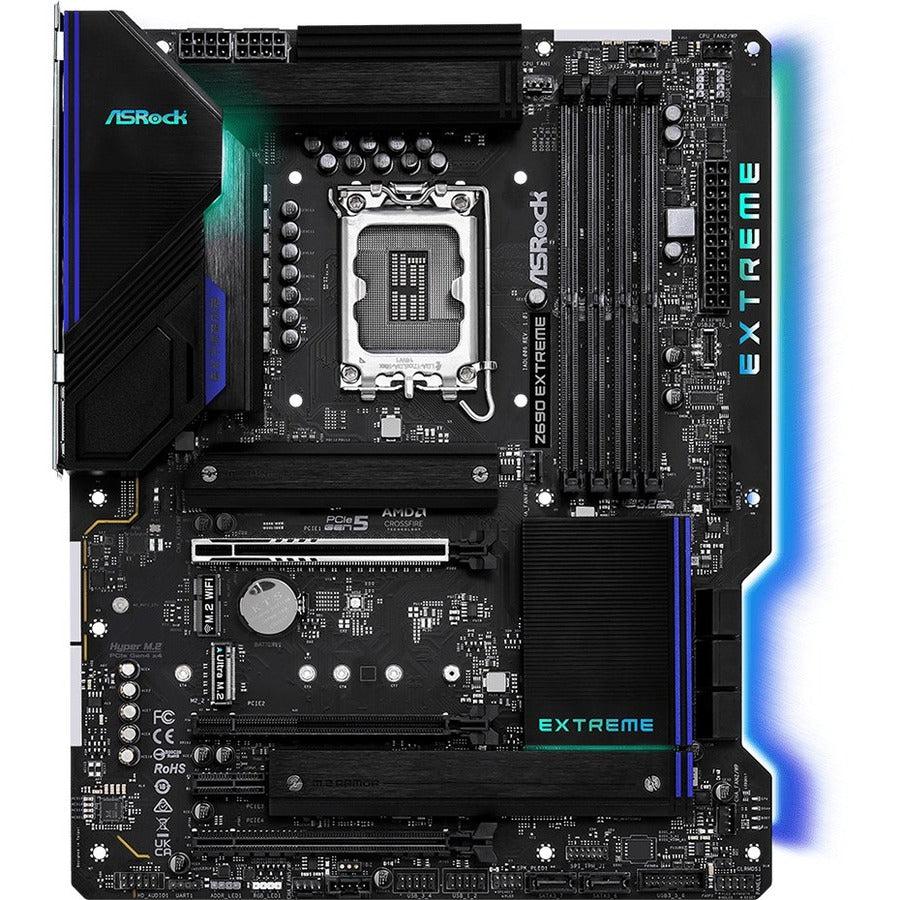

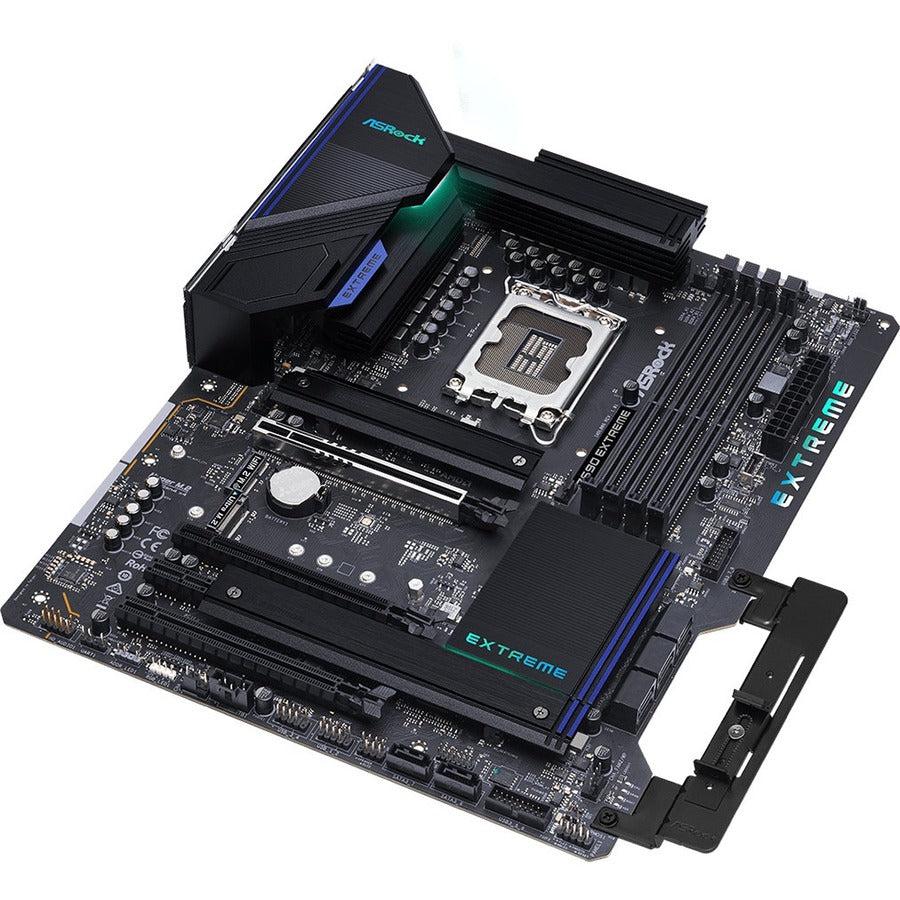

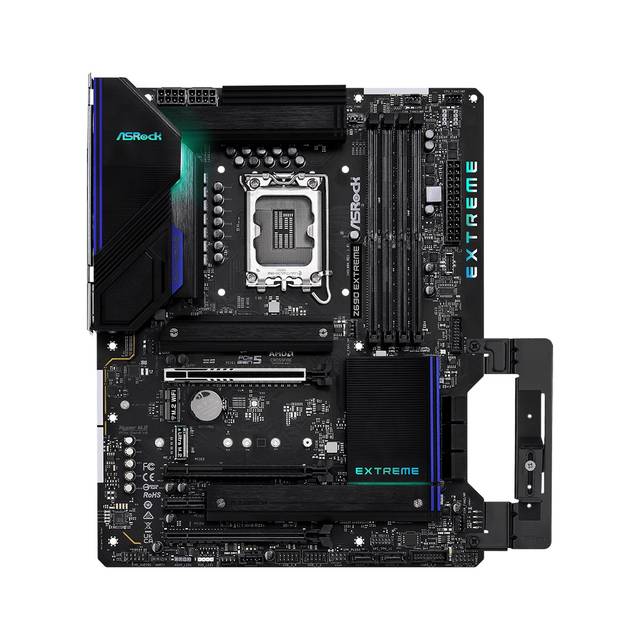

Mfr Part Number: Z690 EXTREME
-
CPU:
-
Supports 12th Gen Intel Core Processors (LGA1700)
-
Digi Power design
-
13 Power Phase design
-
Supports Intel Hybrid Technology
-
Supports Intel Turbo Boost Max 3.0 Technology
-
Chipset: Intel Z690
-
Memory:
-
Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5000+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
-
BIOS:
-
256Mb AMI UEFI Legal BIOS with multilingual GUI support
-
ACPI 6.0 Compliant wake up events
-
SMBIOS 2.7 Support
-
CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
-
Graphics:
-
Intel Xe Graphics Architecture (Gen 12)
-
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
-
Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
-
Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
-
Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
-
Audio:
-
7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
-
Premium Blu-ray Audio support
-
Supports Surge Protection
-
Pure Power-In
-
Direct Drive Technology
-
PCB Isolate Shielding
-
Impedance Sensing on Rear Out port
-
Individual PCB Layers for R/L Audio Channel
-
Gold Audio Jacks
-
15 Gold Audio Connector
-
Nahimic Audio
-
LAN:
-
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG)
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE
-
Slots:
-
3 x PCIe x16 Slots (PCIE1/PCIE2/PCIE4: single at Gen5x16 (PCIE1); dual at Gen5x16 (PCIE1) / Gen4x4 (PCIE2); triple at Gen5x16 (PCIE1) / Gen4x4 (PCIE2) / Gen3x4 (PCIE4))
-
1 x PCIe Gen3x1 Slot
-
Supports AMD CrossFire
-
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
-
15 Gold Contact in VGA PCIe Slot (PCIE1)
-
Storage:
-
8 x SATA3 6.0 Gb/s Connectors
-
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
-
1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
-
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode
-
RAID:
-
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
-
Connector:
-
1 x SPI TPM Header
-
1 x Power LED and Speaker Header
-
1 x RGB LED Header
-
3 x Addressable LED Headers
-
1 x CPU Fan Connector (4-pin)
-
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
-
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
-
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
-
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
-
1 x Front Panel Audio Connector (15 Gold Audio Connector)
-
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
-
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
-
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
-

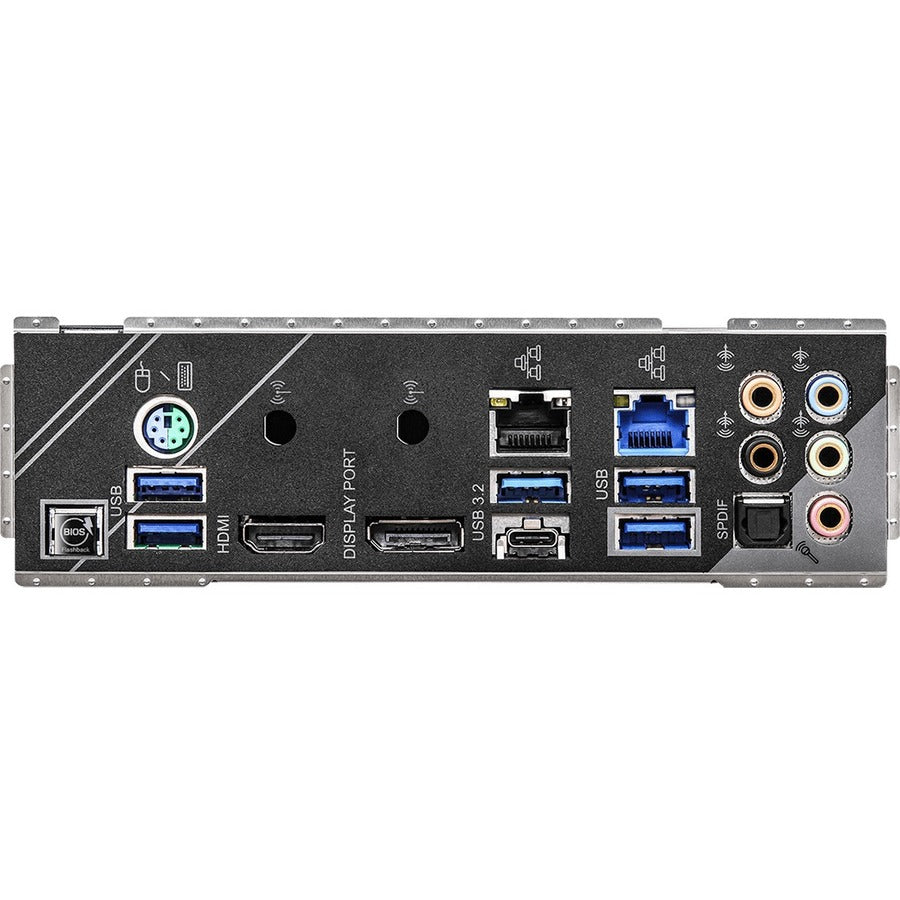

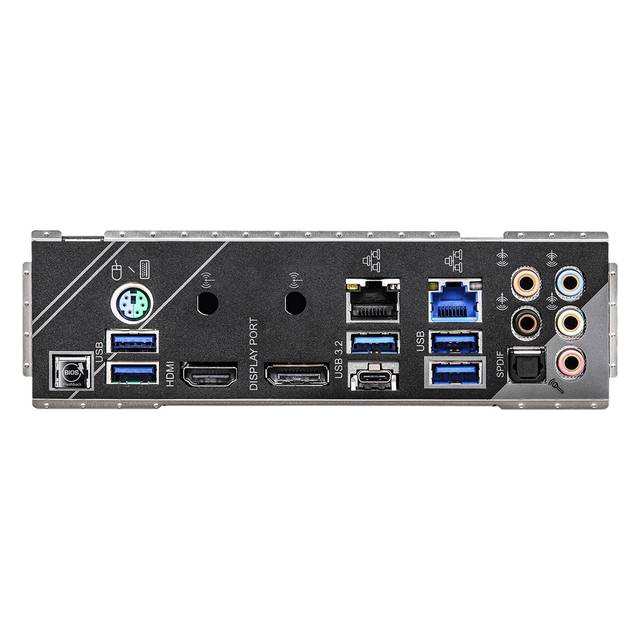

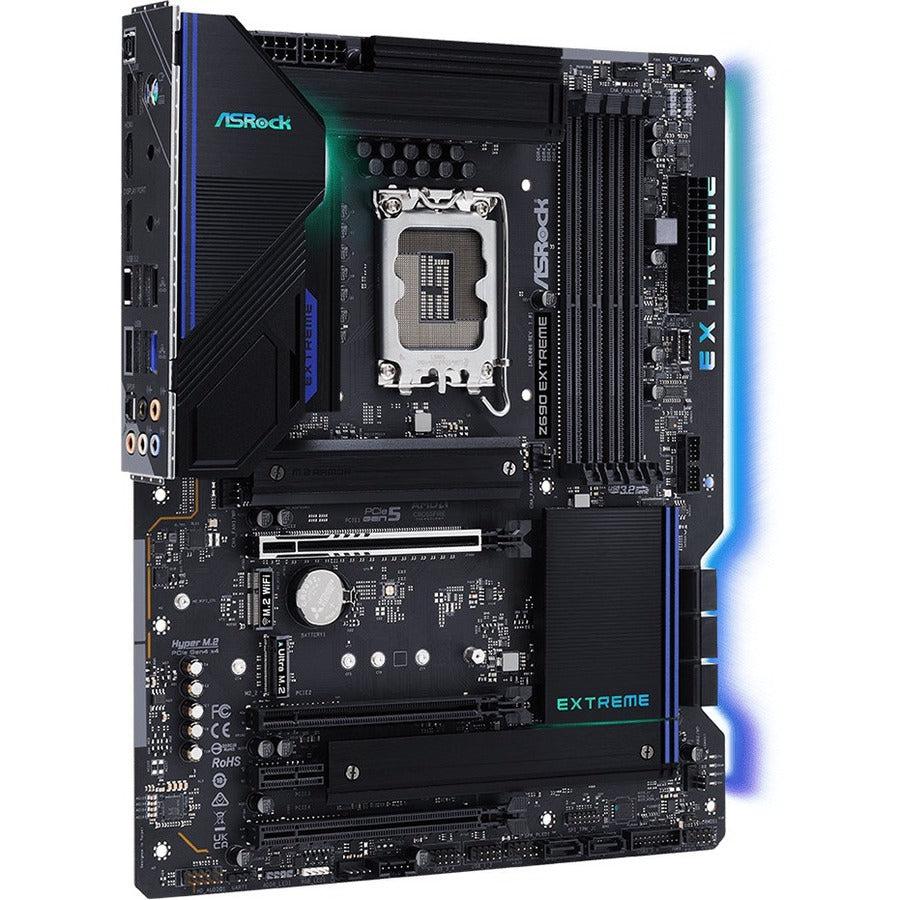

Rear Panel I/O:
-
2 x Antenna Ports
-
1 x PS/2 Mouse/Keyboard Port
-
1 x HDMI Port
-
1 x DisplayPort 1.4
-
1 x Optical SPDIF Out Port
-
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
-
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
-
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
-
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
-
1 x BIOS Flashback Button
-
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
-
Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories:
-
Quick Installation Guide, Support CD
-
4 x SATA Data Cables
-
3 x Screws for M.2 Sockets
-
2 x Standoffs for M.2 Sockets
-
1 x Graphics Card Holder
-
Hardware Monitor:
-
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIN AUX, +1.05V PROC, FIVR_SA_LOAD, +0.82V PCH, +12V, +5V, +3.3V
-
Form Factor:
-
Operating System: Microsoft Windows 10 64-bit / 11 64-bit
-
Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
- CEC Tier II ready
