Description
- AMD X570
- Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
- AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400 /2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series Processors
- 10 Power-Phase Design
- Supports DDR4 4666+ (OC)
- 2x PCIe 4.0 x16 and 3x PCIe 4.0 x1
- AMD Quad CrossFireX™ and CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
- 8x SATA3, 1x Hyper M.2 (PCIe Gen4 x4 & SATA3) and 1x Hyper M.2 (PCIe Gen4 x4)
- 2x USB 3.2 Gen 2 (Rear Type-A + C) and 10x USB 3.2 Gen 1 (4x Front, 6x Rear)
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Bluetooth 5.0 & Intel® Gigabit LAN
- ASRock Polychrome SYNC
Your PC Transformed
A More Reliable Design That Delivers
Welcome to the new Wi-Fi standard! ASRock's motherboard will be the 1st product coming with a next-generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.
The next-generation PCI Express 4.0 is capable of performing up to twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also make sure heavy graphics cards can be well-installed into the PCI-E slot safely.
Supports the next generation of PCI Express 4.0 M.2 SSDs that perform at up to twice the speed, compared to previous 3rd generation. Now, you can have a lightning fast data-transferring experience.
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Unlike most so-called pre-mounted I/O shields that are only decorated with fancy color schemes, we reserve more space to make a more adjustable IO shield during installation, thus fitting the chassis perfectly without any mechanical issue.
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Dr.MOS is the integrated power-stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal results and superior performance.

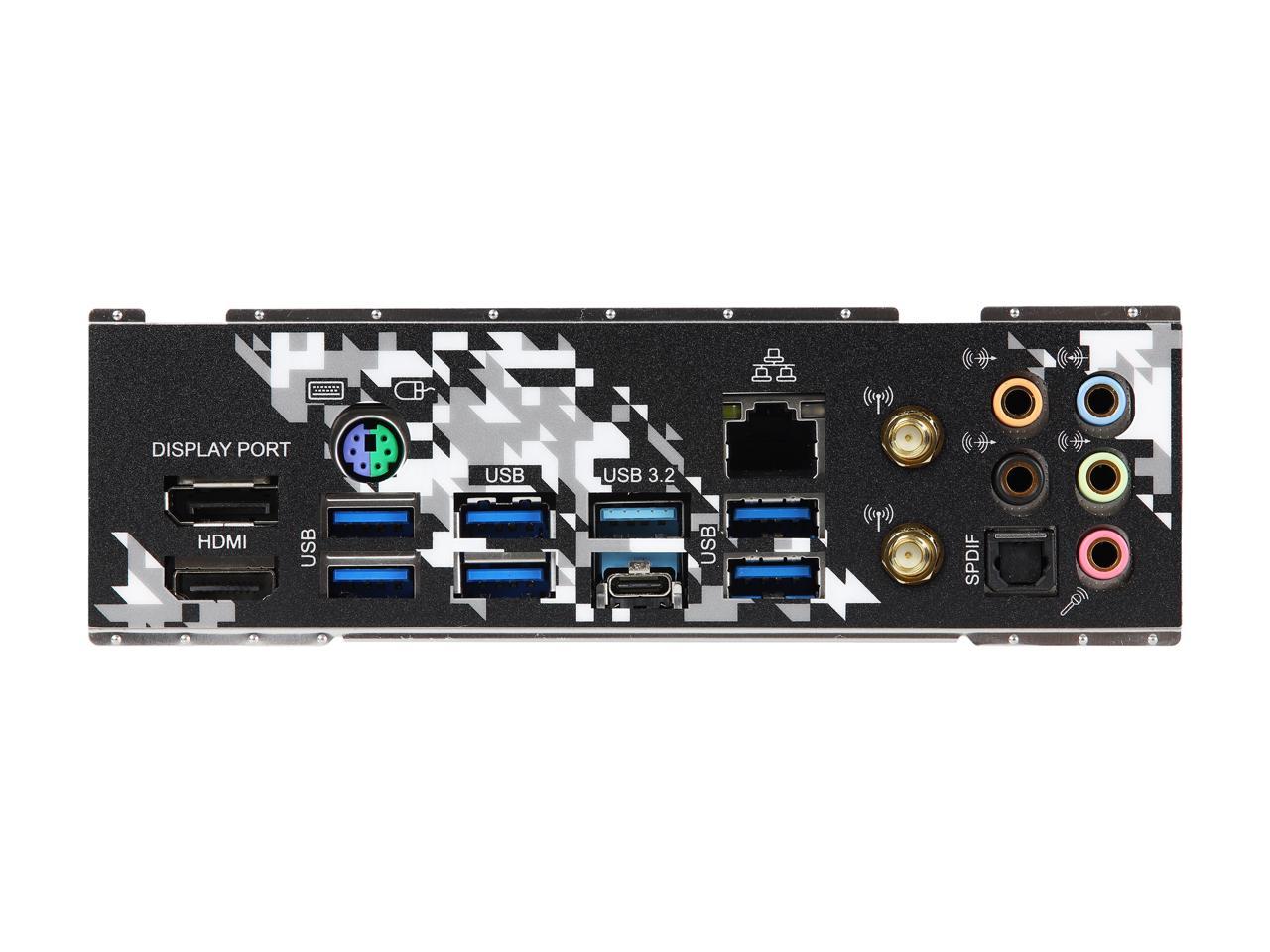

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen 2 ports built on the rear i/o for supporting next-generation USB 3.2 Gen 2 devices and to deliver up to 10Gbps data-transfer rates. USB 3.2 Gen2 do
ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.
It's time to enjoy the most purified audio performance with ultra-high definition. Purity Sound 4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
Thunderbolt 3 is no longer limited to certain chipset, ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC card!
1: Only three TB3 devices can be detected.
2 : Some USB 3.2 Type-C devices will cause system reboot after wake up from S3/S4.
3 : Cannot light up the TB3 monitor after wake up from S3/S4, re-plug the cable is needed.
4 : Does not support Thunderbolt 3 PCIe graphics card box.
Extra-large aluminum alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.
Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, helping overclockers achieve higher scores.
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
Using a high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
General Information
| UPC | 4717677339109 |
|---|
