Description

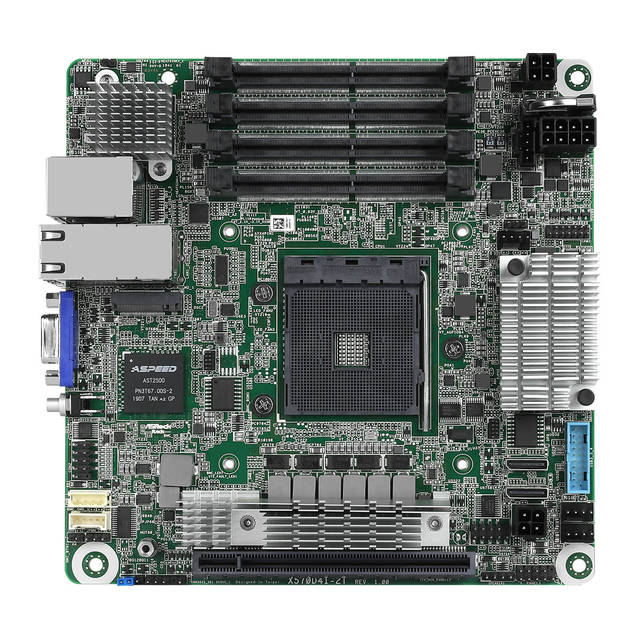

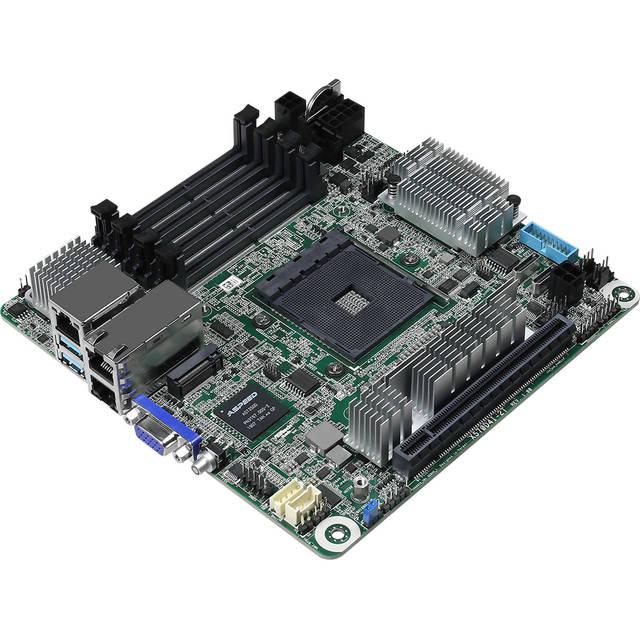

- Mfr Part Number: X570D4I-2T
-
CPU: AM4 PGA 1331
- Supports AMD Ryzen 3rd Generation Series Processors(Max 105W)
- Chipset: AMD Premium X570
- Memory: 4 x DDR4 SO DIMM slots, Dual Channel, ECC/UDIMM, Max Capacity of 64GB
- Slots: PCI-Express 4.0 x16
- SATA: AMD X570:8 x SATA3 by OCulink
- Video: Aspeed AST2500 Graphics DDR4 16MB VRAM
- LAN: 2x RJ45 10GLAN by Intel X550-AT2, 1x Realtek RTL8211E for dedicated management GLAN
- Ports: 1x D-Sub VGA port, 2x USB 3.1 Gen2 port, RJ45:2+1(IPMI), LAN Ports with LED (ACT/LINK LED and SPEED LED), 1x UID Button/UID LED
- Power Connector: 8pin(DC-IN)+4pin(ATX)+4pin(HDD PWR)
- Form Factor: mini-ITX, 6.7 x 6.7 inch / 17.02 x 17.02 cm
Manual for X570D4I-2T Motherboard
General Information
| UPC | 4710483931352 |
|---|
