✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

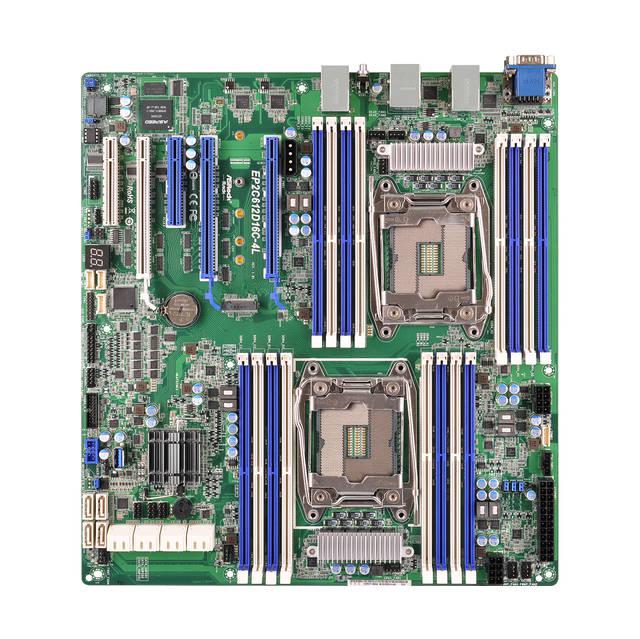

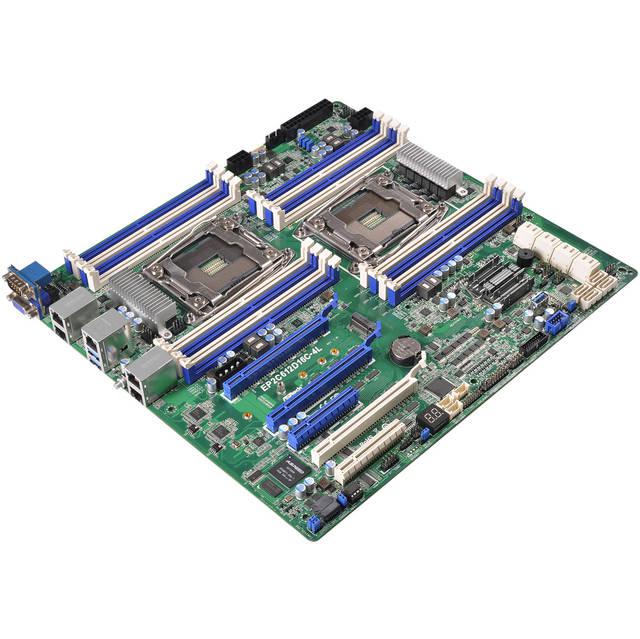

Mfr Part Number: EP2C612D16C-4L
CPU: Dual LGA2011-v3
Support Intel Xeon E5-2600 v3 Series Processors
Chipset: Intel C612
Memory: 16x DDR4-2133/ 1866/ 1600 DIMM Slots, Quad Channel, Supports up to 32GB REG Memory or up to 64GB Load Reduced Memory
Slots: 3x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots
SATA: 6x SATA3 Ports, 4 x sSATA3 Ports, Support RAID 0, 1, 5, 10; 2x SATA3 Ports by Marvell 9172, Support RAID 0, 1
Video: Aspeed AST2400 Graphics w/ 16MB DDR3 VRAM Video Memory
LAN: 4x Intel i210 Gigabit Ethernet Controllers; 1x Realtek RTL8211E for Dedicated Management GLAN

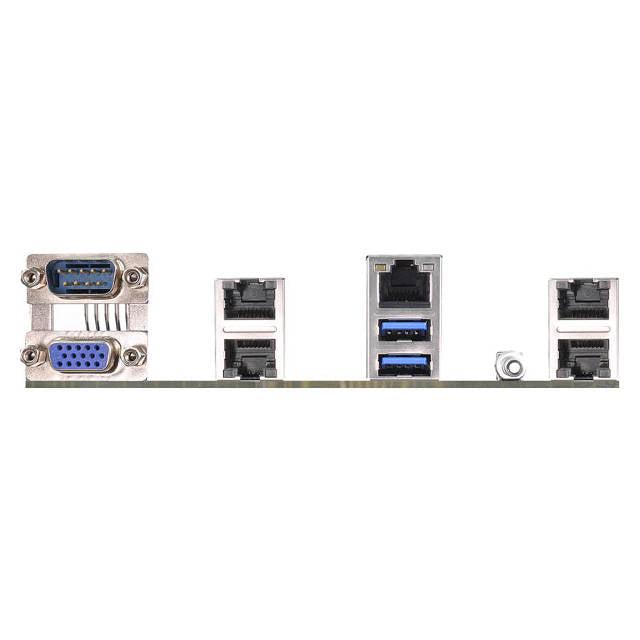

Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 2x USB 2.0 Ports (via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Power Connector: 1x 24pin ATX Power Connector, 2x 8pin ATX Power Connectors
Form Factor: SSI EEB, 12.0 x 13.0 inch
View more
