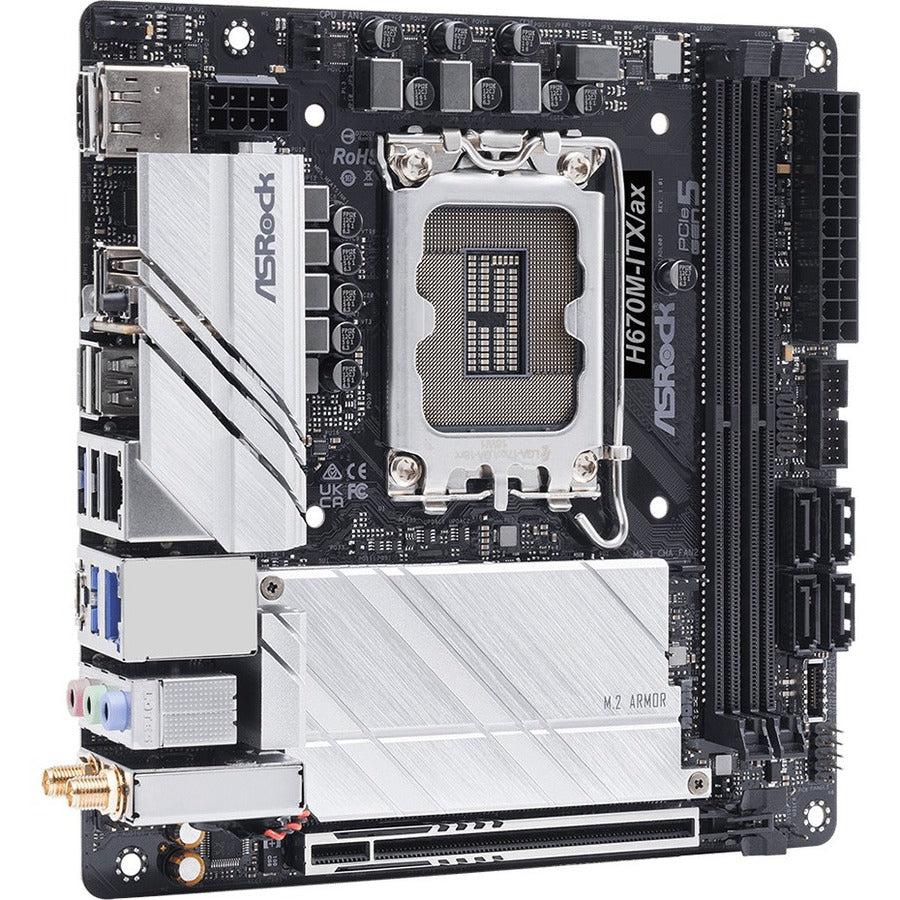

ASRock H670M-ITX/ax Desktop Motherboard - Intel H670 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Mini ITX - Pentium Gold, Celeron, Core i5, Core i7, Core i9, Core i3 Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
- Supports 12th Gen Intel® Core™ Processors (LGA1700)
- 8 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3
1 Hyper M.2 (PCIe Gen4 x4)
1 Hyper M.2 (PCIe Gen4 x4 & SATA3) - 1 Rear USB 3.2 Gen2x2 Front Type-C

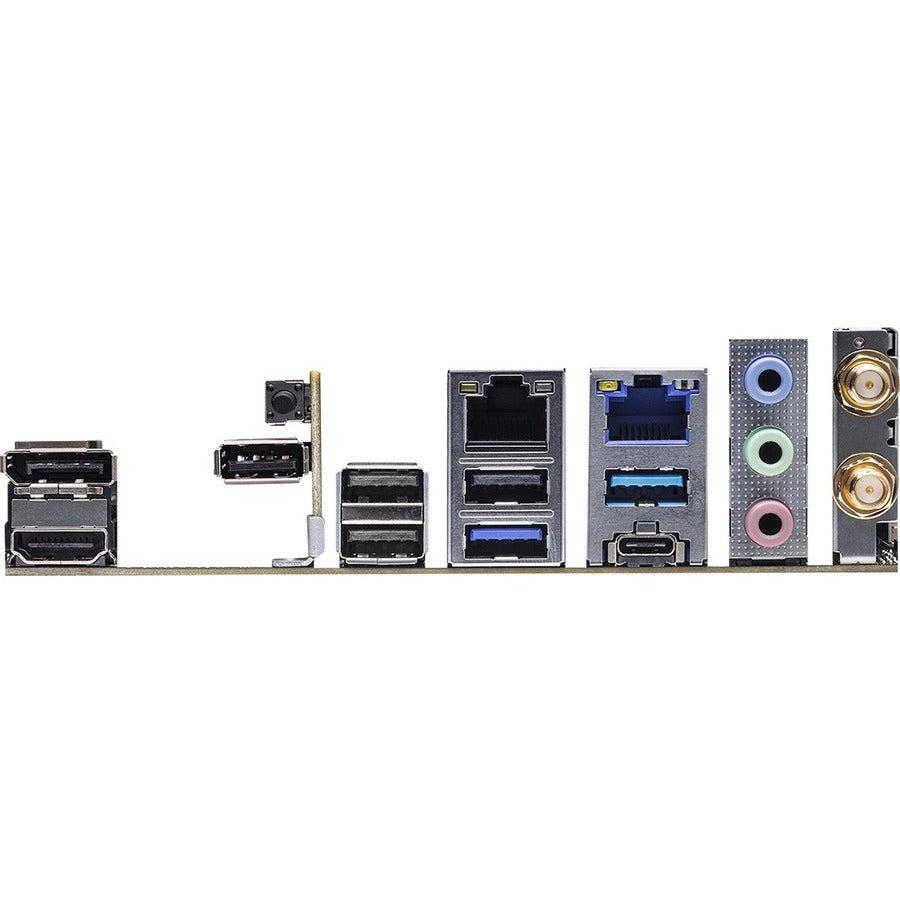

2 Rear USB 3.2 Gen2
3 USB 3.2 Gen1 (2 Front, 1 Front Type-C) - Dragon 2.5G LAN, Intel® Gigabit LAN
- 802.11ax (WiFi 6E) + Bluetooth
Optimized VRM Design
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
8 Power Phase Design Featuring sturdy components and completely smooth
