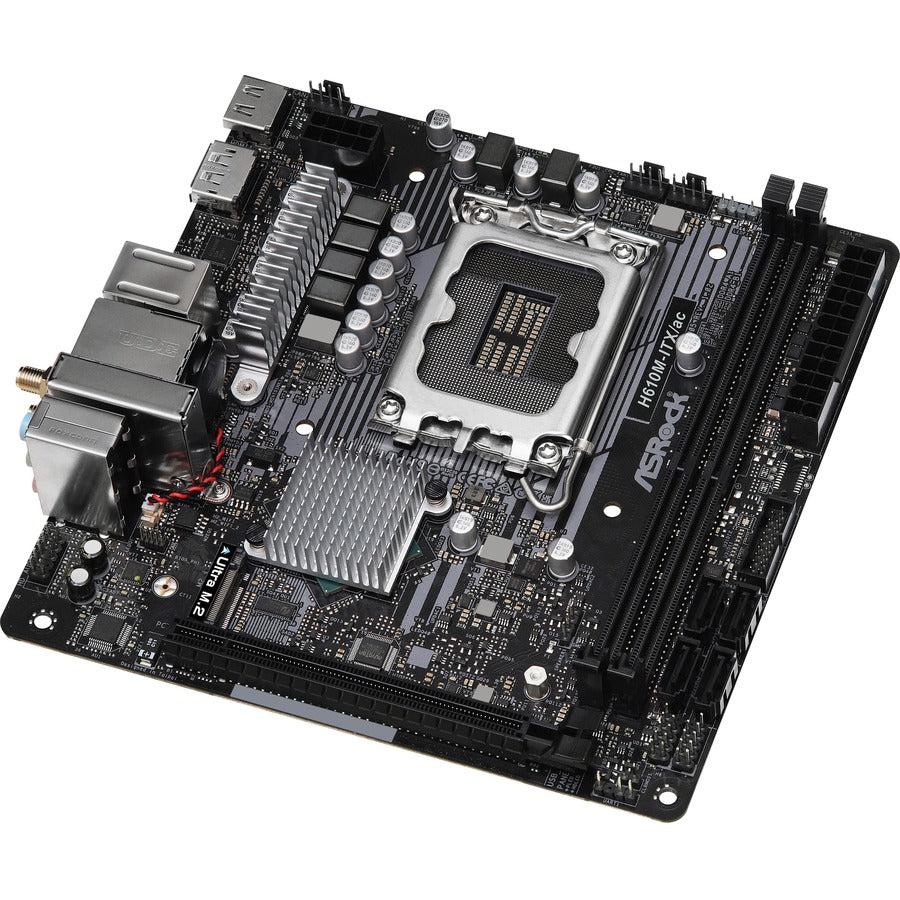

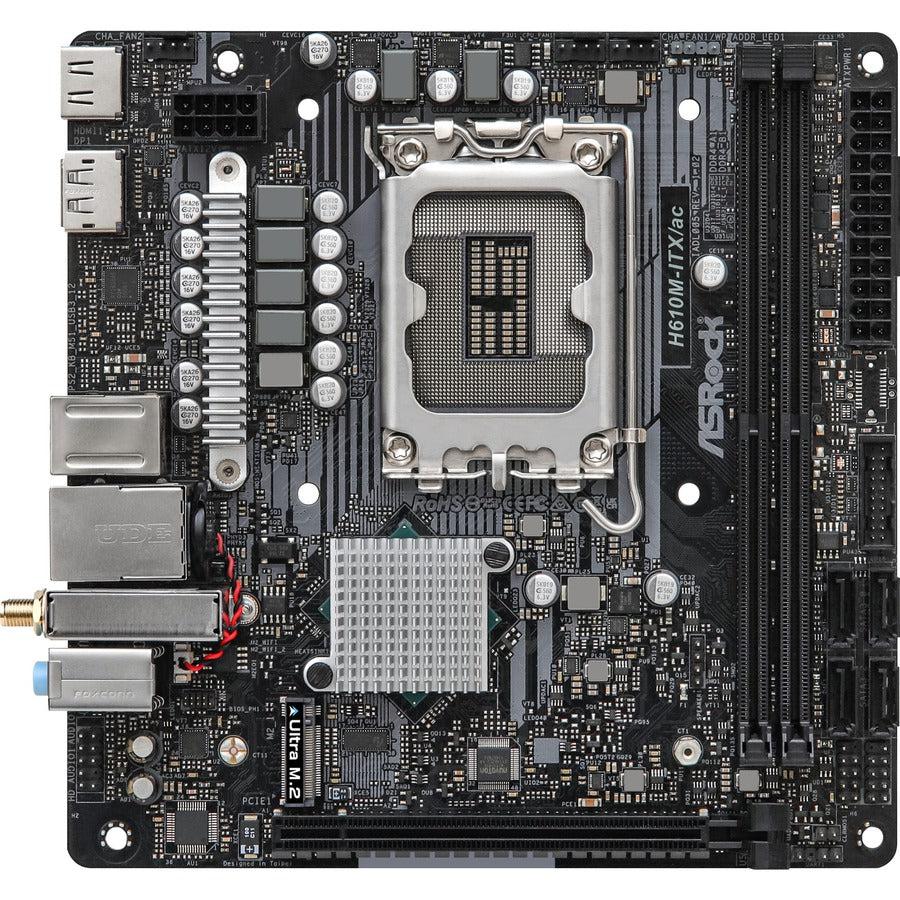

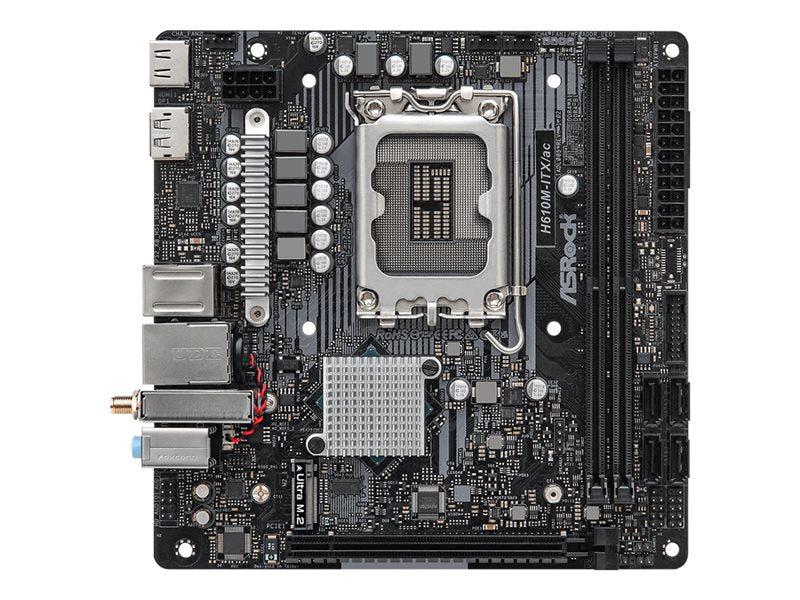

Name: Asrock H610M-Itx/Ac - Motherboard - Mini Itx - Lga1700 Socket - H610 Chipset - Usb 3.2 Gen 1 - Bluetooth, Gigabit Lan, Wi-Fi - Onboard Graphics (Cpu Required) - Hd Audio (8-Channel)
Brand: ASRock
SKU: H610M-ITX/AC
Price: 174.52 USD
Availability: InStock

Asrock H610M-Itx/Ac - Motherboard - Mini Itx - Lga1700 Socket - H610 Chipset - Usb 3.2 Gen 1 - Bluetooth, Gigabit Lan, Wi-Fi - Onboard Graphics (Cpu Required) - Hd Audio (8-Channel)

Roll over image to zoom in Click on image to zoom

Key Selling Points

Digi power
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
Intel Gigabit LAN
Dual band 802.11ac WiFi
Front USB 3.2 Gen1 Type-C
Dual graphics outputs
HDMI 4k @60Hz
Full Spike Protection

Product Features

Digi power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.
Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

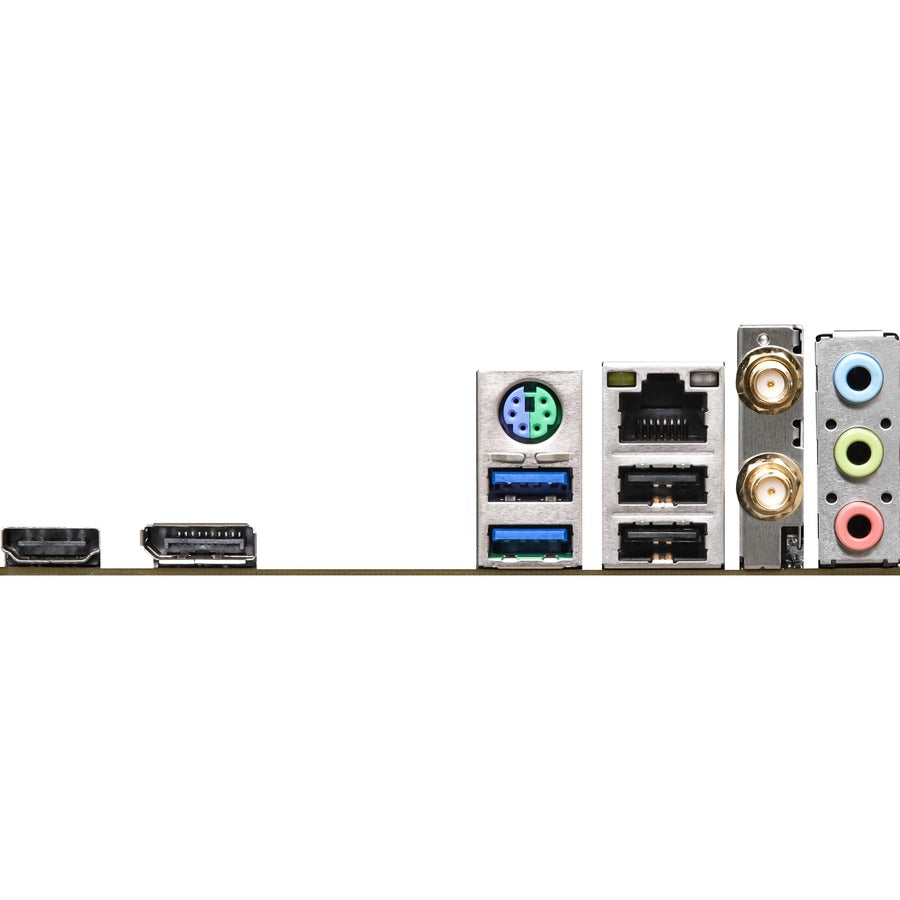

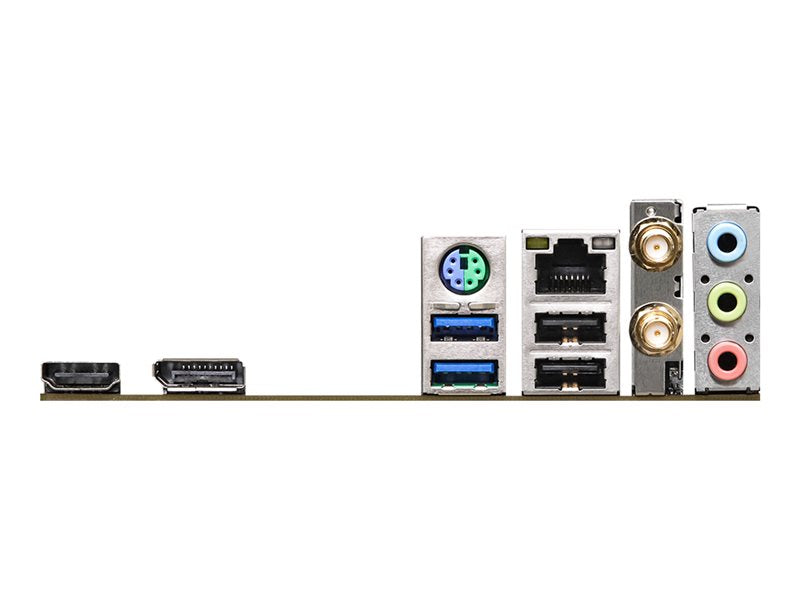

Dual graphics outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Main Specifications

Product Description

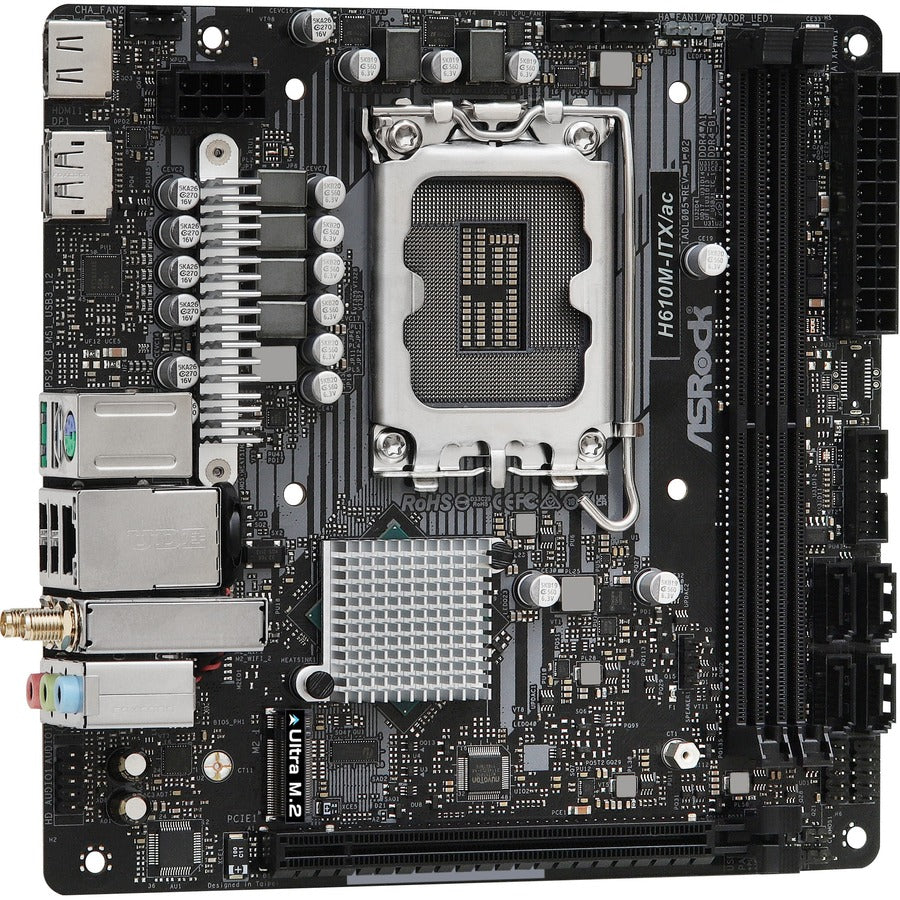

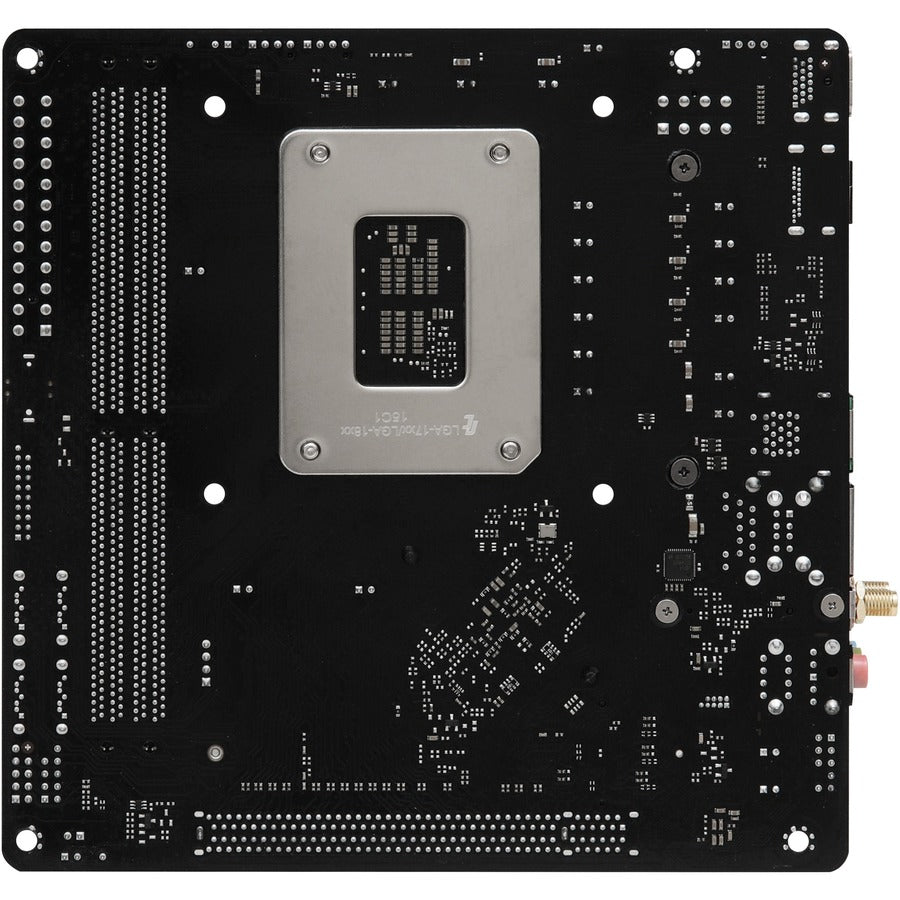

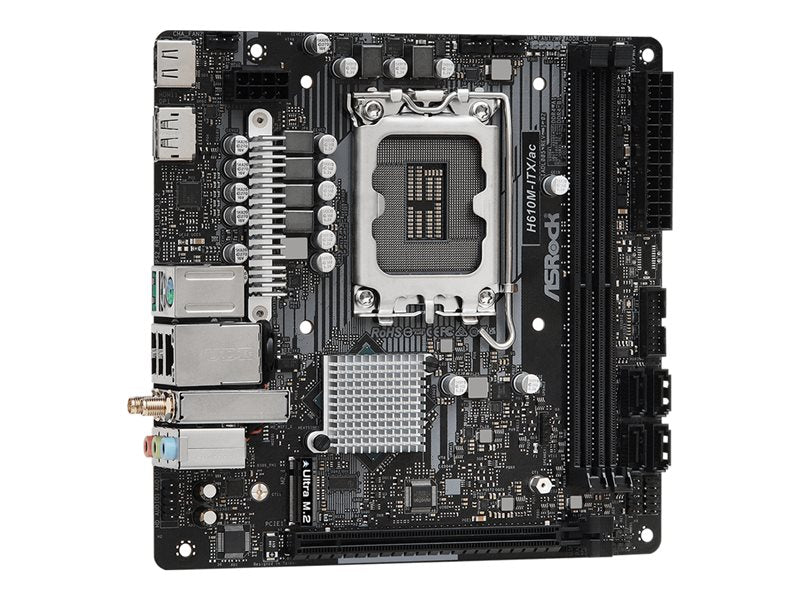

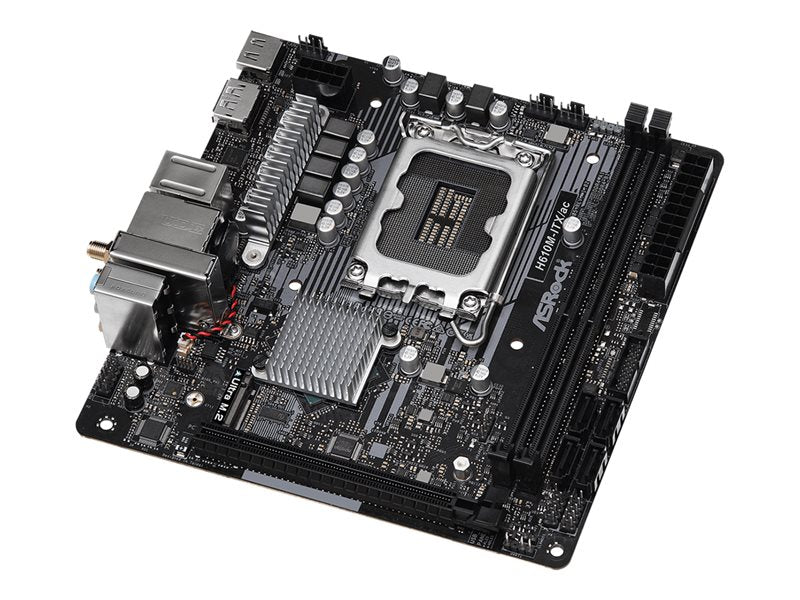

ASRock H610M-ITX/ac - motherboard - mini ITX - LGA1700 Socket - H610

Product Type

Motherboard - mini ITX

Chipset Type

Intel H610

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th Generation Intel Core)

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports

4 x SATA-600, 1 x Ultra M.2

USB / FireWire Ports

2 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	H610M-ITX/ac
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	H610M-ITX/ac
Product Name	H610M-ITX/ac Desktop Motherboard
Product Type	Desktop Motherboard

Chipset

Chipset Manufacturer	Intel

Network & Communication

Wireless LAN Standard	IEEE 802.11a/b/g/n/ac
Bluetooth	Yes

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	2

Width	6.7"
Depth	6.7"

Miscellaneous

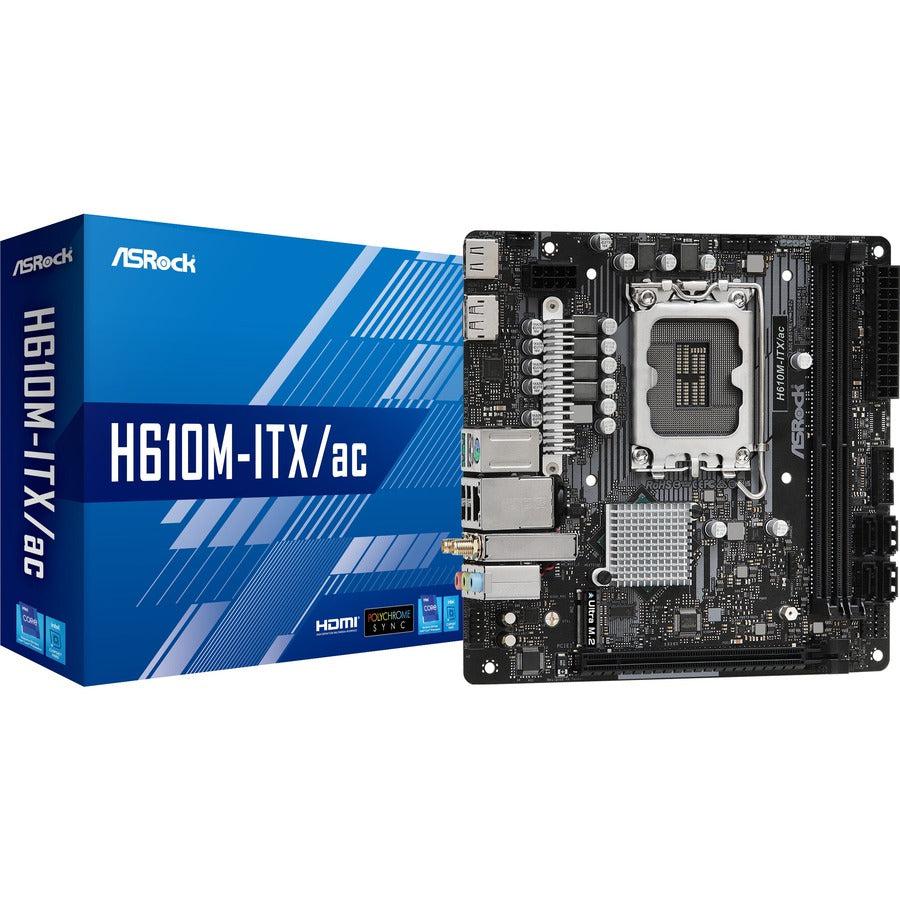

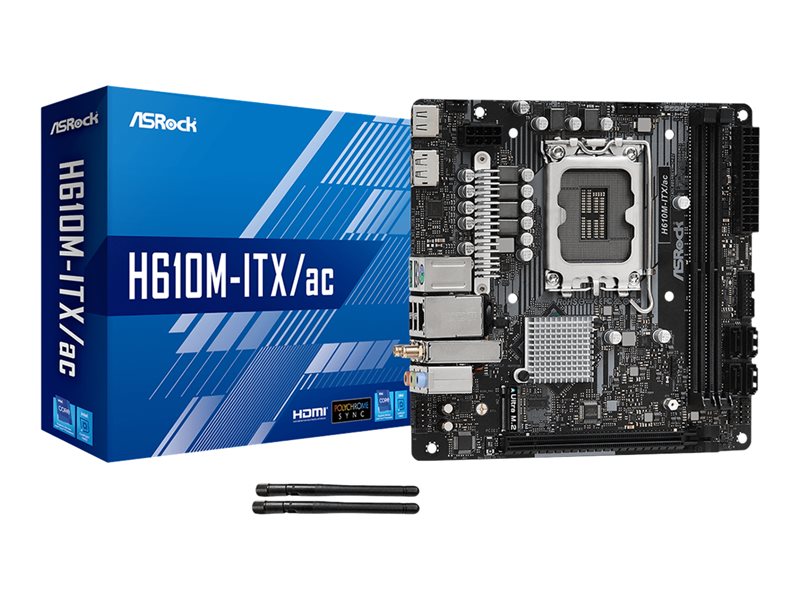

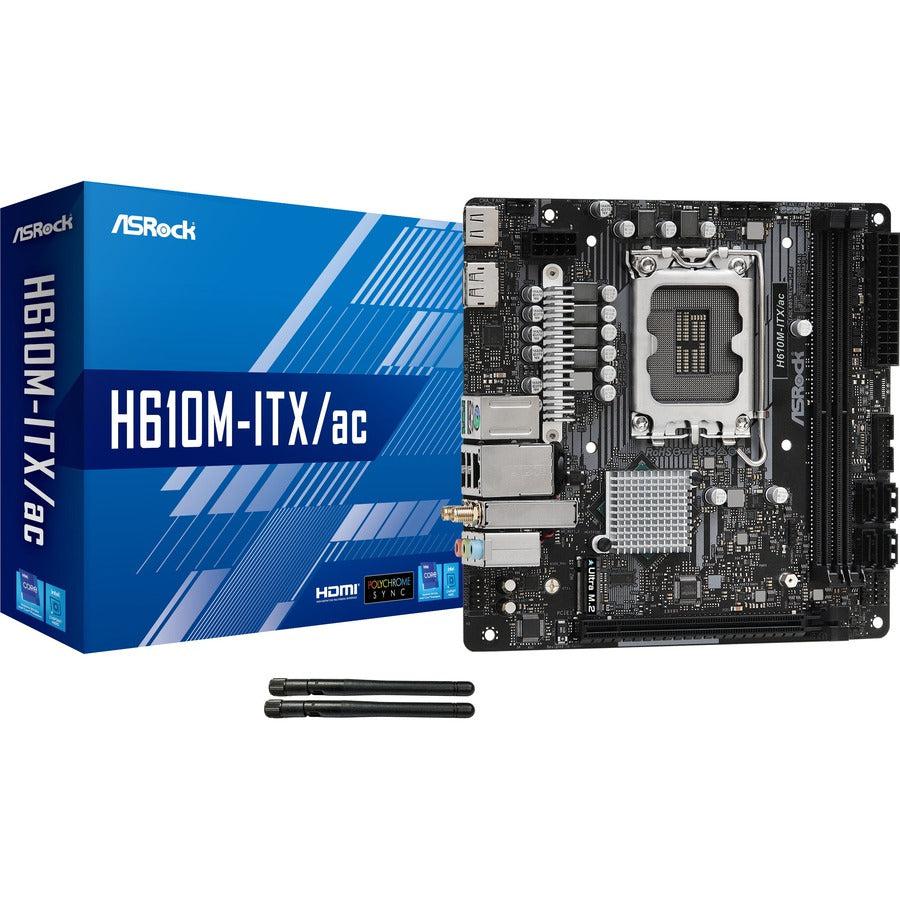

Package Contents	H610M-ITX/ac Desktop Motherboard Quick Installation Guide I/O Shield 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5 GHz Antennas 1 x Screw for M.2 Socket Support CD Drivers Utilities AntiVirus Software (Trial Version)
Environmentally Friendly	Yes
