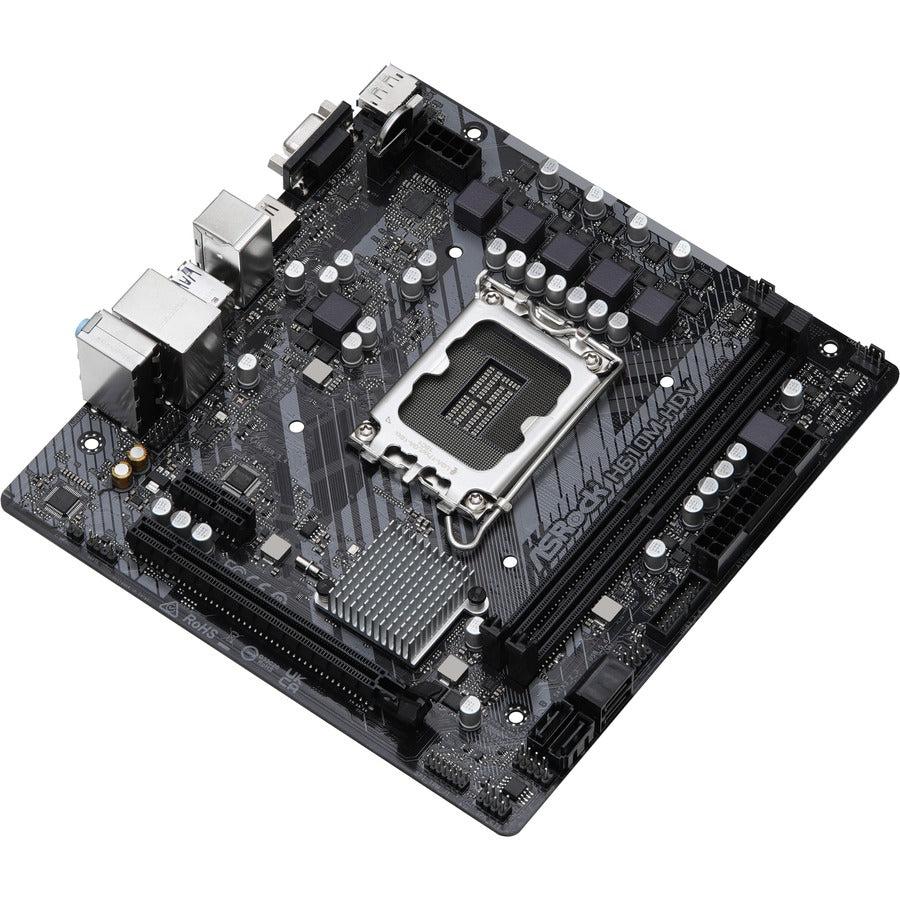

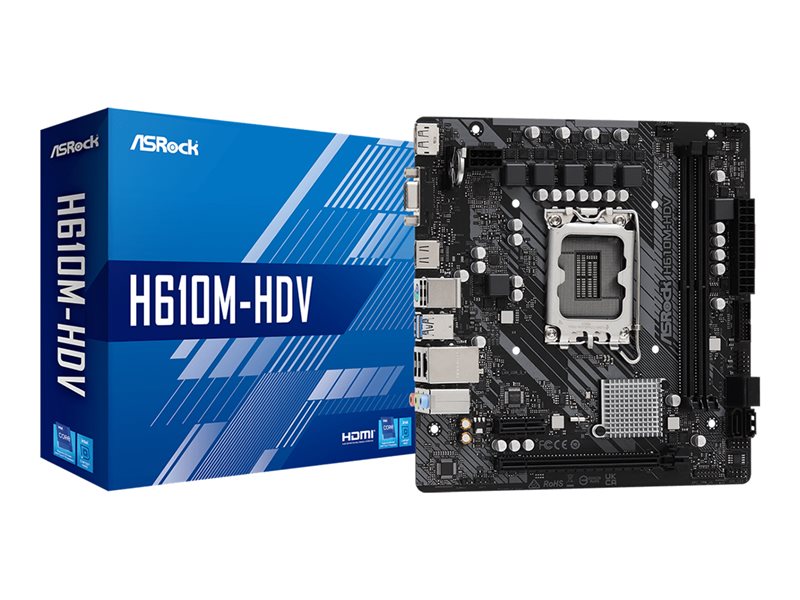

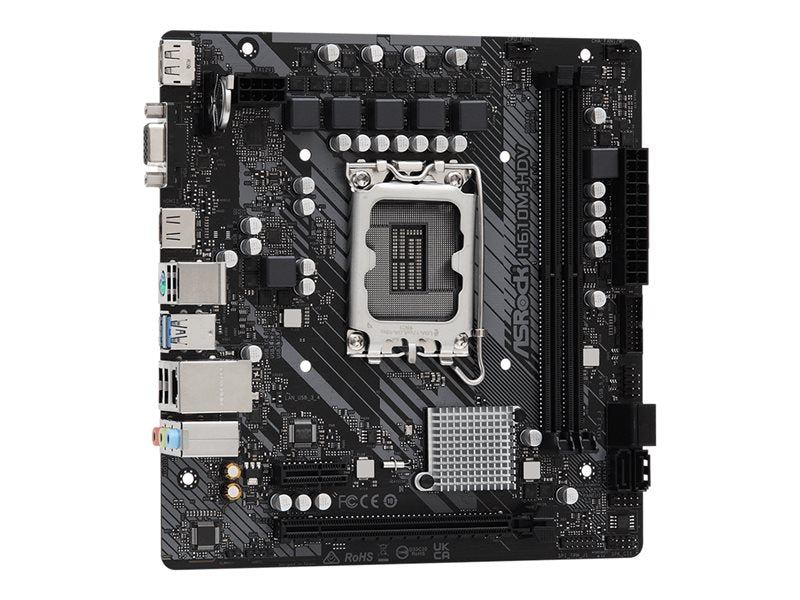

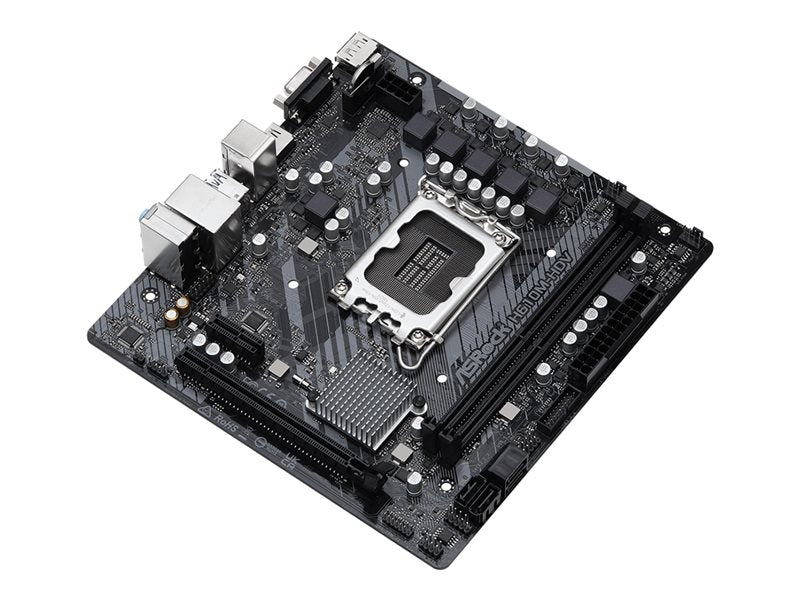

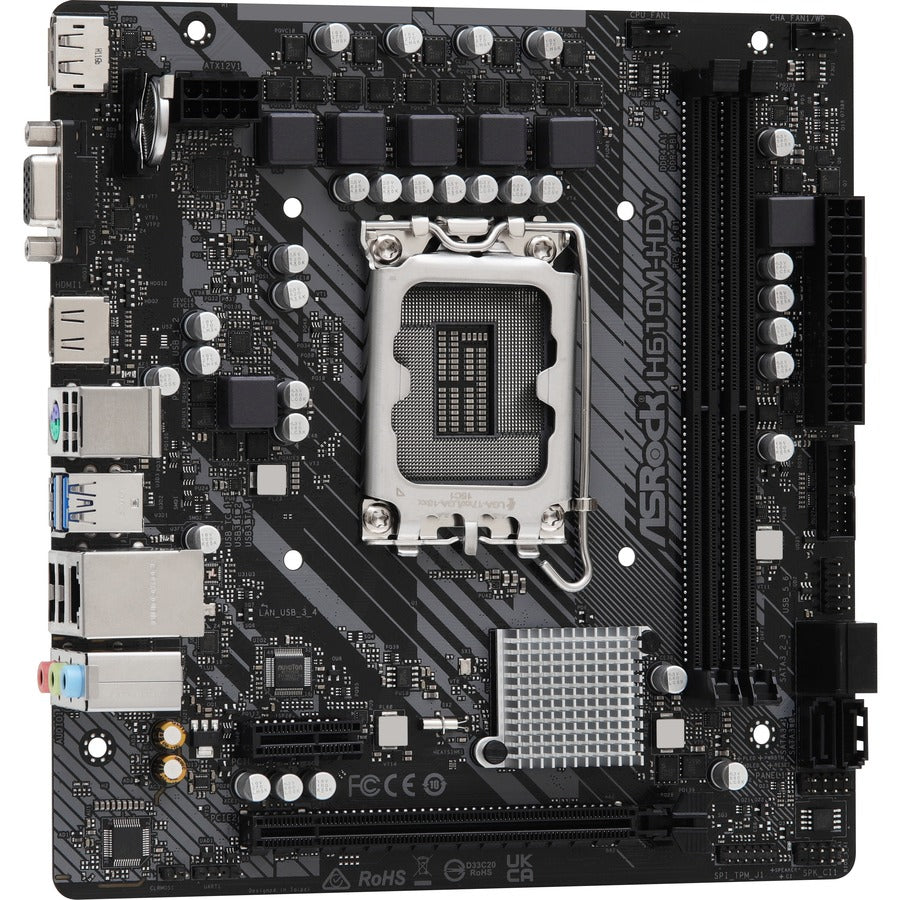

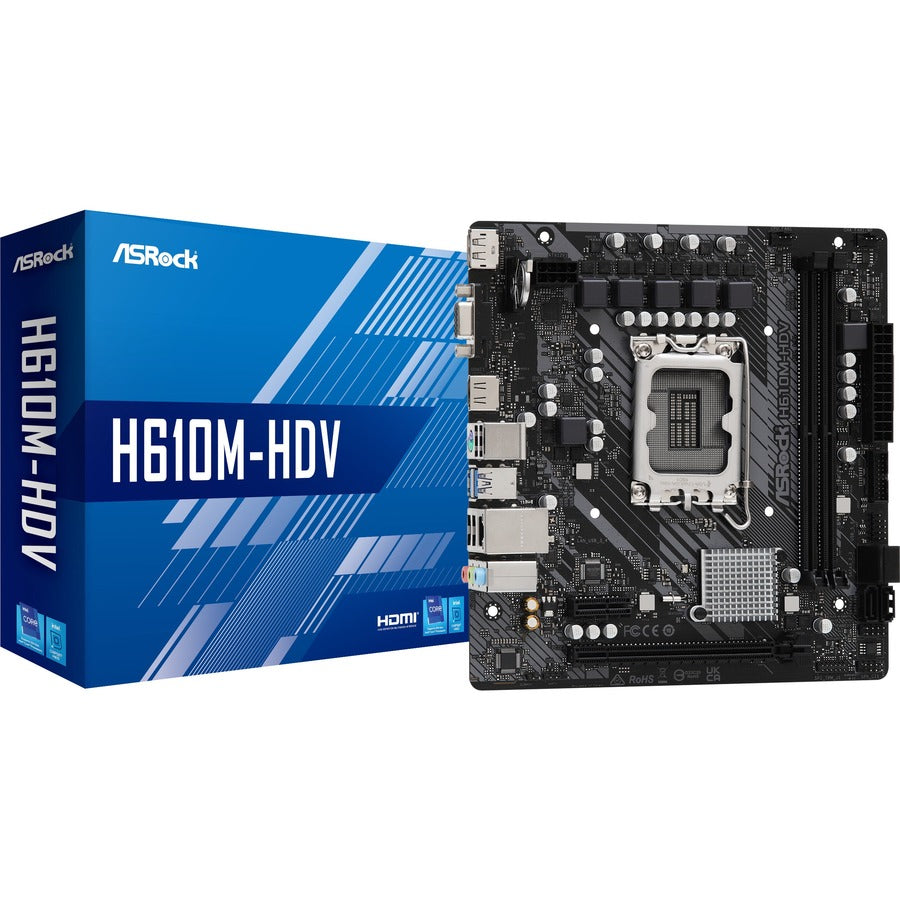

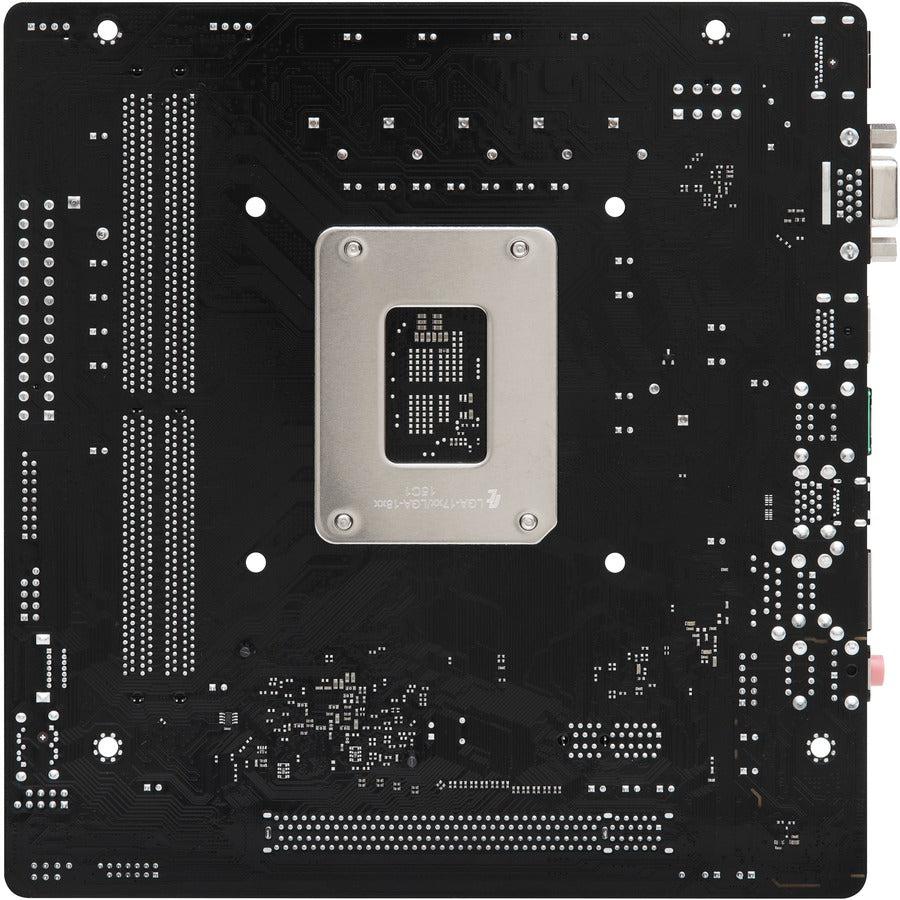

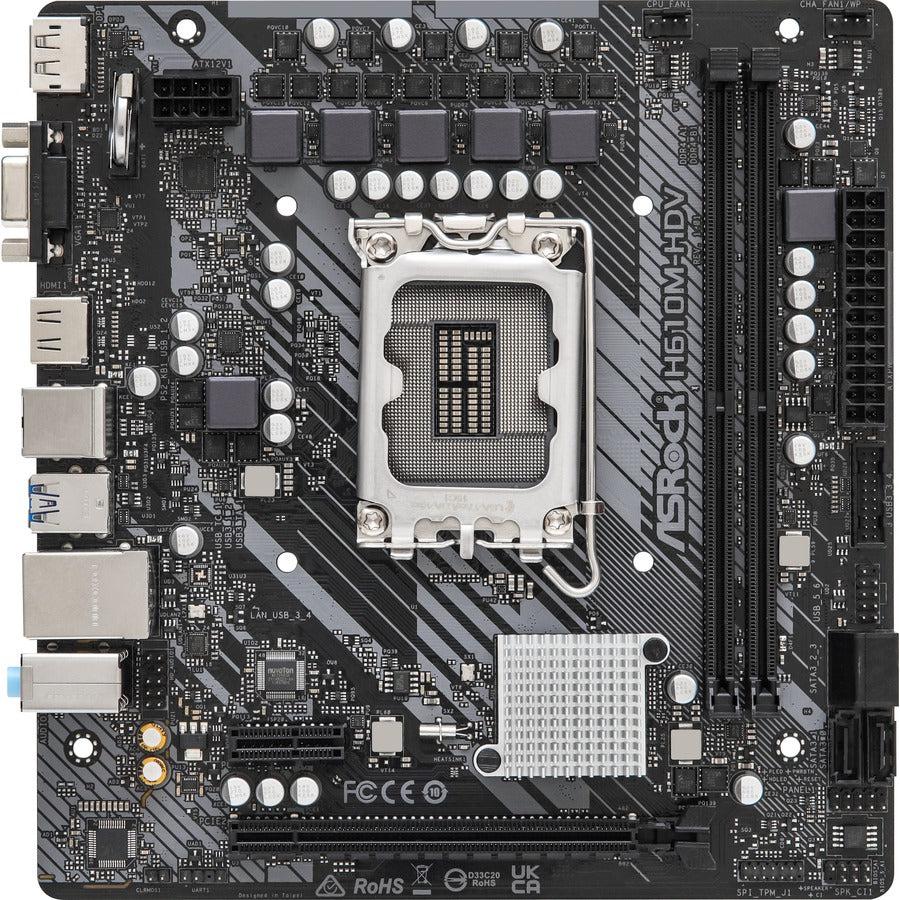

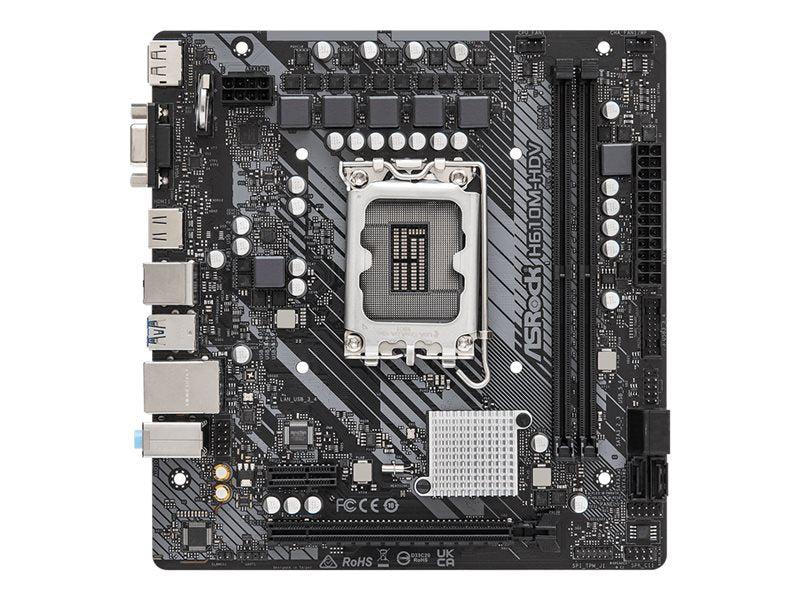

Name: Asrock H610M-Hdv - Motherboard - Micro Atx - Lga1700 Socket - H610 Chipset - Usb 3.2 Gen 1 - Gigabit Lan - Onboard Graphics (Cpu Required) - Hd Audio (8-Channel)
Brand: ASRock
SKU: H610M-HDV
Price: 148.76 USD
Availability: OutOfStock

Asrock H610M-Hdv - Motherboard - Micro Atx - Lga1700 Socket - H610 Chipset - Usb 3.2 Gen 1 - Gigabit Lan - Onboard Graphics (Cpu Required) - Hd Audio (8-Channel)

Roll over image to zoom in Click on image to zoom

Key Selling Points

Intel Gigabit LAN
3 graphics outputs
HDMI 4k @60Hz
Full Spike Protection

Product Features

Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!

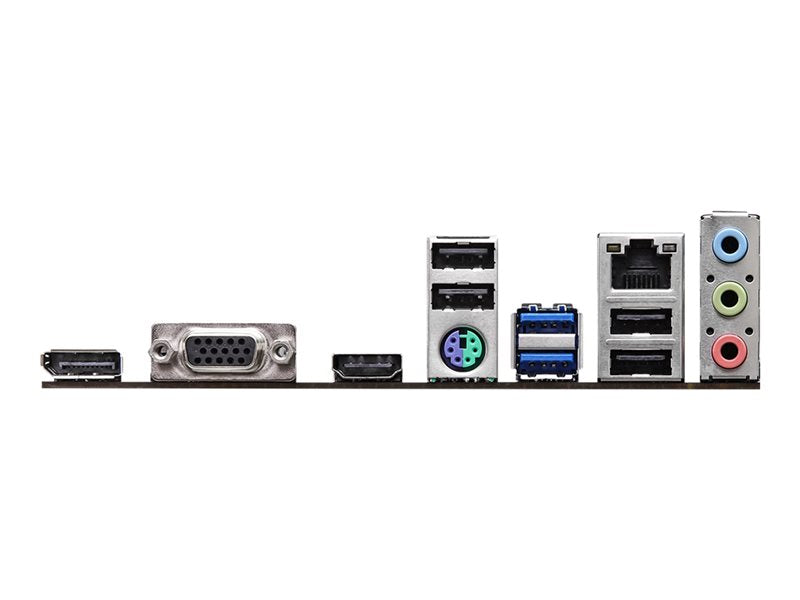

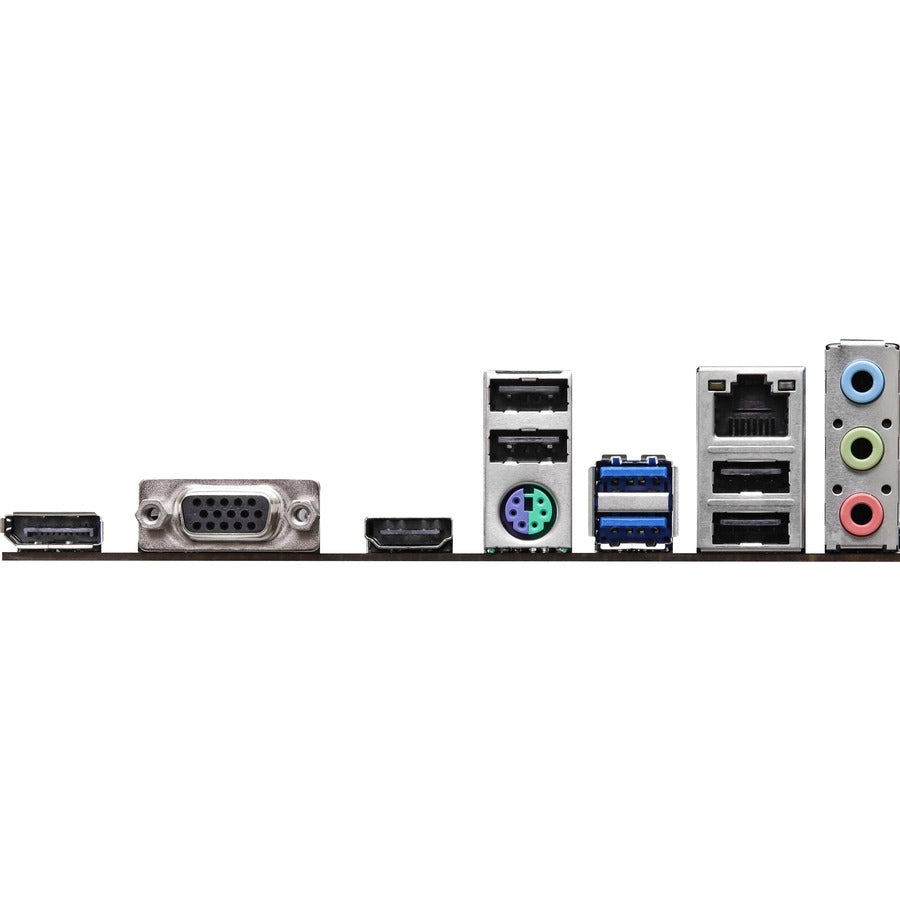

3 graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Main Specifications

Product Description

ASRock H610M-HDV - motherboard - micro ATX - LGA1700 Socket - H610

Product Type

Motherboard - micro ATX

Chipset Type

Intel H610

Processor Socket

1 x LGA1700 Socket

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports

4 x SATA-600

USB / FireWire Ports

2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	H610M-HDV
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	H610M-HDV
Product Name	H610M-HDV Desktop Motherboard
Product Type	Desktop Motherboard

Chipset

Chipset Manufacturer	Intel

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6
Number of USB 3.2 Gen 1 Ports	2

Width	7.8"
Depth	7.4"

Miscellaneous

Package Contents	H610M-HDV Desktop Motherboard Quick Installation Guide I/O Shield 2 x SATA Data Cables Support CD Drivers Utilities AntiVirus Software (Trial Version)
Environmentally Friendly	Yes
