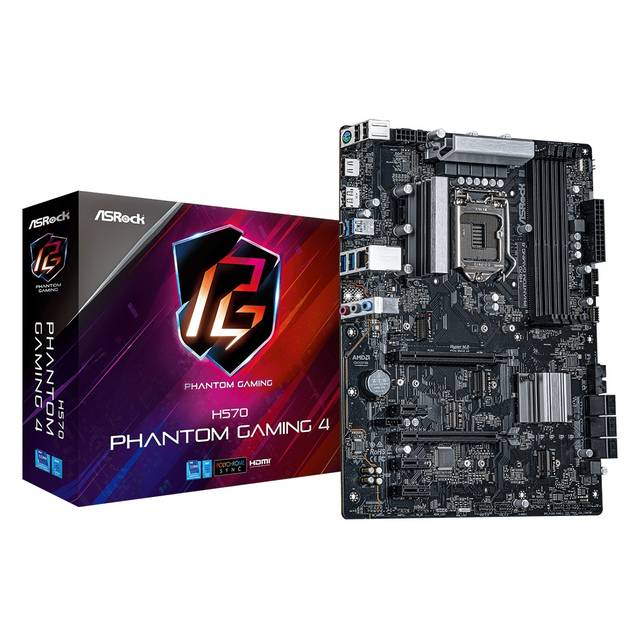

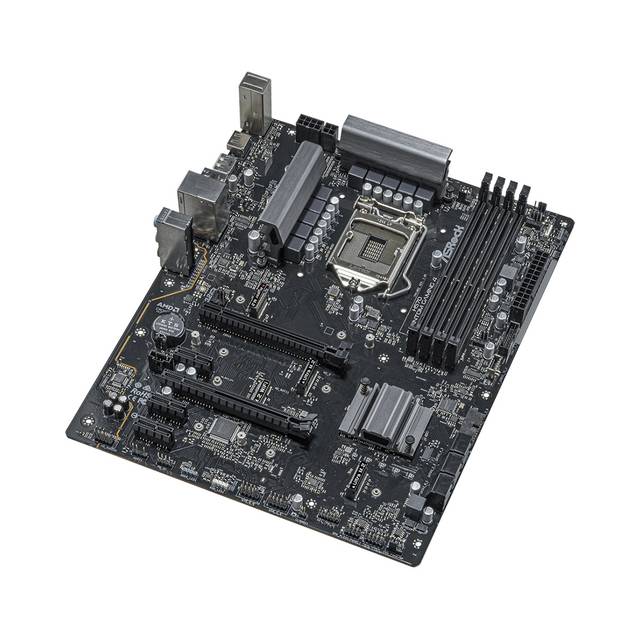

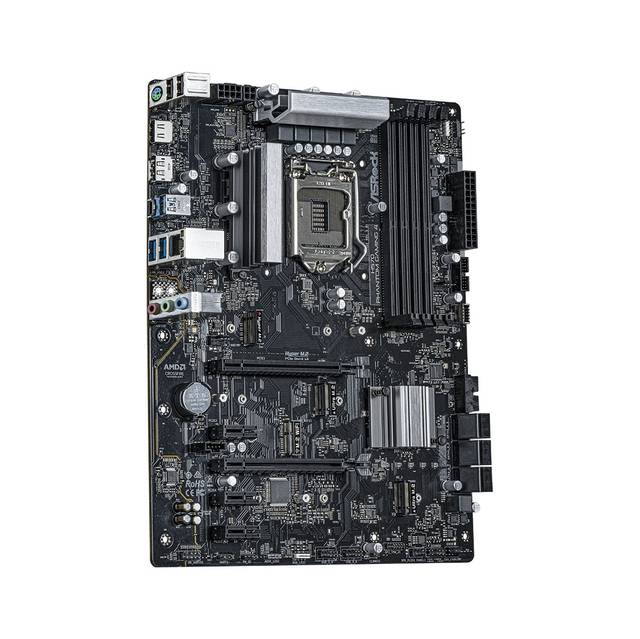

Mfr Part Number: H570 PHANTOM GAMING 4
-
Unique Feature:
-
ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
-
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
-
ASRock Hyper M.2 (PCIe Gen4x4)
-
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
-
ASRock Live Update & APP Shop
-
CPU:
-
Chipset: Intel H570
-
Memory:
-
Dual Channel DDR4 Memory Technology
-
4 x DDR4 DIMM Slots
-
11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
-
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
-
Supports ECC UDIMM memory modules (operate in non-ECC mode)
-
Max. capacity of system memory: 128GB
-
Supports Intel Extreme Memory Profile (XMP) 2.0
-
BIOS:
-
128Mb AMI UEFI Legal BIOS with multilingual GUI support
-
ACPI 6.0 Compliant wake up events
-
SMBIOS 2.7 Support
-
CPU Core/Cache, CPU GT, DRAM, VCCIO, VCCSA, VCCST, VCCIN AUX, VPPM Voltage Multi-adjustment
-
Graphics:
-
11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
-
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
-
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
-
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
-
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
-
Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
-
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
-
Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
-
Audio:
-
LAN:
-
Gigabit LAN 10/100/1000 Mb/s
-
Giga PHY Intel I219V
-
Supports Wake-On-LAN
-
Supports Lightning/ESD Protection
-
Supports Energy Efficient Ethernet 802.3az
-
Supports PXE
-
Slots:
-
11th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))
-
10th Gen Intel Core Processors
- 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))
- 3 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX and CrossFireX
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT)
-
Storage:
-
6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 18), NCQ, AHCI and Hot Plug
-
1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)
-
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
-
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
-
Connector:
-
1 x SPI TPM Header
-
1 x Power LED and Speaker Header
-
2 x RGB LED Headers
-
2 x Addressable LED Headers
-
1 x CPU Fan Connector (4-pin)
-
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
-
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
-
1 x 24 pin ATX Power Connector
-
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
-
1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
-
1 x Front Panel Audio Connector
-
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
-
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
-
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
-
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection)
-

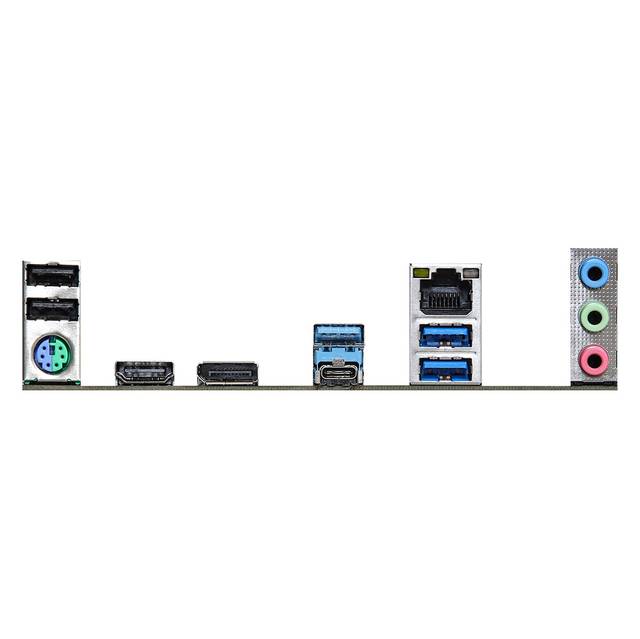

Rear Panel I/O:
-
1 x PS/2 Mouse/Keyboard Port
-
1 x HDMI Port
-
1 x DisplayPort 1.4
-
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
-
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
-
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
-
2 x USB 2.0 Ports (Supports ESD Protection)
-
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
-
HD Audio Jacks: Line in / Front Speaker / Microphone
-
Software and UEFI:
-
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
-
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer
-
Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories:
-
Quick Installation Guide, Support CD, I/O Shield
-
2 x SATA Data Cables
-
4 x Screws for M.2 Sockets
-
Hardware Monitor:
-
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Voltage monitoring: CPU Vcore, PCH, DRAM, VCCIO, VPPM, VCCSA, CPU PLL, +12V, +5V, +3.3V
-
Form Factor:
-
OS: Microsoft Windows 10 64-bit
-
Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
