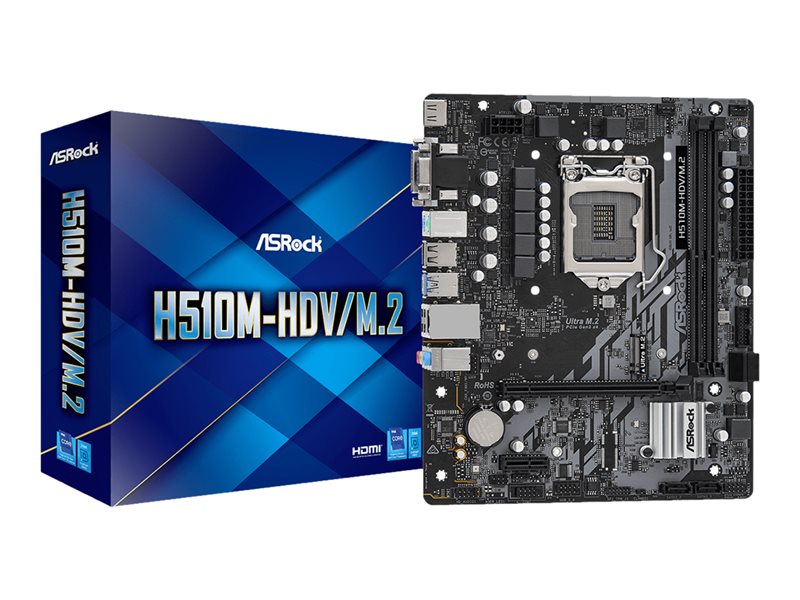

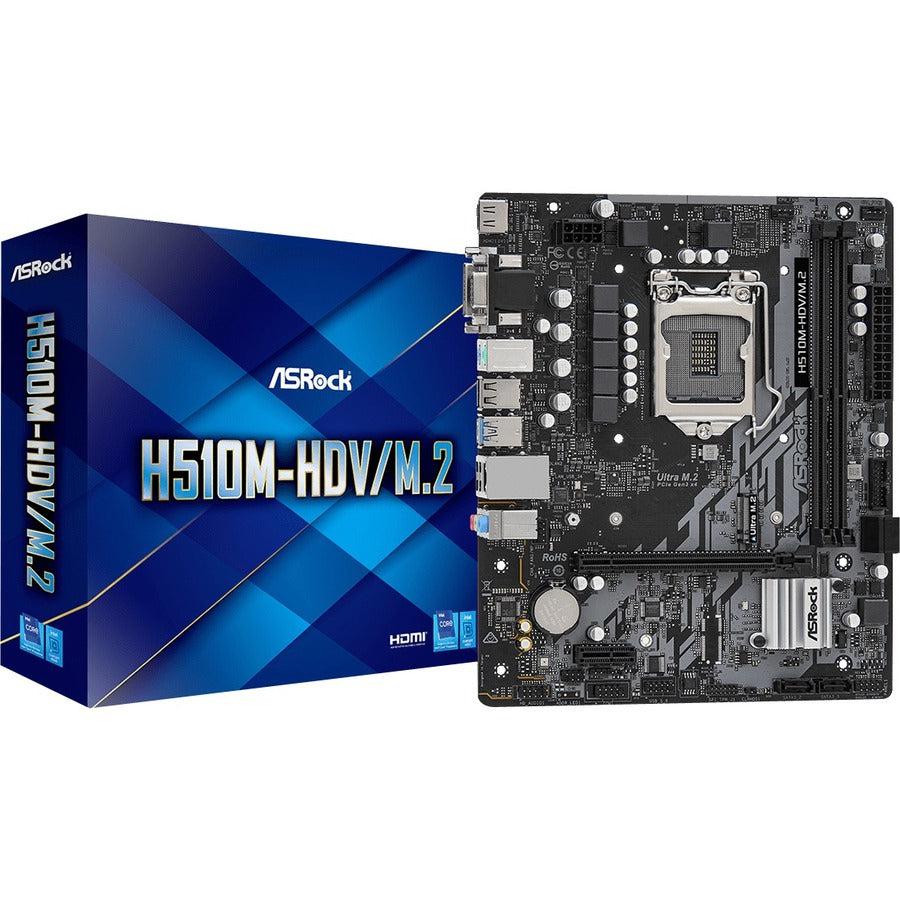

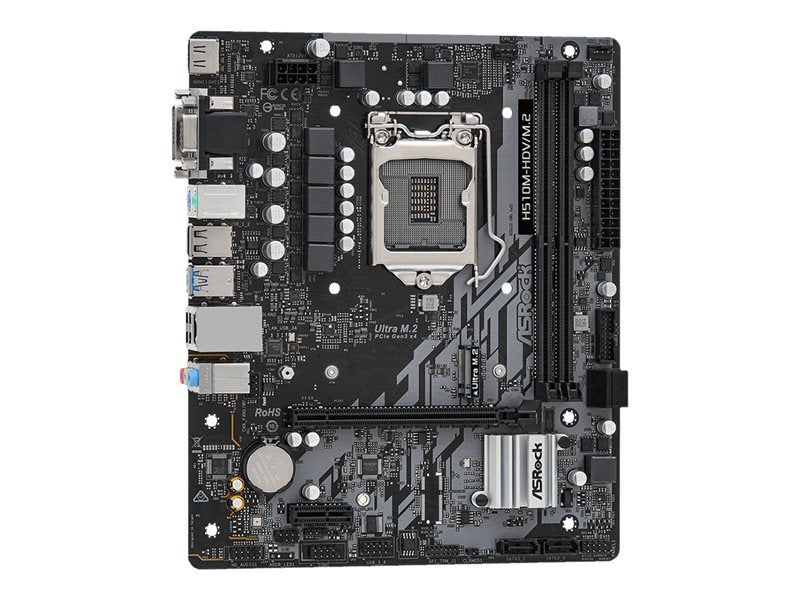

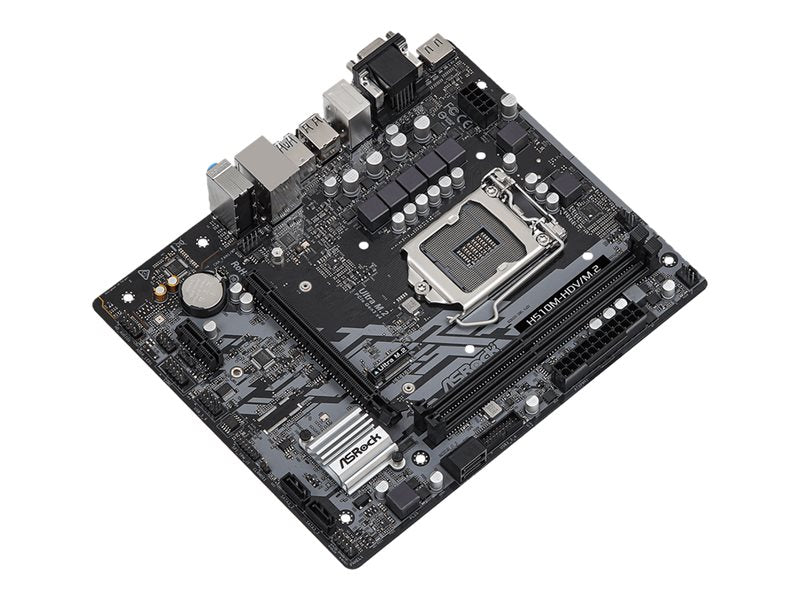

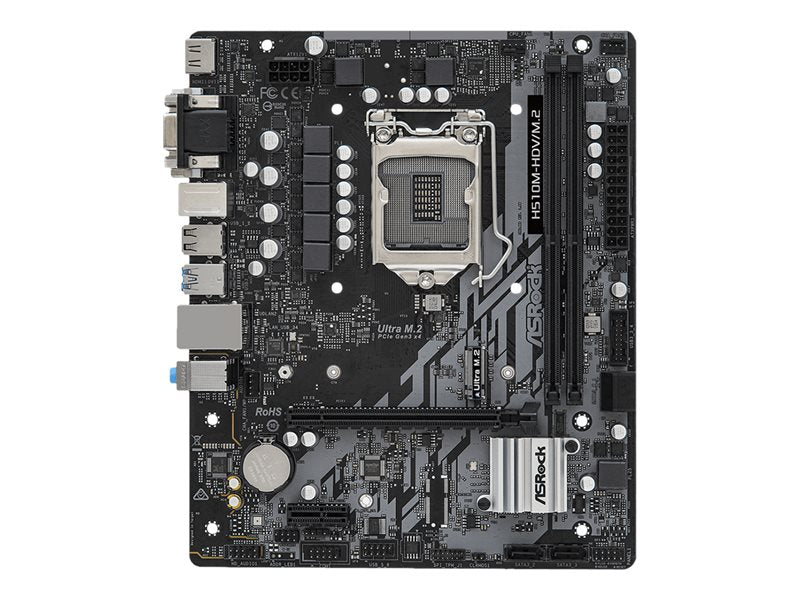

Name: Asrock H510M-Hdv/M.2 - Motherboard - Micro Atx - Lga1200 Socket - H510 Chipset - Usb 3.2 Gen 1 - Gigabit Lan - Onboard Graphics (Cpu Required) - Hd Audio (8-Channel)
Brand: ASRock
SKU: H510M-HDV/M.2
Price: 145.48 USD
Availability: InStock

Asrock H510M-Hdv/M.2 - Motherboard - Micro Atx - Lga1200 Socket - H510 Chipset - Usb 3.2 Gen 1 - Gigabit Lan - Onboard Graphics (Cpu Required) - Hd Audio (8-Channel)

Roll over image to zoom in Click on image to zoom

Key Selling Points

Premium power choke
Intel LAN
Ultra M.2 32 Gb/s (PCIe Gen 3 x4 and SATA3)
HDMI 4K at 60 Hz
High-density glass fabric PCB
3 graphics outputs
Water pump header

Product Features

Premium power choke
ASRock's premium power chokes effectively make the saturation current better, thus providing enhanced and improved Vcore voltage to the motherboard.
Intel LAN
Intel LAN provides better throughput performance, lower CPU utilization, enhanced stability and is able to deliver excellent network experience to users!
Ultra M.2 32 Gb/s (PCIe Gen 3 x4 and SATA3)
The PCIe Gen 3 x4 Ultra M.2 interface pushes data transfer speeds up to 32 Gb/s. In addition, it also supports SATA3 6 Gb/s M.2 modules.
HDMI 4K at 60 Hz
Supports the most recent HDMI 4K 60 Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

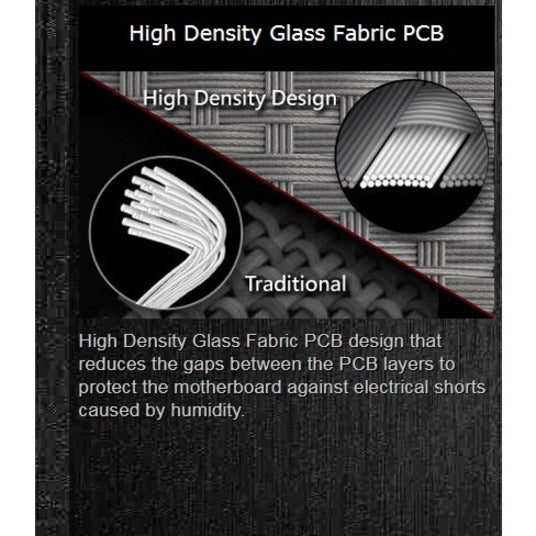

High-density glass fabric PCB
High-density glass fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

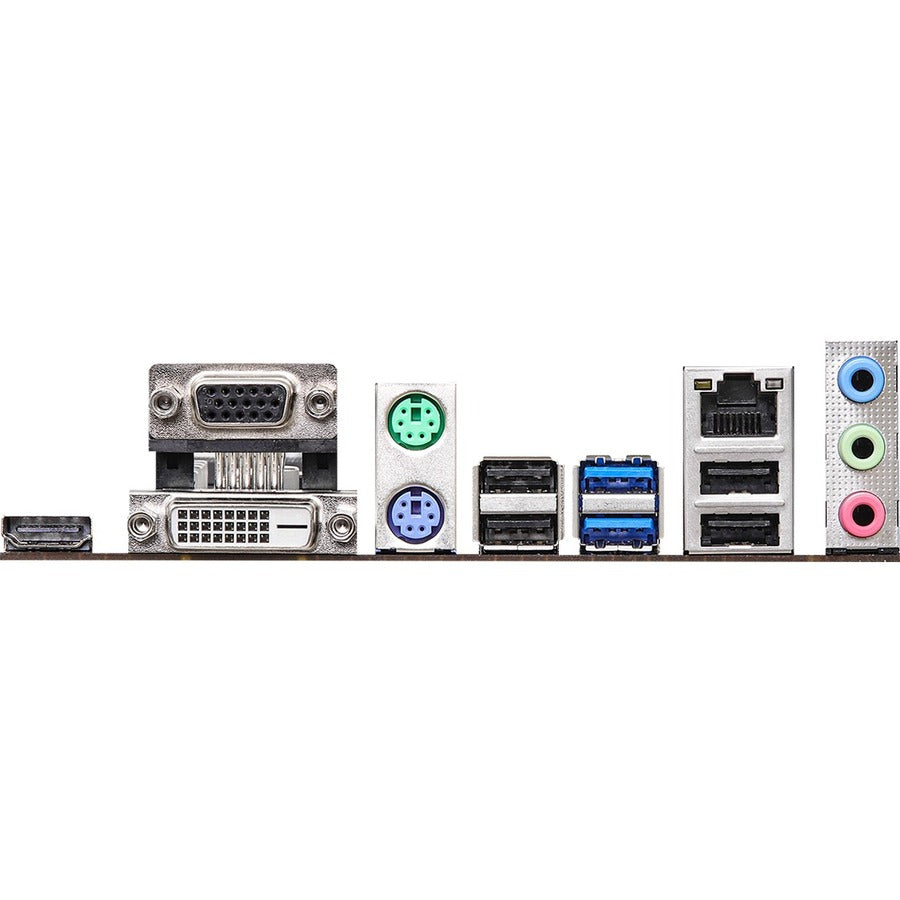

3 graphics outputs

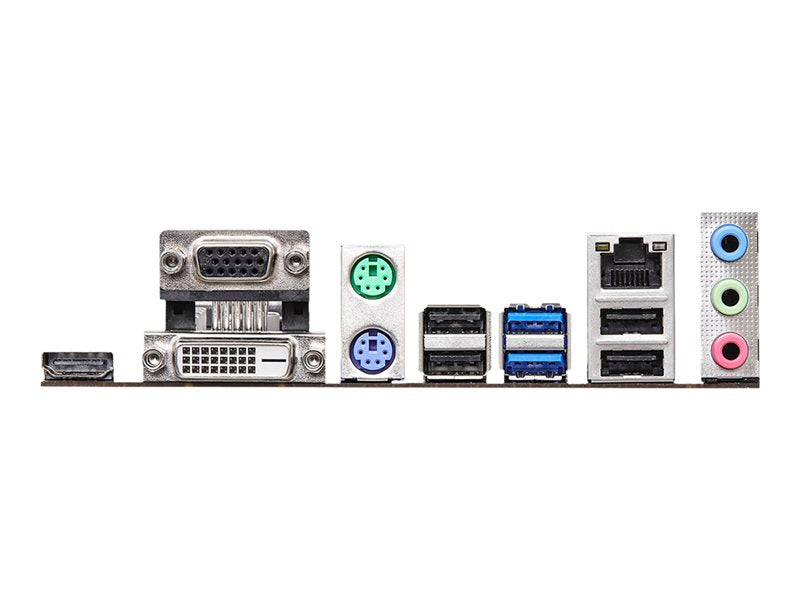

Complete with all three types of most used connectors! Packed with the D-Sub + DVI-D + HDMI combo. Plus, the HDMI port supports 4K resolution.

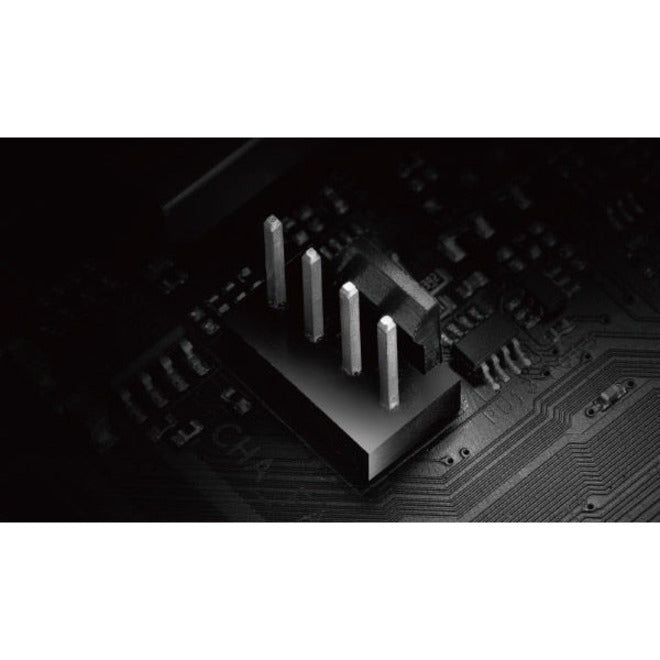

Water pump header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2 A power for supporting water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Main Specifications

Product Description

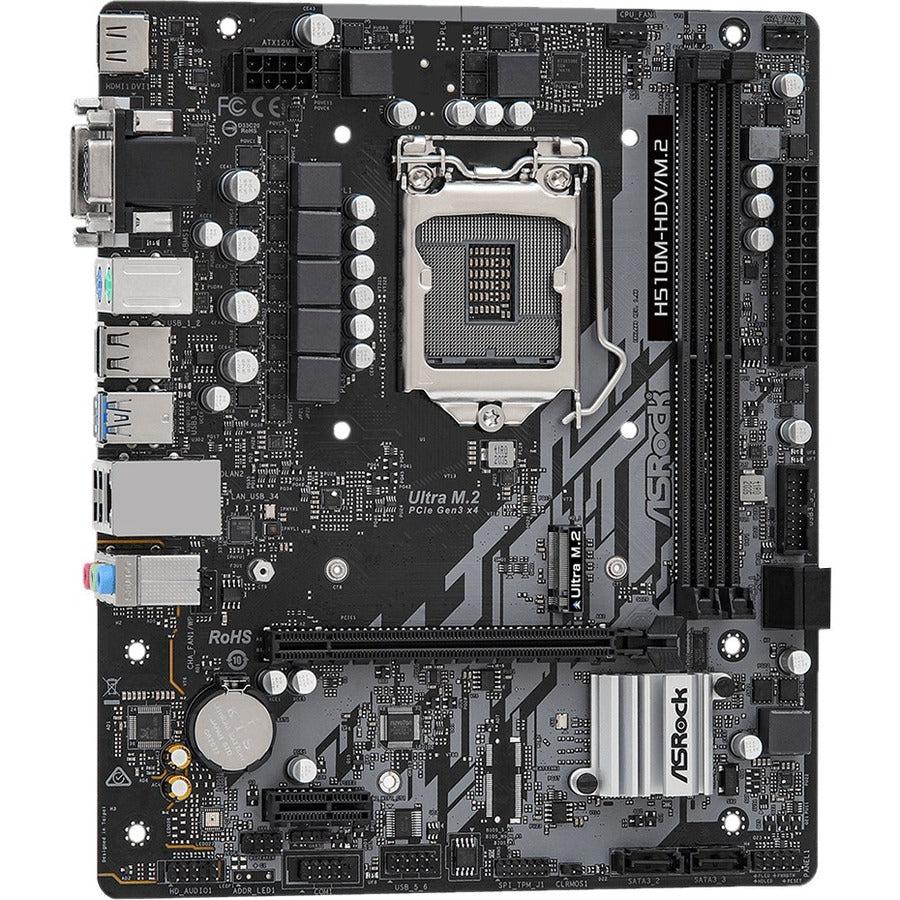

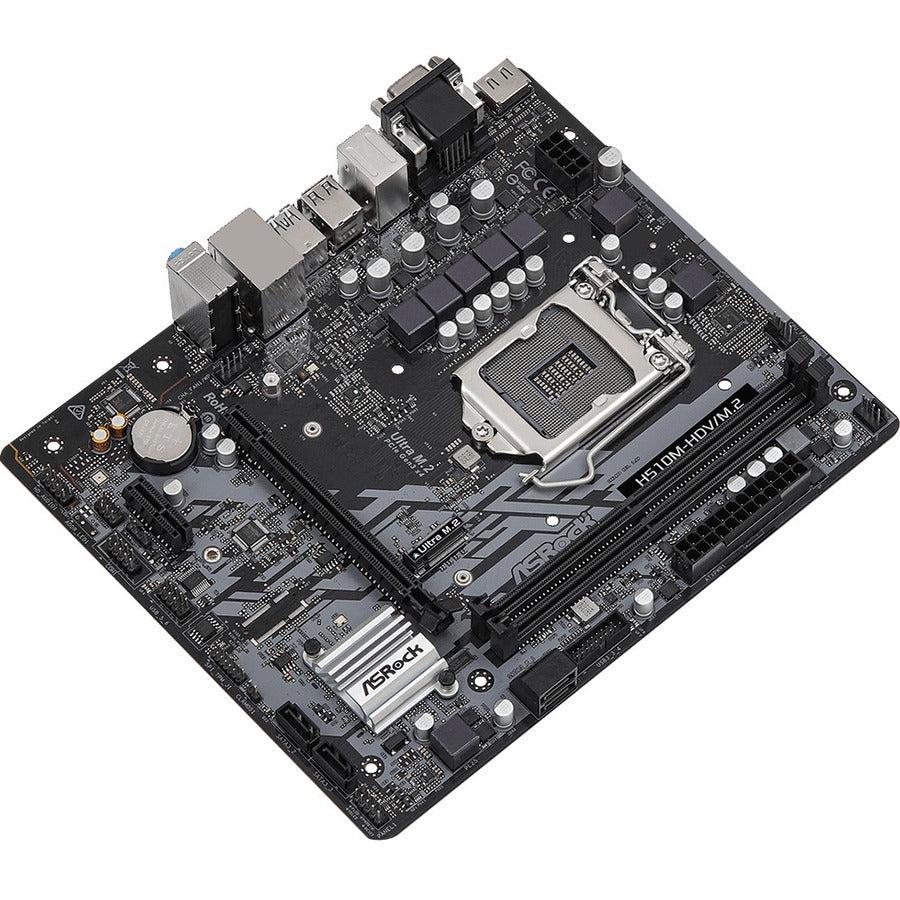

ASRock H510M-HDV/M.2 - motherboard - micro ATX - LGA1200 Socket - H510

Product Type

Motherboard - micro ATX

Chipset Type

Intel H510

Processor Socket

1 x LGA1200 Socket

Compatible Processors

(supports 10th and 11th Generation Intel Core)

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports

4 x SATA-600, 1 x Ultra M.2

USB / FireWire Ports

2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	H510M-HDV/M.2
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	H510M-HDV/M.2
Product Name	H510M-HDV/M.2 Desktop Motherboard
Product Type	Desktop Motherboard

Chipset

Chipset Manufacturer	Intel

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6
Number of USB 3.2 Gen 1 Ports	2

Width	8.9"
Depth	7.4"
