Description
- MD Promontory B450
- AMD Ryzen series CPUs (Matisse) support DDR4 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Picasso) support DDR4 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933(OC)/ 2667/2400/2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

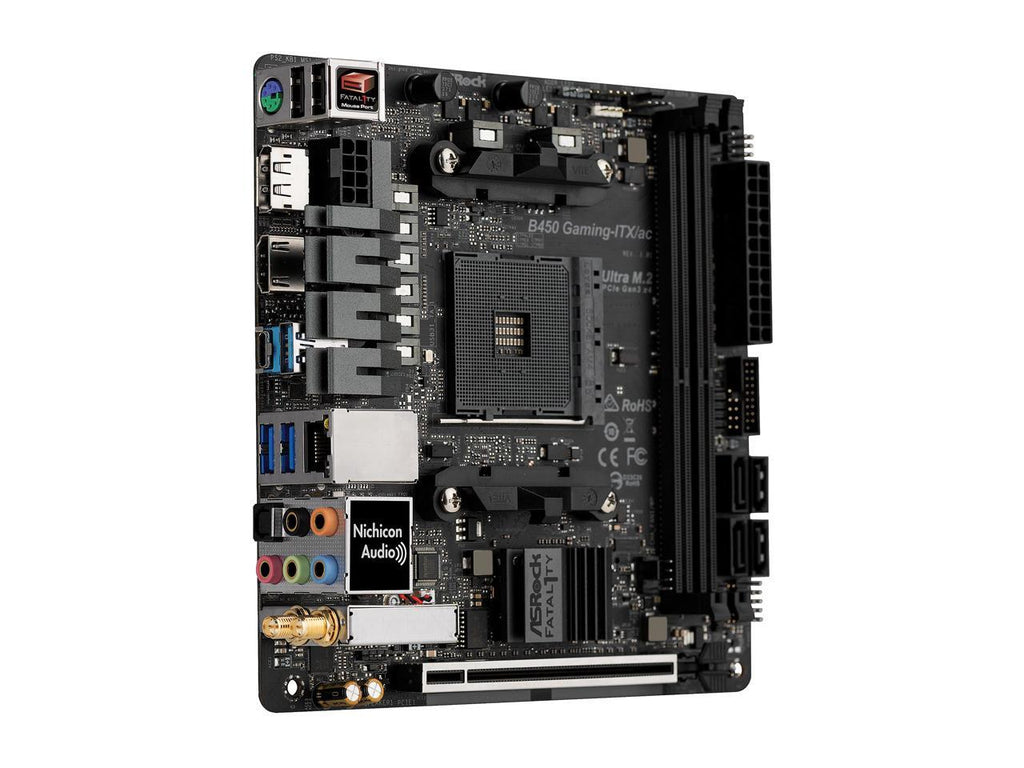

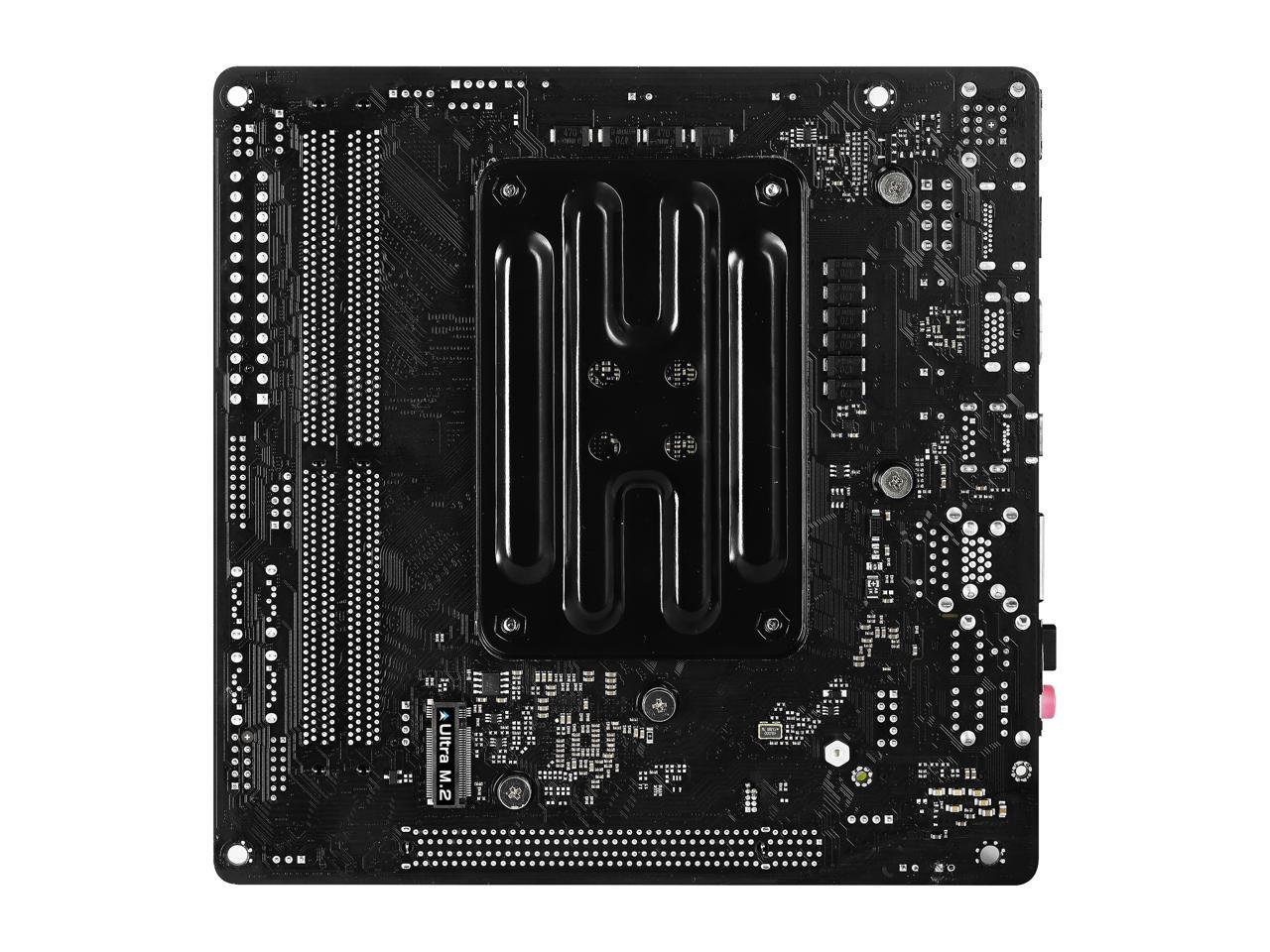

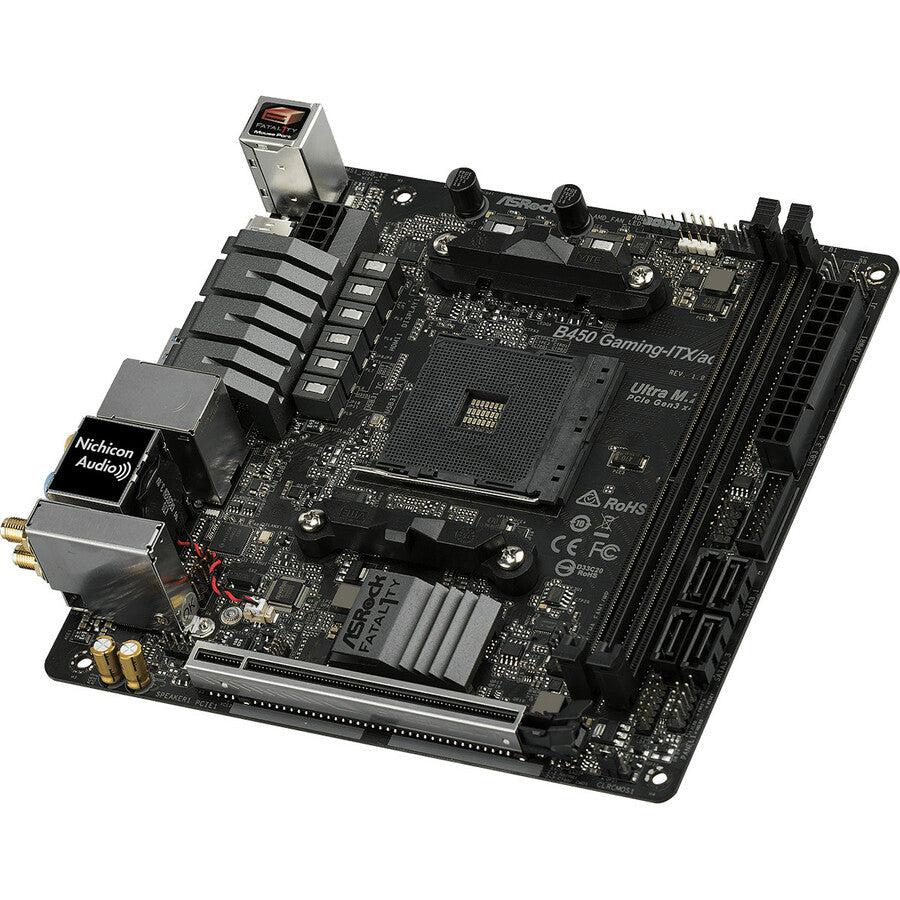

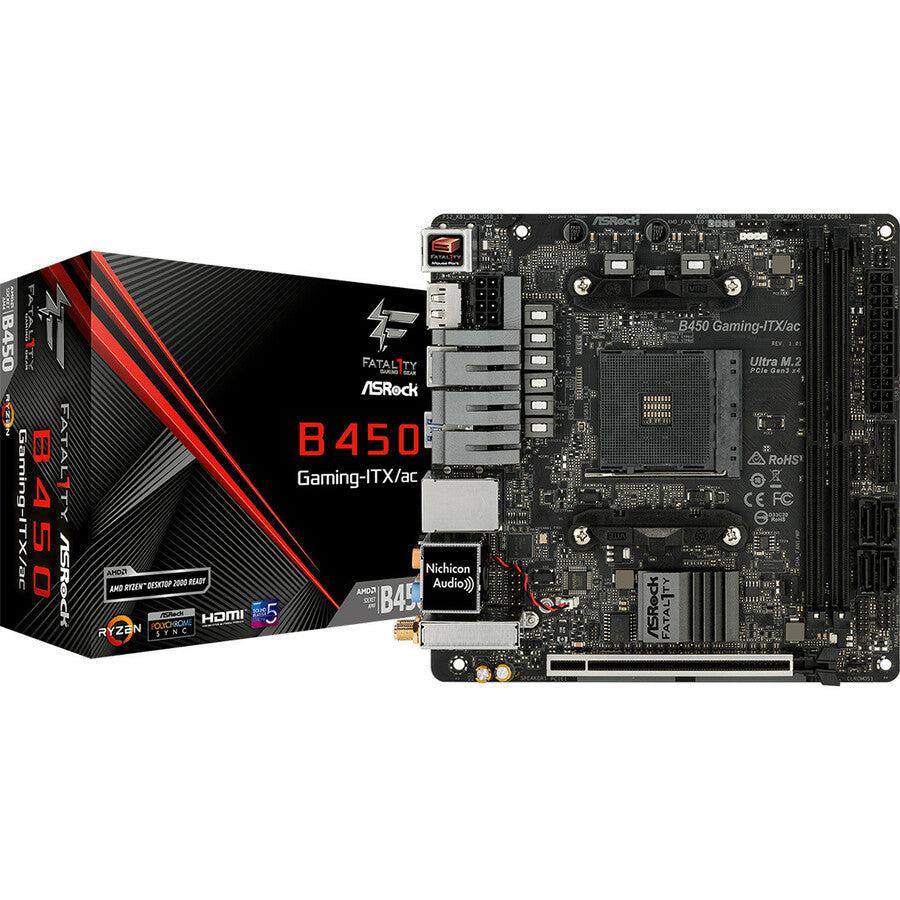

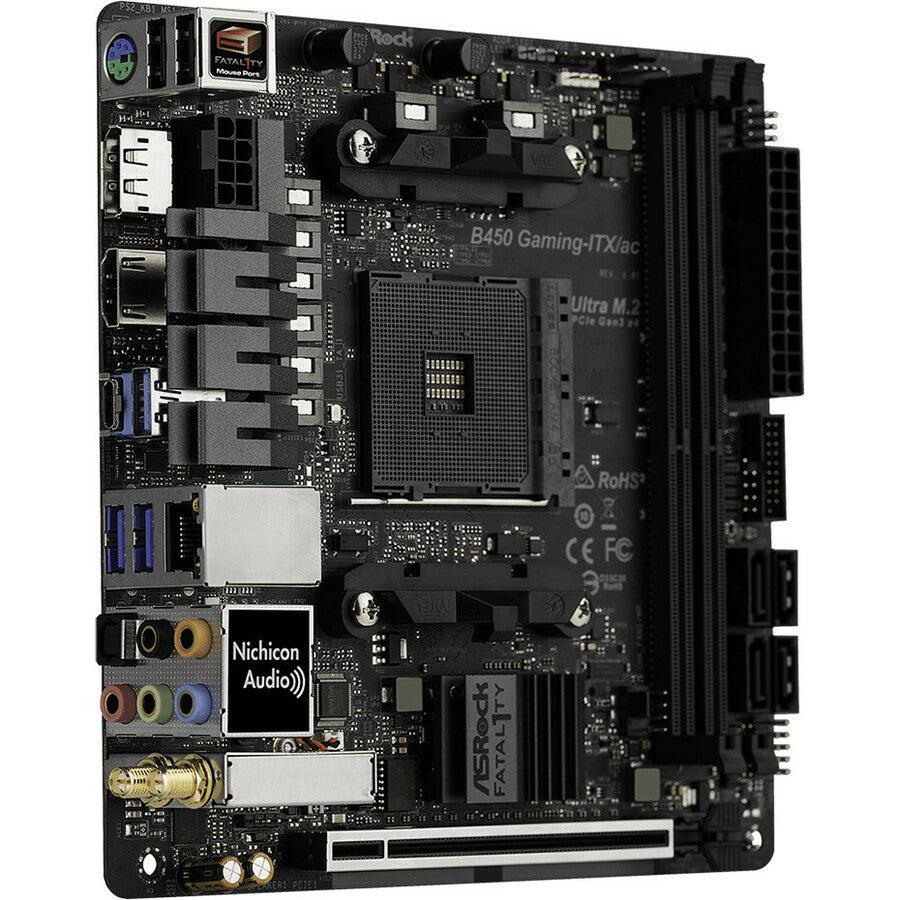

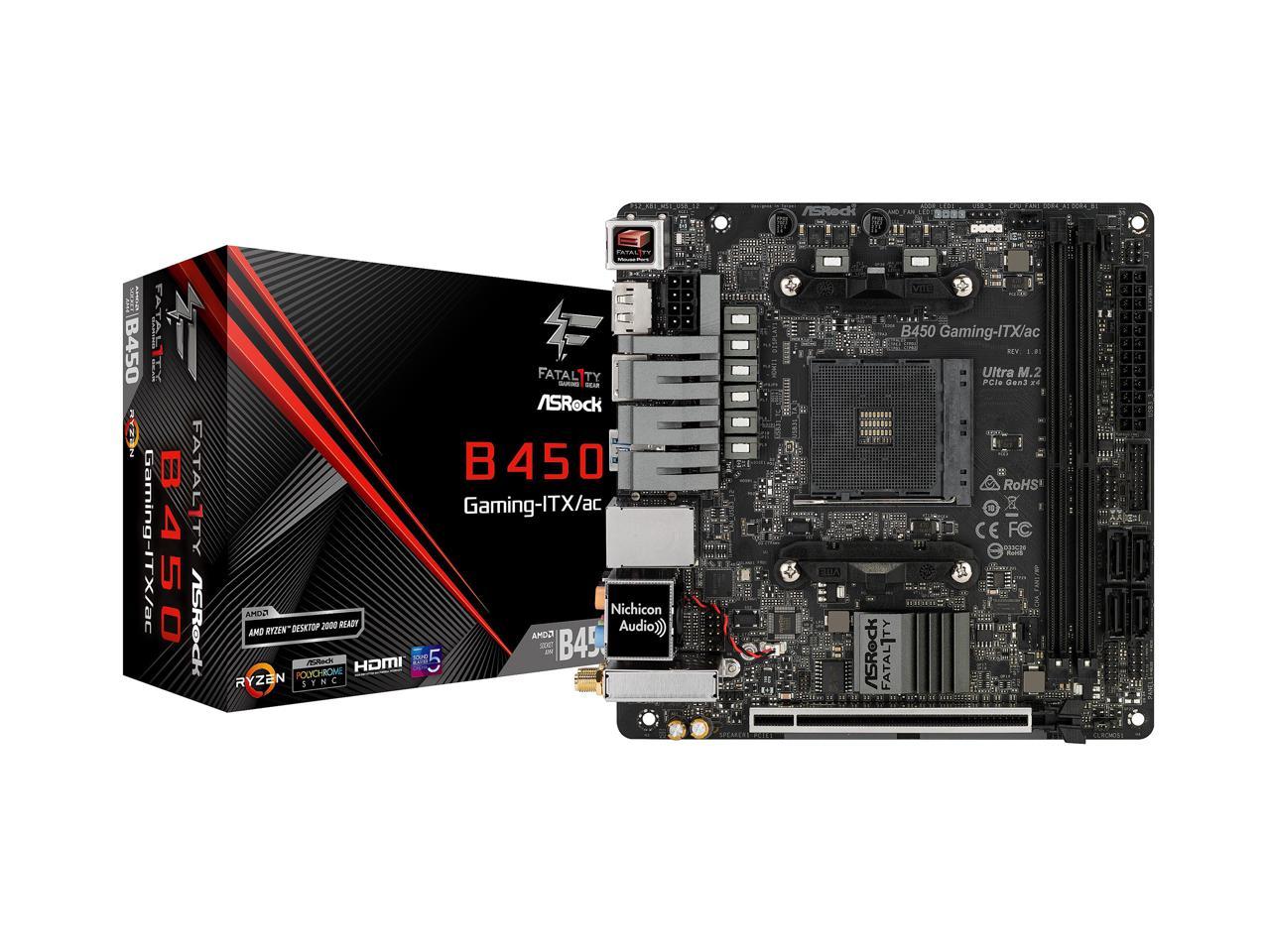

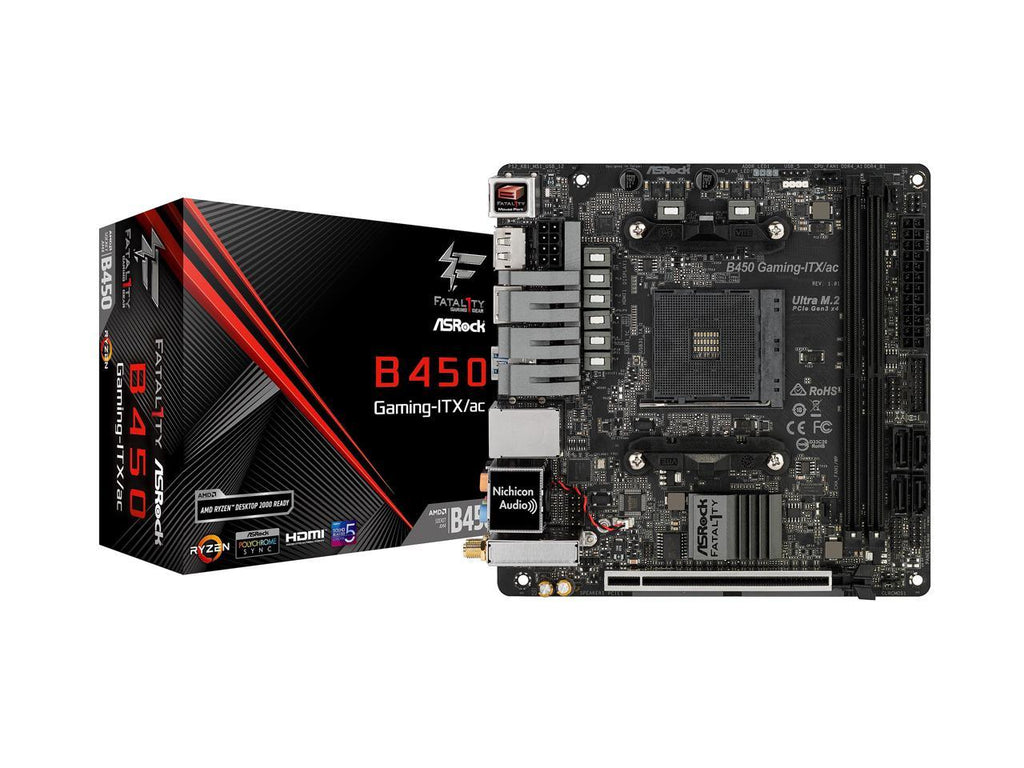

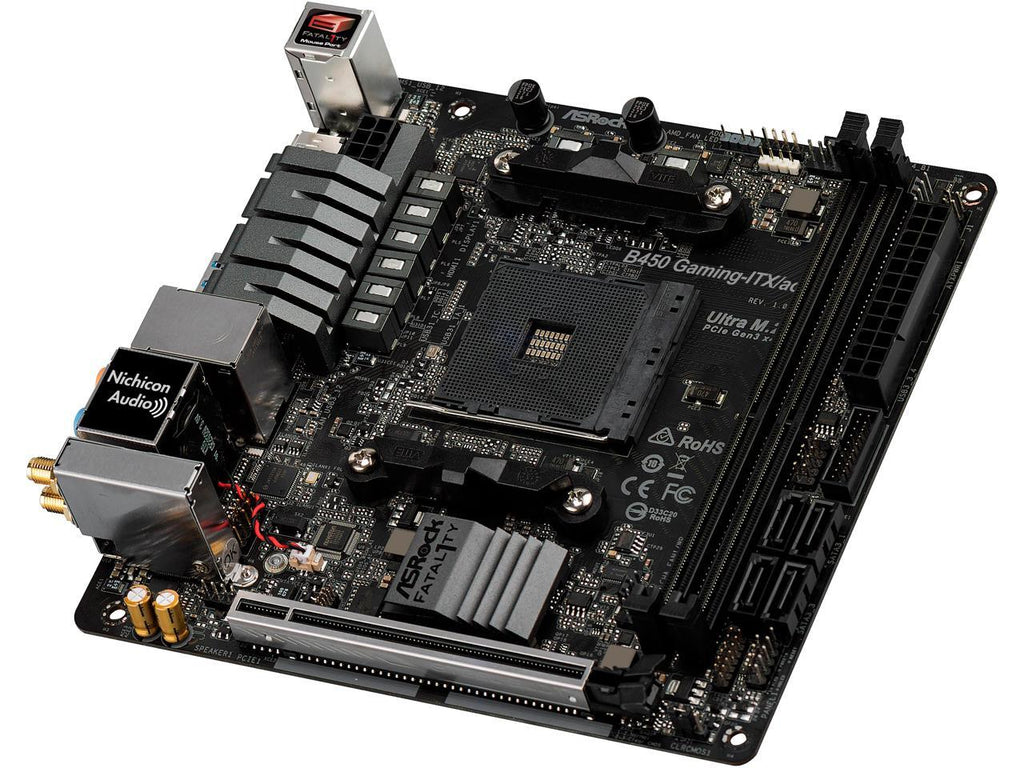

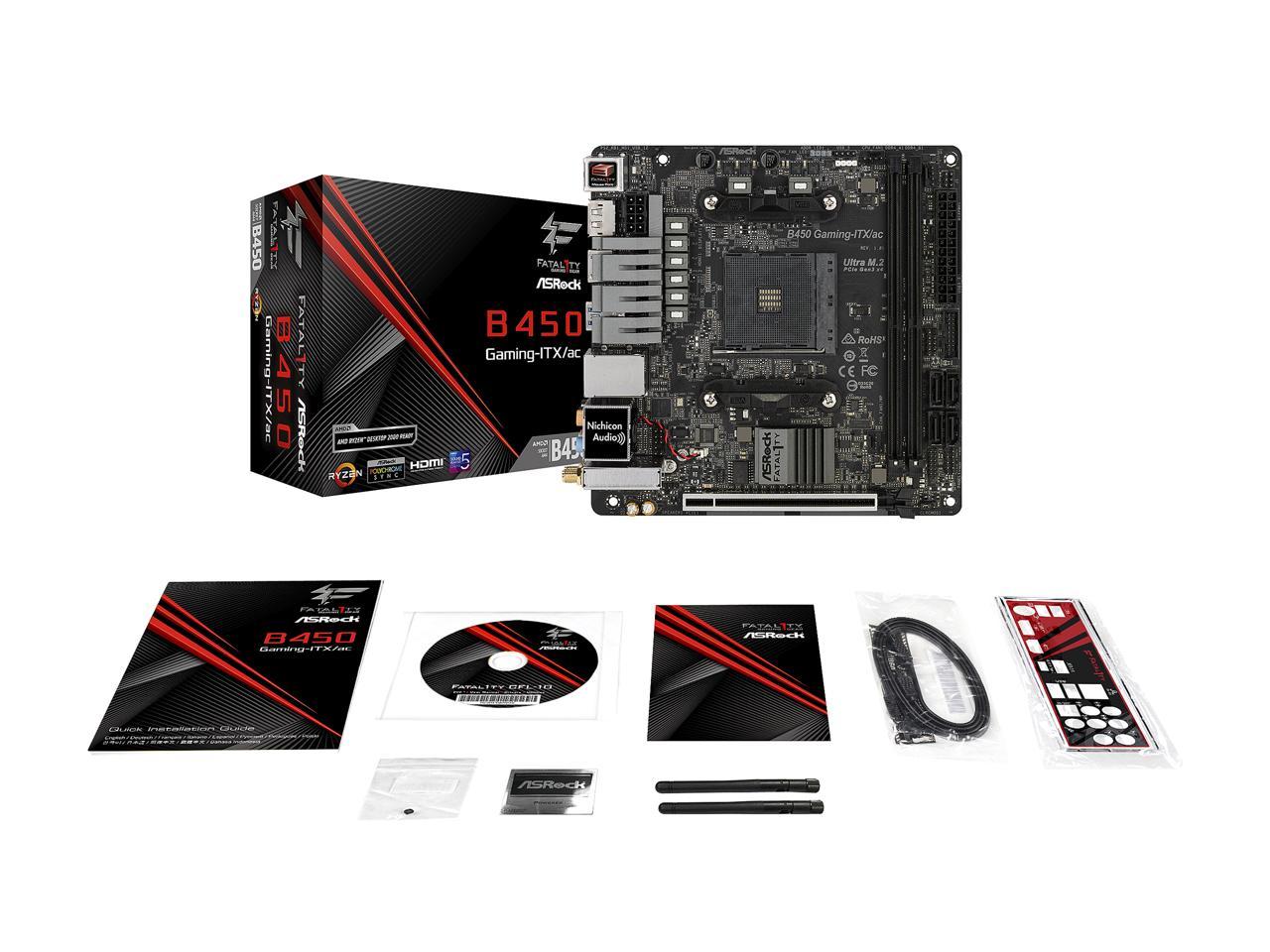

Based on the AMD B450 chipset, the ASRock Fatal1ty B450 Gaming-ITX/ac motherboard flawlessly supports the latest AMD Ryzen processors of up to eight cores in the AM4 socket. Although it comes in a mini ITX form factor, this board offers all the essentials needed to build a compact powerhouse. This board includes dual memory slots, a PCIe 3.0 x16 slot covered with a metal plate, an Ultra M.2 slot and two USB 3.1 Gen 2 ports (rear Type-A + Type-C). Built-in 802.11ac WiFi + Bluetooth 4.2 give users ultra-fast WiFi speeds and easy connecting to Bluetooth-compatible peripherals and mobile devices. The on-board addressable LED header offers you the ability to customize your rig to your liking. Plus, everything on this motherboard is built with Super Alloy components. All together, the Fatal1ty B450 Gaming-ITX/ac motherboard is a truly solid foundation that empowers your new build to thrive and power through in even the most demanding applications.
- AMD AM4 Socket
- Supports DDR4 3466+ (OC)
- 1x PCIe 3.0 x16
- Graphics Outputs: DisplayPort 1.2 and HDMI 2.0
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster Cinema 5
- 4x SATA 3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA 3)

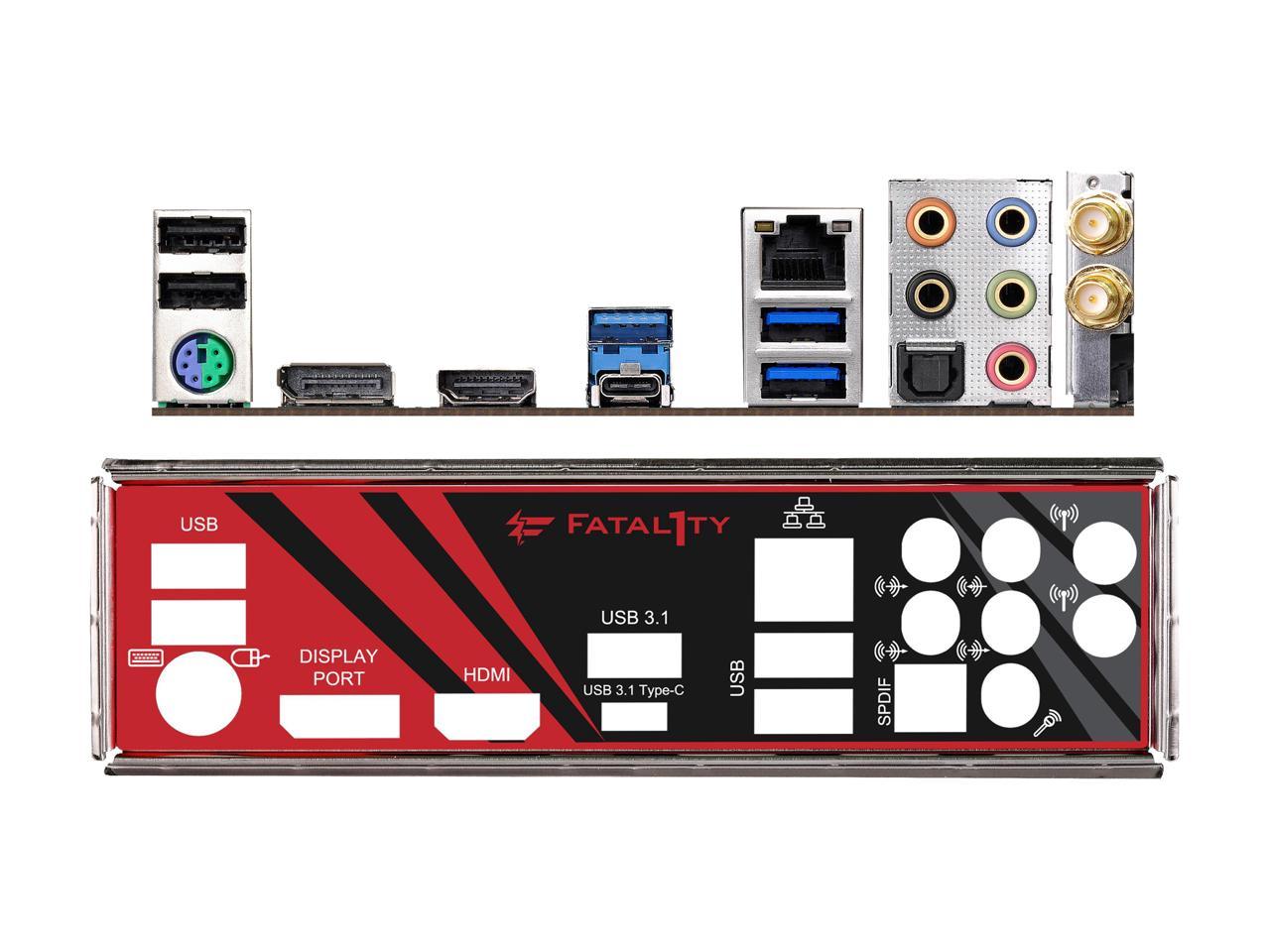

- 2x USB 3.1 Gen2 (Rear Type-A + Type-C)
- 4x USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel Gigabit LAN
- Intel 802.11ac WiFi + BT 4.2
- Fatal1ty Mouse Port
- DP, HDMI
- USB 3.1 Gen2 Type-A+C
- Intel 1219V Gigabit LAN
- Dual Band 802.11ac WiFi
- Nichicon Fine Gold Series Audio Caps
- Nichicon 12K Black Caps
- Digi Power
9 Power Phase Design
Premium Power Choke
Dual-N MOSFET - Supports AMD AM4 Socket Ryzen Series CPUs
- 4 SATA3 6Gb/s
- PCI-E Steel Slots
- Ultra M.2 Socket
(PCIe Gen3 x4 & SATA3)
AMD StoreMI is a powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive. SSDs are fast but expensive, while offering minimal capacity. Mechanical hard drives boast large capacities at a low price point, but are much slower than SSDs. AMD StoreMI technology "fuses" these two types of storage into a single drive and automatically moves the data you access the most to work through the SSD, so you get the best of both worlds—quick SSD responsiveness and immense mechanical hard-disk capacity. You can also use up to 2GB of RAM as a last-level cache for ultra-fast data.
In addition to having built-in RGB illumination, this motherboard also features on-board RGB headers* and an addressable RGB header** that allow the motherboard to be connected to compatible LED devices such as light strips, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified line of accessories to create their own unique lighting effects.
* The RGB LED header supports standard 5050 RGB LED strips (12V/G/R/B) with a maximum power rating of 3A (12V) and length within 2 meters.
** The addressable RGB LED header supports WS2812B addressable RGB LED strips (5V/Data/GND) with a maximum power rating of 3A (5V), a max amount of 80 LEDs and length within 2 meters.
By choosing the ASRock Fatal1ty B450 gaming motherboard, users become introduced to Creative Sound Blaster Cinema 5's whole new world of cinematic audio that produces unprecedented levels of audio realism, dynamics and punch to deliver the best gaming sounds. 7.1 CH HD audio along with the Realtek ALC1220 audio codec brings a truly immersive audio experience up to 120dB SNR.
The PCIe Gen3 x4 Ultra M.2 interface pushes data-transfer speeds up to 32Gb/s. It also supports SATA 3 6Gb/s M.2 modules.
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear I/O for supporting next-generation USB 3.1 Gen2 devices while delivering up to 10Gb/s data-transfer rates.
USB 3.1 Gen2 doubles data-transfer rates!
USB 3.1 Gen2 Type-C doubles charging speed!
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver an ultimate network experience to users!
The ASRock Fatal1ty B450 GAMING-ITX/AC motherboard is made with 2-ounce copper inner layers. By using only carefully selected copper materials for the motherboard's PCB layers, users get overall lower temperatures and higher energy efficiency for overclocking.
These ASRock motherboards come with advanced PCI-E steel-made slots that pack solid coverage and prevent any signal interference with graphics cards. It also ensures heavy graphics cards can be safely installed.
The Key Master function consists of two major features: sniper key and macros. Ultimately, Key Master enhances your mouse and keyboard with customizable macros, sniper modes, key-repeat rates and repeat delay.
F-Stream is Fatal1ty's multi-purpose software suite with a new interface, more new features and improved utilities.
After plugging a USB mouse into the Fatal1ty mouse port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125Hz to 1000Hz.
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, providing enhanced Vcore voltage to the motherboard.
Combining two silicon dies into one MOSFET, this product's Dual-N MOSFET provides a larger die area and lower Rds(on), so the power supply to the CPU Vcore is more efficient.
The ASRock Fatal1ty B450 motherboard comes equipped with supreme Nichicon 12K black capacitors that boast lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, these caps offer 20% longer lifespans and provide more stability and reliability for your system.
A new + mysterious matte-black and copper color-scheme perfectly matches the prestigious components on this ASRock high-end motherboards.
This motherboard's high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Using only carefully selected copper materials for PCB layers, ASRock's 2oz Copper PCB delivers lower temperatures and higher energy efficiency for overclocking.
Allow ASRock to be your most trustworthy ally that provides both hardware and software support.
High-Density Power Connector
15µ Gold Contact
15µ Gold Contact
Intel LAN
Creative Sound Blaster Cinema 5
Adding to this motherboard's great functionality, the CPU fan header also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. Users can also adjust the voltage of their water pump to get higher cooling performance with lower noise.
After plugging a USB mouse into the Fatal1ty mouse port and running F-Stream, gamers can choose their own preferred mouse polling rate from 125Hz to 1,000Hz.
Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission!
Some sensitive digital components on the motherboard are vulnerable to power surges and the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
General Information
| Manufacturer | ASRock, Inc |
|---|---|
| Manufacturer Part Number | B450 GAMING-ITX/AC |
| Manufacturer Website Address | http://www.asrock.com |
| Brand Name | Fatal1ty |
| Product Model | B450 Gaming-ITX/ac |
| Product Name | B450 Gaming-ITX/ac Desktop Motherboard |
| Product Type | Desktop Motherboard |
| UPC | 4717677336238 |
| Chipset Manufacturer | AMD |
|---|
| Bluetooth | Yes |
|---|
| HDMI | Yes |
|---|---|
| Total Number of USB Ports | 6 |
| Width | 6.7" |
|---|---|
| Depth | 6.7" |
