Name: Asrock B660M-Hdv - Motherboard - Micro Atx - Lga1700 Socket - B660 Chipset
Brand: ASRock
SKU: B660M-HDV
Price: 152.48 USD
Availability: InStock

Asrock B660M-Hdv - Motherboard - Micro Atx - Lga1700 Socket - B660 Chipset

Roll over image to zoom in Click on image to zoom

Key Selling Points

Digi Power
High Speed M.2 solution
Intel Gigabit LAN
M.2 (Key E) for Wi-Fi
3 graphics outputs
Premium power choke
Sapphire Black PCB
High Density Glass Fabric PCB
Full Spike Protection

Product Features

Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
High Speed M.2 solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning-fast data transferring experience.
Intel Gigabit LAN
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
M.2 (Key E) for Wi-Fi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

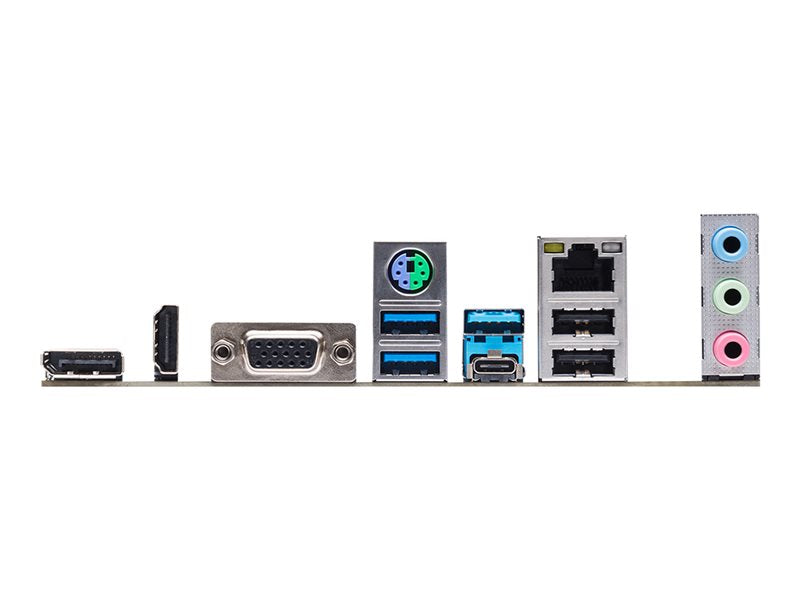

3 graphics outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

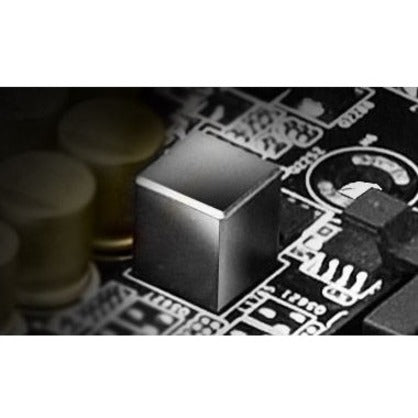

Premium power choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

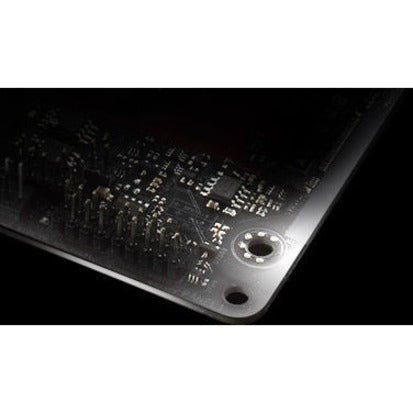

Sapphire Black PCB
Pure black PCB appearance. The Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Main Specifications

Product Description

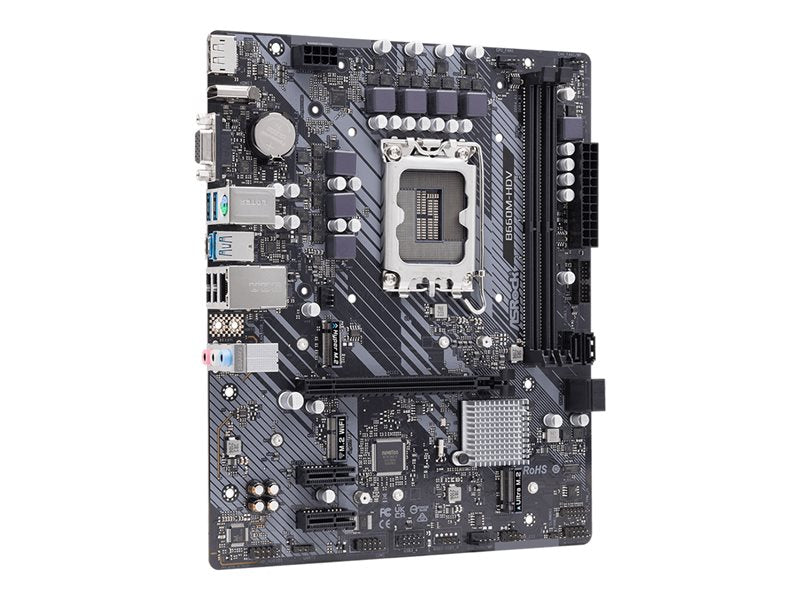

ASRock B660M-HDV - motherboard - micro ATX - LGA1700 Socket - B660

Product Type

Motherboard - micro ATX

Chipset Type

Intel B660

Processor Socket

1 x LGA1700 Socket

Compatible Processors

(supports 12th Generation Intel Core)

Max RAM Size

64 GB

RAM Supported

2 DIMM slots - DDR4, non-ECC, ECC (operate in non-ECC mode), unbuffered

Storage Ports

4 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

1 x USB-C Gen 1 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0 + (2 x USB 3.1 Gen 1 + 3 x USB 2.0 via headers)

Audio

HD Audio (8-channel)

LAN

Gigabit Ethernet

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	B660M-HDV
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	B660M-HDV
Product Name	B660M-HDV Desktop Motherboard
Product Type	Desktop Motherboard

Chipset

Chipset Manufacturer	Intel

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	6
Number of USB 3.2 Gen 1 Ports	4

Width	9.6"
Depth	7.9"

Miscellaneous

Package Contents	B660M-HDV Desktop Motherboard Quick Installation Guide I/O Shield 2 x SATA Data Cables 3 x Screws for M.2 Sockets Support CD Drivers Utilities AntiVirus Software (Trial Version)
Environmentally Friendly	Yes
