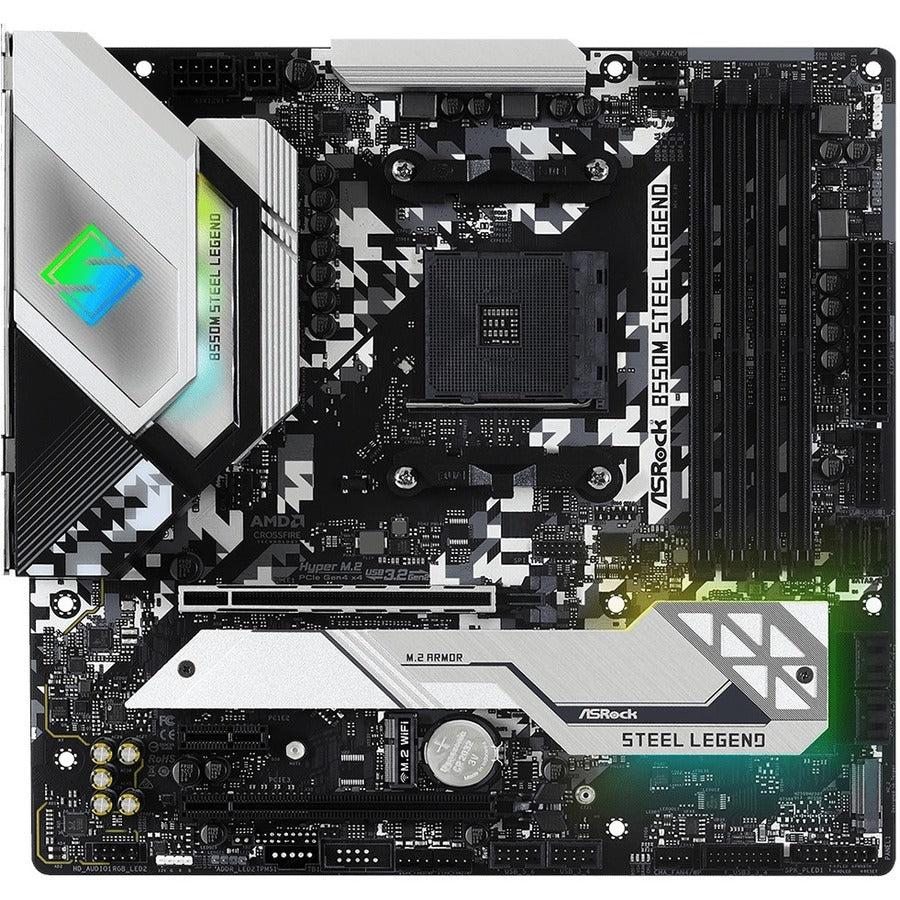

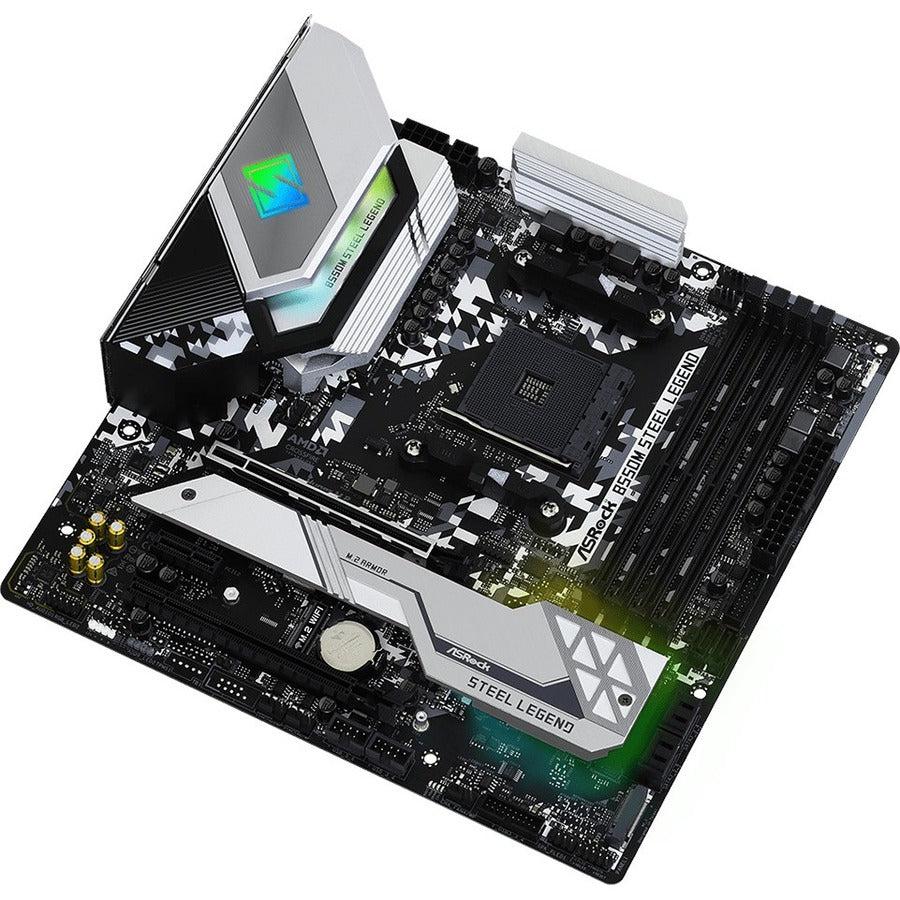

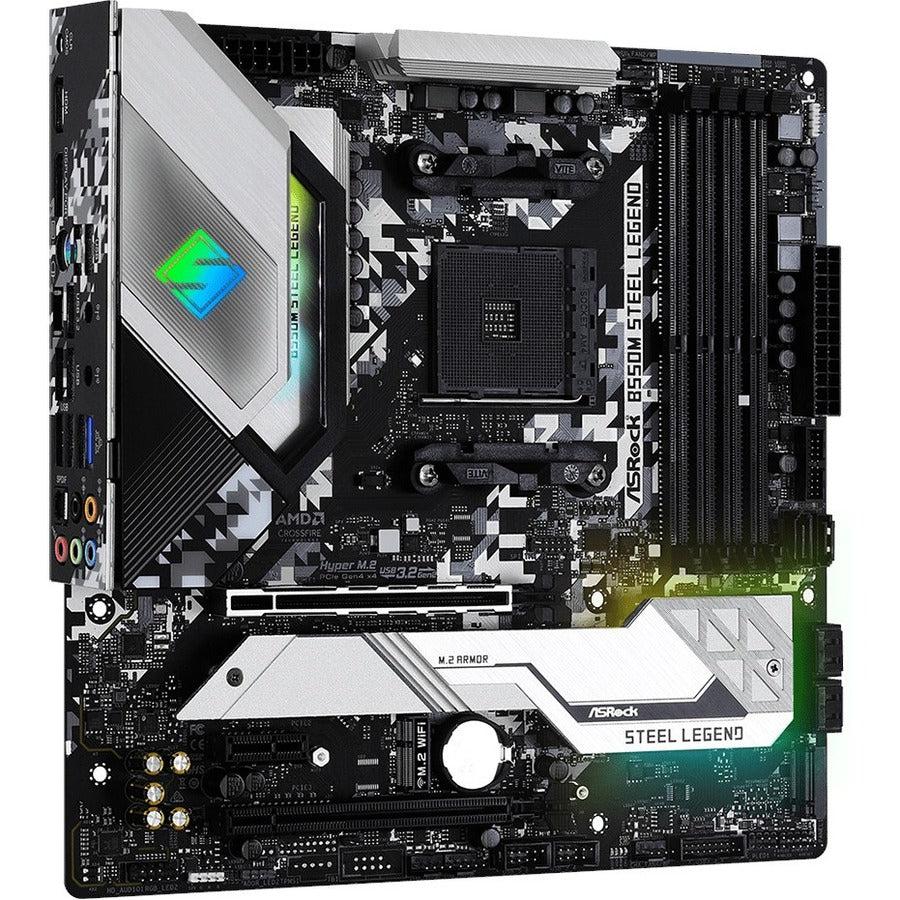

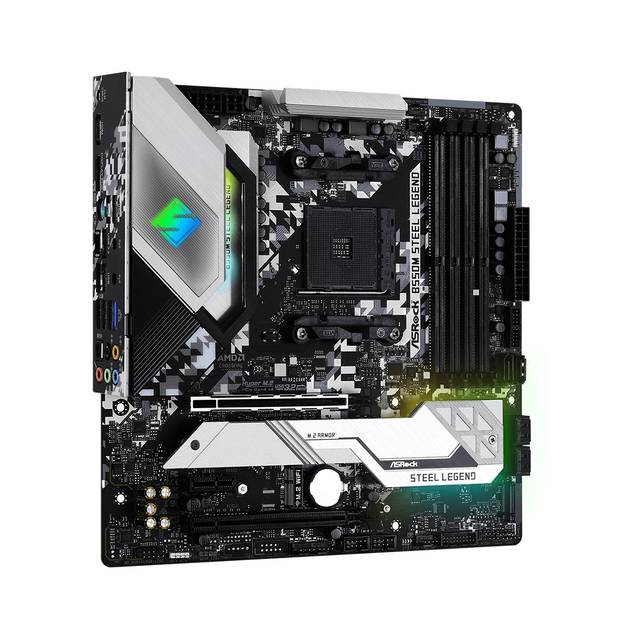

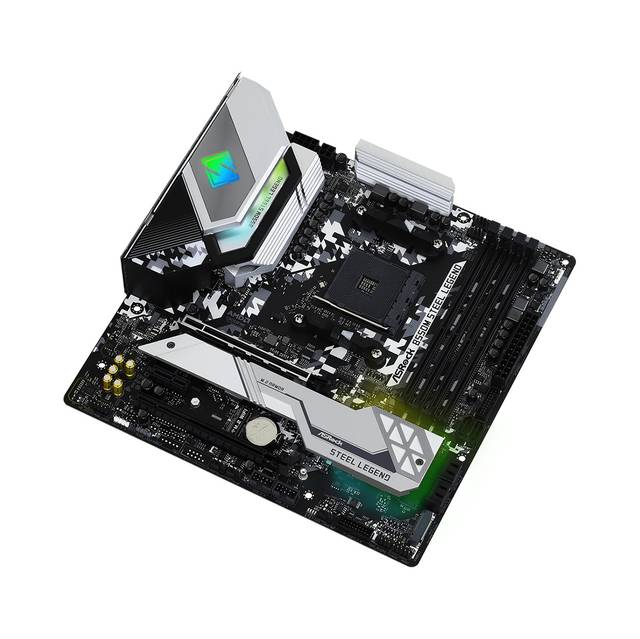

Mfr Part Number: B550M STEEL LEGEND
-
Unique Feature:
-
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
-

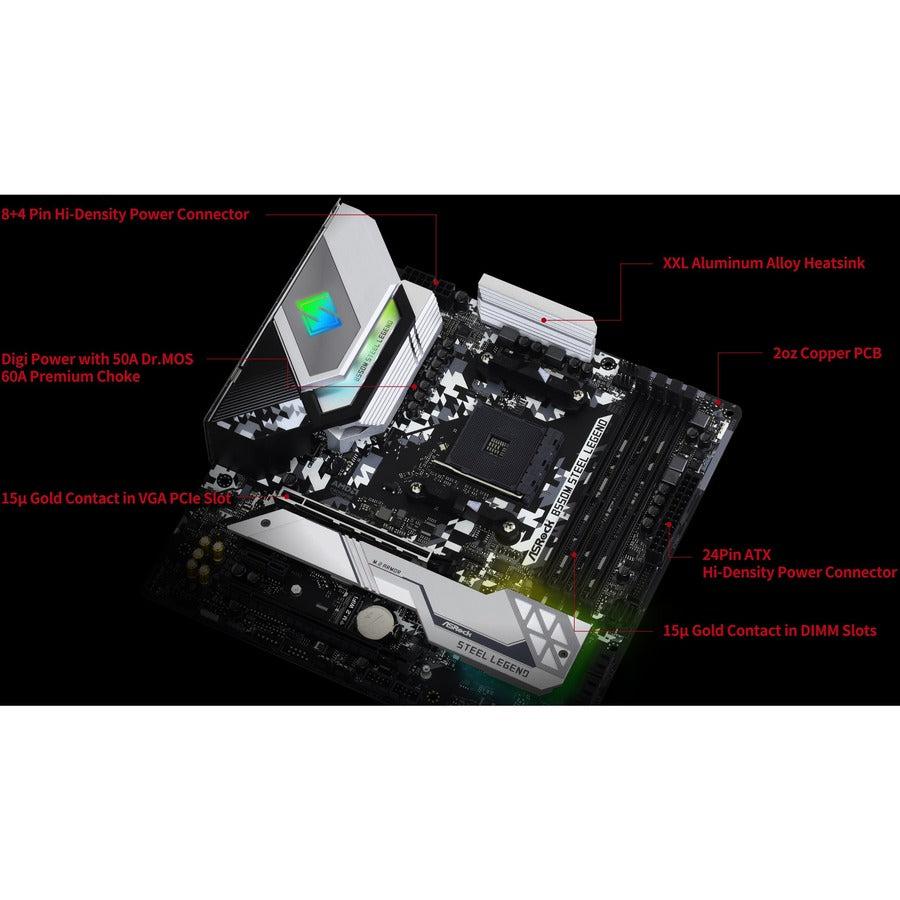

ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)

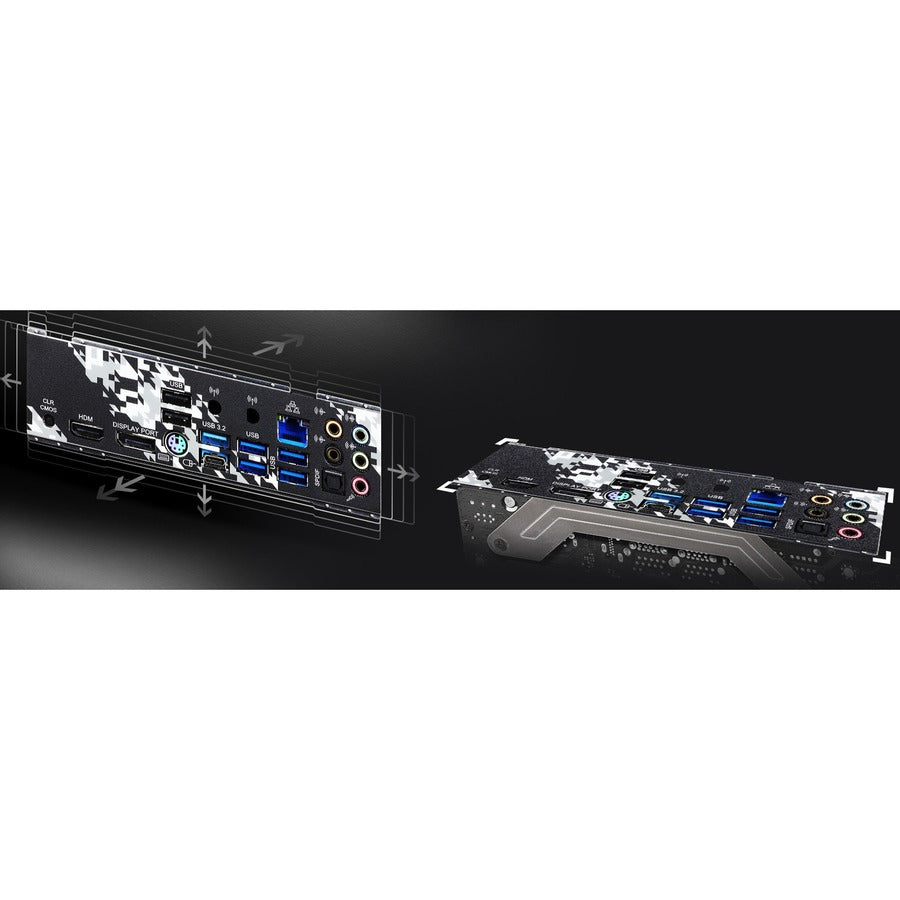

- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
- 2.5G LAN
- ASRock Steel Slot Gen4
- ASRock Full Coverage M.2 Heatsink
- ASRock Hyper M.2 (PCIe Gen4x4)
- ASRock POST Status Checker (PSC)
- ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
- ASRock Live Update & APP Shop
-
CPU:
- Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors
- Digi Power design
- 10 Power Phase design
-
Chipset: AMD B550
-
Memory:
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- MD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) memory modules
- 15 Gold Contact in DIMM Slots
-
BIOS:
- 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
-
Graphics:
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880)@120Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
- Supports Microsoft PlayReady
-
Audio:
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Nahimic Audio
-
LAN:
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
-
Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
-
Slots:
-
AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)
-
AMD Ryzen series APUs (Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX and CrossFireX
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
-
Storage:
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)
- 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
-
Connector:
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers
- 2 x Addressable LED Headers
- 1 x CPU Fan Connector (4-pin)
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
-

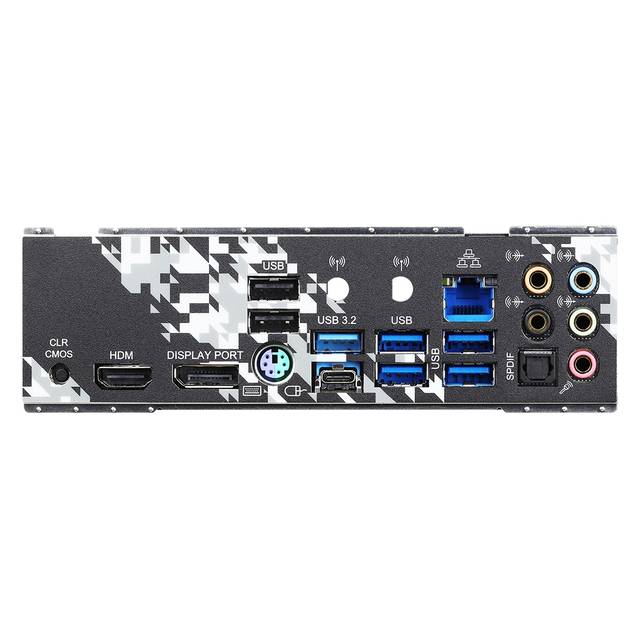

Rear Panel I/O:
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
-
Software and UEFI:
-
Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
-
Accessories:
-
Hardware Monitor:
-
Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
-
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
-
Form Factor:
-
OS: Microsoft Windows 10 64-bit
-
Certifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
