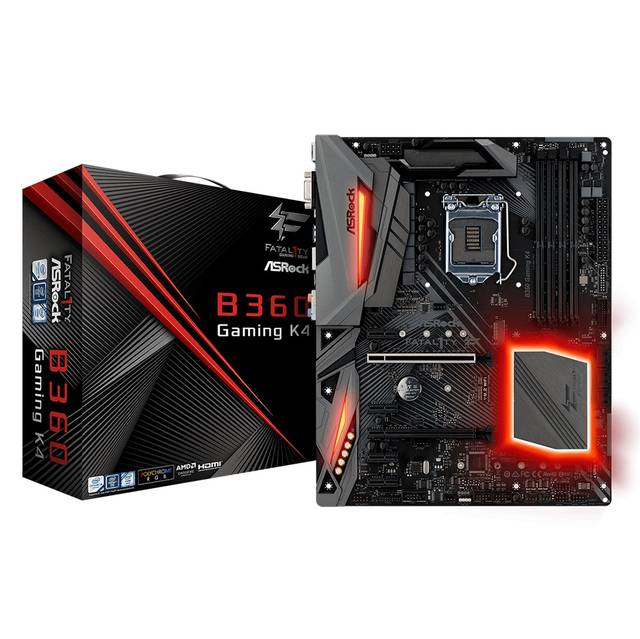

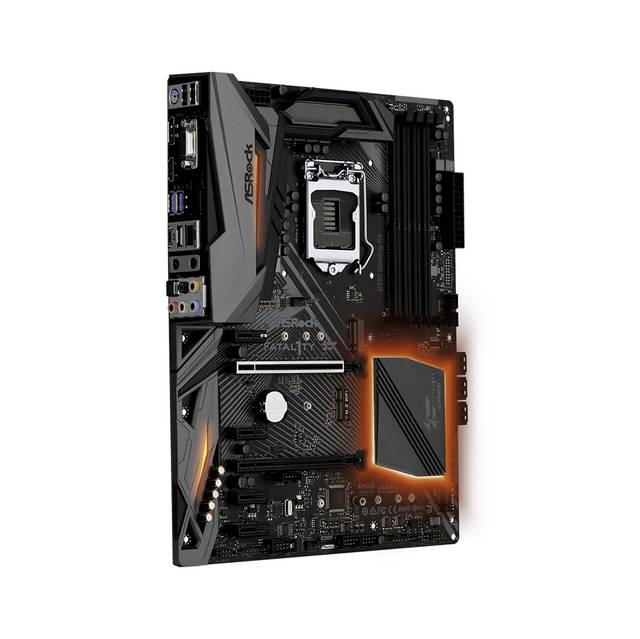

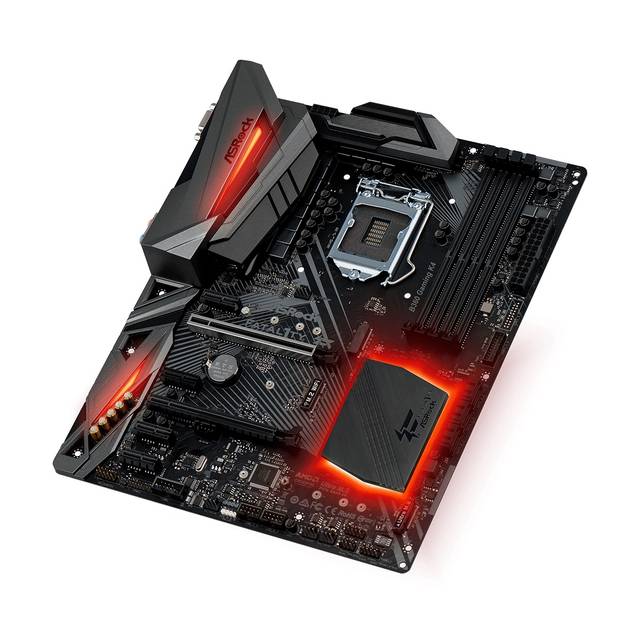

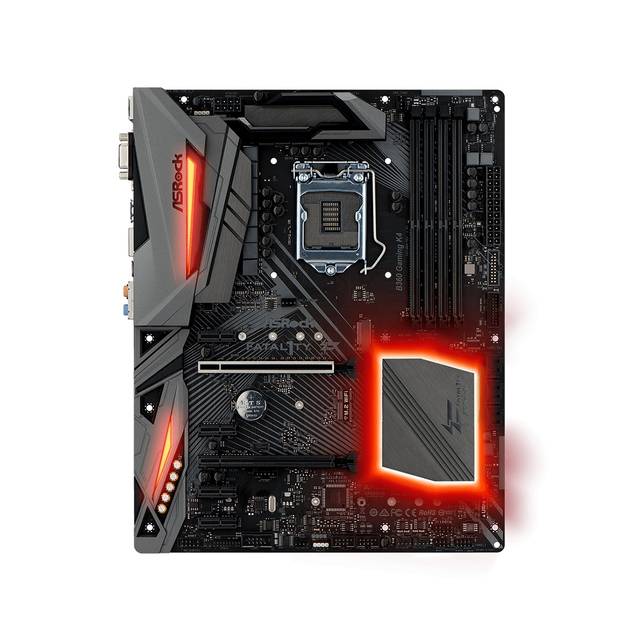

Mfr Part Number:B360 GAMING K4
-
CPU: LGA1151
- Supports 8th Generation Intel Core Processors
- Supports CPU up to 95W
- Digi Power design
- 10 Power Phase design
- Supports Intel Turbo Boost 2.0 Technology
-
Chipset: Intel B360
-
Memory: 4x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
-
Slots: 2x PCI-Express 3.0 x16 Slots (single at x16, dual at x16/ x4), 4x PCI-Express 3.0 x1 Slots (Flexible PCI-Express),1x M.2 Socket (Key E)
-
Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology
-
Storage:
-
SATA: 6x SATA3 Ports, Support NCQ, AHCI and Hot Plug
-
M.2:1x Ultra M.2 Port, supportsM Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s), 1x M.2 Port, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)
-
Audio: Realtek ALC12207.1-Channel High Definition Audio CODEC
-
LAN: Giga PHY Intel I219V Gigabit Ethernet Controller
-

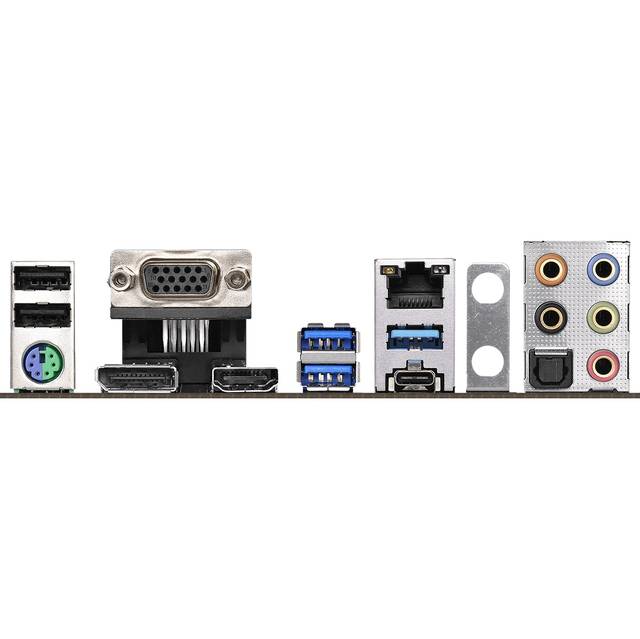

Ports:2x USB 3.1Gen2 Ports (1Type-A rear, 1 Type-C rear), 4x USB 3.1Gen1Ports (2 rear, 2via header), 6x USB 2.0 Ports (2 rear, 4via headers), 1x PS/2 Mouse/Keyboard Port,, 1x VGA Port, 1x HDMI Port, 1x DisplayPort, 1x Optical SPDIF Out Port, 2x Antenna Ports, 1x RJ45 LAN Port w/ LED, Audio I/O Jacks
-
Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
-
Form Factor: ATX, 12.0x 9.6 inch / 30.5x 24.4 cm
