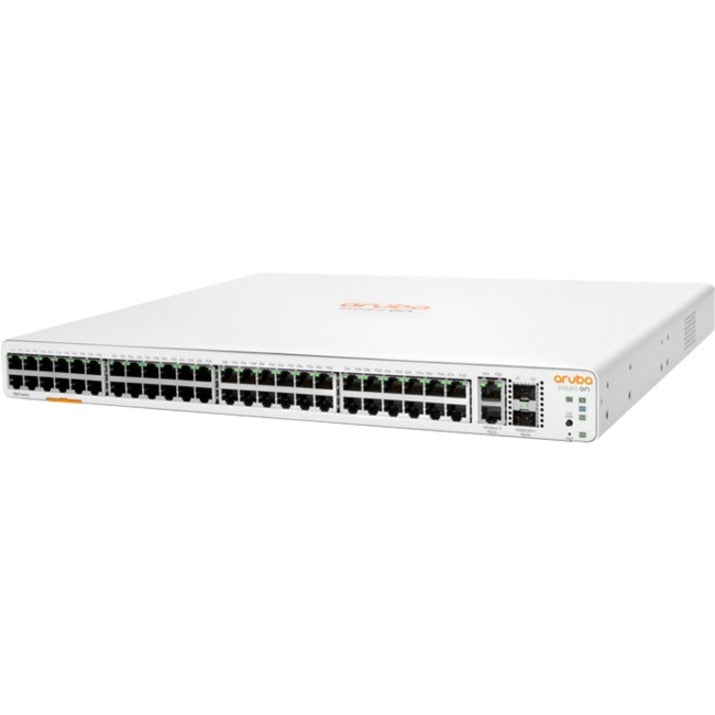

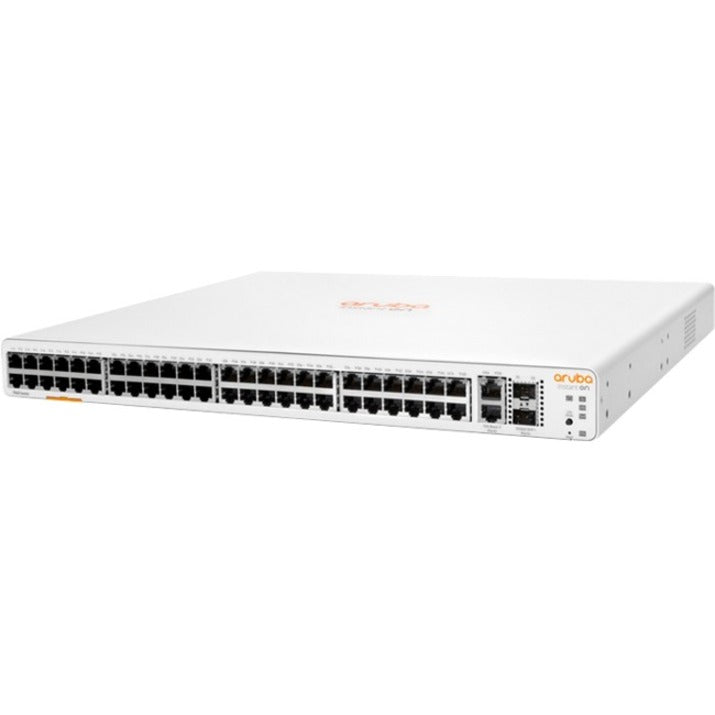

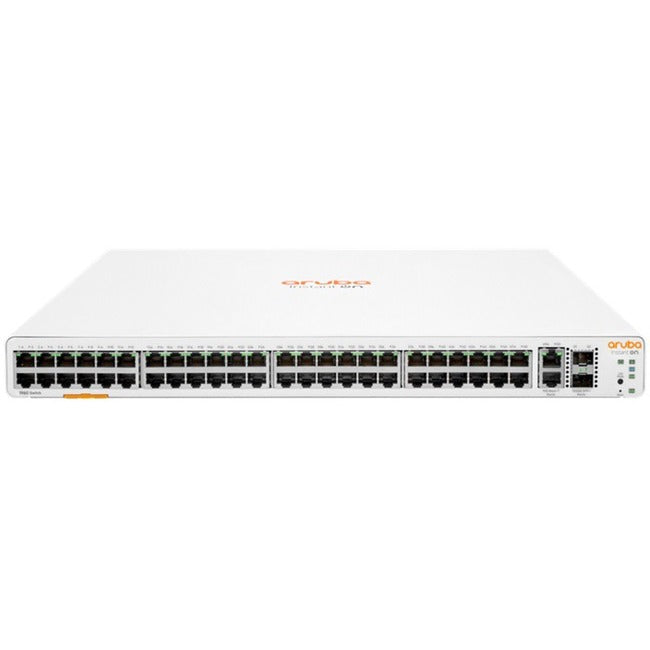

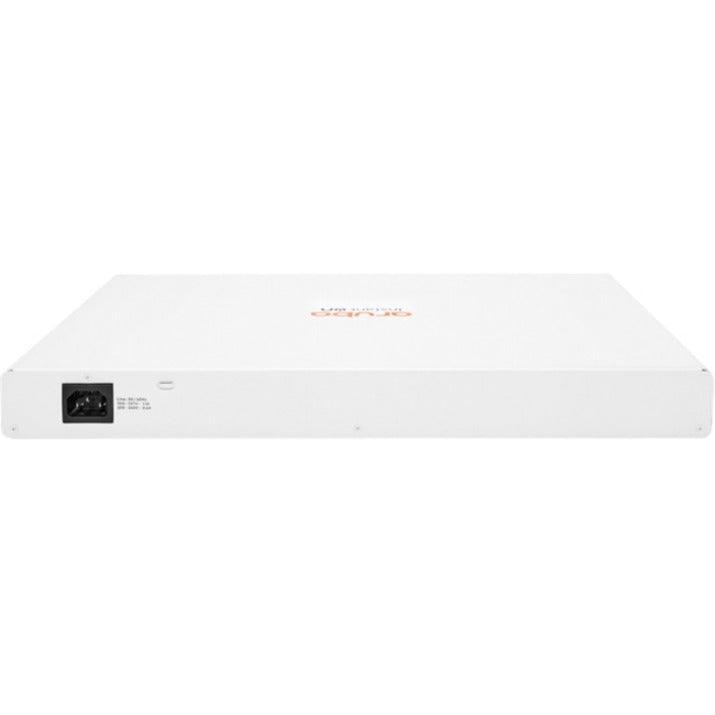

The HPE Networking Instant On Switch Series 1960 48G 2XGT 2SFP+ is perfect for growing businesses, enterprise networks, and IT administrators who need smart-managed networking with advanced Layer 2+ capabilities and stackable architecture. Our solution delivers:
-
48-port gigabit ethernet switch that provides comprehensive connectivity for large networks
-
Smart-managed capabilities with intuitive cloud-based management and monitoring
-
Stackable design enabling seamless network expansion and redundancy
-
10GbE uplinks for high-speed backbone connectivity and future-proof performance
Key Features
-
Layer 2+ switching to provide advanced routing and network segmentation
-
Smart-managed functionality with cloud-based configuration and monitoring
-
Stackable architecture supporting up to 8 units for massive scalability
-
Gigabit ethernet ports delivering reliable high-speed connectivity
-
10GbE uplink support via 2 x 10GBASE-T and 2 x SFP+ ports
-
Energy-efficient design with intelligent power management
-
Zero-touch deployment for simplified installation and setup
-
Advanced security features including access control and network segmentation
Technical Specifications
| Manufacturer |
Hewlett Packard Enterprise |
| Model Number |
JL808A |
| Type |
Smart-Managed Stackable Layer 2+ Switch |
| Port Configuration |
48 x 10/100/1000BASE-T ports |
| 10GbE Uplinks |
2 x 10GBASE-T + 2 x SFP+ ports |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| MAC Address Table |
32,768 entries |
| Buffer Memory |
12 MB |
| Layer Support |
Layer 2+ with static routing |
| Stack Support |
Up to 8 units per stack |
| VLAN Support |
4,094 VLANs (IEEE 802.1Q) |
| Quality of Service |
8 hardware queues, DSCP marking |
| Security Features |
802.1X, ACLs, DHCP snooping, ARP protection |
| Management |
HPE Aruba Instant On mobile app, web interface |
| Power Consumption |
65W maximum |
| Power Supply |
Internal universal power supply |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Humidity |
10% to 90% non-condensing |
| Dimensions |
17.32" x 10.04" x 1.75" (WxDxH) |
| Weight |
7.7 lbs (3.5 kg) |
| Mounting |
1U rack-mount or desktop |
| MTBF |
663,014 hours at 25°C |
| Warranty |
Limited lifetime warranty |
| Standards |
IEEE 802.3, 802.3u, 802.3ab, 802.3an, 802.3ae |
| Compatible Systems |
Enterprise networks, data centers, campus networks, server rack deployments |
Frequently Asked Questions
Q: What makes this HPE switch ideal for growing business networks?
A: The HPE Instant On Switch Series 1960 features smart-managed capabilities with cloud-based management, making it perfect for businesses that need enterprise-grade features without complex configuration. The stackable design supports up to 8 units, allowing seamless network expansion as your business grows while maintaining centralized management.
Q: How do the 10GbE uplinks enhance network performance?
A: The switch provides 2 x 10GBASE-T ports and 2 x SFP+ ports for flexible high-speed connectivity options. These 10GbE uplinks serve as backbone connections to servers, storage systems, or other network segments, ensuring no bottlenecks between your access layer and core network infrastructure.
Q: What Layer 2+ capabilities does this switch provide?
A: Beyond standard Layer 2 switching, this HPE switch offers Layer 2+ features including static routing, advanced VLAN support with 4,094 VLANs, Quality of Service (QoS) with 8 hardware queues, and comprehensive security features like 802.1X authentication and access control lists (ACLs).
Q: How does the smart-managed functionality simplify network administration?
A: The smart-managed switch utilizes the HPE Aruba Instant On mobile app and web interface for intuitive configuration and monitoring. Features include zero-touch deployment, automated network discovery, real-time monitoring, and cloud-based management that eliminates complex command-line configurations.
Q: What are the benefits of the stackable architecture?
A: The stackable switch design allows you to connect up to 8 units as a single logical switch, providing up to 384 gigabit ports with unified management. Stacking enables high-availability configurations, simplified cabling, and the ability to manage the entire stack as one device while maintaining redundant data paths.
Q: How energy-efficient is this 48-port gigabit switch?
A: With intelligent power management and a maximum consumption of 65W, this energy-efficient ethernet switch significantly reduces operational costs compared to traditional managed switches. The switch automatically adjusts power based on port utilization and cable length, contributing to green networking initiatives.
Q: What security features protect the network infrastructure?
A: The switch includes enterprise-grade security with 802.1X port-based authentication, DHCP snooping, ARP protection, MAC address filtering, and comprehensive ACLs. These features provide multiple layers of network security essential for protecting against unauthorized access and network attacks.
HPE Instant On Switch Series 1960 48G smart-managed stackable switch with 10GbE uplinks, Layer 2+ capabilities, and cloud-based management for enterprise networks.
