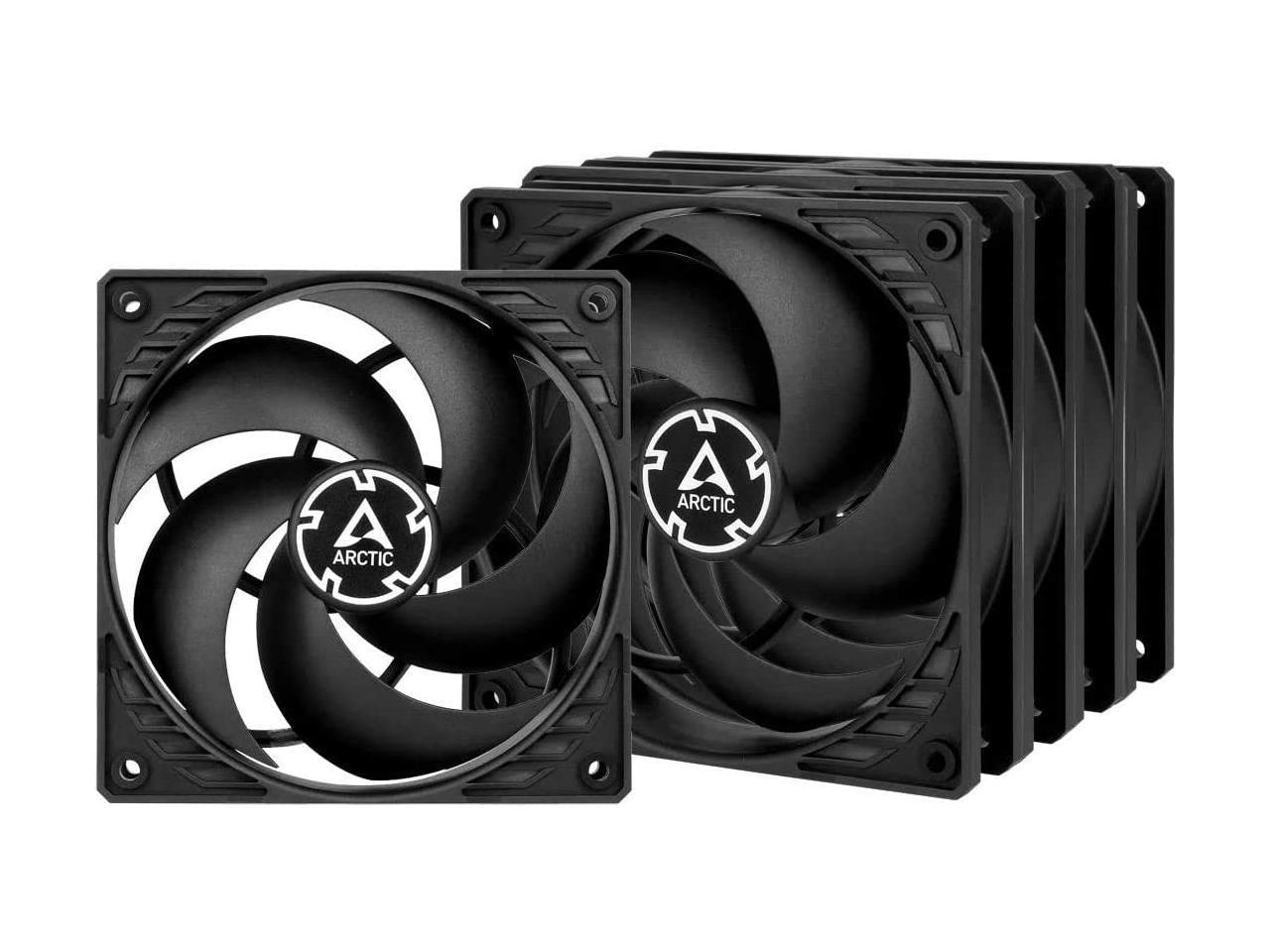

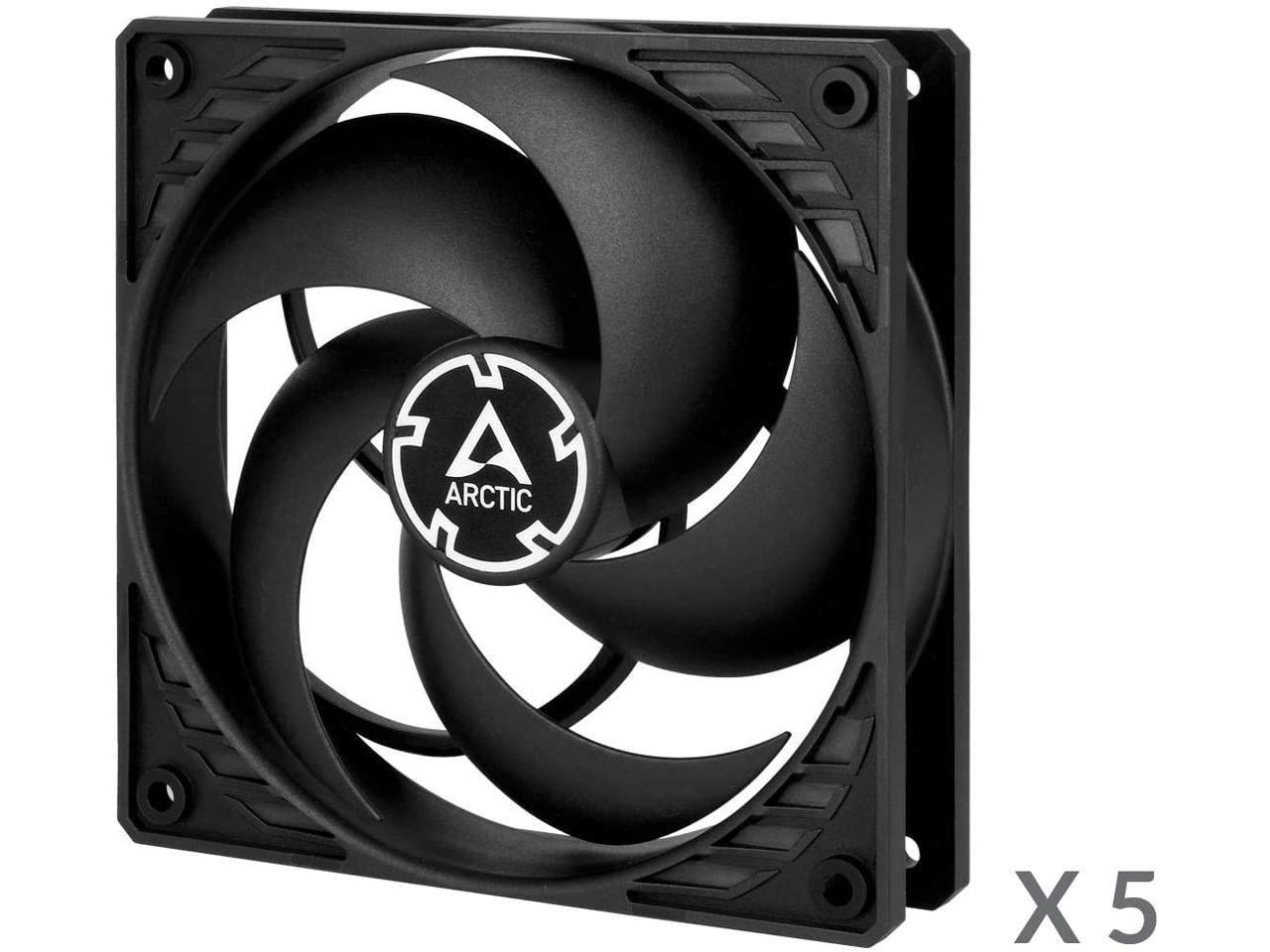

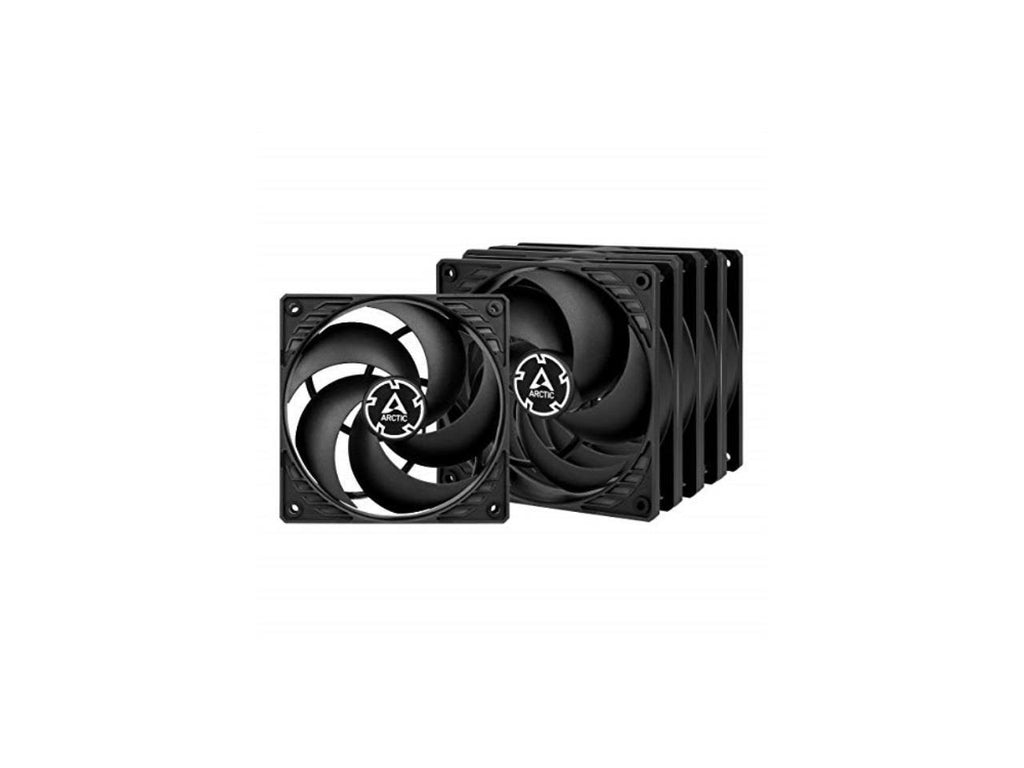

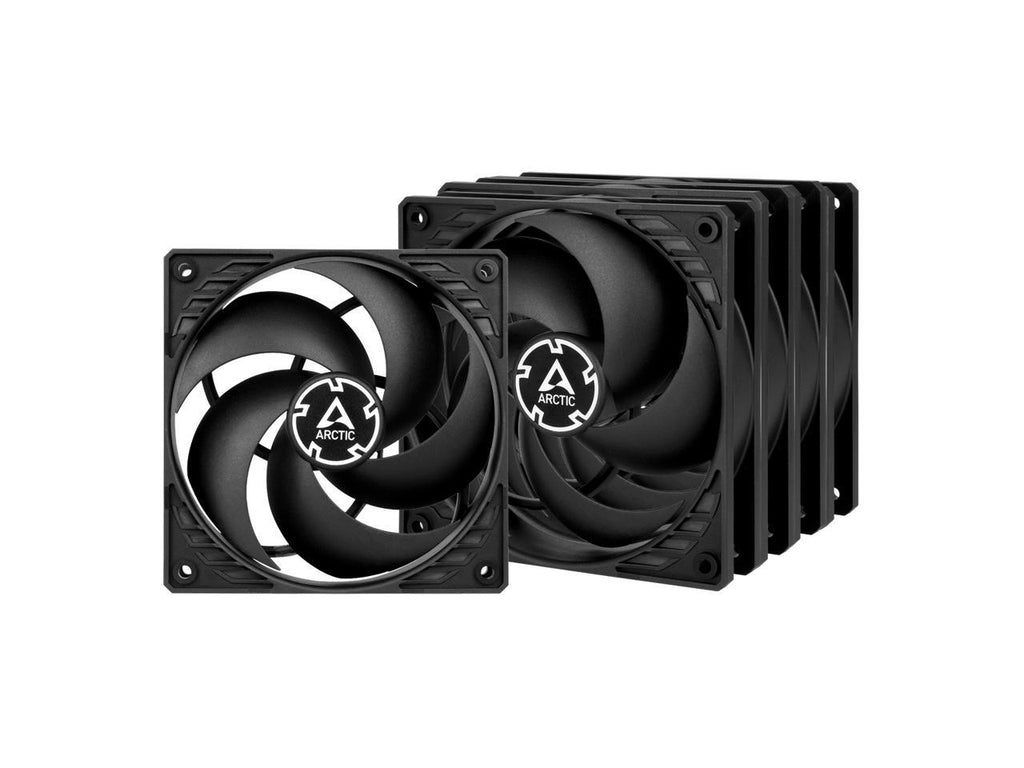

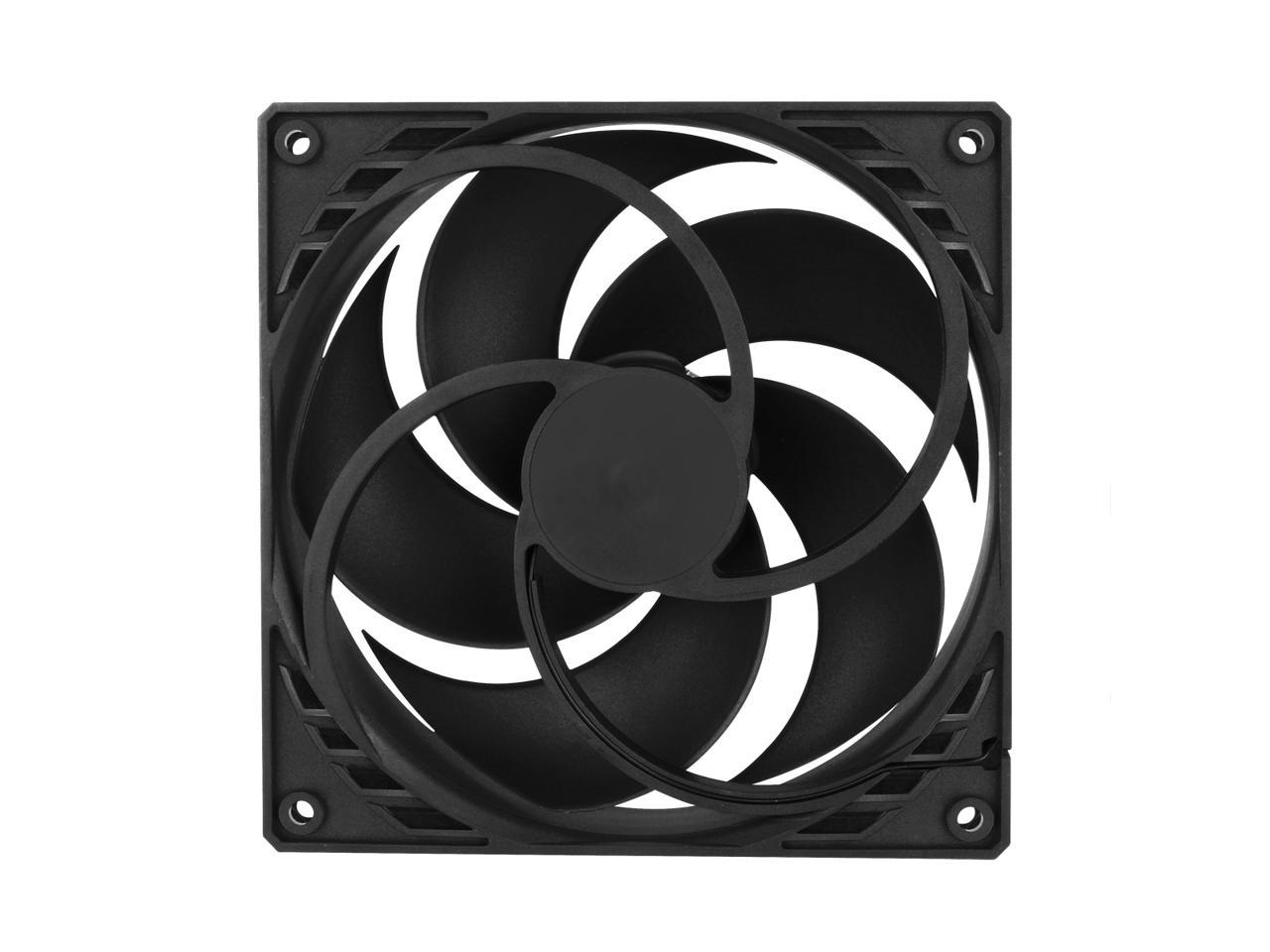

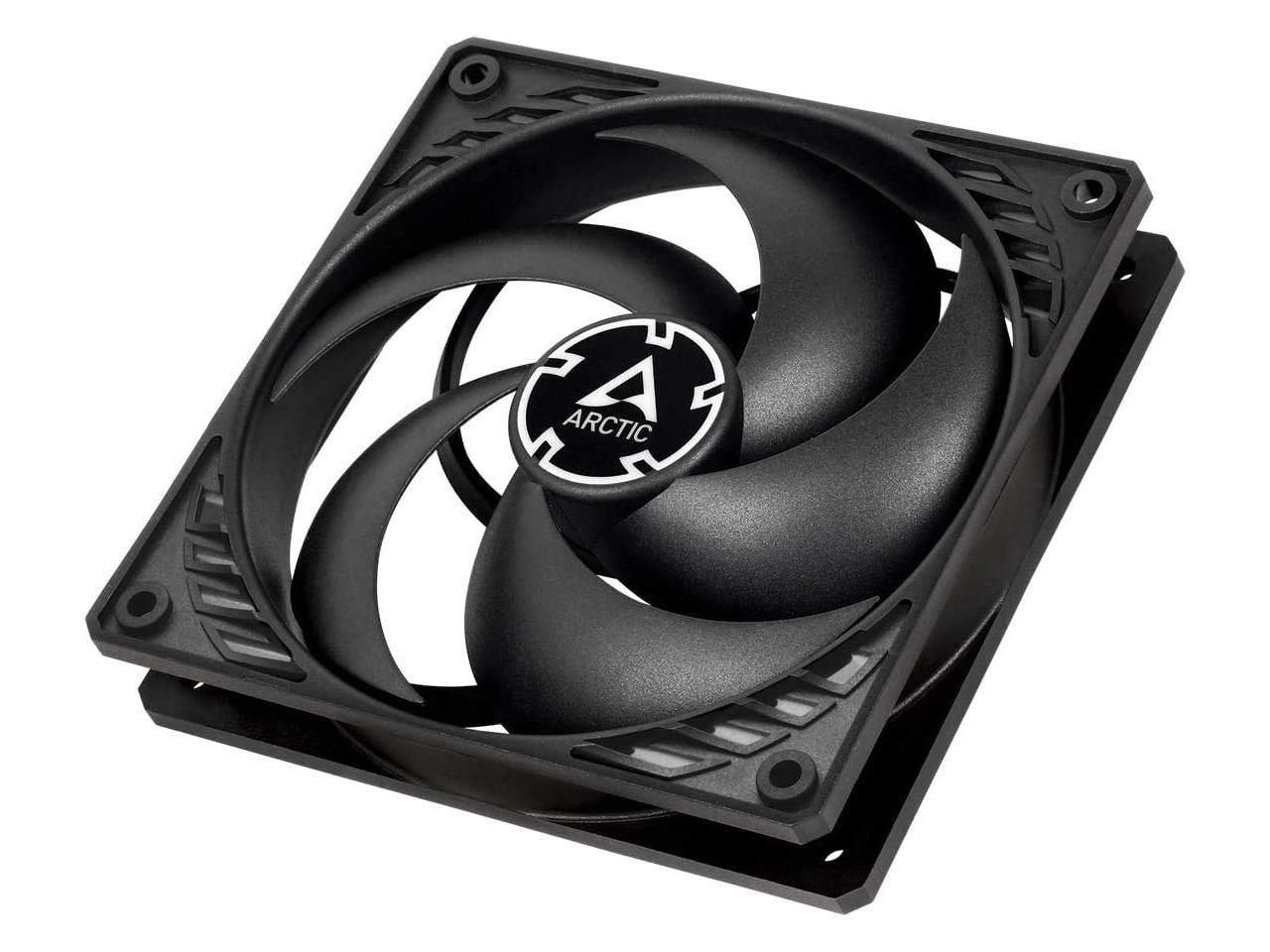

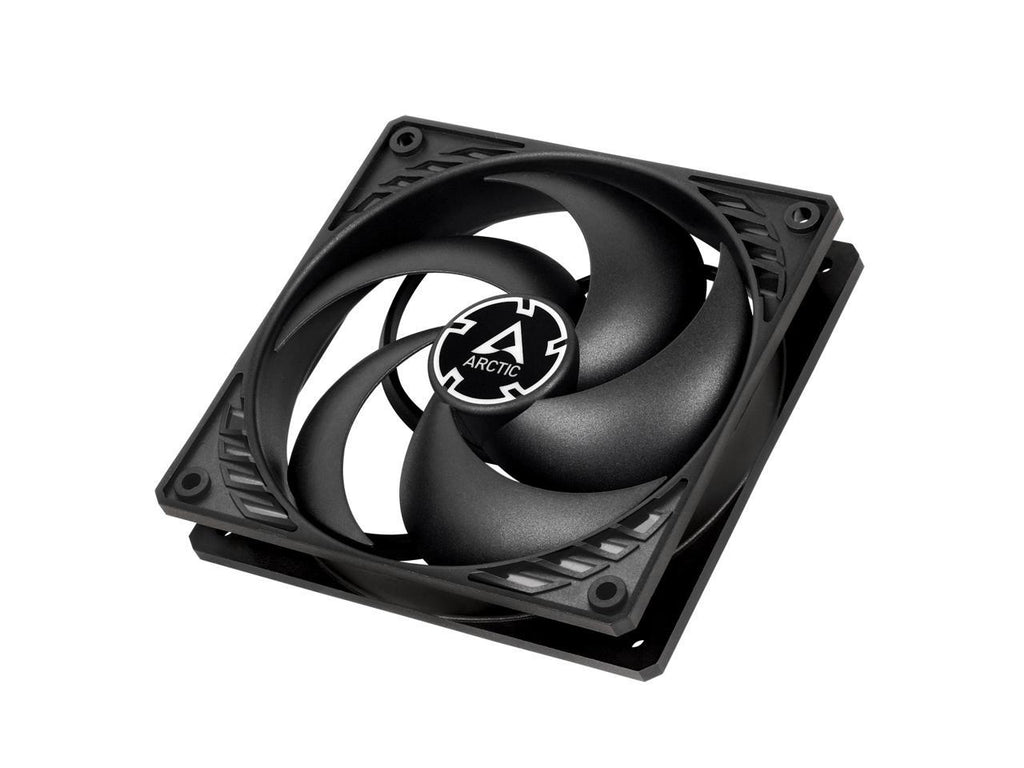

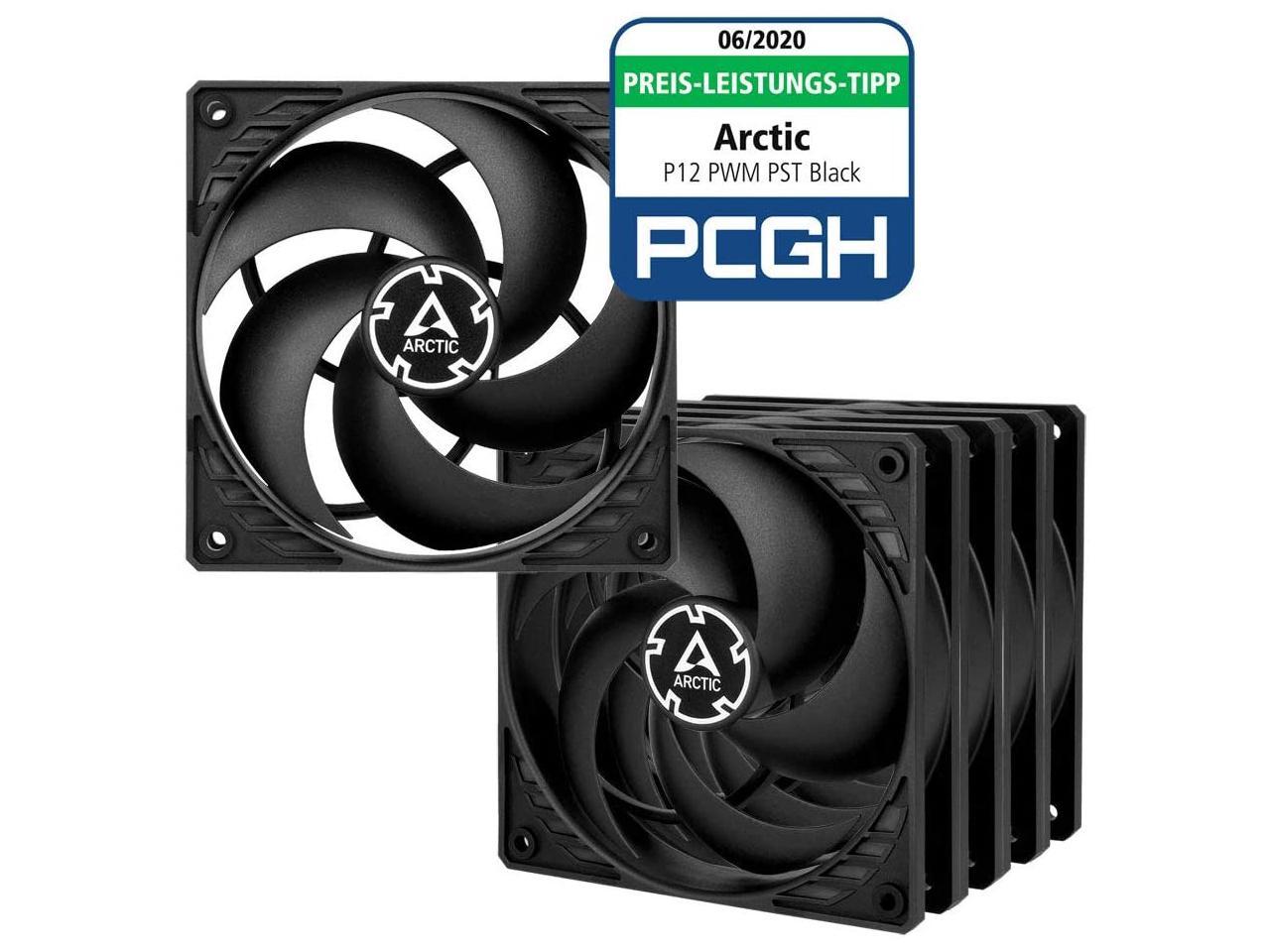

- The P12 PWM PST is a 120 mm fan with PWM PST connectors. It features Completely redesigned fan blades and is optimized for high static pressure.
- Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.
- The wide RPM range from 200 to 1800 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC PWM Sharing Technology (PST).
- The newly developed motor with a low coil temperature significantly increases the life span of the fan.
Performance
-
Model: ACFAN00137A
-
Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM
-
Air Flow: 56.3 CFM / 95.65 m³/h
-
Noise Level: 0.3 Sone (@ 1 800 RPM)
-
Static Pressure: 2.2 mm H2O (@ 1 800 RPM)
Electrical Characteristics
-
Typical Voltage: + 12 V DC
-
Start-up Voltage: 3.9 V DC
-
Cable Length: 400 mm
-
Sub PST Cable Length: 50 mm
Connection
Motherboard:
- + 12 V DC
- PWM control signal
- 4-pin connector + 4-pin socket
