Taoglas Apex Hinged TG.30 Ultra-Wideband 4G LTE Antenna
The hinged Apex TG.30 Ultra-Wideband Dipole LTE Antenna - is primarily designed for use with 4G LTE modules and devices that require the highest possible efficiency and peak gain to deliver best in class throughput on all major cellular (2g/3g/4g) bands worldwide for access points, terminals and routers. The antenna is a ground plane independent antenna with a SMA (M) connector and swivel mechanism that allows the antenna part to be rotated. The Apex exhibits high efficiency across the ultra wide band and is backward compatible with 2G and 3G cellular applications such as GSM, LTE, UMTS, WI-FI and even has GPS included for Assisted GPS and/or E911 applications. With very high efficiency on every cellular band globally it is an ideal solution for any device requiring high, reliable performance. It is also guaranteed to meet any type approval or carrier certification requirements from a RF standpoint. It is an omni-directional antenna and the radiation patterns display this and are stable across all bands.

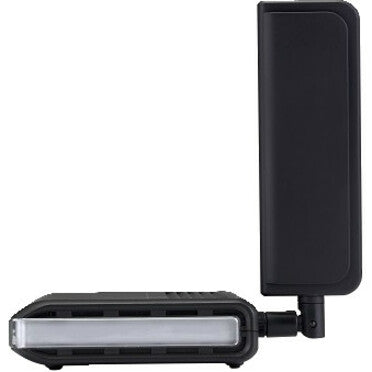

It has a quality robust IP67 UV resistant housing (SMA connector is IP65) for use with wireless terminals. The swivel and hinge mechanism allows the antenna part itself to be orientated in different directions and can help avoid touching off other antennas or objects close by as well as helping with isolation by orientating the antenna in different directions in MIMO systems for when other TG.30 antennas are present on the same device.

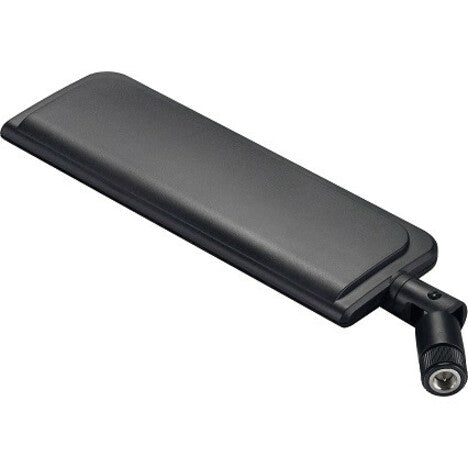

This patented antenna is available in White and Black versions. The antenna blade can swivel 90 degrees from the connector accommodating different installation environments. It is also available with Straight and Right Angle connectors.
- LTE / GSM / CDMA /DCS /PCS / WCDMA / UMTS / HSDPA / GPRS / EDGE /GPS /Wi-Fi
- 698MHz to 960MHz, 1575.42MHz 1710MHz to 2700Mhz
- Typical 70%+ Efficiency and 3dBi+ Peak Gain
- Dipole Swivel Terminal Antenna
- Hinged 90° termination with SMA(M) Connector
- RoHS Compliant
Product Type: Antenna
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Country Of Origin: Taiwan
Product Series: TG.30
Brand Name: Taoglas
Manufacturer: Taoglas
Product Name: Apex Hinged TG.30 Ultra-Wideband 4G LTE Antenna
Package Type: Bulk
Application/Usage: Wireless Access Point
Manufacturer Part Number: TG.30.8113
Manufacturer Website Address: http://www.taoglas.com
Packaged Quantity: 1
Weight (Approximate): 2.72 oz
