- ATX12V v2.3
- 80 PLUS BRONZE Certified
- 115 / 230 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V@78A, -12V@0.3A, +5Vsb@2.5A
General
| Brand |
APEVIA |
| Model |
ATX-SN1050W |
Details
| Type |
ATX12V v2.3 |
| Maximum Power
|
1050 W |
| Fans
|
1 x 135mm Blue LED Fan |
| PFC
|
Active |
| Main Connector
|
20+4Pin |
| +12V Rails
|
Single |
| PCI-Express Connector
|
4 x 6+2-Pin |
| SATA Power Connector
|
4 |
| SLI
|
Yes |
| Haswell Support |
Yes |
| CrossFire
|
Yes |
| Energy-Efficient |
80 PLUS BRONZE Certified |
| Over Voltage Protection
|
Yes |
| Overload Protection
|
Yes |
| Input Voltage |
115 / 230 V |
| Input Frequency Range |
50/60 Hz |
| Input Current |
10A - 5A |

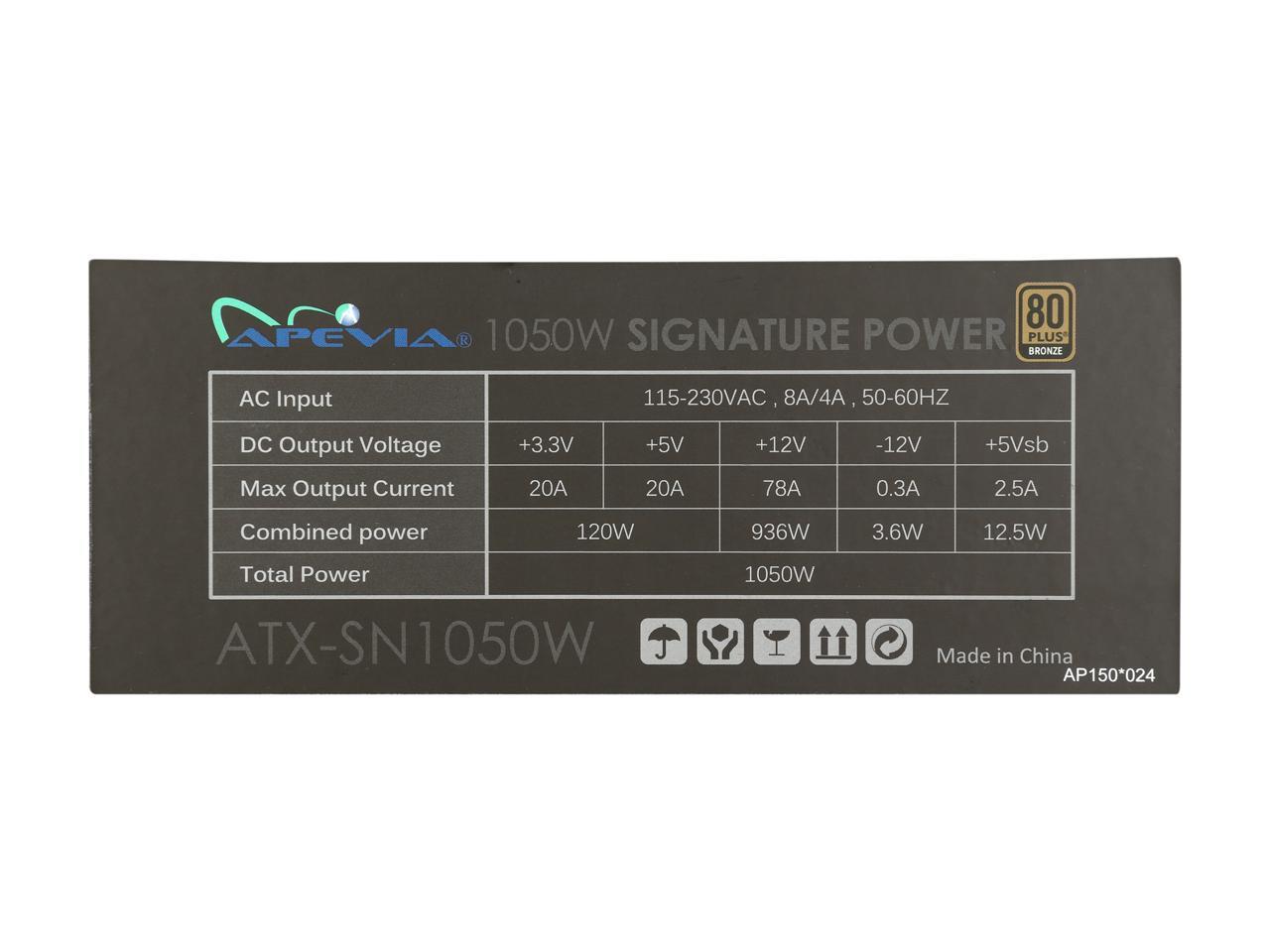

| Output |
+3.3V@20A, +5V@20A, +12V@78A, -12V@0.3A, +5Vsb@2.5A |

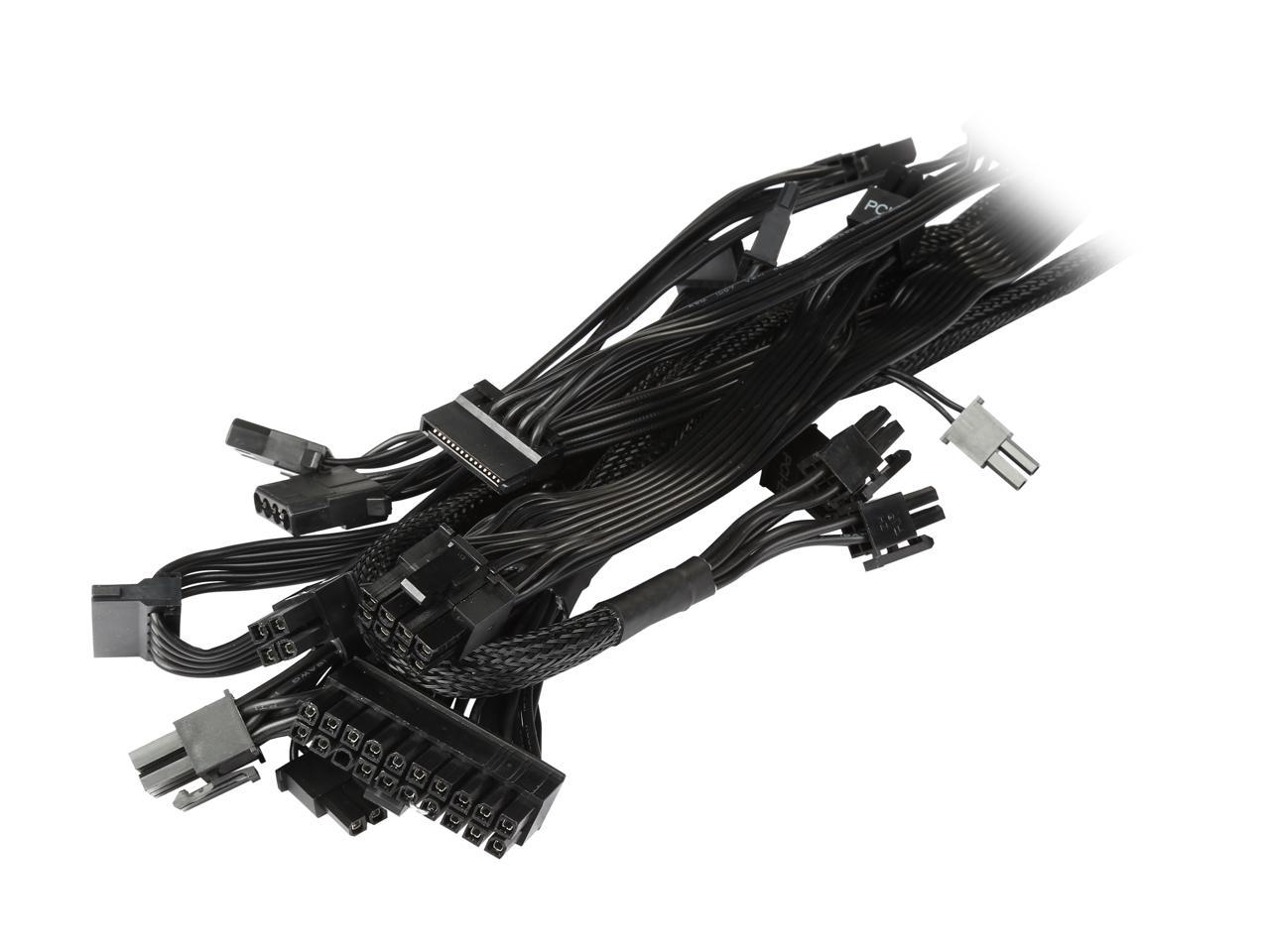

| Connectors |
1 x 20/24pin Main Power
4 x 8(6+2)Pin PCI Express
1 x P8(4+4P) ESP 12V
4 x 4Pin Peripheral
4 x Serial ATA
1 x Floppy |
Features
| Features |
80 Plus Bronze Certified
Hybrid Modular Flat Cable Design
Universal AC Input by Active PFC (99% PF Typical)
Cosmic Black Casing
Supports Single 12V Output for Higher Power Usage
Supports ATX 12V 2.3 Version
Supports Dual/Quad Core CPUs
Supports SLI/Crossfire/Haswell
Top Quality Large Japanese Made Capacitor

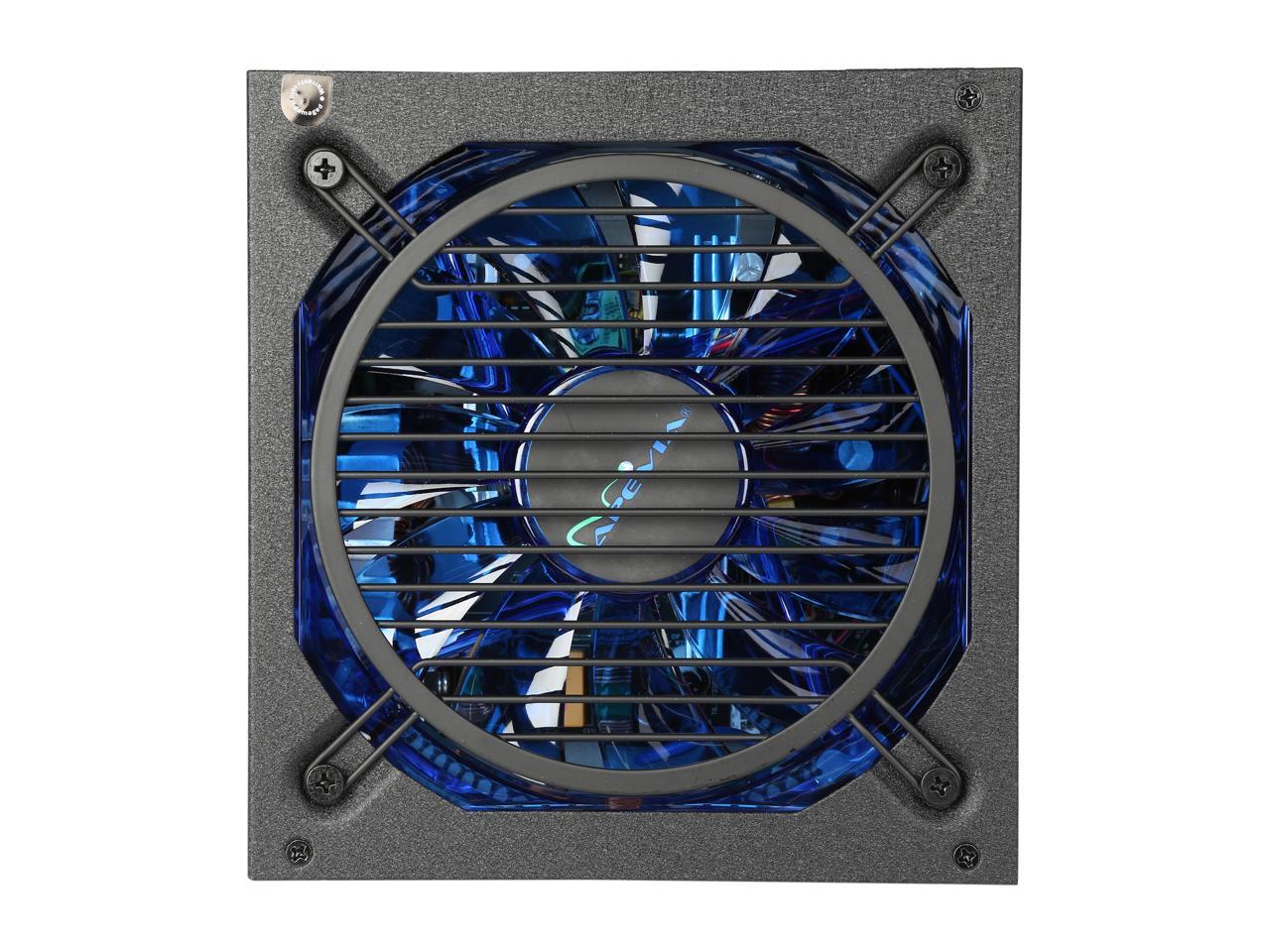

Automatic Thermally Controlled 135mm Blue LED Fan
Low Noise
Heavy Duty Protections Including OVP (Over Voltage Protection), OPP (Over Power Protection), UVP (Under Voltage Protection) and SCP (Short Circuit Protection)
Double Forward Converter Design |
Dimension & Weight
| Dimensions |
6.20" x 5.90" x 3.40" |
| Weight |
4.50 lbs. |
Additional Information
| Date First Available |
November 28, 2018 |
