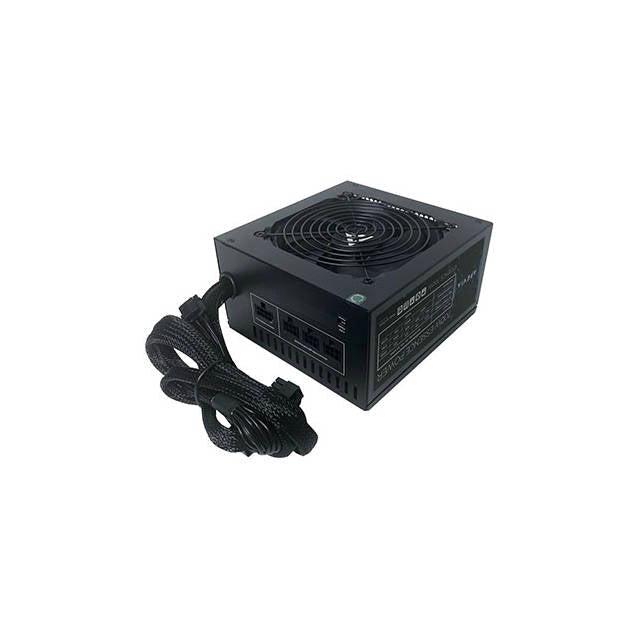

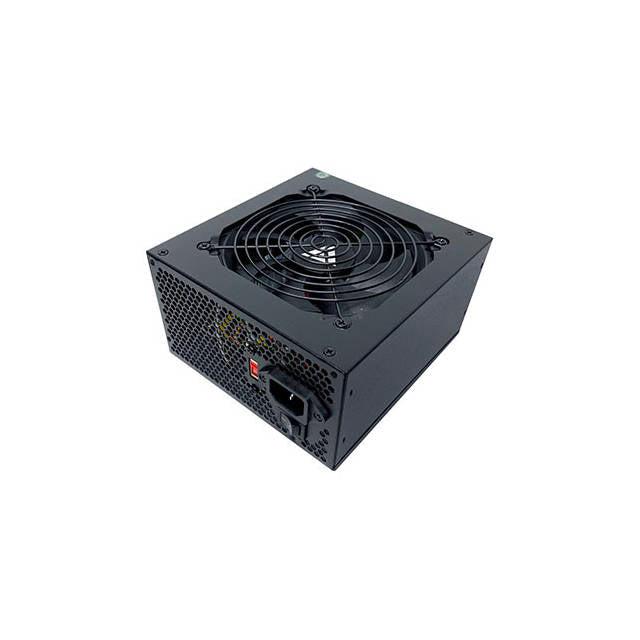

Mfr Part Number: ATX-ES700W
-
Features:
-
700W Power with 12cm black fan
-

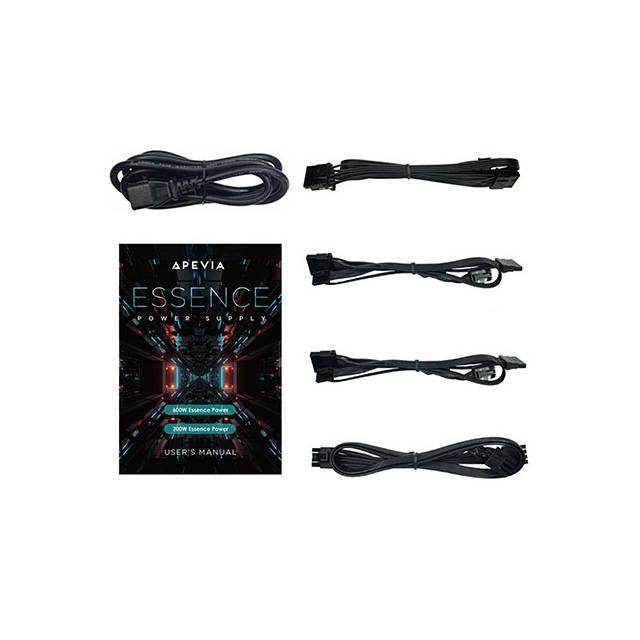

Hybrid modular cable design
-
Supports single 12v output for higher power usage
-
Supports SLI, Crossfire & Haswell
-
Supports Dual/Quad/Multi Core CPUs
-
Supports ATX 12v 2.3 version
-
Low noise auto-thermally control 135mm fan
-
Heavy-duty protections, including OVP (Over Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection)
-
Maximum Power: 700W
-
Material: Metal
-
Color: Black sandblasting coated case
-

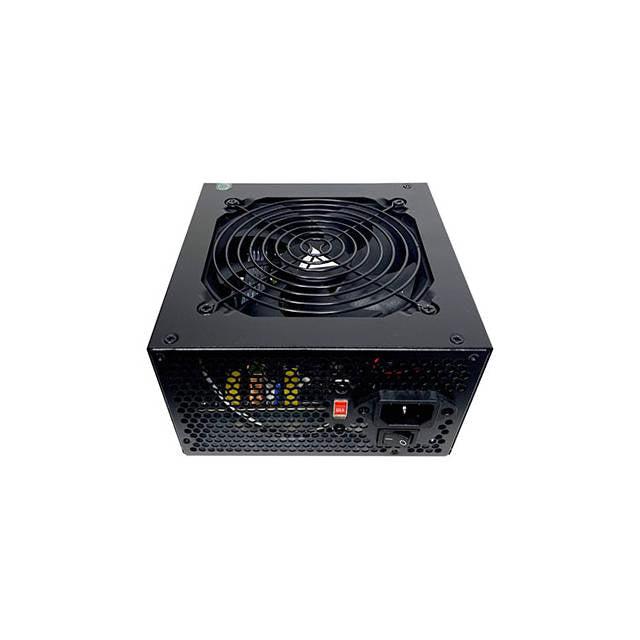

Switches: Additional power rocker switch 115/230 Volt selector switch
-
Input:
-
Voltage Range: 115 - 230V
-
Frequency: 50 - 60Hz
-
Current: 8A for 115VAC, 4A for 230VAC
-

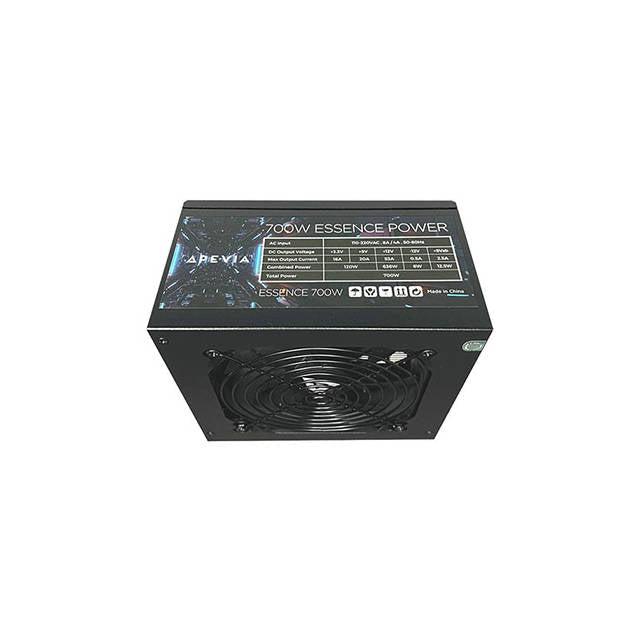

Output: +3.3V@16A, +5V@20A, +12V@45A, [email protected], [email protected]
-

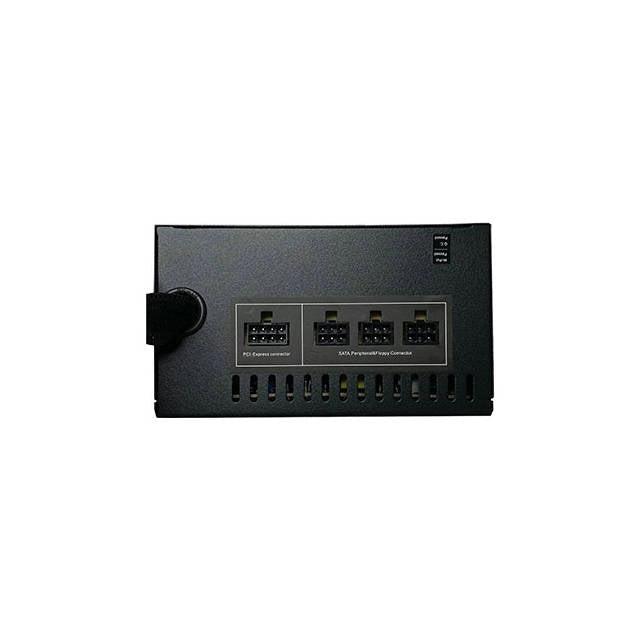

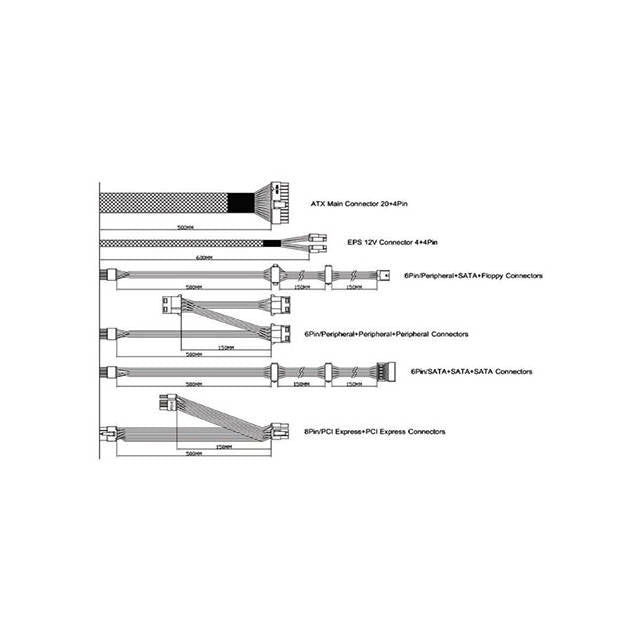

Connectors:
- 1 x 20/24pin Main Power Connector
- 1 x 4/8 pin + 12V and EPS Connector
- 4 x SATA Connectors
- 4 x Peripheral Connectors
- 1 x Floppy Connector
- 2 x 6+2pin PCI Express Connectors
-
Cooling: Forced air ventilation by 1 x 120mm black fan
-
Dimensions (LxWxH): 150mm x 160mm x 85mm/5.9" x 6.25" x 3.4"
-
Weight: 3.5 lbs
