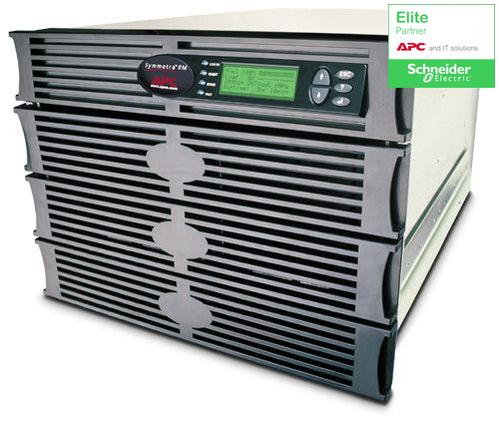

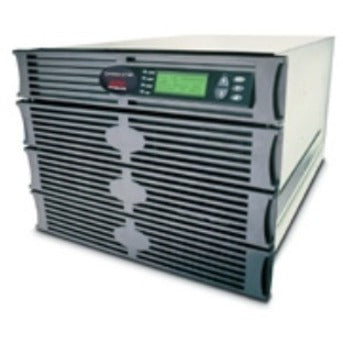

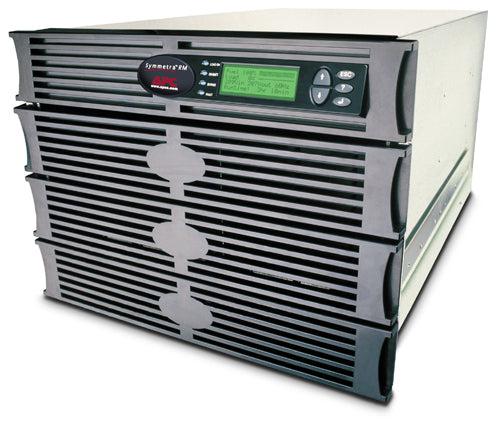

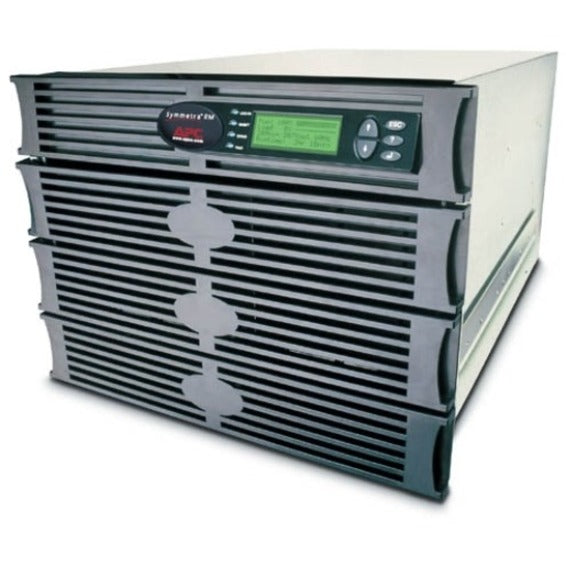

Symmetra RM 4kVA Scalable to 6kVA N+1 208/240V w/ 208 to 120V Step-Down Transformer (4) L5-20R
APC Symmetra RM 4kVA. Output power capacity: 4 kVA, Output power: 2800 W. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 4 h. Product colour: Black, Cable length: 1.83 m, Certification: CSA, FCC Part 15 Class A, UL 1778. Weight: 147.3 kg. Interface: DB-9 RS-232, RJ-45, Output connections: 4x NEMA L5-20R 2x NEMA L6-20R, Input connection type: 3-wire (2PH + G), NEMA L6-30P
Modular design Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Configurable for N+1 internal redundancy Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Redundant Intelligence Modules Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
Hot-swappable intelligence modules Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
Hot-swappable power modules Ensures clean, uninterrupted power to protected equipment during Power Module replacement.

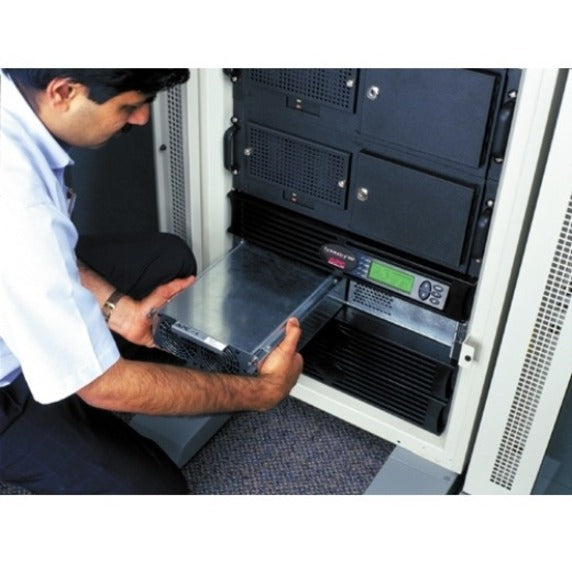

Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Power Modules connected in parallel Enhances availability by allowing immediate, seamless recovery from isolated module failures.
Battery modules connected in parallel Delivers higher availability through redundant batteries.
Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault. Automatic restart of loads after UPS shutdown.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SYH4K6RMT
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Name
Symmetra 4kVA Scalable to 6kVA Rack-mountable UPS
Product Type
Double Conversion Online UPS
UPC
0683498678205
Network (RJ-45)
Yes
Battery Information
Battery Chemistry
Lead Acid
Product Color
Black
Height
14"
Width
19"
Depth
28.7"
Weight (Approximate)
229.48 lb
Miscellaneous
Package Contents
Symmetra 4kVA Scalable to 6kVA Rack-mountable UPS
CD with software
Rack mounting brackets
Rack mounting support rails
User manual
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace, optional on-site warranties available, optional extended warranties available
