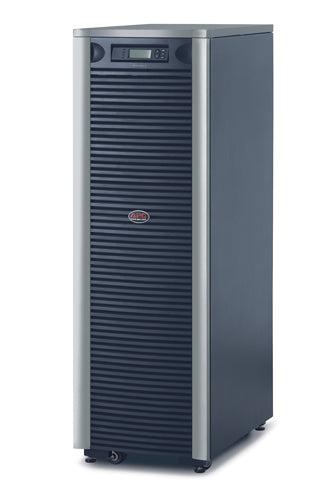

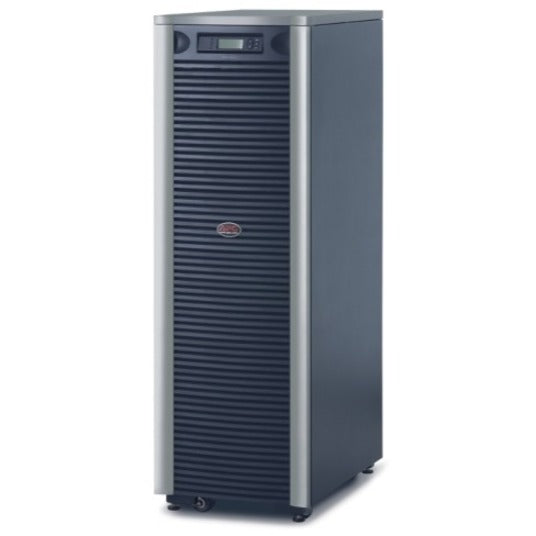

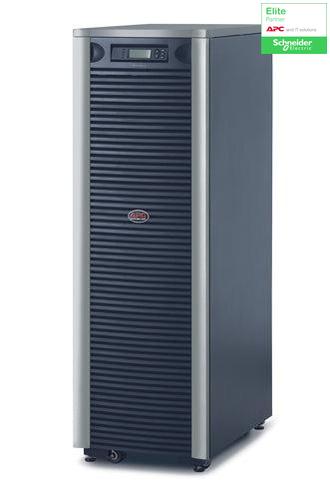

This APC Symmetra LX 12kVA scalable UPS is perfect for enterprise IT managers and data center professionals who need reliable N+1 UPS system protection with growth flexibility for mission-critical infrastructure. Our Symmetra LX solution delivers:
-
Enterprise UPS solutions providing scalable power protection from 12kVA up to 16kVA for growing data centers and critical business operations
-
Extended runtime UPS capabilities with external battery cabinet options for customizable backup power duration
-
APC Smart UPS technology with N+1 redundancy ensuring maximum uptime and fault tolerance
-
Scalable power protection allowing field upgrades to meet expanding infrastructure requirements
Key Features
-
Scalable capacity design allowing expansion from 12kVA to 16kVA without system downtime
-
N+1 redundancy architecture providing fault-tolerant operation with automatic load transfer capabilities
- Compatible with extended runtime configurations supporting multiple external battery cabinets for hours of backup time
- Consistent tower UPS performance with hot-swappable power modules for zero-downtime maintenance
-
Mission critical UPS reliability with advanced monitoring and management capabilities
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SYA12K16PXR |
| Series |
Symmetra LX |
| Type |
Scalable Tower UPS with N+1 Redundancy |
| Base Capacity (VA) |
12,000 VA (12 kVA) |
| Maximum Capacity (VA) |
16,000 VA (16 kVA) scalable |
| Base Capacity (Watts) |
8,400 W (8.4 kW) |
| Maximum Capacity (Watts) |
11,200 W (11.2 kW) scalable |
| Power Factor |
0.7 output power factor |
| Technology |
Line Interactive with Automatic Voltage Regulation |
| Input Voltage |
208V / 240V |
| Output Voltage |
208V / 240V (configurable) |
| Phase Configuration |
Single Phase Input / Single Phase Output |
| Input Frequency |
50/60 Hz ± 5 Hz |
| Output Frequency |
50/60 Hz ± 3 Hz (battery mode) |
| Transfer Time |
2-4 milliseconds typical |
| Efficiency |
Up to 97% (online mode) |
| Battery Configuration |
Internal with Extended Runtime Option |
| Battery Type |
Valve Regulated Lead Acid (VRLA) |
| Runtime (Full Load) |
Approximately 6-8 minutes (internal batteries) |
| Runtime (Half Load) |
Approximately 15-20 minutes (internal batteries) |
| Extended Runtime |
Hours with external battery cabinets (SYA8K16RMI) |
| Scalability |
Field upgradeable from 12kVA to 16kVA |
| Redundancy |
N+1 hot-swappable power modules |

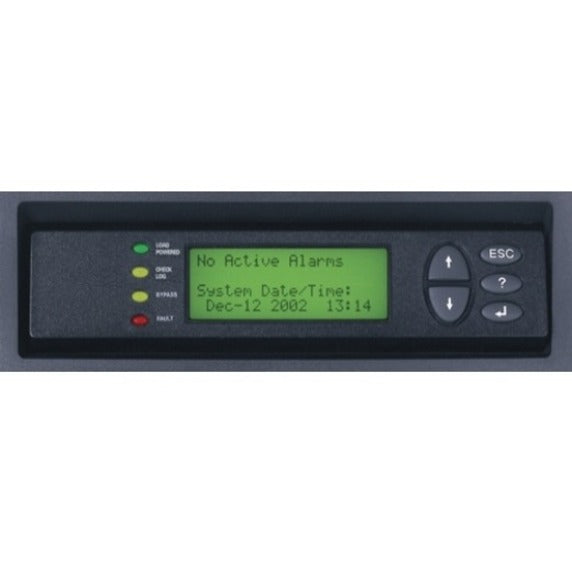

| Display |
LCD display with comprehensive system status |
| Communication Ports |
RS232, USB, SNMP (with optional card) |
| Network Management |
PowerChute Network Shutdown software |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
5°F to 122°F (-15°C to 50°C) |
| Humidity |
0-95% non-condensing |
| Altitude |
Up to 3,000m (9,842 ft) without derating |
| Noise Level |
Less than 50 dBA at 1 meter |
| Form Factor |
Floor-standing tower enclosure |
| Dimensions (H x W x D) |
60" x 17" x 32" (1524 x 432 x 813 mm) |
| Weight |
Approximately 400 lbs (181 kg) with batteries |
| Input Protection |
Surge suppression, EMI/RFI filtering |
| Output Protection |
Overload, short circuit, over-temperature |
| Safety Certifications |
UL Listed, CE Marked, FCC Class A |
| Environmental |
ENERGY STAR qualified, RoHS compliant |
| Load Segments |
Programmable load shedding capabilities |
| Bypass |
Automatic and manual bypass operation |
| Parallel Capability |
N+1 parallel redundancy configuration |
| Software |
PowerChute Business Edition included |
| Remote Monitoring |
SNMP, HTTP web interface (with card) |
| Input Circuit Breaker |
Integrated input disconnect |
| Output Outlets |
Hardwired output (terminal block) |
| Maintenance |
Hot-swappable power modules |
| Battery Monitoring |
Advanced battery management with self-test |
| Service |
On-site service available |
| Warranty |
2-year comprehensive system warranty |
Frequently Asked Questions
Q: What are the benefits of N+1 redundancy in UPS systems?
A: N+1 UPS system architecture provides fault tolerance by including one additional power module beyond what's required for the load. This APC Symmetra LX 12kVA scalable UPS ensures that if one power module fails, the system continues operating without interruption, providing maximum uptime for mission-critical applications in enterprise environments.
Q: How does the scalability feature work?
A: The scalable power protection design allows field upgrades from 12kVA to 16kVA capacity without system downtime. Additional power modules can be hot-swapped into the enterprise UPS solutions chassis, making it ideal for growing data centers that need to expand power protection as their infrastructure requirements increase.
Q: What extended runtime options are available?
A: This extended runtime UPS supports multiple external battery cabinet configurations. The SYA8K16RMI external battery cabinets can be daisy-chained to provide hours of backup time. The tower UPS system automatically recognizes additional battery capacity and adjusts runtime calculations accordingly.
Q: Is this suitable for data center applications?
A: Yes, this mission critical UPS is specifically designed for data centers, server rooms, and enterprise applications requiring high availability. The APC Smart UPS features include advanced monitoring, network management capabilities, hot-swappable components, and N+1 redundancy that meet the demanding requirements of modern IT infrastructure.
APC Symmetra LX SYA12K16PXR 12kVA scalable tower UPS with N+1 redundancy and extended runtime options for enterprise data centers.
