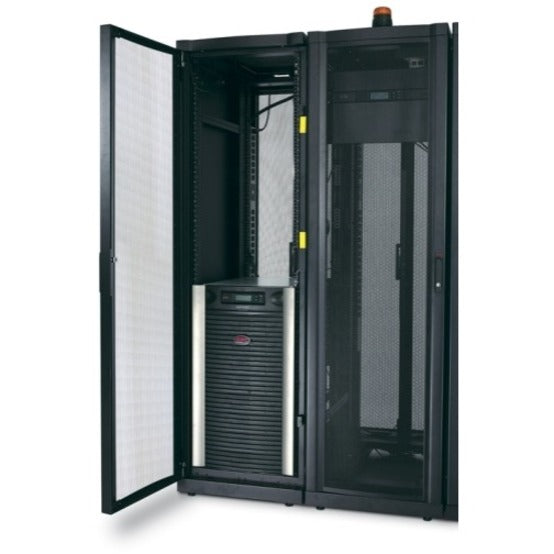

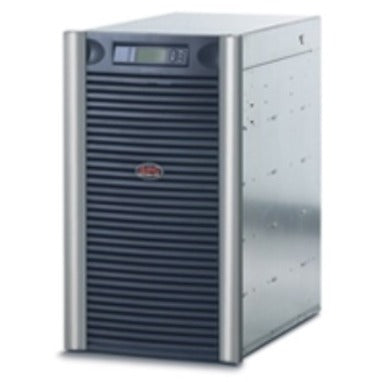

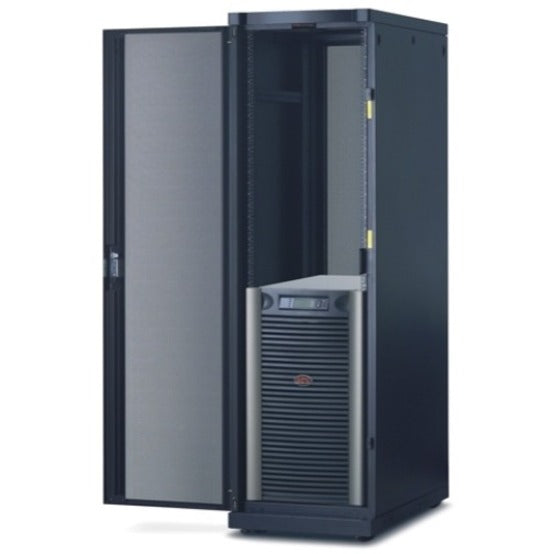

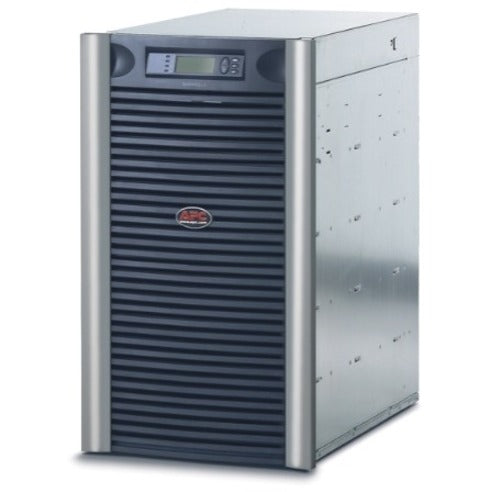

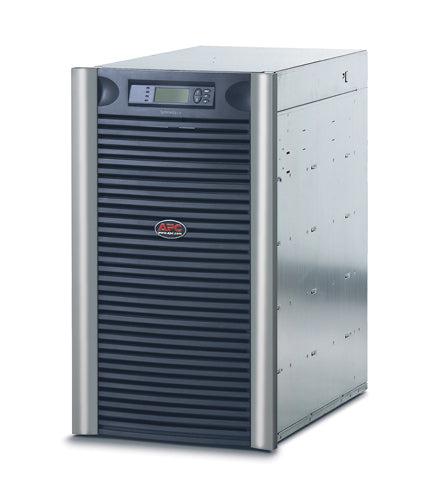

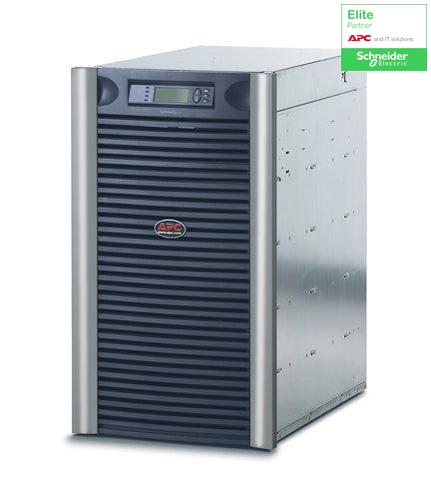

Symmetra LX 12kVA Scalable to 16kVA N+1 Rack-mount, 208/240V

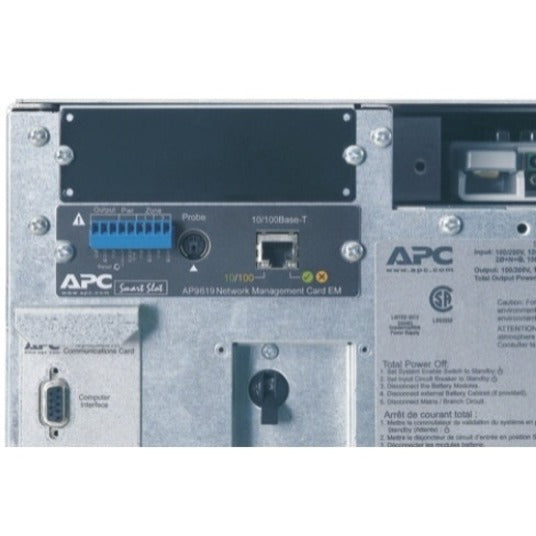

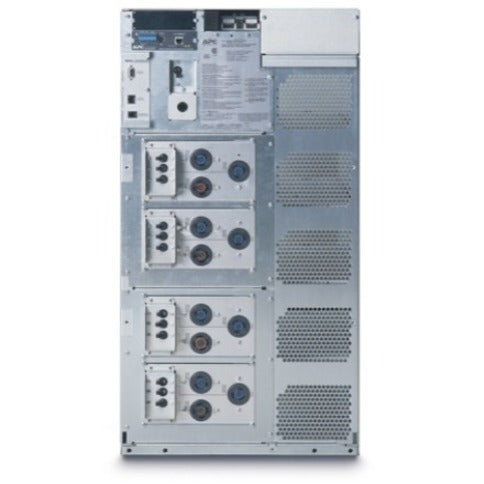

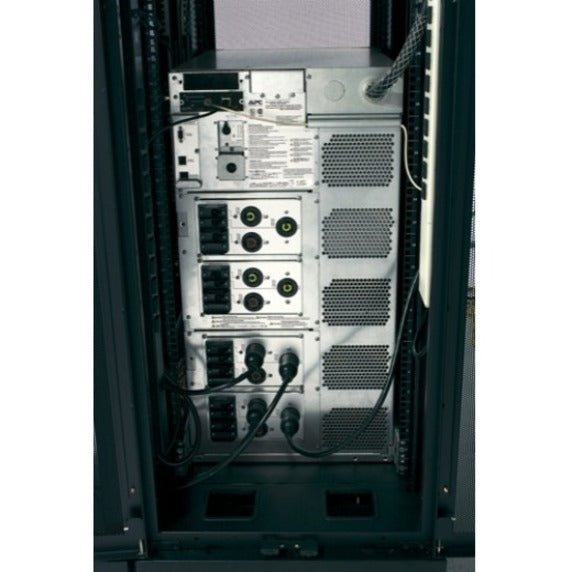

APC SYA12K16RMP. Output power capacity: 12 kVA, Output power: 9800 W. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h. Certification: CSA,FCC Part 15 Class A,UL 1778. Weight: 242.7 kg. Battery type: SYBT5, Interface: DB-9 RS-232, Smart-Slot, Output connections: 1x Hard Wire 4-wire (2PH + N +G) 4x NEMA L14-30R 8x NEMA L5-20R
Modular design Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Configurable for N+1 internal redundancy Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Redundant Intelligence Modules Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
Hot-swappable intelligence modules Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
Hot-swappable power modules Ensures clean, uninterrupted power to protected equipment during Power Module replacement.
Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Power Modules connected in parallel Enhances availability by allowing immediate, seamless recovery from isolated module failures.
Battery modules connected in parallel Delivers higher availability through redundant batteries.
Automatic internal bypass Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Symmetra
Product Series
LX
Product Name
Symmetra LX 12kVA Rackmountable UPS
Product Type
Double Conversion Online UPS
Battery Information
Battery Chemistry
Lead Acid
Product Color
Silver
Height
32.9"
Width
18.6"
Depth
27.1"
Weight (Approximate)
535.13 lb
Miscellaneous
Package Contents
Symmetra LX 12kVA Rackmountable UPS
CD with software
Documentation CD
Installation guide
Rack mounting support rails
Temperature probe
User manual
Web/SNMP management card
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years repair or replace
