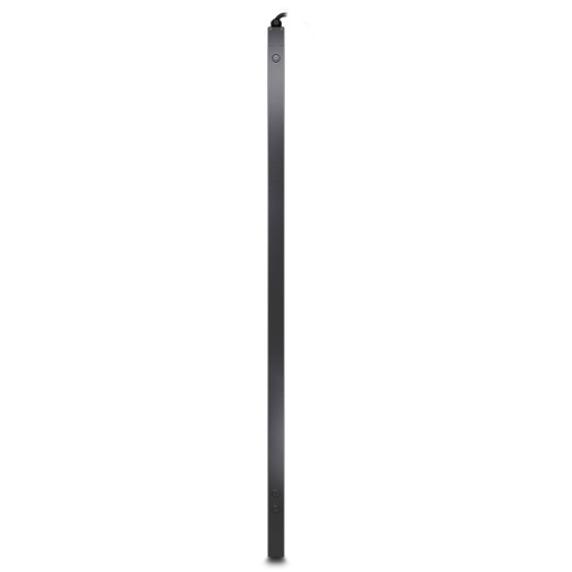

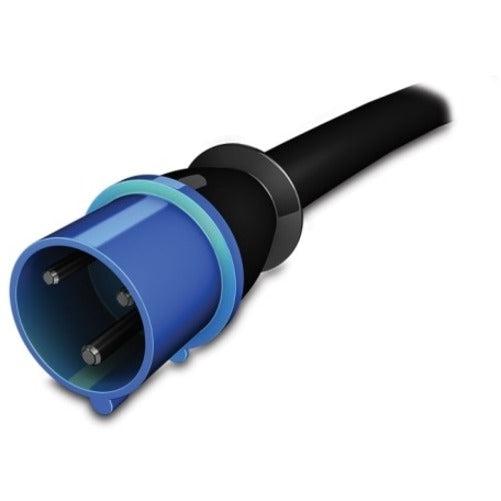

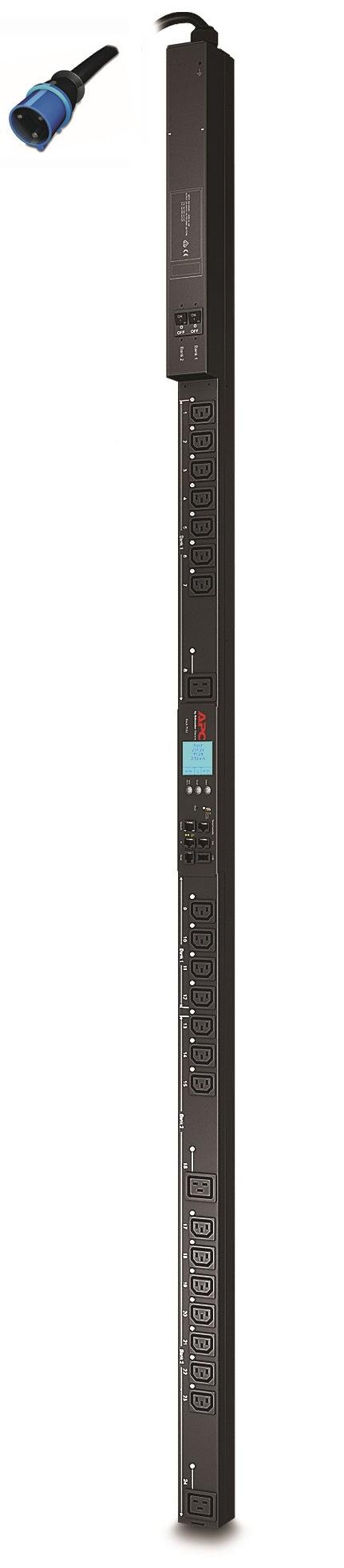

APC Switched Rack PDU. PDU types: Metered, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m, Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Includes: CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
AP8653
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
NetShelter
Product Series
Switched Metered
Product Model
AP8653
Product Name
Switched Rack 24-Outlets PDU
Product Type
PDU
UPC
731304276982
Height
72"
Width
2.2"
Depth
2"
Weight (Approximate)
18.14 lb
Miscellaneous
Package Contents
Switched Rack 24-Outlets PDU
CAN port terminator
Installation guide
Rack mounting brackets
Safety guide
Serial configuration cable
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
