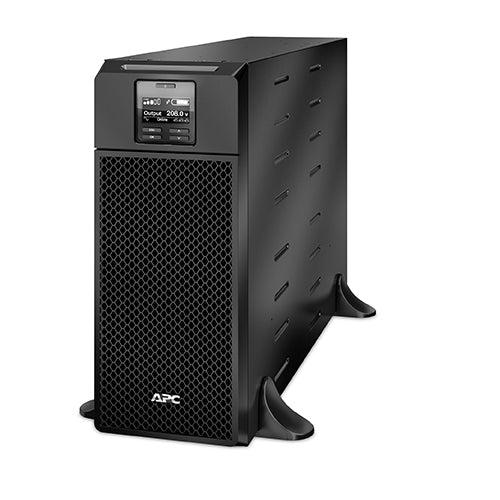

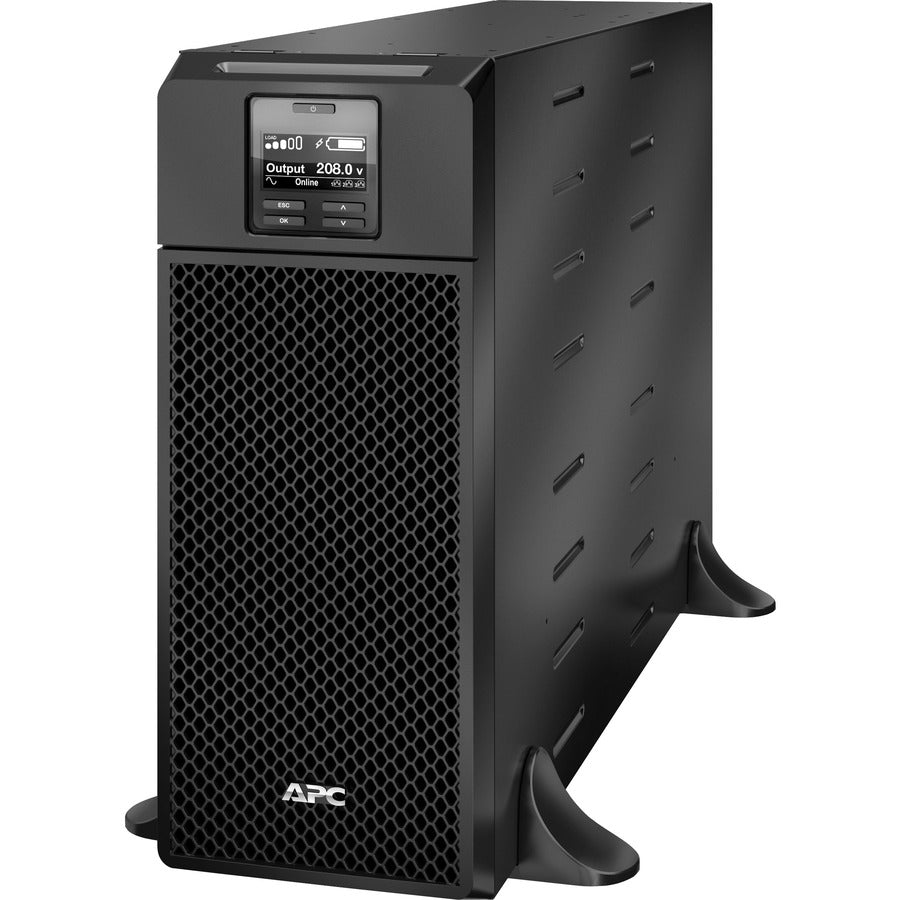

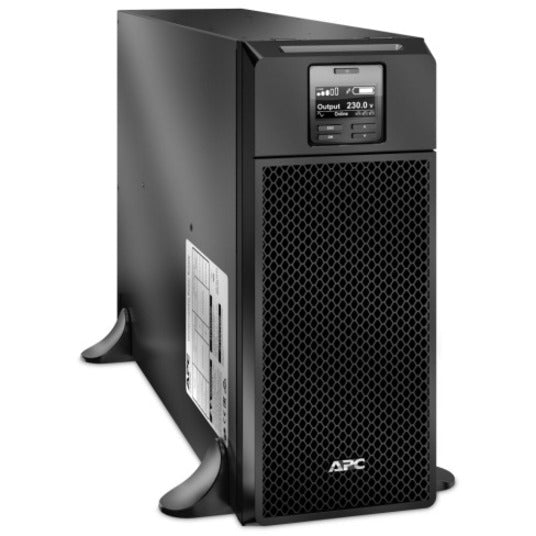

This APC Smart-UPS On-Line 6kVA tower UPS is perfect for IT managers, data center professionals, and enterprise businesses requiring mission-critical power protection with double-conversion on-line technology. Our advanced uninterruptible power supply delivers:
-
Pure sine wave output ensuring clean power for sensitive electronic equipment
-
Extended runtime capabilities supporting prolonged outages with additional battery packs
-
Network Management Card enabling remote monitoring and intelligent power management
-
Tower UPS design providing flexible deployment options for server rooms and network closets
Key Features
-
Double-conversion on-line UPS providing continuous power conditioning and zero transfer time
-
Pure sine wave output delivering clean, stable power for critical equipment protection
-
Extended runtime support with external battery pack compatibility
-
Network Management Card with SmartSlot for remote monitoring and control
-
6kVA/6kW power capacity supporting high-density server and network equipment
-
208V operation optimized for enterprise and data center environments
-
NEMA L6-20R and L6-30R outlets providing versatile connectivity options
-
Smart battery management maximizing battery performance and service life
-
Automatic voltage regulation maintaining consistent output voltage
-
Hot-swappable batteries enabling maintenance without system shutdown
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT6KXLT |
| Product Type |
Double-Conversion On-Line Tower UPS |
| Power Capacity |
6kVA/6kW |
| Input Voltage |
208V |
| Output Voltage |
208V |
| Output Waveform |
Pure Sine Wave |
| Form Factor |
Tower (Convertible to Rack Mount) |
| Transfer Time |
Zero (Online Double-Conversion) |
| Input Frequency |
50/60 Hz ±5 Hz |
| Output Frequency |
50/60 Hz ±0.1% |
| Efficiency |
Up to 94% (Online Mode) |
| Power Factor |
1.0 (Unity) |
| Output Outlets |
2 x NEMA L6-20R, 3 x NEMA L6-30R |
| Network Management |
Network Management Card Included |
| SmartSlot |
1 x SmartSlot for accessory cards |
| Runtime |

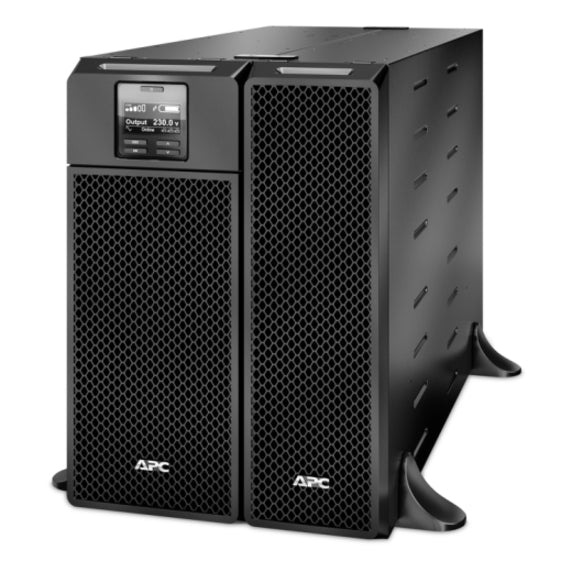

Extended Runtime with External Battery Packs |
| Battery Type |
Sealed Lead Acid, maintenance-free |
| Battery Management |
Temperature-compensated charging, intelligent battery management |
| Communication Ports |
USB, Serial, Ethernet (via Network Management Card) |
| Display |
Multifunction LCD with status and measurements |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Relative Humidity |
0-95% (non-condensing) |
| Dimensions (H x W x D) |
30.5" x 10.5" x 20.5" (775 x 267 x 521 mm) |
| Weight |
305 lbs (138 kg) with internal batteries |
| Certifications |
UL Listed, CE, Energy Star qualified |
| Warranty |
3-year comprehensive warranty |
Frequently Asked Questions
Q: What are the advantages of double-conversion on-line UPS technology?
A: Double-conversion on-line UPS technology provides continuous power conditioning by converting AC power to DC and back to AC, ensuring zero transfer time and complete isolation from utility power irregularities. This APC Smart-UPS On-Line delivers consistent pure sine wave output regardless of input power quality, making it ideal for mission-critical applications requiring the highest level of power protection.
Q: How does the extended runtime capability benefit my operations?
A: The extended runtime feature allows connection of external battery packs to significantly increase backup time during power outages. This tower UPS can be configured to provide hours of runtime, enabling safe system shutdown procedures or continued operations during prolonged utility outages, making it perfect for critical infrastructure and 24/7 operations.
Q: What remote management capabilities does the Network Management Card provide?
A: The included Network Management Card transforms this smart UPS into a networkable UPS with comprehensive remote monitoring and control capabilities. Features include web-based management interface, SNMP monitoring, email notifications, scheduled shutdowns, and integration with data center infrastructure management systems for centralized power monitoring and control.
Q: Can this UPS be converted from tower to rack mount configuration?
A: Yes, this APC Smart-UPS is designed as a convertible unit that can be mounted in a standard 19-inch rack with the appropriate rail kit (sold separately). The tower configuration provides flexibility for floor-standing installations in server rooms, while rack mounting enables integration into data center cabinets and standardized infrastructure deployments.
APC Smart-UPS On-Line 6kVA tower UPS with double-conversion, pure sine wave, extended runtime, and Network Management Card.
