| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT5KXLT-IEC |
| Series |
Smart-UPS SRT (Online) |
| Type |
Double-Conversion Online Tower UPS |
| Capacity (VA) |
5,000 VA (5 kVA) |
| Capacity (Watts) |
4,500 W (4.5 kW) |
| Power Factor |
0.9 output power factor |
| Technology |
Double-Conversion Online with Pure Sine Wave Output |
| Input Voltage |
208V Single Phase |
| Output Voltage |
208V ± 3% (configurable) |
| Input Voltage Range |
160V - 280V (without battery operation) |
| Input Frequency |
50/60 Hz ± 5 Hz (auto-sensing) |
| Output Frequency |
50/60 Hz ± 0.1 Hz (crystal controlled) |
| Transfer Time |
Zero transfer time (online topology) |
| Efficiency |
Up to 96% (online mode), 99% (ECO mode) |
| Waveform |
Pure Sine Wave Output |
| Battery Configuration |
Internal with Extended Runtime Option |
| Battery Type |
Valve Regulated Lead Acid (VRLA) |
| Runtime (Full Load) |
Approximately 7 minutes (internal batteries) |
| Runtime (Half Load) |
Approximately 17 minutes (internal batteries) |
| Extended Runtime |
Hours with external battery packs (SRT192BP) |
| Battery Monitoring |
Advanced Battery Management with temperature compensation |
| Output Outlets |
4x IEC C13 + 4x IEC C19 Outlets |
| Input Connection |
Hardwired (terminal block) |
| Display |
Multi-function LCD with comprehensive status information |
| Communication Ports |
RS232, USB, EPO (Emergency Power Off) |
| Network Management |
SmartSlot with included Network Management Card |
| SmartSlot Options |
SNMP, Modbus, relay I/O cards supported |
| Software Included |
PowerChute Network Shutdown |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
5°F to 122°F (-15°C to 50°C) |
| Humidity |
0-95% non-condensing |
| Altitude |
Up to 10,000 ft (3,048 m) above sea level |
| Noise Level |
Less than 45 dBA at 1 meter |
| Form Factor |
Floor-standing tower (convertible to rack with optional kit) |
| Dimensions (H x W x D) |
34.3" x 10.6" x 16.8" (871 x 269 x 427 mm) |
| Weight |
Approximately 139 lbs (63 kg) with batteries |
| Input Protection |
Surge suppression, EMI/RFI filtering, input circuit breaker |
| Output Protection |
Overload, short circuit, over-temperature protection |
| Safety Certifications |
UL 1778, CSA, CE Marked, FCC Class A |
| Environmental |
ENERGY STAR qualified, RoHS compliant |
| Load Segments |
Programmable load shedding with outlet groups |
| Bypass |
Automatic and maintenance bypass operation |
| Parallel Capability |
Up to 6 units for increased capacity or redundancy |
| Battery Replacement |
Hot-swappable user-replaceable batteries |
| Remote Monitoring |
SNMP v1/v2c/v3, HTTP/HTTPS web interface, SSH/Telnet |
| Input Current |
24 A maximum at full load |
| Input Connection |
L6-30P plug or hardwired |
| Output Voltage Regulation |
± 1% static, ± 3% dynamic |
| Frequency Regulation |
± 0.1% in battery mode |
| Overload Capability |
105% for 10 minutes, 125% for 30 seconds, 150% for 10 seconds |
| Crest Factor |
3:1 maximum |
| Total Harmonic Distortion |
Less than 3% (linear load) |
| Power Factor Range |
0.8 leading to 0.8 lagging |
| Battery Test |
Automatic self-test and user-initiated test capabilities |
| Emergency Power Off |
Remote EPO capability with dry contact input |
| Start-up |
Cold start capability (start on battery power) |
| Service |
On-site service available, InfraStruXure Central monitoring |
| Warranty |
3-year comprehensive system and battery warranty |
| Rail Kit |
Not included (available separately as SRT19RMKIT) |

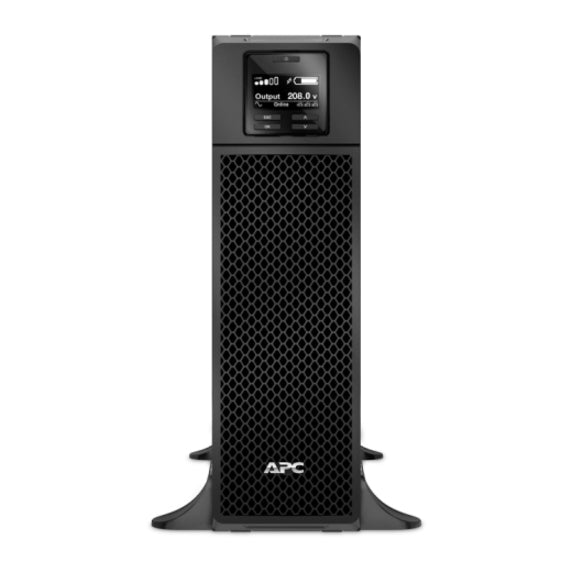

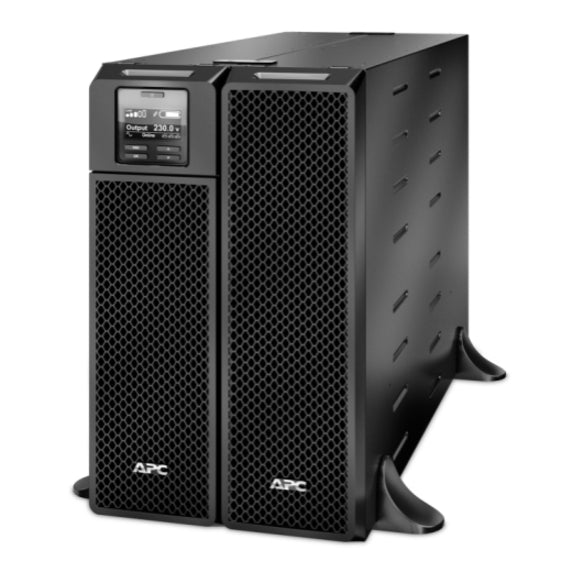

APC Smart-UPS SRT5KXLT-IEC 5kVA online double-conversion tower UPS with pure sine wave output, extended runtime, and SmartSlot network management.
