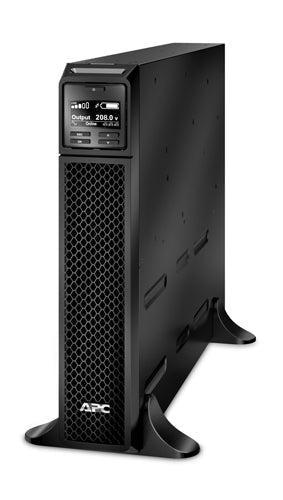

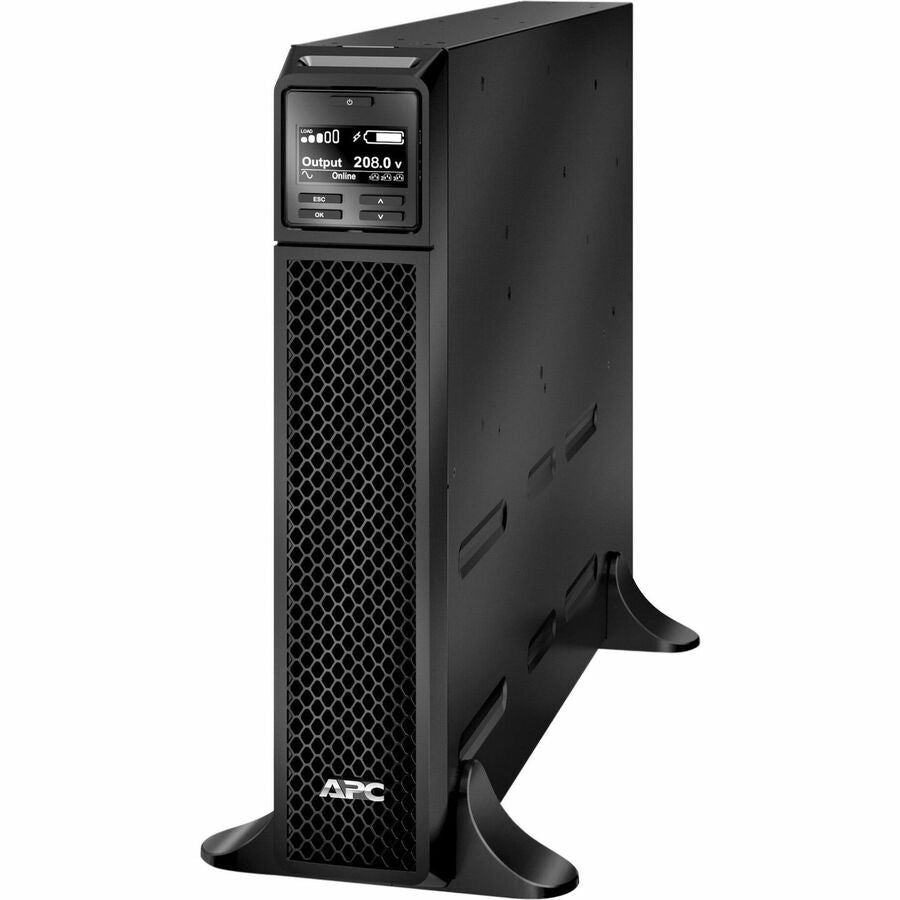

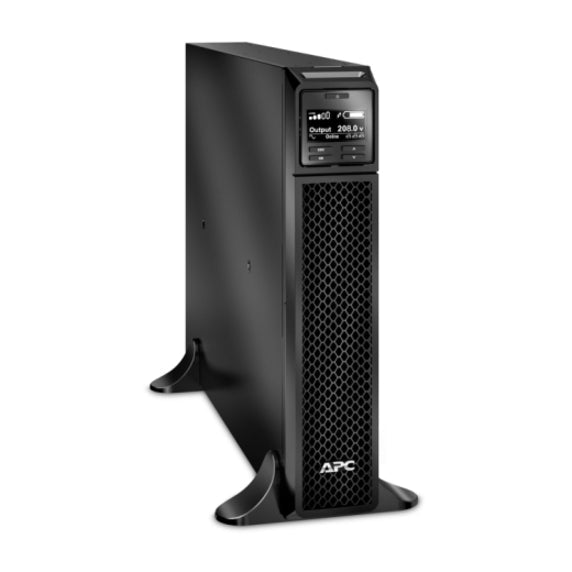

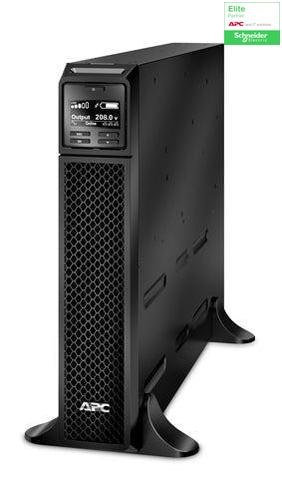

This APC Smart-UPS On-Line 3kVA tower UPS is perfect for small to medium businesses, remote offices, and enterprise branch locations requiring double conversion power protection for critical equipment. Our smart UPS 3000VA delivers:
-
True double conversion technology providing continuous power conditioning and zero transfer time protection
-
Tower form factor offering flexible placement options for office and small server room environments
-
Extended runtime capability supporting additional battery packs for prolonged backup power during outages
-
Enterprise-grade reliability designed for mission-critical applications requiring pure sine wave power
Key Features
-
Double conversion topology delivering continuous power conditioning and complete isolation from input power anomalies
-
Pure sine wave output ensuring compatibility with sensitive electronic equipment and servers
-
Smart-UPS On-Line technology providing superior power quality regulation under all operating conditions
-
Tower design maximizing flexibility for floor-standing installations in office environments
-
SmartSlot interface supporting optional network management cards and environmental monitoring accessories
-
Extended runtime options accommodating additional battery packs for customized backup duration
-
Hot-swappable batteries enabling maintenance without powering down connected equipment
-
Intelligent battery management maximizing battery life through temperature compensation and automatic testing
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT3000XLT |
| Product Type |
Smart-UPS On-Line Double Conversion Tower UPS |
| Capacity |
3kVA / 2.7kW |
| Form Factor |
Tower (Floor Standing) |
| Topology |
Double Conversion Online |
| Input Voltage |
208V AC |
| Input Frequency |
50/60 Hz ±3 Hz |
| Output Voltage |
208V AC ±1% |
| Output Frequency |
50/60 Hz ±0.1 Hz (battery mode) |
| Output Waveform |
Pure Sine Wave |
| Output Outlets |
2x L6-20R, 1x L6-30R NEMA |
| Transfer Time |
Zero (Online Operation) |
| Efficiency |
Up to 93% (online mode) |
| Runtime |
Standard + Extended Runtime Options
|
| Battery Type |
Sealed Lead Acid (VRLA) |
| Network Management |
SmartSlot Compatible |
| Communication |
Serial, USB, SmartSlot |
| Display |
Multifunction LCD display |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Rail Kit |
Not Included (Tower Only) |
| Certifications |
UL, FCC Part 15 Class A, CE, ENERGY STAR |
| Dimensions |
6.9" W x 17.3" D x 20.6" H |
| Weight |
81 lbs (36.8 kg) |
Frequently Asked Questions
Q: What are the advantages of double conversion technology in this tower UPS?
A: Double conversion online UPS technology provides continuous power conditioning by converting AC input to DC and back to AC, ensuring pure sine wave output with zero transfer time. This eliminates power disturbances, voltage fluctuations, and frequency variations that can damage sensitive equipment or cause data corruption in servers and networking equipment.
Q: How does the extended runtime feature benefit small business operations?
A: The extended runtime capability allows connection of additional external battery packs to significantly increase backup duration beyond the standard runtime. This smart UPS 3000VA can provide hours of runtime for critical applications during extended power outages, ensuring business continuity for small offices and remote locations.
Q: What network management capabilities are available with the SmartSlot?
A: The SmartSlot interface accepts optional network management cards providing comprehensive remote monitoring via SNMP, web interface, and email notifications. Features include real-time UPS status monitoring, environmental sensors, automatic shutdowns, and integration with network management systems for centralized power infrastructure monitoring.
Q: Is this tower UPS suitable for server and networking equipment?
A: Yes, this APC Smart-UPS On-Line tower is specifically designed for protecting servers, networking equipment, and other sensitive electronics. The pure sine wave output ensures compatibility with all equipment types, while the double conversion technology provides the highest level of power protection for mission-critical applications in office environments.
APC Smart-UPS On-Line 3kVA tower SRT3000XLT with double conversion, pure sine wave output, extended runtime, and SmartSlot for enterprise power protection.
