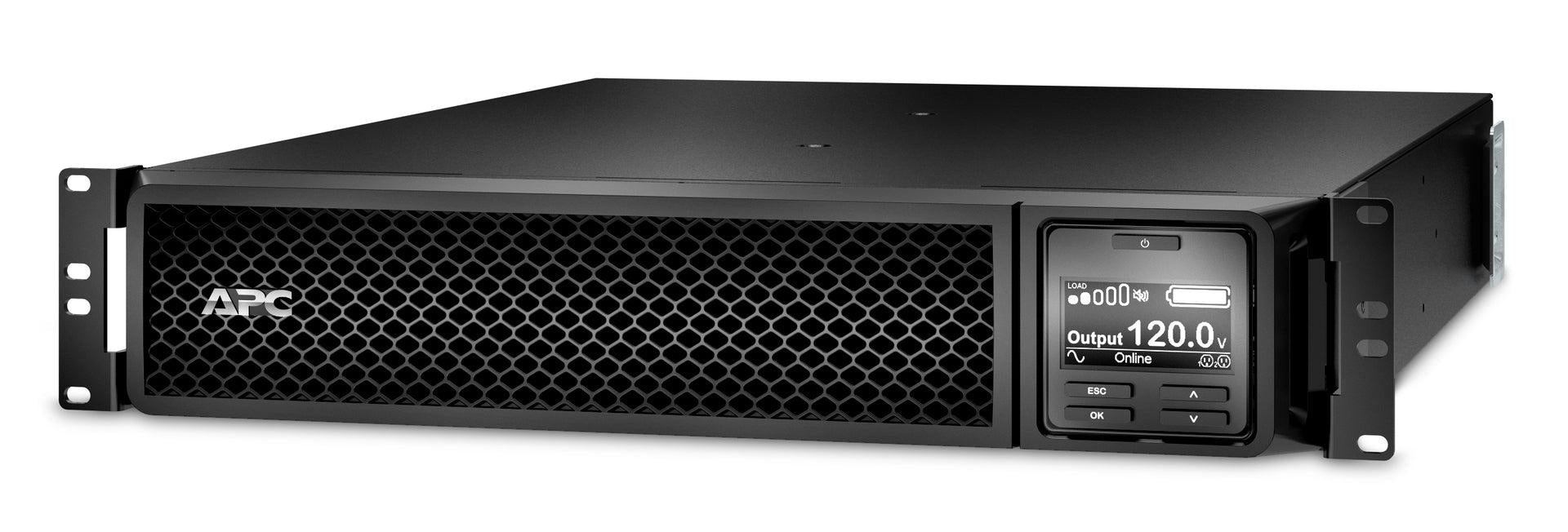

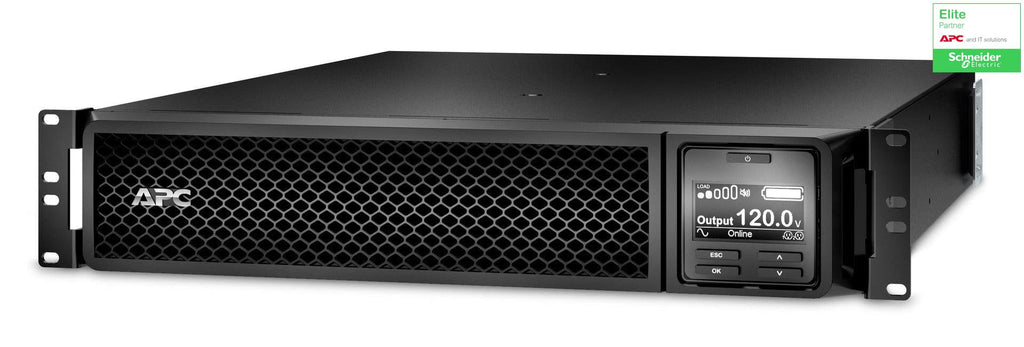

This APC Smart-UPS online rackmount UPS is perfect for IT administrators, data center managers, and network engineers requiring mission-critical 2200VA power protection for servers, networking equipment, and storage systems. Our online UPS with extended runtime capability delivers:
-
Pure sine wave output providing clean, stable power for sensitive electronic equipment
-
Online double-conversion topology ensuring zero transfer time and maximum protection
-
SmartSlot expansion enabling advanced monitoring and management capabilities
-
TAA compliance meeting Trade Agreements Act requirements for government procurement
Key Features
-
Online UPS technology with double-conversion providing continuous power conditioning
-
2200VA power capacity supporting multiple servers and network devices simultaneously
-
2U rackmount form factor optimizing data center space utilization
-
Pure sine wave output ensuring compatibility with all sensitive electronic equipment
-
Extended runtime capability with external battery pack connectivity
-
SmartSlot interface supporting network management cards and environmental monitoring
-
TAA compliant design meeting federal procurement requirements
-
NEMA outlet configuration with 6x 5-20R and 1x L5-20R outlets
-
Intelligent battery management maximizing battery life and performance
-
LED status indicators providing real-time system status information
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT2200RMXLAUS |
| Product Type |
Online Rackmount UPS |
| Power Rating |
2200VA / 1980W |
| Form Factor |
2U Rackmount |
| Input Voltage |
120V AC |
| Output Voltage |
120V AC Pure Sine Wave |
| UPS Technology |
Online Double-Conversion |
| Transfer Time |
Zero (continuous online operation) |
| Output Outlets |
6x NEMA 5-20R + 1x NEMA L5-20R |
| SmartSlot |
1x SmartSlot for Network Management Cards |
| Runtime (Half Load) |
Approximately 8.5 minutes (expandable) |
| Runtime (Full Load) |
Approximately 3.5 minutes (expandable) |
| Battery Type |
Maintenance-free sealed lead acid |
| Extended Runtime |
External battery pack compatible |
| Communication |
USB, Serial, SmartSlot |
| Display |
LED status indicators |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Dimensions (WxDxH) |
17.0 x 22.0 x 3.4 inches (43.2 x 55.9 x 8.6 cm) |
| Weight |
77 lbs (35 kg) |
| Compliance |
TAA, UL Listed, FCC Class A, CE |
| Warranty |
3-year repair or replace warranty |
Frequently Asked Questions
Q: What are the advantages of online UPS technology versus other UPS types?
A: Online UPS systems like the SRT2200RMXLAUS provide continuous power conditioning through double-conversion technology, eliminating transfer time and providing the highest level of protection. Unlike standby or line-interactive UPS systems, this pure sine wave UPS continuously processes incoming power, ensuring connected equipment receives clean, stable electricity regardless of input power quality.
Q: How does the SmartSlot expand the UPS capabilities?
A: The SmartSlot interface allows installation of optional network management cards, environmental monitoring modules, and relay cards. This enables remote monitoring via SNMP, web interface, email alerts, and integration with network management systems. The Smart-UPS with SmartSlot becomes a fully networked power protection device with advanced monitoring and control capabilities.
Q: What does TAA compliance mean for this UPS system?
A: TAA (Trade Agreements Act) compliance ensures this APC rackmount UPS meets federal procurement requirements for government contracts. TAA-compliant products are manufactured in designated countries and meet specific sourcing requirements, making them eligible for installation in government facilities, military installations, and federally-funded projects.
Q: How does extended runtime work with this UPS?
A: The SRT2200RMXLAUS supports extended runtime configurations through external battery pack connections. While the internal batteries provide standard runtime (3.5-8.5 minutes depending on load), additional external battery packs can extend runtime to hours, making it ideal for server rack battery backup in mission-critical applications where extended power outages are a concern.
APC Smart-UPS SRT2200RMXLAUS 2200VA online rackmount UPS 2U with pure sine wave, SmartSlot, extended runtime, and TAA compliance for critical power protection.
