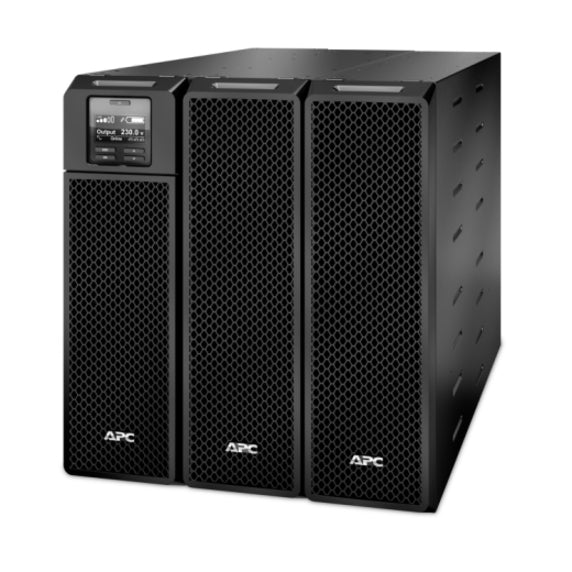

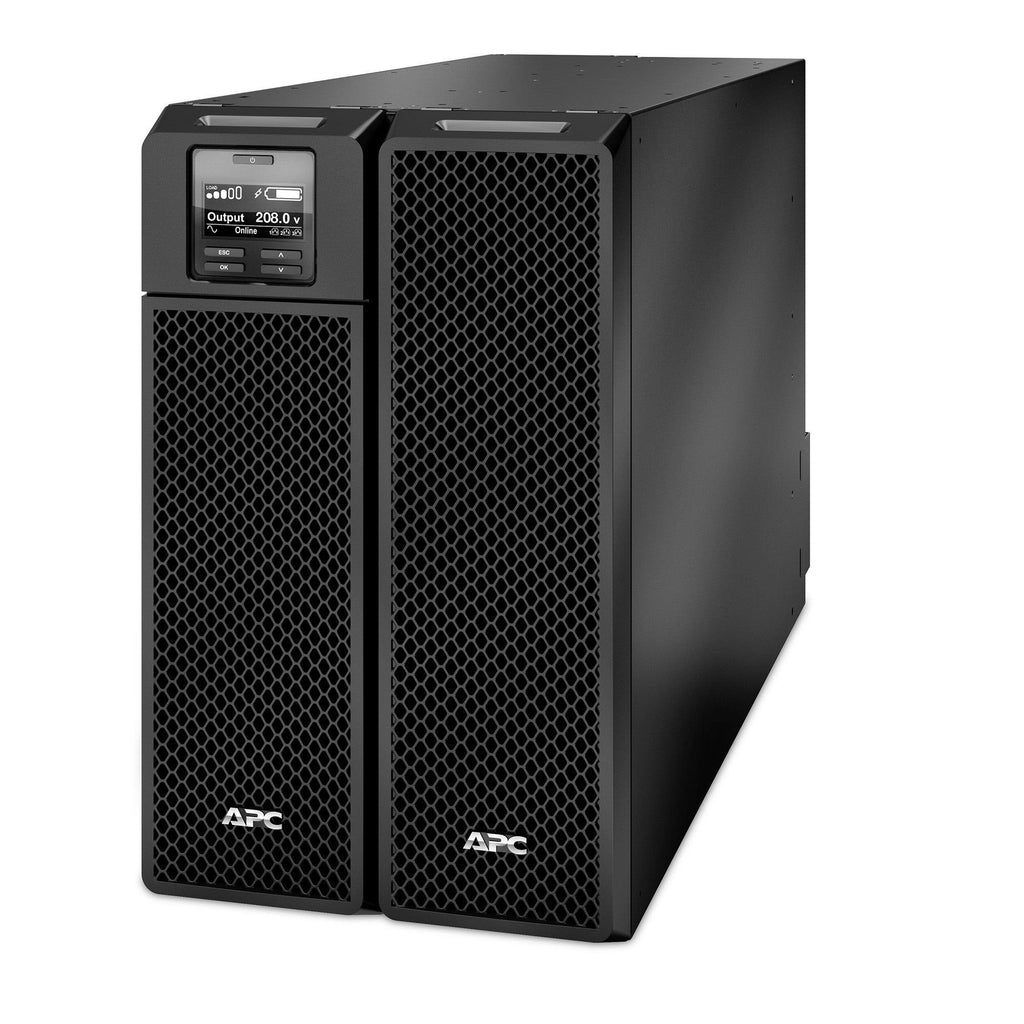

APC SRT10KXLTUS. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. AC outlet types: Hard Wire 3-wire (2PH + G), NEMA L6-20R, NEMA L6-30R, Serial interface type: RJ-45, Cabling technology: 10/100Base-T. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1799 Ah, Battery life (max): 5 year(s). Form factor: Rackmount/Tower, Product colour: Black, Display: LCD. Width: 263 mm, Depth: 715 mm, Height: 432 mm
Features High density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Temperature Probe, USB cable, Warranty card, Web/SNMP Management Card
Avoids costly power problems by keeping your IT equipment and data protected and available. Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Low operating and maintenance costs with proven reliability and intelligent battery management. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote/network accessibility. Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader. Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SRT10KXLTUS
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS SRT 10000VA 208V TAA
Product Type
Double Conversion Online UPS
UPC
731304340454
Network (RJ-45)
Yes
Battery Information
Battery Chemistry
Lead Acid
Product Color
Black
Height
17"
Width
10.4"
Depth
28.1"
Weight (Approximate)
245.99 lb
Miscellaneous
Package Contents
Smart-UPS SRT 10000VA 208V TAA
CD with software
Documentation CD
Installation guide
Temperature probe
USB cable
Warranty card
Web/SNMP management card
Energy Star
Yes
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery
