Name: Apc Smx750Cnc Uninterruptible Power Supply (Ups)
Brand: APC by Schneider Electric
SKU: SMX750CNC
Price: 2380.00 CAD
Availability: OutOfStock

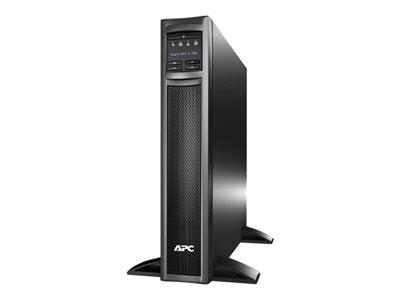

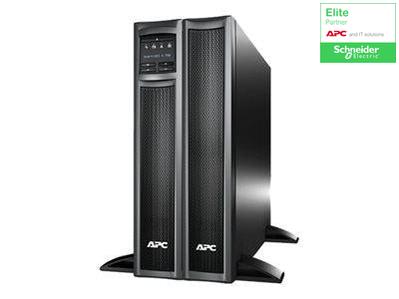

Apc Smx750Cnc Uninterruptible Power Supply (Ups)

Roll over image to zoom in Click on image to zoom

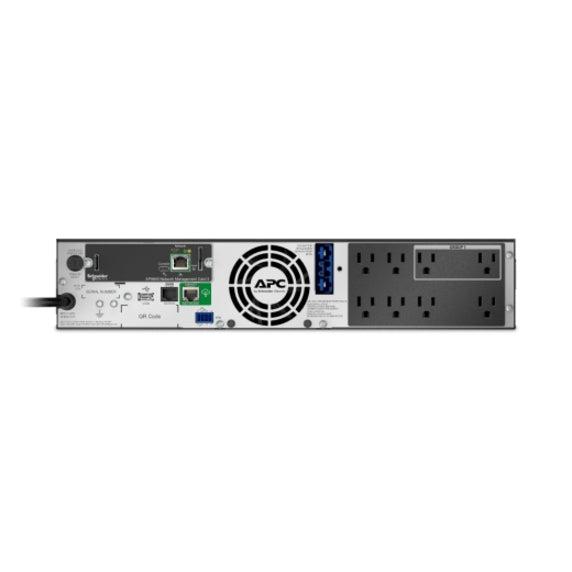

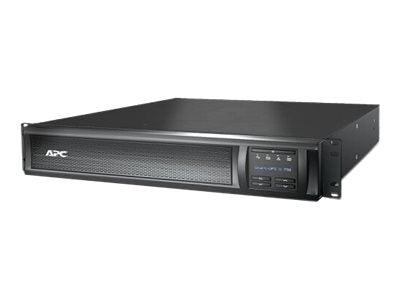

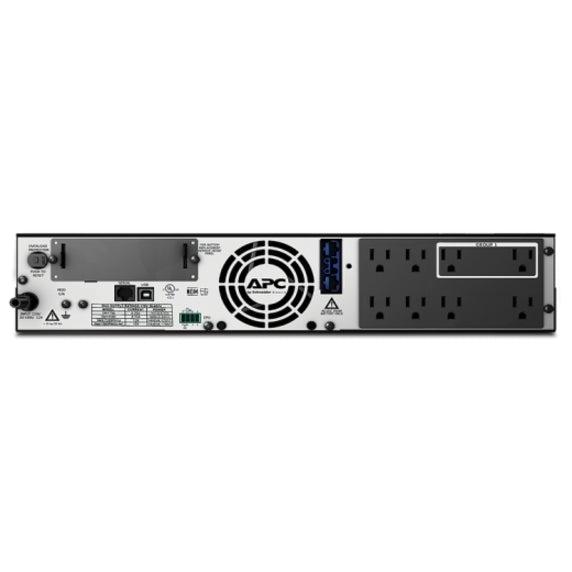

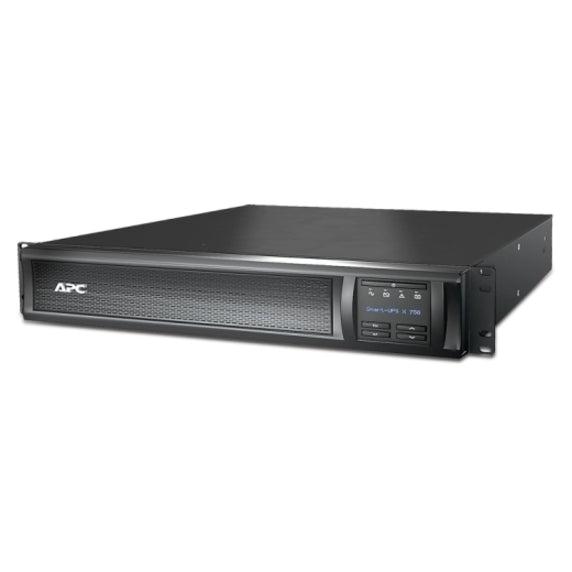

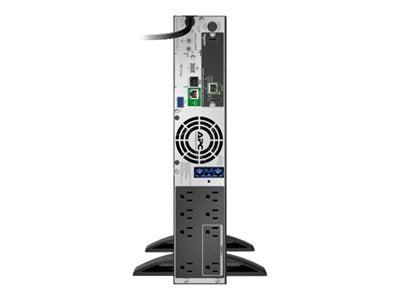

APC Smart-UPS X SMX750CNC - UPS (rack-mountable / external) - AC 120 V - 675 Watt - 750 VA - Ethernet, USB, serial - output connectors: 8

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

WHAT'S IN THE BOX

Cat 5 Ethernet cable
Installation guide
Rack mounting brackets
Removable mobile power pack
Smart UPS signalling RS-232 cable
USB cable

MAIN SPECIFICATIONS

Product Description	APC Smart-UPS X SMX750CNC - UPS - 675 Watt - 750 VA
Device Type	UPS - rack-mountable / external
Weight	48.5 lbs
Input Voltage	AC 120 V
Output Voltage	AC 120 V
Power Capacity	675 Watt / 750 VA
Input Connectors	1 x power NEMA 5-15R
Output connectors	8 x power NEMA 5-15
Run Time (Up To)	12 min at full load
Networking	Ethernet, USB, serial
Dimensions (WxDxH)	17 in x 19.3 in x 3.5 in
Environmental Standards	ENERGY STAR

EXTENDED SPECIFICATIONS

General

Device Type

UPS - rack-mountable / external

Power Device

Input Voltage	AC 120 V
Input Voltage Range	AC 82 - 144 V
Input Voltage Range (Adjustable)	AC 75 - 154 V
Input Connectors	1 x power NEMA 5-15R
Power Output Connectors Details	8 x power NEMA 5-15
Output Voltage	AC 120 V
Power Capacity	675 Watt / 750 VA
Output Waveform	Sinewave
Circuit Protection	Circuit breaker

Battery

Run Time (Up To)

17.24 min at 500 Watts ¦ 50.99 min at 200 Watts

Networking

Remote Management Interface

Ethernet, USB, serial

Expansion / Connectivity

Interfaces	Management (USB) ¦ 1 x serial - RJ-45 ¦ 1 x management (Ethernet) - RJ-45
Expansion Slots	1 (total) / 1 (free) x SmartSlot

Miscellaneous

Features

Audible alarm, LCD display, Automatic Voltage Regulation (AVR), automatic self-test, predicitive failure notification, hot-swappable batteries, auto restart, Intelligent Battery Management, adjustable voltage sensitivity, battery failure notification, SmartConnect port, 2 switched outlet groups

Software / System Requirements

Software Included

APC PowerChute Business Edition

Environmental Standards

ENERGY STAR

Yes

Dimensions & Weight

Width	17 in
Depth	19.3 in
Height	3.5 in
Weight	48.5 lbs

General Information

Manufacturer	Schneider Electric SA
Manufacturer Part Number	SMX750CNC
Manufacturer Website Address	http://www.schneider-electric.com
Brand Name	APC by Schneider Electric
Product Line	Smart-UPS
Product Series	X

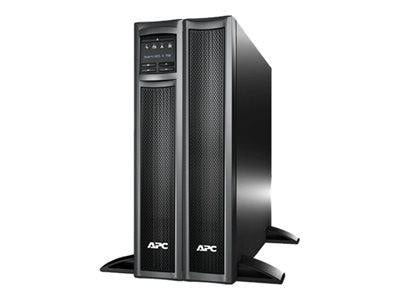

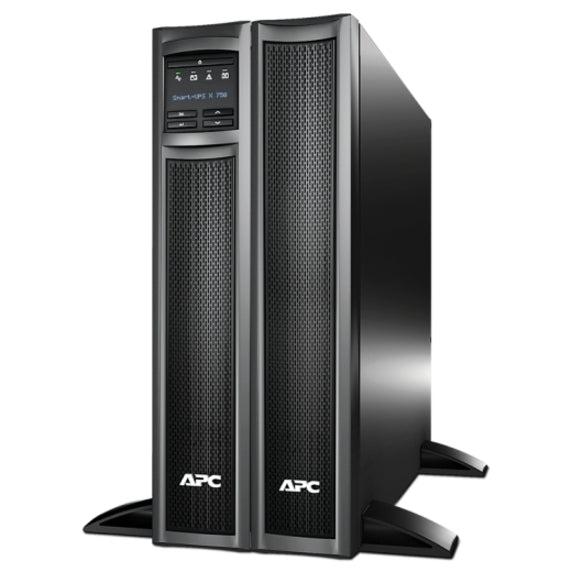

Product Name	Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect
Product Type	Line-interactive UPS
UPC	731304401117

Network (RJ-45)	Yes

Battery Information

Battery Chemistry	Lead Acid

Product Color	Black
Height	17"
Width	3.5"
Depth	19.3"
Weight (Approximate)	48.61 lb

Miscellaneous

Package Contents	Smart-UPS X 750VA Tower/Rack 120V with Network Card and SmartConnect Cat 5 Ethernet cable Installation guide Rack mounting brackets Removable mobile power pack Smart UPS signalling RS-232 cable USB cable
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	RoHS

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect
