This APC Smart-UPS 2200VA LCD system is perfect for IT professionals, small business owners, and home office users requiring reliable energy meter UPS protection for servers, workstations, and critical networking equipment. Our SMT2200J 100V UPS delivers:
-
Advanced LCD energy meter providing real-time power consumption monitoring and cost tracking
-
2200VA/1980W power capacity supporting multiple computers and peripherals simultaneously
-
Smart-UPS technology with automatic voltage regulation and pure sine wave output
-
100V operation optimized for Japanese electrical standards and equipment
Key Features
-

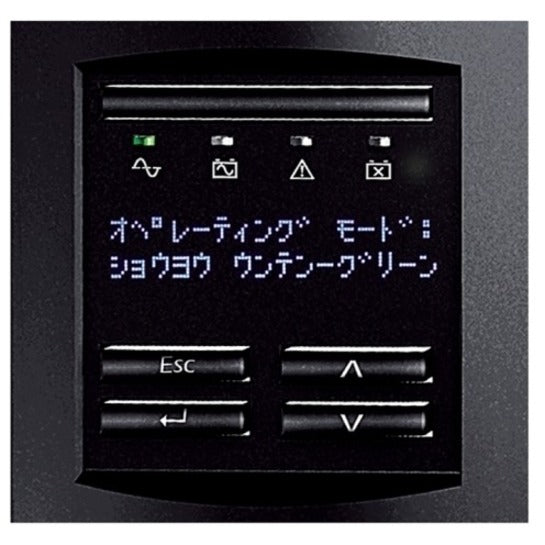

Intelligent LCD display with comprehensive energy metering and system status
-
2200VA Smart-UPS capacity delivering extended runtime for critical applications
-
Energy meter functionality tracking power consumption and operational costs
-
100V pure sine wave output ensuring compatibility with sensitive Japanese electronics
-
Automatic voltage regulation correcting power quality without battery drain
-
Hot-swappable batteries enabling maintenance without system shutdown
-
Network management ready with optional SmartSlot network cards
-
PowerChute software providing automatic shutdown and energy management
-
Intelligent battery management maximizing battery life and performance
-
LED status indicators for quick system health assessment
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SMT2200J |
| Product Type |
Smart-UPS LCD with Energy Meter |
| Power Rating |
2200VA / 1980W |
| Input Voltage |
100V AC (Japanese Standard) |
| Output Voltage |
100V AC Pure Sine Wave |
| Display Type |
LCD with Energy Meter |
| Topology |
Line-Interactive with Automatic Voltage Regulation |
| Frequency |
50/60 Hz ± 3 Hz (47-63 Hz on battery) |
| Transfer Time |
2-6 ms (typical) |
| Runtime (Half Load) |
Approximately 17 minutes |
| Runtime (Full Load) |
Approximately 8 minutes |
| Recharge Time |
3 hours to 90% capacity |
| Battery Type |
Maintenance-free sealed lead-acid with AGM technology |
| Hot-Swappable Batteries |
Yes - User replaceable |
| Energy Meter Features |
kWh consumption tracking, cost analysis, carbon footprint |
| SmartSlot |
1 x SmartSlot for network cards |
| Communication Ports |
USB, Serial RS-232 |
| Output Receptacles |
8 x Japanese NEMA outlets (battery + surge protected) |
| Surge Protection |
Data line surge protection (network/phone/coax) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Dimensions (WxDxH) |
6.2 x 14.4 x 8.7 inches (15.7 x 36.6 x 22.1 cm) |
| Weight |
46.3 lbs (21 kg) |
| Certifications |
Japanese PSE, VCCI Class A, Energy Star |
| Warranty |
2-year comprehensive warranty |
Frequently Asked Questions
Q: How does the LCD energy meter help reduce operating costs?
A: The LCD energy meter in the SMT2200J provides real-time monitoring of power consumption, cost tracking, and carbon footprint analysis. This energy meter UPS helps identify power-hungry equipment, optimize energy usage, and reduce electricity bills by providing detailed consumption data and cost projections based on your local utility rates.
Q: Is this UPS specifically designed for Japanese electrical systems?
A: Yes, the SMT2200J 100V UPS is engineered specifically for Japanese electrical standards. It operates on 100V AC input/output voltage, includes Japanese NEMA outlet configurations, and meets Japanese PSE safety certifications. This Smart-UPS LCD model ensures optimal compatibility with Japanese electronics and electrical infrastructure.
Q: What equipment can be protected with this 2200VA UPS?
A: This 2200VA Smart-UPS is ideal for protecting servers, workstations, networking equipment, NAS devices, routers, and other critical IT infrastructure. The 2200VA/1980W capacity supports multiple devices simultaneously, making it perfect for small business servers, home offices, or branch office environments requiring reliable backup power protection.
Q: What network management capabilities does this UPS offer?
A: This networkable UPS includes a SmartSlot for optional network management cards, enabling SNMP monitoring, web-based management, and remote control. The included PowerChute software provides automatic shutdown, load management, and detailed power analytics. The LCD display offers local monitoring of all system parameters and energy consumption data for comprehensive power management.
APC Smart-UPS 2200VA LCD SMT2200J with energy meter, 100V Japan standard, intelligent power protection for servers and critical equipment.
