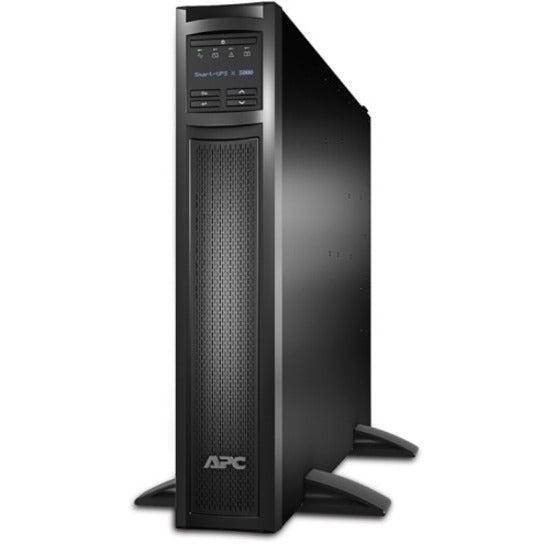

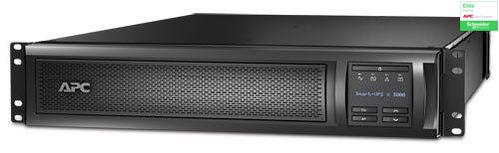

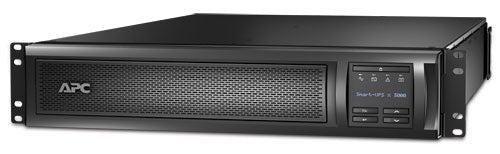

APC Smart-UPS X 3000VA. Output power capacity: 3 kVA, Output power: 2700 W, Input frequency: 50/60 Hz. AC outlet types: NEMA 5–15R,NEMA 5–20R, AC outlets quantity: 7 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Cable length: 2.44 m. Width: 432 mm, Depth: 667 mm, Height: 85 mm
Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Energy meter Provides actual kilowatt hours of usage for energy conscious users.
Sequenced shutdown and restart Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups).
InfraStruXure Central compatible Enables centralized management via APC InfraStruXure® Central.
Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency Reduces utlility costs, generates less heat.
SmartSlot Customize UPS capabilities with management cards.
Cold-start capable Provides temporary battery power when the utility power is out.
Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.

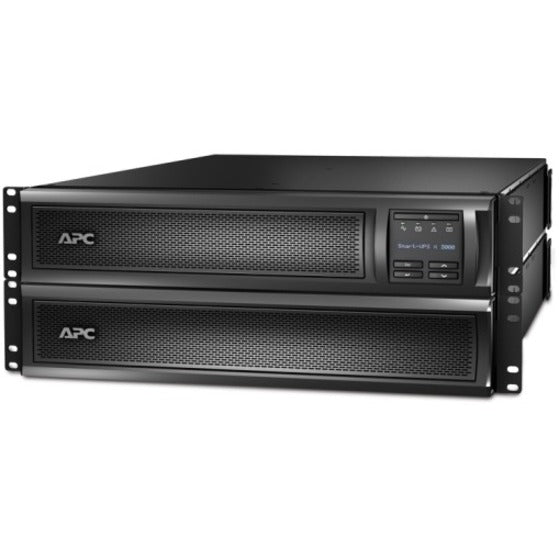

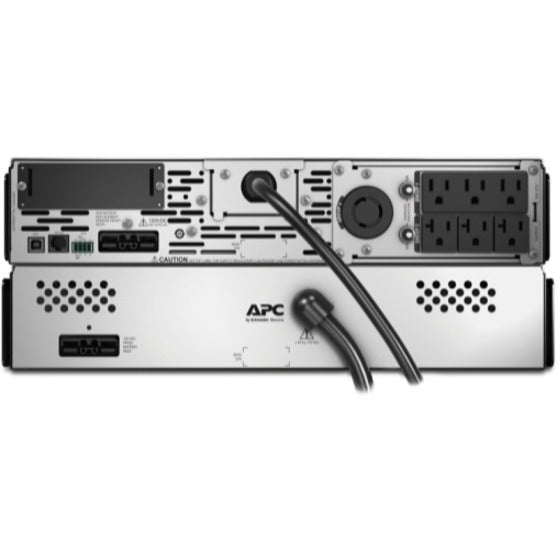

Scalable runtime Allows additional run time to be quickly added as needed.
Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMX3000RMLV2U
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Series
X
Product Model
SMX3000RMLV2U
Product Name
Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
Product Type
Line-interactive UPS
UPC
731304268550
Battery Information
Battery Chemistry
Lead Acid
Product Color
Black
Height
3.3"
Width
17"
Depth
26.3"
Weight (Approximate)
84.77 lb
Miscellaneous
Package Contents
Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
CD with software
Documentation CD
Installation guide
Rack mounting brackets
Rack mounting hardware
Rack mounting support rails
Removable support feet
Smart UPS signalling RS-232 cable
USB cable
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
