This APC Smart-UPS On-Line double-conversion UPS is perfect for data center administrators, IT professionals, and enterprise environments requiring the highest level of pure sine wave power protection for critical servers and network equipment. Our SRT5KRMXLT-5KTF 5kVA UPS delivers:
-
Double-conversion on-line topology providing zero transfer time and complete isolation from utility power disturbances
-
5kVA/4.8kW power capacity supporting high-density server and network equipment loads
-
Pure sine wave output ensuring compatibility with the most sensitive electronic equipment
-
Rack/tower convertible design offering maximum deployment flexibility for diverse environments
Key Features
-
True double-conversion on-line topology eliminating transfer time and providing continuous power conditioning
-
5kVA/4.8kW Smart-UPS capacity delivering enterprise-grade power protection
-
Pure sine wave output compatible with active PFC and sensitive equipment
-
5U rackmount form factor optimized for data center and server room deployment
-
Rack/tower convertible supporting both horizontal and vertical installation
-

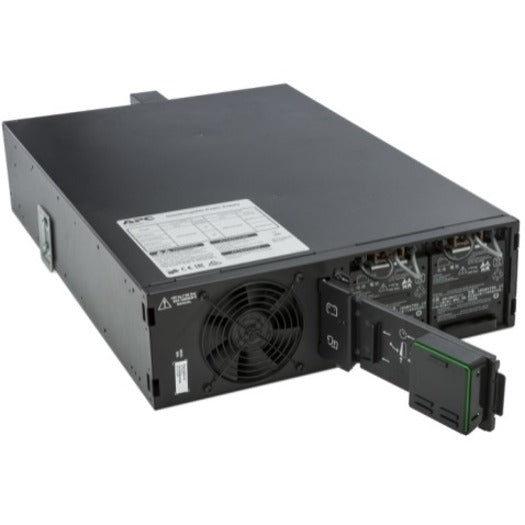

Hot-swappable batteries enabling maintenance without system shutdown
-

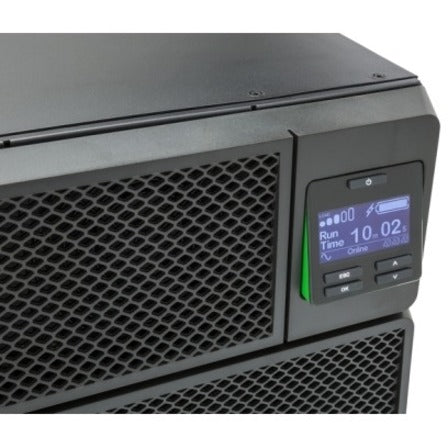

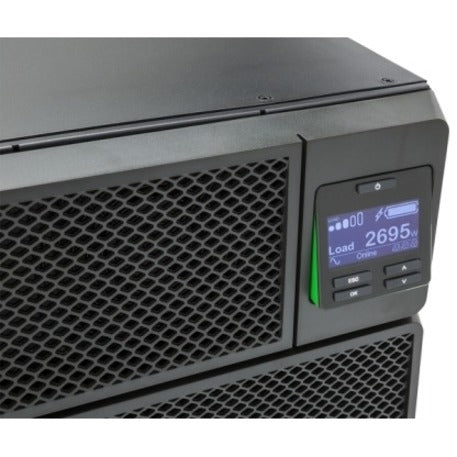

LCD display interface providing comprehensive system status and diagnostics
-
Network management capability with optional SmartSlot network cards
-
Automatic voltage regulation maintaining consistent output voltage
-
Parallel capability for scalable power and redundancy solutions
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT5KRMXLT-5KTF |
| Product Type |
Double-Conversion On-Line UPS |
| Power Rating |
5kVA / 4.8kW |
| Input Voltage |
208V ± 20% (166-264V AC) |
| Output Voltage |
208V AC Pure Sine Wave |
| Topology |
Double-Conversion On-Line |
| Form Factor |
5U Rackmount / Tower Convertible |
| Frequency |
50/60 Hz ± 3 Hz (automatic sensing) |
| Transfer Time |
Zero (continuous double-conversion) |
| Runtime (Half Load) |
Approximately 13 minutes |
| Runtime (Full Load) |
Approximately 5 minutes |
| Recharge Time |
3 hours to 90% capacity |
| Battery Type |
Maintenance-free sealed lead-acid with AGM technology |
| Hot-Swappable Batteries |
Yes - Front-accessible user replaceable |
| Output Power Factor |
0.9 (leading/lagging) |
| Output Efficiency |
Up to 95% online mode, 98% in ECO mode |
| Display |
LCD with status and energy metering |
| SmartSlot |
1 x SmartSlot for network management cards |
| Communication Ports |
USB, Serial RS-232, EPO (Emergency Power Off) |
| Output Receptacles |
Hardwired (terminal block connections) |
| Input Circuit Breaker |
Yes - Front panel accessible |
| Parallel Capability |
Yes - Up to 6 units for N+1 redundancy |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Humidity |
0% to 95% RH (non-condensing) |
| Dimensions (Rack) |
8.7" H x 17.1" W x 22.8" D (5U rack unit) |
| Dimensions (Tower) |
17.1" H x 8.7" W x 22.8" D |
| Weight |
123 lbs (55.8 kg) |
| Certifications |
UL Listed, CE, FCC Class A, Energy Star |
| Warranty |
3-year comprehensive warranty |
Frequently Asked Questions
Q: What are the advantages of double-conversion on-line topology over other UPS types?
A: Double-conversion on-line UPS technology provides continuous power conditioning with zero transfer time to battery operation. This Smart-UPS On-Line completely isolates connected equipment from all utility power disturbances including voltage fluctuations, frequency variations, and harmonic distortion, making it ideal for the most critical applications requiring pure sine wave power.
Q: Can this UPS be configured for both rack and tower installations?
A: Yes, the SRT5KRMXLT-5KTF features rack/tower convertible design with included hardware for both mounting options. In rack configuration, it occupies 5U of rack space, while tower configuration provides flexibility for floor-standing installations in smaller environments where rack space is limited.
Q: What equipment is suitable for this 5kVA/4.8kW UPS capacity?
A: This 5kVA Smart-UPS is ideal for protecting blade servers, high-end workstations, network storage systems, and critical networking equipment. The 4.8kW output capacity with 0.9 power factor supports modern servers with active power factor correction, making it perfect for enterprise server rooms and small to medium data centers.
Q: How does the parallel capability enhance system reliability?
A: The parallel feature allows up to 6 units to be connected for N+1 redundancy and increased capacity. This server rack battery backup solution enables scalable power protection where one unit can fail without affecting critical loads, providing true enterprise-level reliability for mission-critical applications requiring maximum uptime.
APC Smart-UPS On-Line SRT5KRMXLT-5KTF 5kVA double-conversion UPS with pure sine wave output, 5U rackmount, rack/tower convertible design.
