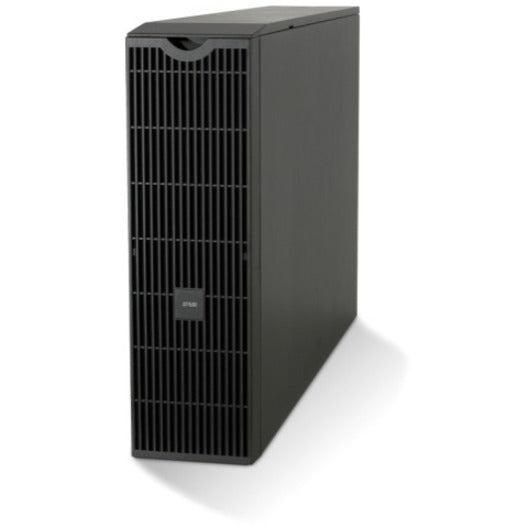

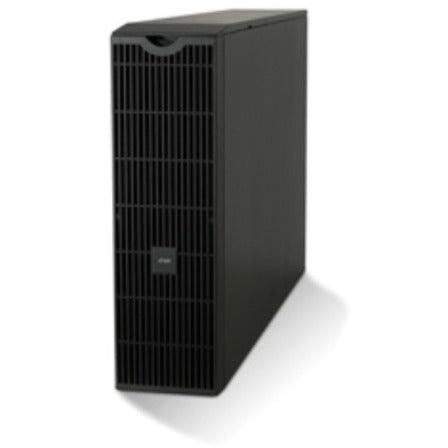

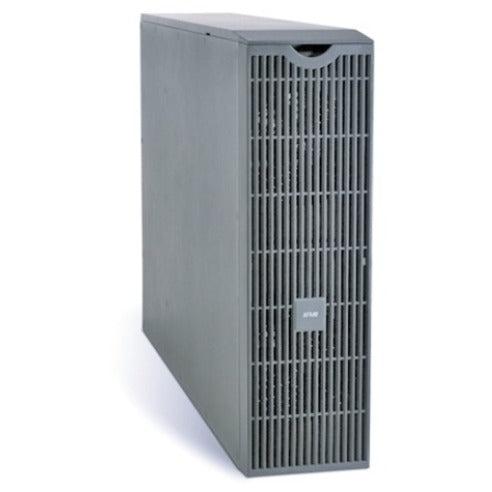

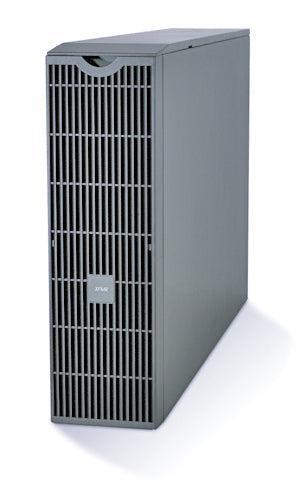

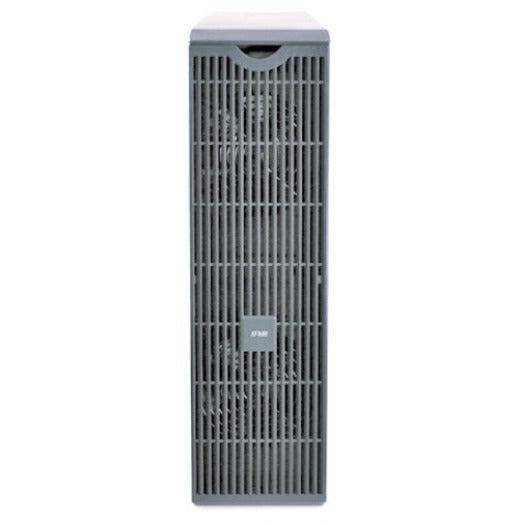

This APC Smart-UPS RT 5000VA Isolation Transformer is perfect for data centers, medical facilities, and mission-critical environments requiring galvanic isolation and advanced power conditioning. Our 230V rack mountable UPS accessory delivers:
-
Complete electrical isolation protecting sensitive equipment from ground loops and electrical noise
-
5000VA power capacity supporting high-performance servers and critical infrastructure equipment
-
Rack mountable design integrating seamlessly with APC Smart-UPS RT systems
-
Advanced power conditioning eliminating common mode noise and voltage transients
Key Features
-
5000VA isolation transformer providing complete galvanic separation for maximum protection
-
230V operation optimized for international and high-power applications
-
Rack mountable form factor designed for standard 19-inch server racks
-
Smart-UPS RT compatibility engineered specifically for APC UPS systems
-
Medical grade isolation meeting stringent safety standards for healthcare environments
-
Common mode noise rejection eliminating electrical interference and ground loop issues
-
Frequency isolation providing clean power delivery to sensitive electronic equipment
-
Professional installation designed for data center and enterprise environments
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Product Type |
Isolation Transformer |
| Power Rating |
5000VA |
| Input Voltage |
230V AC |
| Output Voltage |
230V AC |
| Form Factor |
Rack Mountable |
| Rack Height |
6U |
| Frequency |
50/60 Hz |
| Isolation Type |
Galvanic Isolation |
| Noise Reduction |
>40dB Common Mode |
| Safety Standards |
IEC 60601-1 Medical, UL Listed |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Humidity |
5-95% Non-condensing |
| Compatible Systems |
APC Smart-UPS RT Series |
| Dimensions |
17" W x 10.5" H x 24" D |
| Weight |
165 lbs (75 kg) |
Frequently Asked Questions
Q: What is the primary benefit of using an isolation transformer with UPS systems?
A: An isolation transformer provides complete galvanic isolation between input and output circuits, eliminating ground loops, reducing electrical noise, and protecting sensitive equipment from voltage transients. This 5000VA isolation transformer is essential for medical equipment, precision instruments, and mission-critical systems requiring the cleanest possible power delivery.
Q: Is this transformer compatible with all APC Smart-UPS models?
A: This APC Smart-UPS RT isolation transformer is specifically designed for the Smart-UPS RT series with 230V operation. The rack mountable design integrates seamlessly with RT series UPS units, providing optimal power conditioning and isolation for high-capacity enterprise applications.
Q: What environments require isolation transformers for UPS systems?
A: Medical facilities, laboratories, data centers with sensitive instrumentation, and environments with problematic electrical grounding benefit most from isolation transformers. This UPS accessory is particularly valuable where equipment experiences interference from ground loops or where medical-grade isolation is required for patient safety.
Q: How does this transformer improve power quality beyond standard UPS protection?
A: While UPS systems provide battery backup and surge protection, this isolation transformer adds complete electrical separation, eliminating common mode noise, ground loops, and providing superior electromagnetic isolation. The rack mountable transformer delivers medical-grade power conditioning that exceeds standard UPS filtration capabilities.
APC Smart-UPS RT 5000VA Isolation Transformer providing 230V rack mountable galvanic isolation for sensitive equipment protection and medical-grade power conditioning.
