This APC Smart-UPS X 2200VA is perfect for IT administrators, data center managers, and businesses who need reliable line interactive UPS protection for critical systems. Our convertible UPS delivers:
-
Server rack battery backup with 2200VA capacity for extended runtime protection
-
Rack mount ups and tower convertible design for flexible deployment options
-
SmartSlot expandability for network management and extended runtime solutions
-
C13 C19 outlets providing versatile connectivity for enterprise equipment
Key Features
-
Line interactive topology providing efficient power conditioning and protection
-
2200VA power capacity supporting critical server and network equipment
-

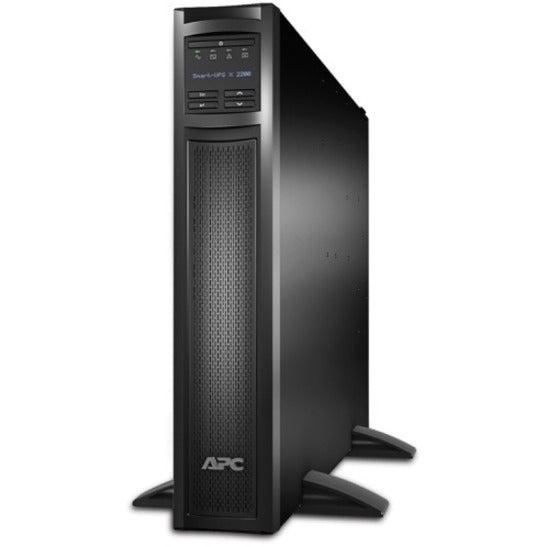

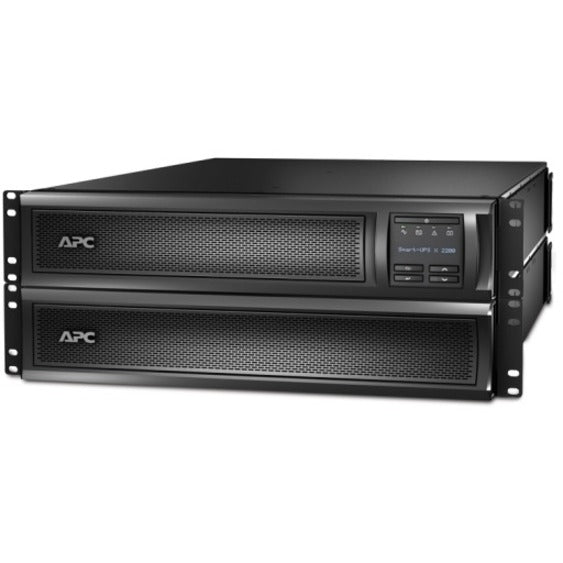

Convertible design enabling rack mount or tower configuration
-
SmartSlot interface for network management cards and accessories
-
208V to 230V operation optimized for international deployments
-

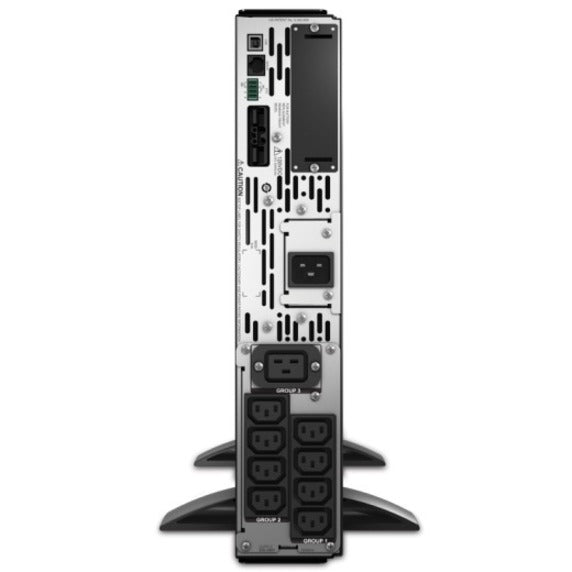

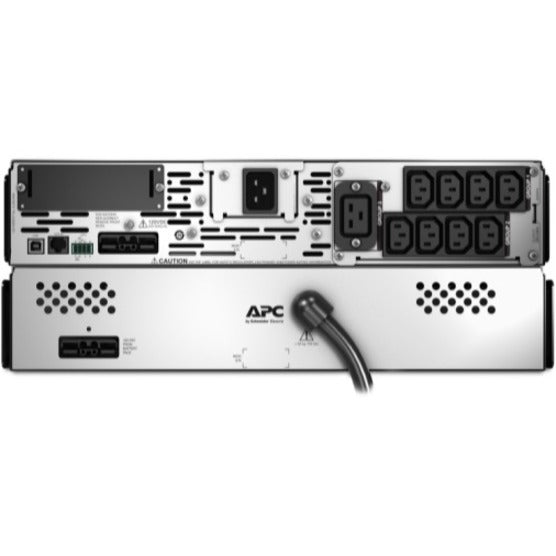

8x C13 and 1x C19 IEC outlets for comprehensive device connectivity
-
Automatic voltage regulation correcting voltage fluctuations without battery use
-
Cold start capability providing power even when utility power is unavailable
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SMX2200RMHV2U |
| UPS Type |
Line Interactive UPS |
| Power Capacity |
2200VA / 1980W |
| Input Voltage |
208V - 230V |
| Output Outlets |
8x C13, 1x C19 IEC |
| Form Factor |
Rack Mount / Tower Convertible |
| Rack Height |
2U |
| Runtime |
9 minutes at full load, 28 minutes at half load |
| Expandability |
SmartSlot for Network Management |
| Transfer Time |
2ms typical |
| Input Frequency |
50/60 Hz ±3 Hz |
| Operating Temperature |
0°C to 40°C |
| Dimensions (H x W x D) |
86 x 432 x 660 mm |
| Weight |
34.5 kg |
Target Use Cases
-
Data center server protection for critical infrastructure
-
Network equipment backup power for switches and routers
-
Telecommunications systems requiring uninterrupted operation
-
Industrial automation with sensitive control systems
-
Medical equipment protection in healthcare facilities
-
Financial services infrastructure ensuring transaction continuity
Frequently Asked Questions
Q: What is the difference between line interactive and online UPS systems?
A: This line interactive UPS provides automatic voltage regulation and battery backup during outages, making it more efficient than online systems for most applications. It offers excellent protection against power fluctuations while consuming less energy than double-conversion online UPS systems.
Q: Can I expand the runtime of this UPS system?
A: Yes, the SmartSlot interface allows connection of external battery packs and network management accessories. You can significantly extend runtime by adding compatible APC Smart-UPS external battery modules for longer backup periods during extended outages.
Q: Is this UPS suitable for international deployments?
A: Absolutely. The 208V to 230V operation range makes this rack mount UPS ideal for international data centers and facilities. The wide input voltage range accommodates various international power standards and grid conditions.
Q: How do I configure this UPS for rack mount versus tower installation?
A: This convertible UPS includes mounting brackets and hardware for both configurations. For server rack battery backup installation, use the included rack ears for 2U mounting. For tower use, attach the stabilizing feet and position vertically.
Q: What network management options are available?
A: The SmartSlot interface supports APC network management cards, enabling remote monitoring, graceful shutdowns, and environmental monitoring. This makes it ideal for networkable UPS applications in enterprise environments.
APC Smart-UPS X 2200VA line interactive UPS with rack mount tower convertible design. 208V-230V operation, SmartSlot, C13/C19 outlets.
