1.92kW, 1,92kVA, 120V, 50/60Hz, USB, LED, 530J, 480x683x86mm, 42.31kg, Black
APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 1.92 kVA, Output power: 1920 W. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA L5-20P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 494 VAh, Battery life (max): 5 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 480 mm, Depth: 683 mm, Height: 86 mm

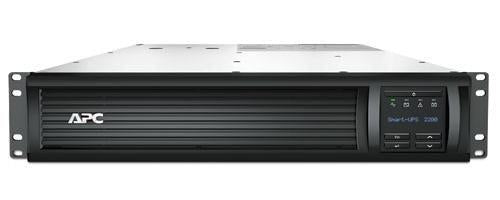

APC Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
Reliable network power protection designed for deployment in retail and open access environments. Includes : CD with software , Documentation CD , Rack Mounting brackets , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable
- Cold-start capable Provides temporary battery power when the utility power is out. - Energy meter Provides actual kilowatt hours of usage for energy conscious users. - Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - High online efficiency Reduces utlility costs, generates less heat. - Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. - Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. - Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - Sequenced network shutdown and reboot Customize network shutdown and reboot sequence of connected servers and UPSs. - Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. - SmartSlot Customize UPS capabilities with management cards. - StruxureWare Data Center Expert compatible Enables centralized management via StruxureWare Data Center Expert. - Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMT2200R2X106
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
Product Type
Line-interactive UPS
UPC
731304294085
Battery Information
Battery Chemistry
Lead Acid
Product Color
Black
Height
3.4"
Width
18.9"
Depth
26.9"
Weight (Approximate)
93.28 lb
Miscellaneous
Package Contents
Smart-UPS 2200VA LCD RM 2U 120V with L5-20P
CD with software
Documentation CD
Rack mounting brackets
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery
