APC Smart-UPS 1500VA. UPS topology: Line-Interactive, Output power capacity: 1.44 kVA, Output power: 1000 W. AC outlet types: NEMA 5–15R, Power plug: NEMA L5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 432 VAh, Battery life (max): 6 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 457 mm, Height: 89 mm

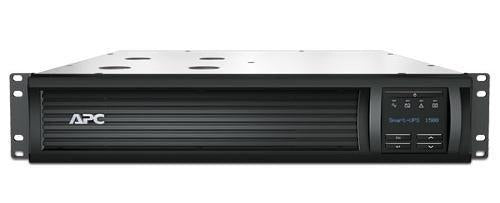

APC Smart-UPS 1500VA LCD RM 2U 120V with L5-15P
Reliable network power protection designed for deployment in retail and open access environments. Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable - Cold-start capable Provides temporary battery power when the utility power is out. - Energy meter Provides actual kilowatt hours of usage for energy conscious users. - Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - High online efficiency Reduces utlility costs, generates less heat. - Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. - Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. - Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. - SmartSlot Customize UPS capabilities with management cards. - Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature.
Serviceability
- Easy to install Innovative design allows for fast, easy installation by almost anybody. - User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR) - Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced - Technical support Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it.
Availability
- Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. - Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. - Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. - Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power.
Manageability
- USB connectivity Provides management of the UPS via a USB port (not available on all models). - SmartSlot Customize UPS capabilities with management cards. - Serial connectivity Provides management of the UPS via a serial port. - LED Indicators Provide easy-to-read status of the unit and utility power conditions. - Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging.
General Information
Manufacturer
Schneider Electric SA
Manufacturer Part Number
SMT1500R2X122
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS 1500VA LCD RM 2U 120V with L5-15P
Product Type
Line-interactive UPS
UPC
731304294061
Battery Information
Battery Chemistry
Lead Acid
Product Color
Black
Height
3.5"
Width
17"
Depth
18"
Weight (Approximate)
63.14 lb
Miscellaneous
Package Contents
Smart-UPS 1500VA LCD RM 2U 120V with L5-15P
CD with software
Documentation CD
Installation guide
Rack mounting support rails
Smart UPS signalling RS-232 cable
USB cable
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
3 Year
Additional Warranty Information
3 years repair or replace (excluding battery) and 2 years for battery
