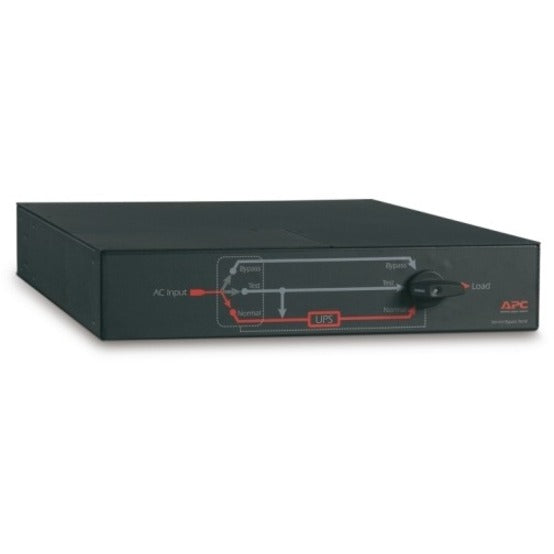

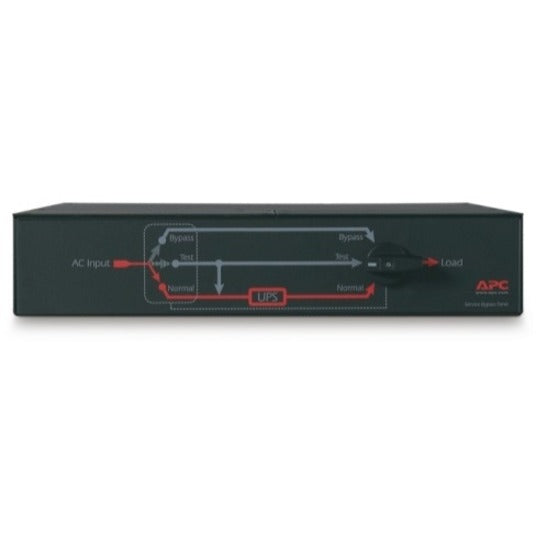

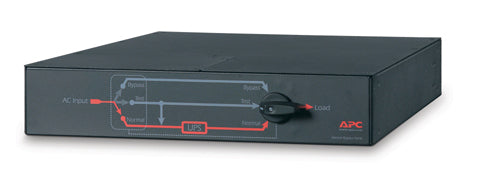

This UPS maintenance bypass panel is perfect for data center managers, facility engineers, and IT professionals who need uninterrupted power during UPS service and maintenance. Our APC Service Bypass Panel delivers:
-
30A capacity supporting high-power UPS systems up to 5000VA
-
Multiple voltage compatibility for 200V, 208V, and 240V installations
-
2U rackmount design for efficient data center space utilization
-
Manual bypass switching ensuring continuous power during UPS maintenance
Key Features
-
Manual bypass operation allowing safe UPS removal without power interruption
-
High current capacity supporting 30A continuous operation
- Optimized for critical power applications requiring zero downtime
- Consistent power continuity during equipment service intervals
-
L6-30P input connection for standard high-power applications
-

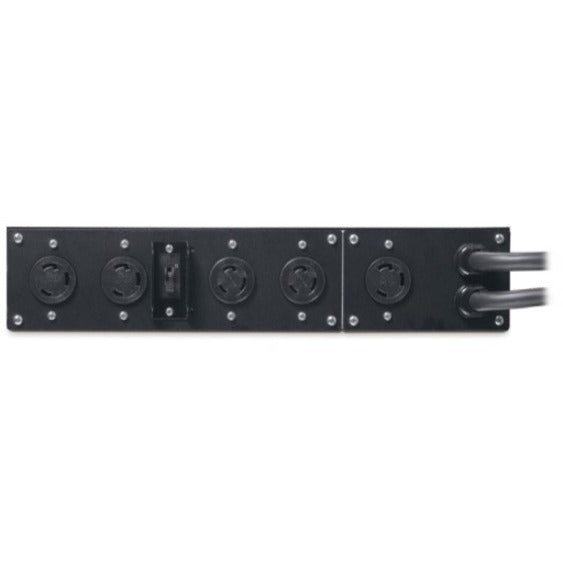

Dual L6-30R and dual L6-20R outputs providing flexible connectivity
-
BBM (Bypass Breaker Module) configuration for enhanced safety
-
Compact 2U form factor minimizing rack space requirements
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SBP5000RMT2U |
| Type |
UPS Service Bypass Panel |
| Current Rating |
30A Continuous |
| Voltage Range |
200V/208V/240V |
| Input Connection |
L6-30P |
| Output Connections |
(2) L6-30R, (2) L6-20R |
| Configuration |
BBM (Bypass Breaker Module) |
| Mounting |
2U Rackmount |
| Operation |
Manual Bypass Switch |
| Compatible Systems |
UPS systems up to 5000VA, critical power infrastructure |
Frequently Asked Questions
Q: What is the purpose of a UPS bypass panel?
A: This service bypass panel allows you to maintain continuous power to connected equipment while removing the UPS system for maintenance, repair, or replacement — ensuring zero downtime for critical operations.
Q: What UPS systems is this bypass panel compatible with?
A: It's engineered for 30A UPS systems up to 5000VA capacity, compatible with various APC Smart-UPS models and other manufacturers' units requiring 200V, 208V, or 240V input power.
Q: How does the manual bypass operation work?
A: The manual bypass switch allows you to transfer the load from UPS power to direct utility power, isolate the UPS safely, then restore normal operation — all while maintaining power to critical equipment.
Q: What are the connection requirements for installation?
A: The panel features an L6-30P input for incoming power and provides (2) L6-30R plus (2) L6-20R outputs, offering flexible connectivity options for various equipment configurations and power distribution needs.
APC Service Bypass Panel 30A for UPS maintenance. 2U rackmount design with manual bypass switching for continuous power during service.
