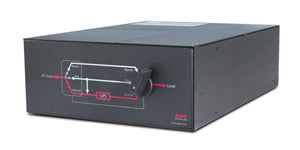

This APC service bypass panel SBP16KRMP4U-HW is perfect for data center managers and facility engineers who need reliable maintenance bypass panel capabilities for continuous power during UPS servicing. Our solution delivers:
-
208V/100A hardwire configuration providing robust power distribution for high-capacity installations
-
Maintenance bypass panel functionality enabling seamless UPS servicing without power interruption
-
Rack mount power distribution unit design optimizing space utilization in 4U form factor
-
Symmetra LX compatibility ensuring perfect integration with existing APC UPS systems
Key Features
-
208V/240V multi-voltage support accommodating diverse power requirements
-
100A hardwire input/output delivering high-capacity power distribution
-
4U rack mountable design optimizing data center space utilization
-

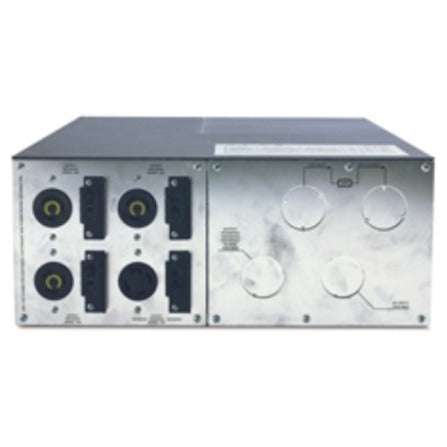

Multiple outlet configurations including L14-30R and L5-20R receptacles
-
UL 1778 and CSA certified ensuring compliance with electrical safety standards
-
Symmetra LX and Smart-UPS compatibility supporting 4kVA to 16kVA systems
-
Continuous power supply capability maintaining critical system operation during maintenance
-
Professional hardwire installation providing permanent, high-reliability connections
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SBP16KRMP4U-HW |
| Type |
Maintenance Bypass Panel |
| Input Voltage |
200/208/240V |
| Current Rating |
100A |
| Output Receptacles |
(1) L14-30R, (3) L5-20R |
| Form Factor |
4U Rack Mount |
| Dimensions |
17" W x 26.5" D x 7" H |
| Operating Temperature |
-4°F to 122°F (-20°C to 50°C) |
| Installation Type |
Hardwire Input/Output |
| Certifications |
UL 1778, CSA |
| Compatible Systems |
Symmetra LX, Smart-UPS (4kVA-16kVA) |
Frequently Asked Questions
Q: What is the purpose of a maintenance bypass panel in UPS systems?
A: A maintenance bypass panel allows continuous power supply to critical loads while performing UPS maintenance or repairs. The APC SBP16KRMP4U-HW enables seamless switching between UPS and utility power, ensuring zero downtime during service operations.
Q: Which APC UPS systems are compatible with this bypass panel?
A: This 208V bypass panel is specifically designed for Symmetra LX and Smart-UPS systems ranging from 4kVA to 16kVA capacity. It provides perfect integration with existing APC infrastructure for comprehensive power protection strategies.
Q: What are the advantages of hardwire installation over plug connections?
A: Hardwire bypass panel installation provides permanent, high-reliability connections with superior current-carrying capacity. The 100A hardwire configuration eliminates connection points that could fail, ensuring maximum system reliability for critical applications.
Q: How does the 4U rack mount design benefit data center installations?
A: The 4U rack mountable form factor maximizes space efficiency in standard 19-inch racks while providing comprehensive power distribution unit functionality. This compact design integrates seamlessly with existing rack infrastructure without consuming excessive vertical space.
Q: What safety certifications does this bypass panel maintain?
A: The APC service bypass panel maintains UL 1778 and CSA certifications, ensuring compliance with North American electrical safety standards for critical power distribution equipment in commercial and industrial applications.
APC Service Bypass Panel SBP16KRMP4U-HW 208V 100A maintenance bypass panel, 4U rack mount, hardwire, Symmetra LX compatible for continuous power supply.
