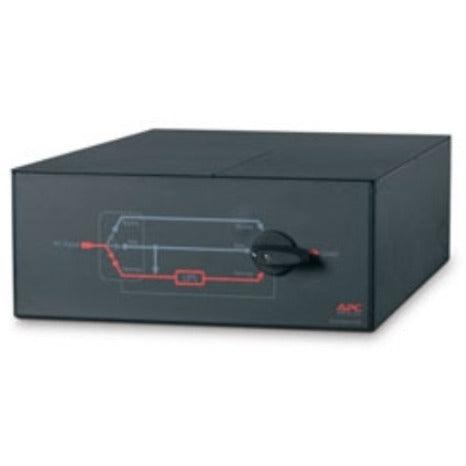

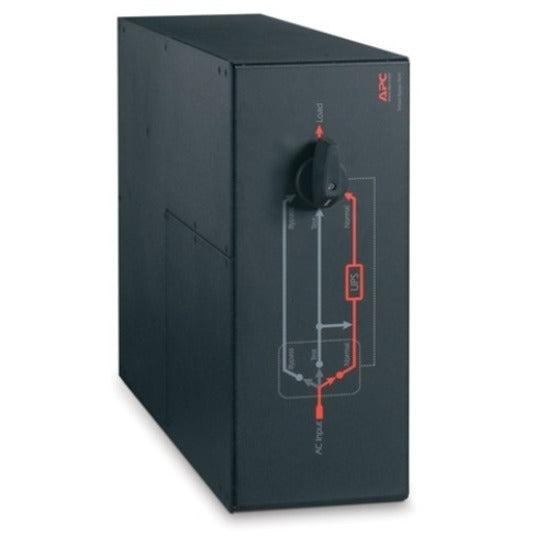

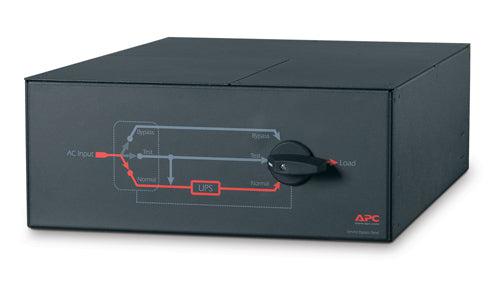

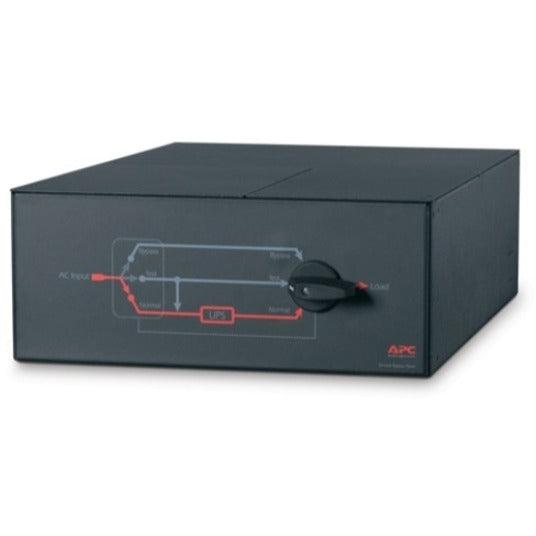

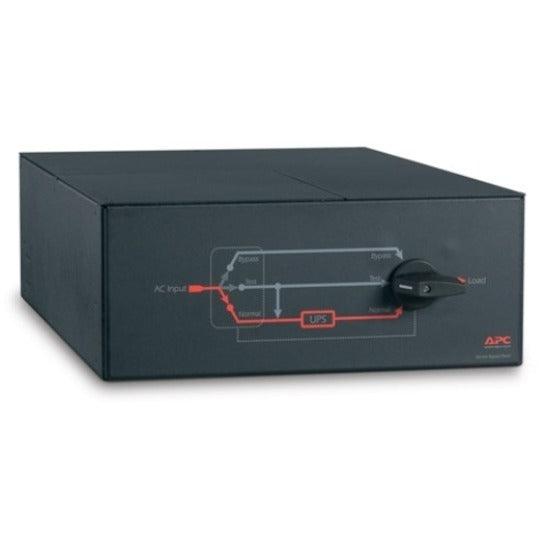

APC Service Bypass Panel- 200/208/240V. Product colour: Black. Input connection type: Hard Wire 3-wire (2PH + G), NEMA L6-30P, Output connections: 2x NEMA L6-20R 1x NEMA L6-30R. Cable length: 3.05 m, Certification: CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778. Load capacity: 6000 VA, Maximum input current per phase: 30 A, Maximum total current draw per phase: 30 A. Dimensions (WxDxH): 432 x 650 x 89 mm, Weight: 13.6 kg
19 inch Rack-Mountable Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
Quick Transfer Rate Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass (3) Breaker maintenance bypass panel to isolate the UPS from the critical load Meets UL Requirements
General Information
Manufacturer
Schneider Electric SA
Manufacturer Website Address
http://www.schneider-electric.com
Brand Name
APC by Schneider Electric
Product Name
19" Rack Mountable 100A Maintenance Bypass Panel
Product Type
Bypass Panel
UPC
731304212621
Physical Characteristics
Color Family
Black
Product Color
Black
Height
7"
Width
17"
Depth
26.5"
Weight (Approximate)
48.10 lb
Miscellaneous
Package Contents
19" Rack Mountable 100A Maintenance Bypass Panel
Installation guide
Rack mounting brackets
User manual
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
2 Year
Additional Warranty Information
2 years (parts only)
