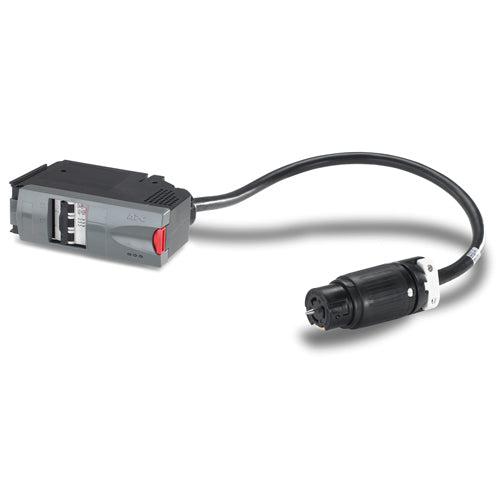

This Power Distribution Module is perfect for data center managers, electrical engineers, and facility technicians who need reliable 3 Pole 4 Wire power distribution for critical infrastructure. Our APC IT Power Distribution Module CS50 delivers:
-
50A current capacity supporting high-power industrial and data center applications
-
208V three-phase power distribution for optimal load balancing and efficiency
-
CS50 configuration providing standardized industrial power connectivity
-
APC power distribution unit reliability with enterprise-grade build quality
Key Features
-
800cm cable length enabling flexible installation configurations
-
Three-phase electrical design for balanced power distribution
-
Industrial-grade construction meeting rigorous data center requirements
-
CS50 connector standard ensuring compatibility with industrial equipment
-
High current capacity supporting demanding electrical loads
-
Modular power distribution unit design for scalable installations
-
Temperature-rated components for reliable operation in harsh environments
-
Strain relief protection preventing cable damage during installation
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
CS50 |
| Type |
Power Distribution Module |
| Configuration |
3 Pole 4 Wire |
| Current Rating |
50A |
| Voltage Rating |
208V AC Three-Phase |
| Cable Length |
800cm (26.2 feet) |
| Connector Type |
CS50 Industrial Standard |
| Wire Configuration |
3 Phase + Neutral + Ground |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Insulation Rating |
600V AC |
| Wire Gauge |
6 AWG (phase conductors) |
| Jacket Material |
PVC industrial-grade cable jacket |
| Certifications |
UL Listed, CSA Certified, RoHS Compliant |
| Environmental Rating |
Indoor/Outdoor suitable with proper protection |
| Compatible Systems |
Industrial power distribution unit, data center PDUs, electrical panels, three-phase equipment |
Frequently Asked Questions
Q: What applications is this Power Distribution Module best suited for?
A: This Power Distribution Module is ideal for power distribution unit data center installations, industrial equipment connections, and three-phase electrical panels requiring reliable 50A current capacity and standardized CS50 connectivity.
Q: Why is the 3 Pole 4 Wire configuration important?
A: The 3 Pole 4 Wire design provides three-phase power with separate neutral and ground conductors, enabling balanced load distribution, reduced neutral current, and improved electrical safety for 208V three-phase systems.
Q: How does the 800cm cable length benefit installation flexibility?
A: The extended 800cm (26.2 feet) cable length allows for flexible routing between electrical panels and equipment, reducing the need for junction boxes and enabling clean installations in large 3 phase power distribution unit environments.
Q: Is this module compatible with other APC power distribution equipment?
A: Yes, this APC power distribution unit module integrates seamlessly with APC's IT power distribution infrastructure, providing standardized CS50 connectivity for scalable data center power management solutions.
Q: What safety certifications does this industrial power module have?
A: This industrial power distribution unit component is UL Listed and CSA Certified, meeting North American electrical safety standards for commercial and industrial installations, ensuring reliable operation in demanding environments.
APC IT Power Distribution Module 3 Pole 4 Wire 50A CS50 208V with 800cm cable. Industrial-grade PDM for data center and electrical panel applications.
