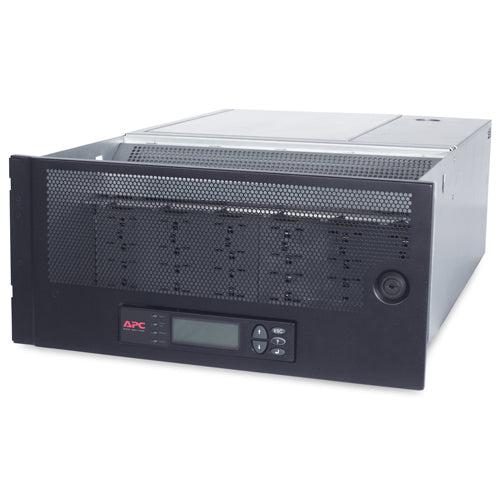

This APC modular power distribution unit is perfect for data center operators and electrical engineers who need high-capacity power distribution for critical infrastructure. Our modular power distribution panel delivers:
-
138kVA power capacity for high-density rack environments
-
Modular power distribution unit design for flexible configurations
-
5U rack mount form factor optimizing space utilization
-
3 phase power distribution unit ensuring balanced load management
Key Features
-
138kVA power capacity supporting high-density installations
-
200A current rating with 400V three-phase input
- Optimized for rack mount power distribution units pdu applications
- Consistent power distribution unit rack mount performance
-
18-pole configuration enabling multiple circuit distribution
- Modular design for scalable power management
- 5U rack height for efficient space utilization
- Circuit protection with individual breakers
- LED status indicators for quick diagnostics
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
PDPM138H-5U |
| Type |
Modular Power Distribution Panel |
| Power Capacity |
138kVA |
| Current Rating |
200A |
| Input Voltage |
400V AC |
| Phase Configuration |
Three-phase |
| Pole Configuration |
18 Pole |
| Rack Height |
5U (8.75 inches / 222mm) |
| Mounting |
19-inch rack mountable |
| Circuit Protection |
Individual circuit breakers |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Humidity Range |
0-95% RH, non-condensing |
| Certifications |
UL, CE, RoHS compliant |
| Compatible Systems |
Standard 19-inch racks and electrical panels |
Target Use Cases
-
Data Center Power Distribution - Primary power distribution for high-density server environments
-
Enterprise Server Rooms - Centralized power management for critical IT infrastructure
-
Colocation Facilities - Multi-tenant power distribution with individual circuit protection
-
Industrial Applications - Robust power distribution for manufacturing and process control
-
Telecommunications Infrastructure - Reliable power for network equipment and communications systems
-
Critical Power Systems - Mission-critical applications requiring redundant power paths
Key Benefits
-
High Power Density - 138kVA capacity in compact 5U form factor maximizes rack efficiency
-
Modular Flexibility - Configurable design allows customization for specific requirements
-
Enhanced Safety - Individual circuit breakers provide comprehensive overcurrent protection
-
Easy Monitoring - LED indicators enable quick status assessment and troubleshooting
-
Professional Installation - Standard rack mounting simplifies deployment
-
Reliable Performance - APC engineering ensures consistent power distribution
-
Scalable Architecture - Multiple units can be deployed for larger installations
Frequently Asked Questions
Q: What makes this a modular power distribution unit compared to standard PDUs?
A: This modular power distribution unit features configurable circuit arrangements and expandable design, allowing customization of power distribution to meet specific rack and equipment requirements unlike fixed-configuration standard PDUs.
Q: Can this power distribution unit rack mount in standard server racks?
A: Yes, this power distribution unit rack mount design fits all standard 19-inch server racks with its 5U form factor. It's specifically engineered for rack mount power distribution units pdu installations in data centers.
Q: How many circuits can this 18-pole power distribution panel support?
A: This 18-pole configuration supports up to 18 individual circuits, each with dedicated circuit protection. This provides flexible power distribution for 3 phase power distribution unit applications with comprehensive load management.
Q: Is this suitable for high-density data center environments?
A: Yes. With its 138kVA capacity and metered power distribution unit capabilities, it's designed specifically for high-density installations where reliable power distribution and monitoring are critical for mission-critical operations.
APC Modular Rack Distribution Panel 138kVA 200A 400V for data centers. Professional-grade power distribution with 18-pole configuration and 5U design.
