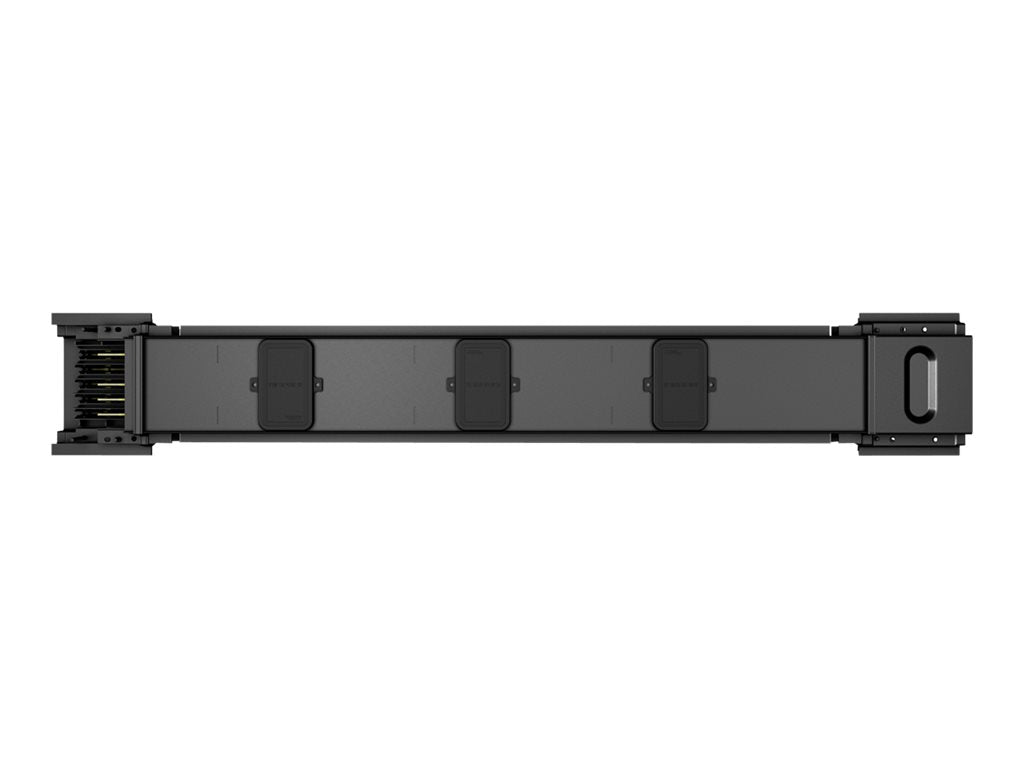

APC iBusway for Data Center - Bus bar - AC 208/415/600 V - 3-phase - Canada, United States - black - for P/N: PBCF4A400ATBB, PBCF4A400ATBM1B, PBCF4A400ATBM4B
- Reduce installation time and effort, and eliminate wiring mistakes during installation, with preassembled units that snap together
- With up to 20 plug-in openings every 10 feet, this high-density solution ensures convenient placement of tap off units above the IT racks they support and provides flexibility to meet future power demands
- Above-the-row busway system eliminates underfloor cable distribution and overloaded PDU panels while reducing the chance for human error when moving, adding, or changing critical branch circuits
- Powerbus busway uses silver-plated copper bus conductors for the greatest electrical efficiency
Totally enclosed bus bar conductors with finger-safe plug-in openings. Outlets directly above racks ensure flexibility when you need to move, add, or change a branch circuit. Spring‐joint connectors simplify installation and reduce maintenance requirements. No special tools required for installation.
-
Aluminum housing
The busway straights are built of strong, lightweight, easy to maneuver all-aluminum housing.
-
Totally enclosed busway straights
The busway straight housing is totally enclosed, which protects users from accidental contact with the bus bars.
