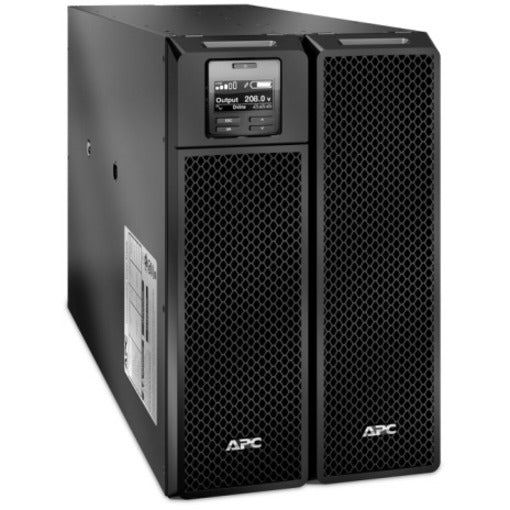

This APC Smart UPS solution is perfect for enterprise data centers and mission-critical facilities requiring high-capacity, reliable power protection with advanced online UPS technology. Our Smart-UPS Online SRT10KXLT30 delivers:
-
Double conversion technology providing superior power conditioning and protection
-
Pure sine wave output ensuring compatibility with sensitive equipment
-
10kVA capacity supporting high-power enterprise applications
-
Tower configuration offering flexible installation options
Key Features
-
Double conversion online topology for maximum power protection
-
10kVA / 10kW power capacity for high-demand applications
-
Pure sine wave output compatible with all equipment types
-
Tower form factor with optional rack-mount capability
- 6 × L6-30R NEMA outlets for enterprise equipment connectivity
-
Online UPS design with zero transfer time
- Extended runtime capability with additional battery packs
Technical Specifications
| Manufacturer |
APC by Schneider Electric |
| Model Number |
SRT10KXLT30 |
| Type |
Double Conversion Online UPS |
| Form Factor |
Tower (convertible to rack-mount) |
| Power Rating |
10000VA / 10000W |
| Input Voltage |
208V ±10% |
| Output Voltage |
208V ±2% |
| Waveform |
Pure sine wave |
| Frequency |
60 Hz ±0.1% |
| Topology |
True double conversion (online) |
| Transfer Time |
Zero (continuous power conversion) |
| Efficiency |
Up to 94% at full load |
| Power Factor |
1.0 (unity power factor) |
| Outlets |
6 × NEMA L6-30R locking outlets |
| Battery Type |
Sealed lead-acid, maintenance-free |
| Runtime |
6.5 minutes at full load (expandable) |
| Display |
LCD with comprehensive status information |
| Communication |
USB, Serial, SmartSlot, Network Management Card |
| Dimensions |
10.4" W × 17.1" D × 20.6" H |
| Weight |
209 lbs (95 kg) |
| Compatible Systems |
Servers, storage arrays, network equipment, critical infrastructure |
Double Conversion Technology
The SRT10KXLT30 double conversion design provides the highest level of power protection:
- Continuous power conversion eliminates all electrical disturbances
- Complete isolation between input and output power
- Advanced harmonic filtering reduces total harmonic distortion
- Input power factor correction improves utility efficiency
- Wide input voltage tolerance accommodates poor utility power
- Precise voltage regulation within ±2% under all conditions
- Frequency regulation to ±0.1% for sensitive equipment
Pure Sine Wave Output
The pure sine wave output ensures optimal equipment compatibility:
- Clean sinusoidal waveform identical to utility power
- Eliminates equipment compatibility issues and stress
- Reduces audible noise from connected equipment
- Prevents premature aging of power supplies
- Maximizes efficiency of connected equipment
- Supports power factor correction in connected devices
- Essential for sensitive electronic equipment operation
10kVA High-Capacity Power
The robust 10kVA / 10kW capacity supports demanding applications:
- High power density for enterprise server environments
- Unity power factor maximizes usable power output
- Overload capability handles inrush current demands
- Multiple high-power equipment support simultaneously
- Scalable runtime with additional battery modules
- Parallel operation capability for higher capacity needs
- Load segmentation for selective equipment protection

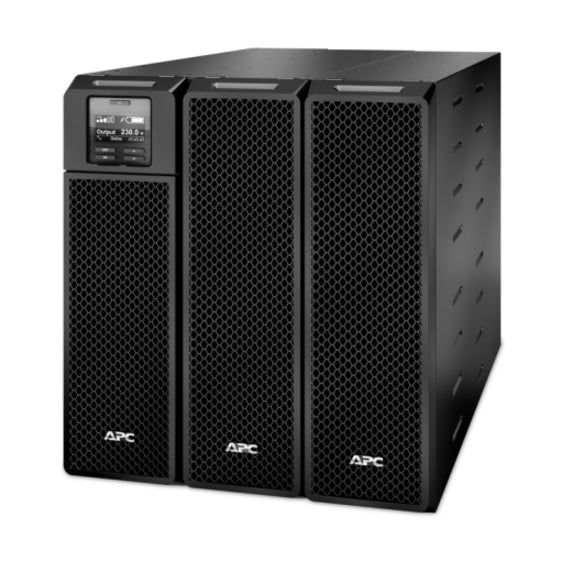

Versatile Tower Configuration
The flexible tower form factor provides installation versatility:
- Floor-standing design requires no rack space
- Convertible to rack-mount with optional rail kit
- Front-panel access for easy operation and monitoring
- Integrated handles for easier positioning
- Professional appearance suitable for office environments
- Optimized airflow design for efficient cooling
- Compact footprint maximizes facility space utilization
Online UPS Protection
True online UPS topology ensures maximum protection:
- Zero transfer time during power disturbances
- Continuous power conditioning regardless of input quality
- Immune to all types of power quality problems
- No switching between battery and utility power
- Constant voltage and frequency regulation
- Galvanic isolation protects against ground loops
- Superior protection compared to line-interactive UPS
Advanced Network Management
Comprehensive networkable UPS capabilities enable remote monitoring:
- Network Management Card provides SNMP monitoring
- SmartSlot compatibility for optional accessories
- Web-based interface for remote configuration
- PowerChute software for automated shutdown
- Email notifications for critical events
- Integration with virtualization platforms
- Mobile app support for smartphone monitoring
L6-30R Outlet Configuration
The 6 NEMA L6-30R outlets provide secure enterprise connectivity:
- Twist-lock design prevents accidental disconnection
- 30-amp capacity supports high-power equipment
- Color-coded outlets for easy identification
- Individual outlet monitoring and control available
- Sequential outlet startup prevents inrush overload
- Emergency power-off functionality
- Industrial-grade construction for reliability
Extended Runtime Capabilities
Scalable battery systems support extended operation:
- Hot-swappable battery modules for maintenance
- Additional external battery packs for longer runtime
- Intelligent battery management extends battery life
- Temperature-compensated charging optimization
- Automatic battery testing identifies weak batteries
- Battery replacement indicators prevent failures
- Energy-saving features maximize backup time
Enterprise Monitoring & Control
This Smart UPS includes comprehensive monitoring features:
- Large LCD display shows all system parameters
- Real-time load monitoring and capacity planning
- Energy usage tracking for cost allocation
- Environmental monitoring with optional sensors
- Historical data logging for trend analysis
- Customizable alarm settings and notifications
- Predictive analytics for proactive maintenance
Communication Interfaces
Multiple communication options ensure seamless integration:
- USB connectivity for direct computer communication
- Serial port for legacy system integration
- SmartSlot for network management cards
- Contact closure inputs and outputs
- ModBus communication for industrial applications
- BACnet support for building management
- Third-party integration APIs available
Safety & Compliance
Meeting industry standards ensures safety and reliability:
- UL 1778 Listed for uninterruptible power supplies
- FCC Part 15 Class A electromagnetic compatibility
- CSA certified for Canadian market compliance
- CE marking for European requirements
- IEC 62040-1 safety standard compliance
- Energy Star qualified for efficiency
- RoHS environmental compliance
Use Cases & Applications
This APC Smart UPS excels in demanding enterprise environments:
- Data centers requiring high-capacity online UPS protection
- Manufacturing facilities with critical process equipment
- Healthcare systems protecting life-safety equipment
- Financial institutions with regulatory compliance needs
- Telecommunications infrastructure and network operations
- Research laboratories with sensitive instrumentation
- Educational institutions with mission-critical IT systems
Energy Efficiency & Sustainability
High-efficiency operation reduces environmental impact:
- Up to 94% efficiency reduces energy consumption
- ECO mode operation for additional energy savings
- Power factor correction reduces utility demand charges
- Energy monitoring supports sustainability initiatives
- Reduced heat generation lowers cooling requirements
- Recyclable components support environmental goals
- Long service life minimizes replacement frequency
Installation & Service Support
Professional installation and service ensure optimal performance:
- Factory-trained technicians provide expert installation
- Startup services verify proper operation
- Comprehensive warranty with local service support
- Preventive maintenance programs maximize reliability
- 24/7 technical support for critical applications
- Remote monitoring services with proactive alerts
- Rapid response service minimizes downtime risks
Scalability & Expansion
Future-ready design accommodates growing requirements:
- Parallel operation supports redundancy and capacity expansion
- Modular battery systems enable runtime extension
- Hot-sync parallel configuration for seamless expansion
- Investment protection through upgrade paths
- Compatible with future technology developments
- Trade-in programs facilitate technology upgrades
- Flexible configuration options support diverse needs
Frequently Asked Questions
Q: What are the benefits of double conversion technology?
A: Double conversion provides continuous power conditioning, complete isolation from utility disturbances, zero transfer time, and precise voltage/frequency regulation - ensuring the highest level of protection for critical equipment.
Q: Why is pure sine wave output important?
A: Pure sine wave output provides clean power identical to utility power, eliminating equipment compatibility issues, reducing stress on power supplies, minimizing audible noise, and maximizing the efficiency of connected equipment.
Q: How does the 10kVA capacity benefit enterprise applications?
A: The 10kVA / 10kW capacity with unity power factor supports multiple high-power servers and equipment simultaneously, provides headroom for growth, and handles inrush current demands typical in enterprise environments.
Q: Can the tower configuration be rack-mounted?
A: Yes. While designed as a tower UPS, the SRT10KXLT30 can be converted to rack-mount configuration using an optional rail kit, providing installation flexibility for different environments.
Q: What makes this an online UPS?
A: The online UPS design continuously converts incoming power through the inverter, providing zero transfer time, constant power conditioning, and complete isolation from all power quality problems - superior to offline or line-interactive topologies.
